37th Precision Sheet Metal Technology Fair

Welding fabrication (23 entries)

Welding313

Technical Encouragement Award

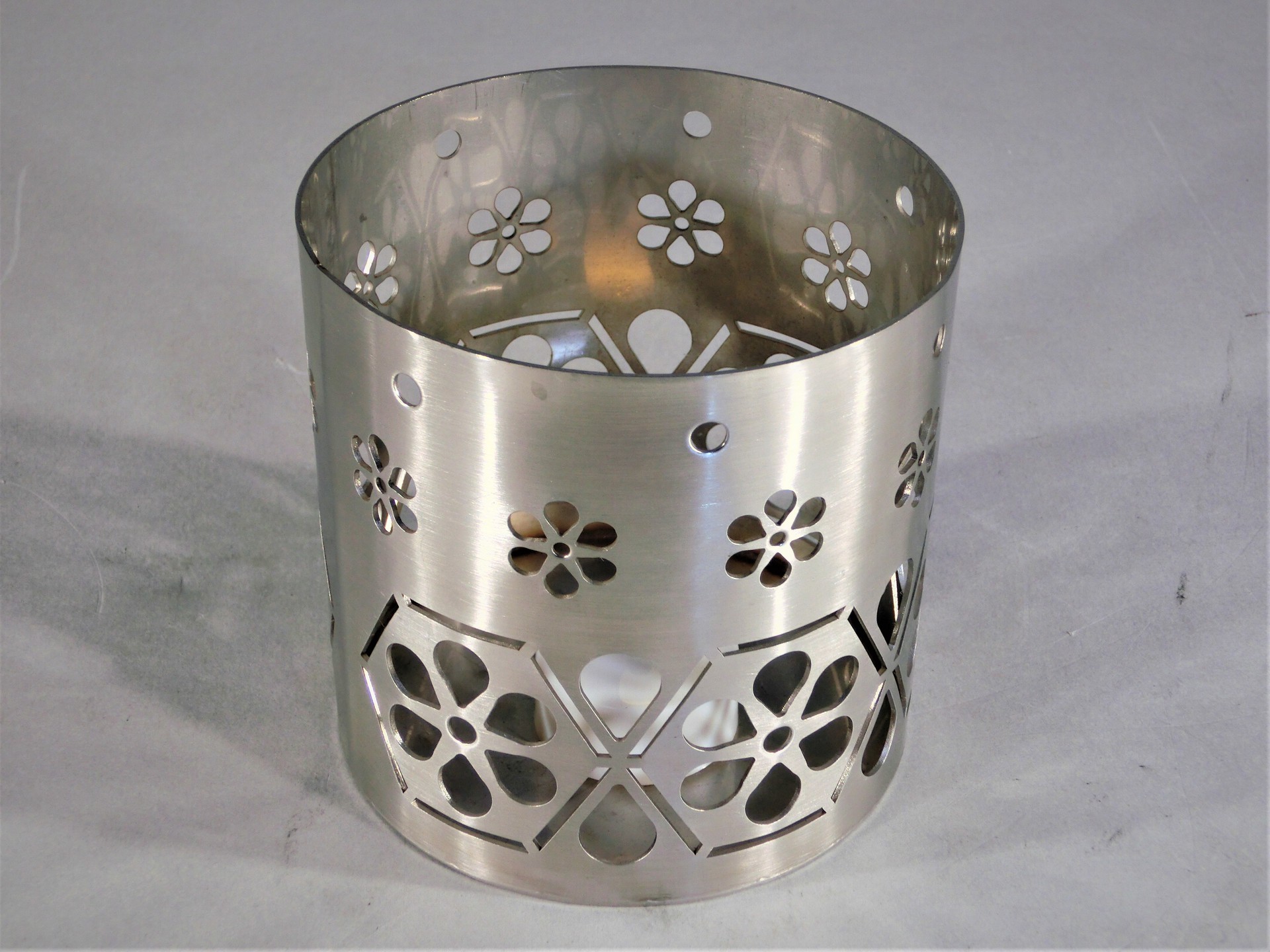

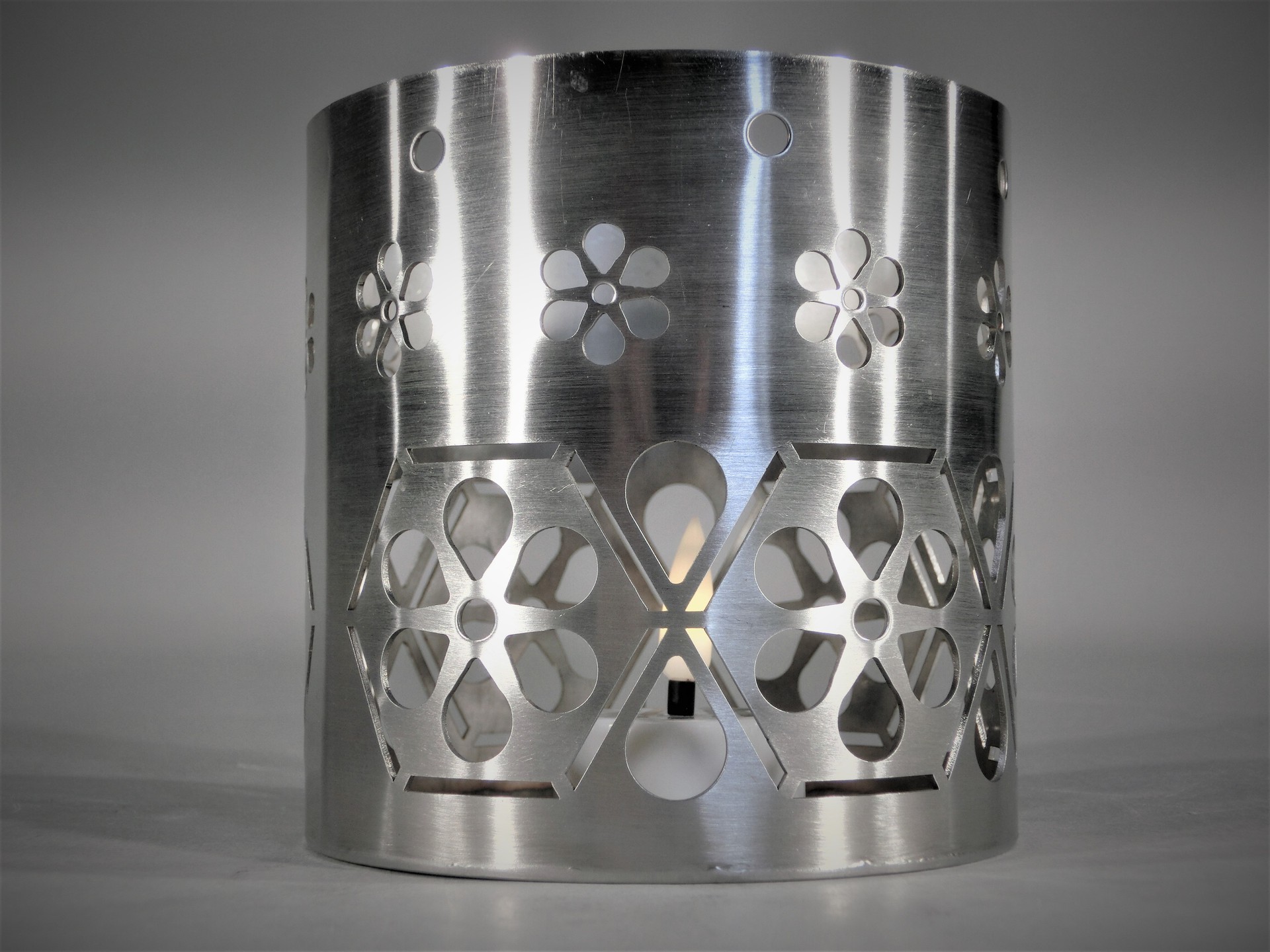

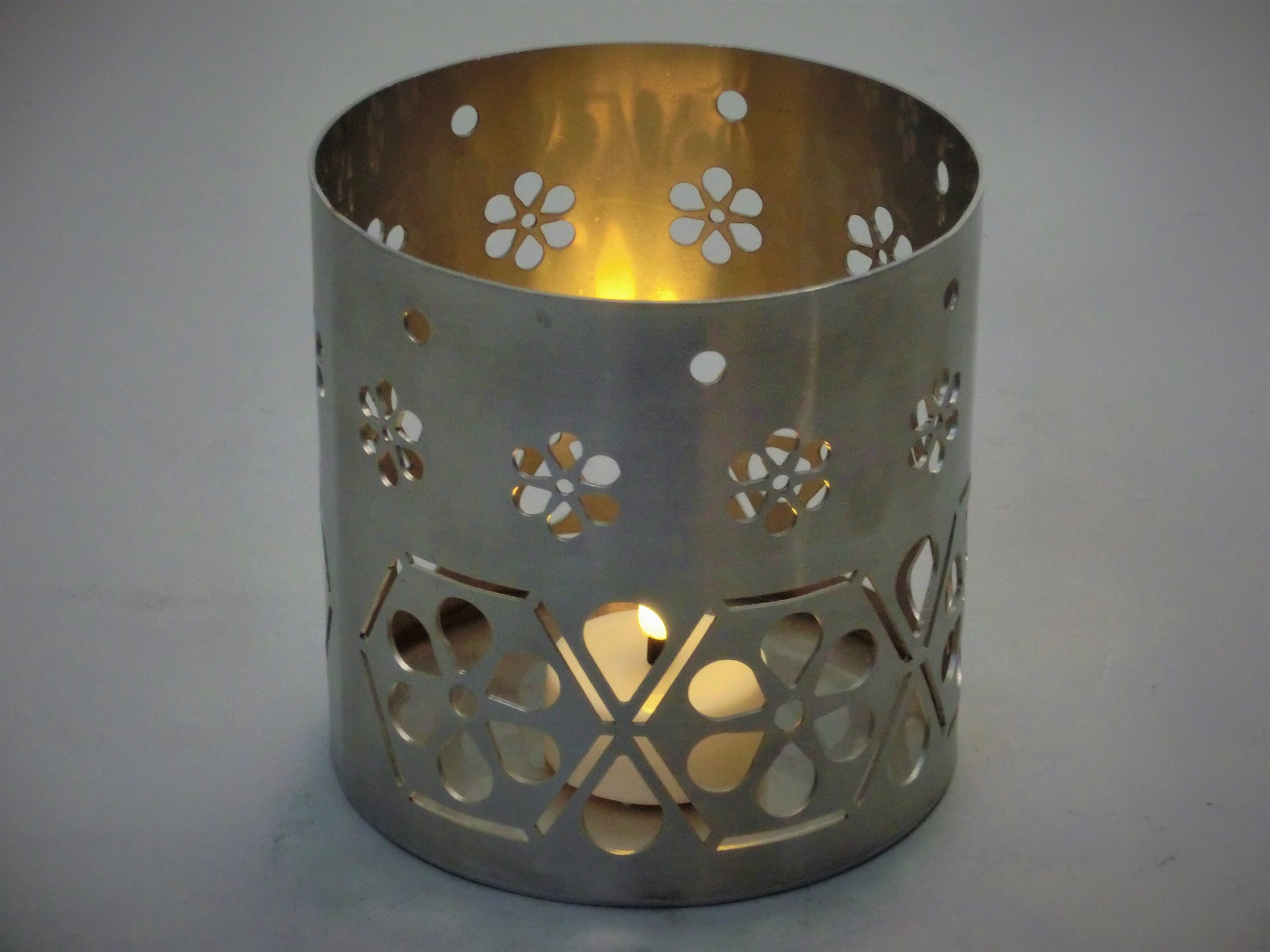

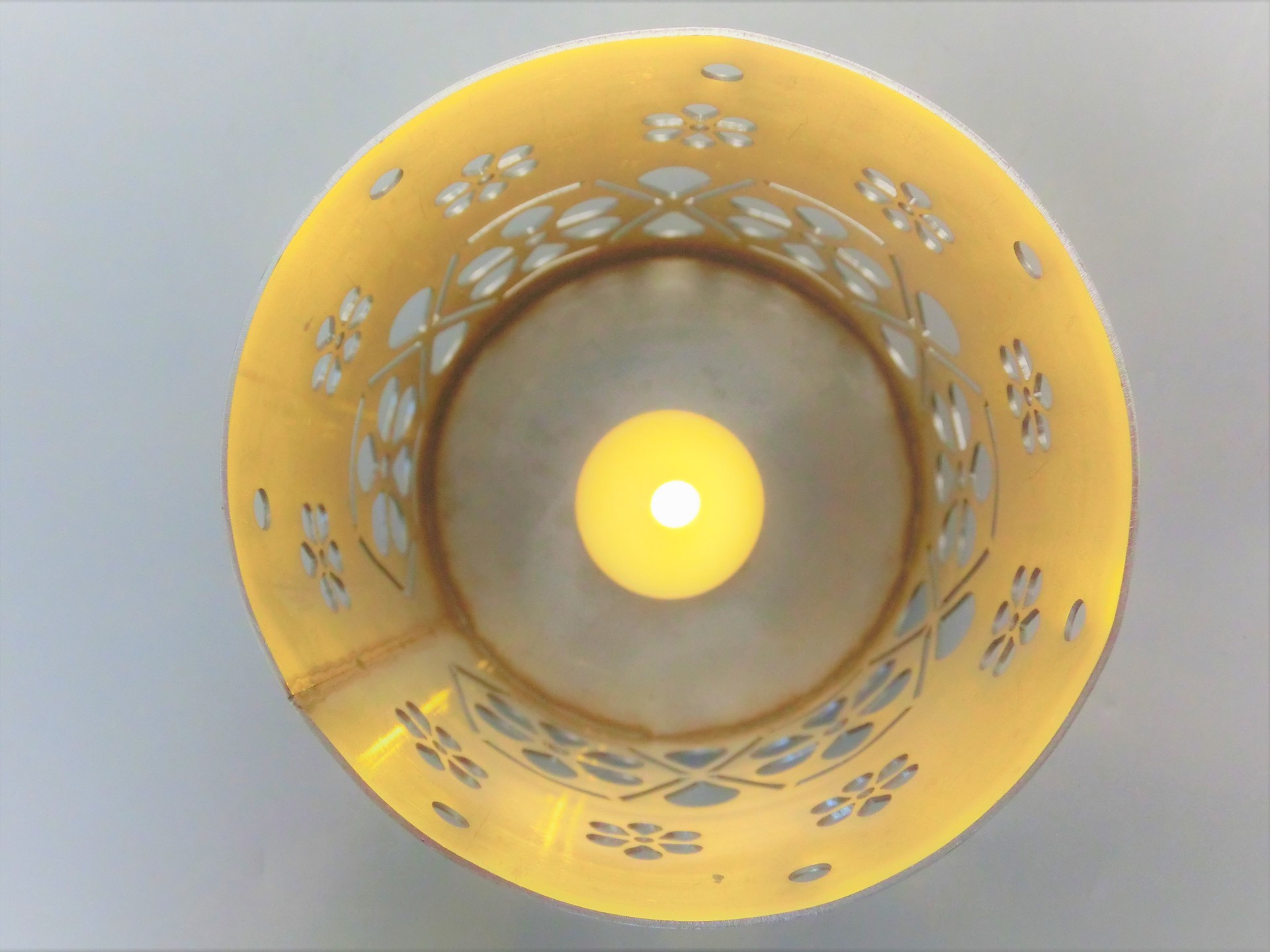

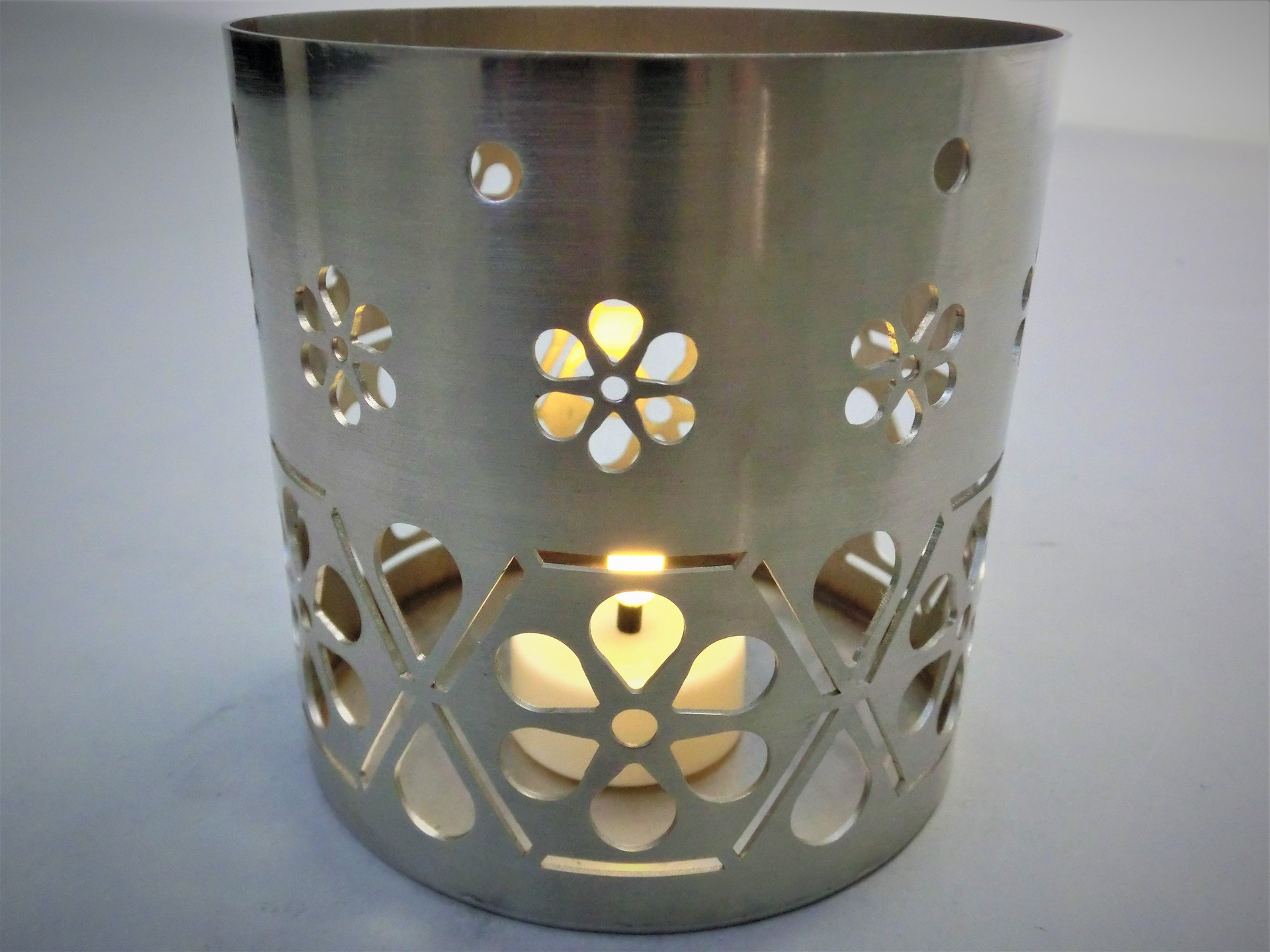

Candle lantern

Iida Seisakusho Co., Ltd. (Ibaraki, Japan)

  • Size: W100 x D100 x H100 mm

  • Accuracy: ± 0.5 mm

  • Programming time: 30 min

  • Processing time: 3 min/quantity

  • Quantity: 1

  • Material: Stainless steel (SUS304)

  • Thickness: 1.0 mm

  • Type: Original work

Process

  • CAD/CAM

  • Unfolding

  • Punch & Laser

  • 三本ロール

  • Welding

  • Surface Finishing

Strengths

「デザイン性の良いキャンドルランタンを作りたい」ということから考案しました。

あえてベンダーでの曲げではなく3本ロールを使用しました。

SUS304でのヘアライン材料を使用して、暗闇に火の明かりがきれいに見えるように工夫しました。
