37th Precision Sheet Metal Technology Fair

Welding fabrication (23 entries)

360° Viewer

Welding310

Technical Encouragement Award

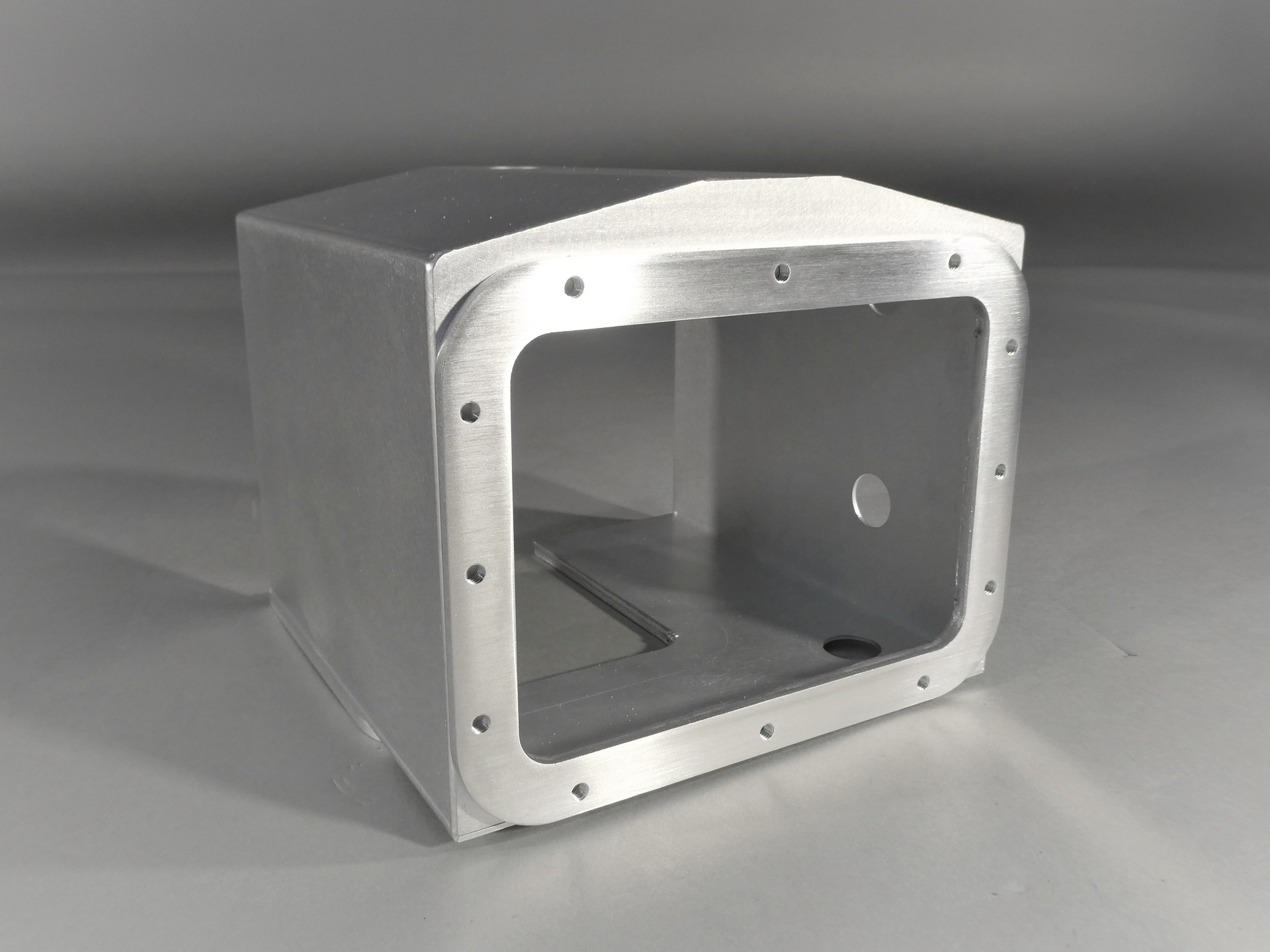

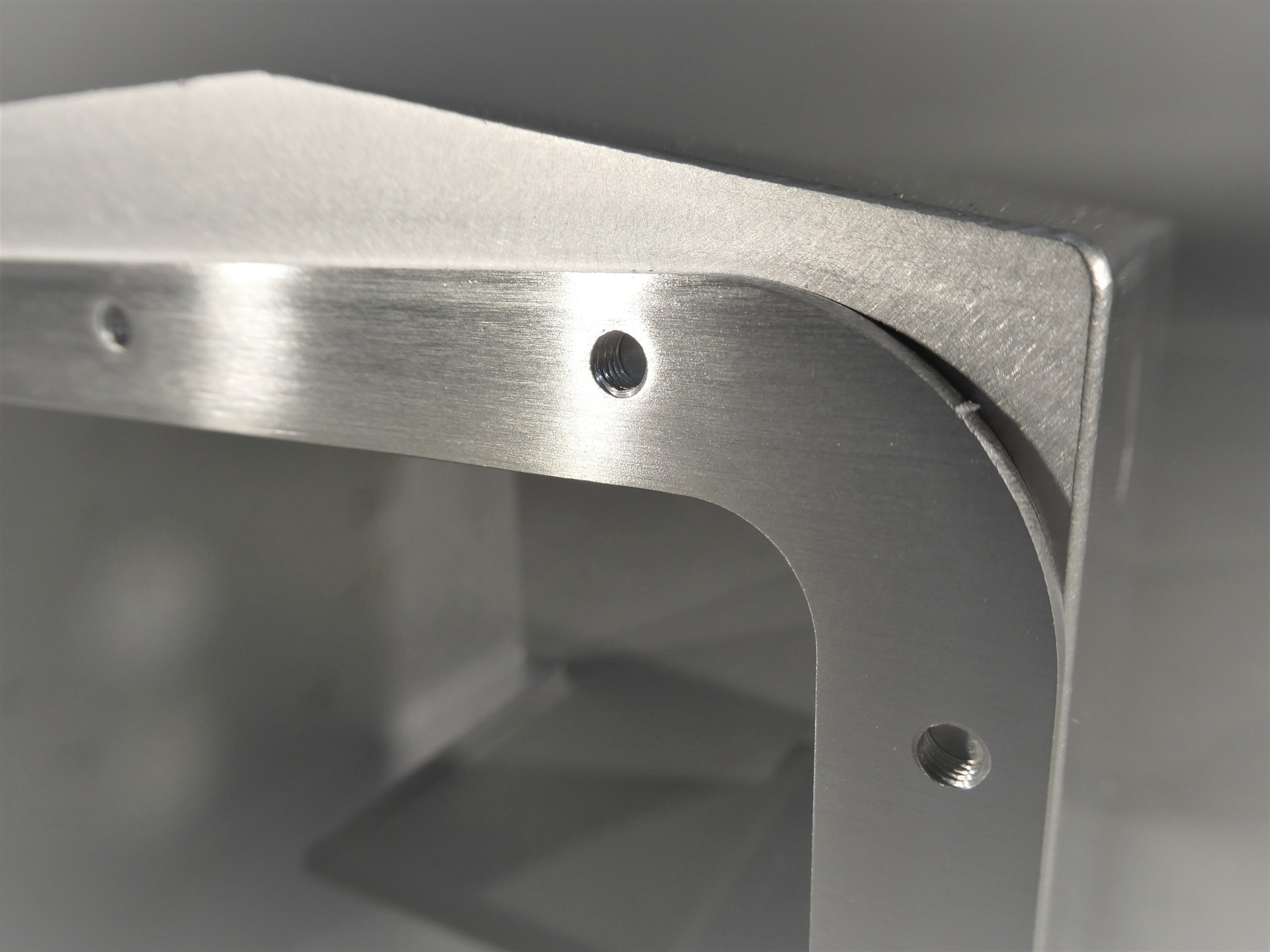

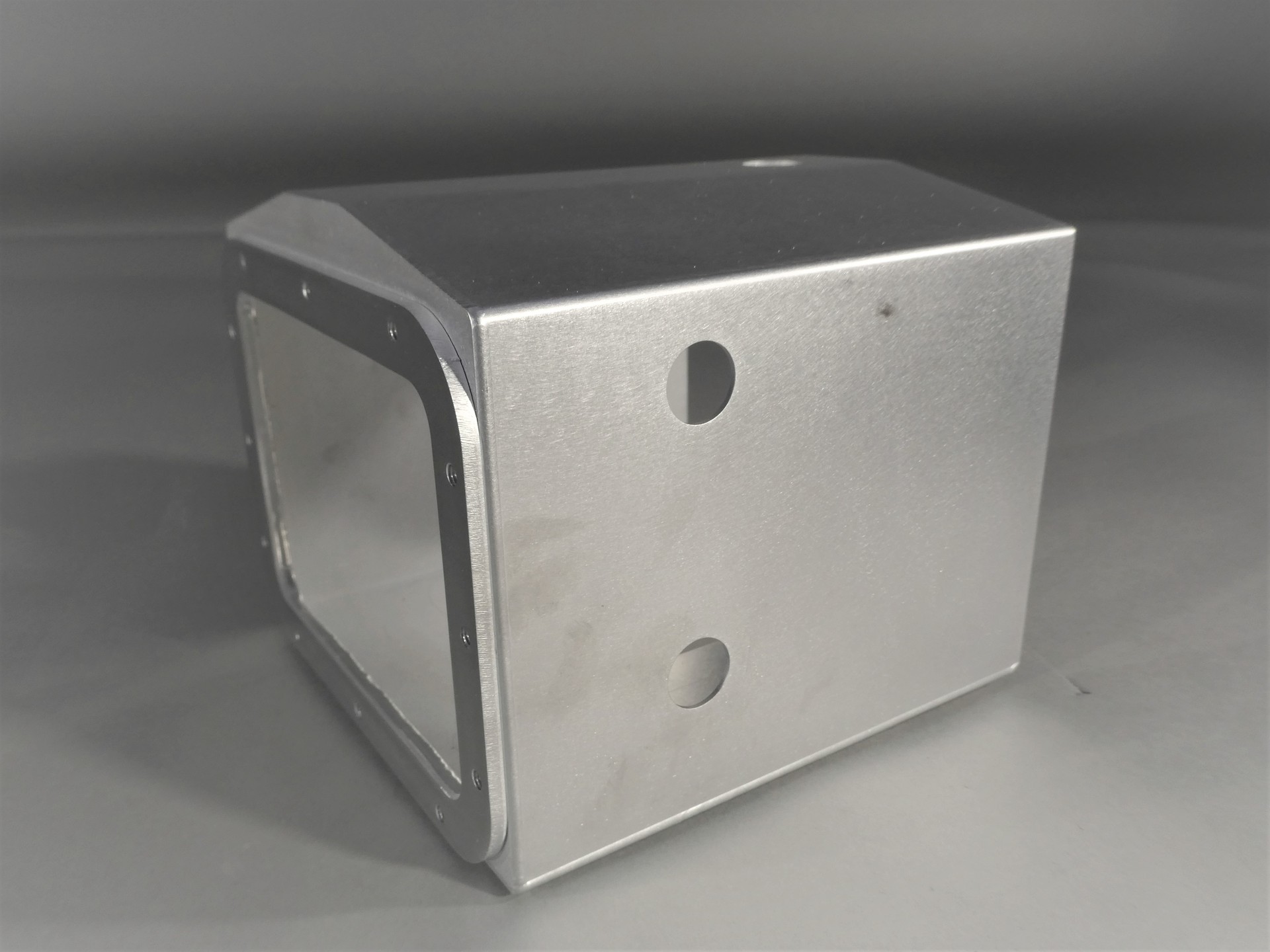

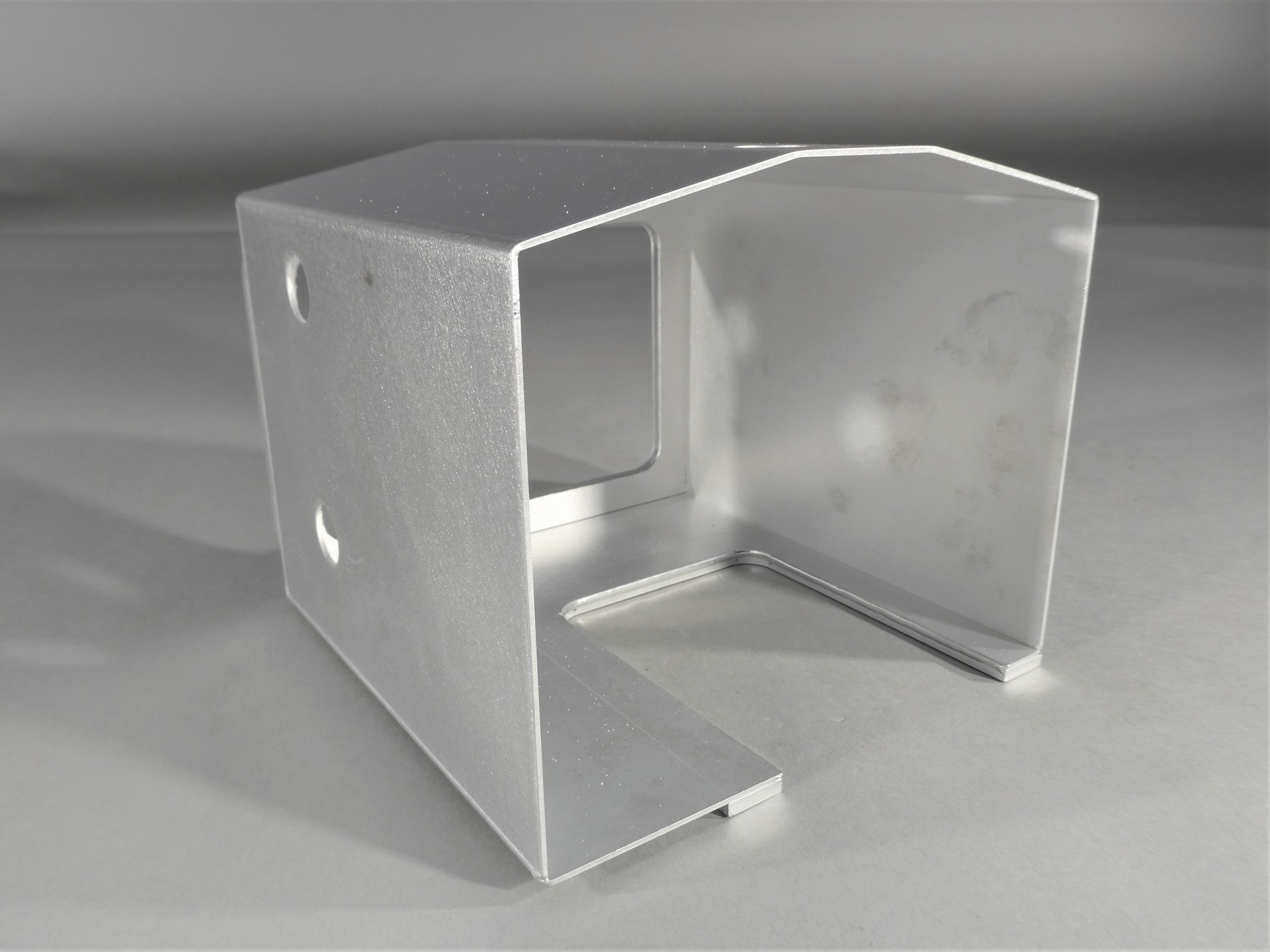

Semiconductor Parts

FU ZHUAN STEEL CO., LTD. (Taiwan)

  • ・Size: W180 x D170 x H150 mm

  • ・Accuracy: ± 0.5mm mm

  • ・Programming time: 30 min

  • ・Processing time: 240 min/quantity

  • ・Quantity: 1

  • ・Material: Aluminum (A5052)

  • ・Thickness: 1.5 & 4.0 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

  • Welding

Strengths

Welding of semiconductor aluminum materials is performed with FLW-ENSIS.

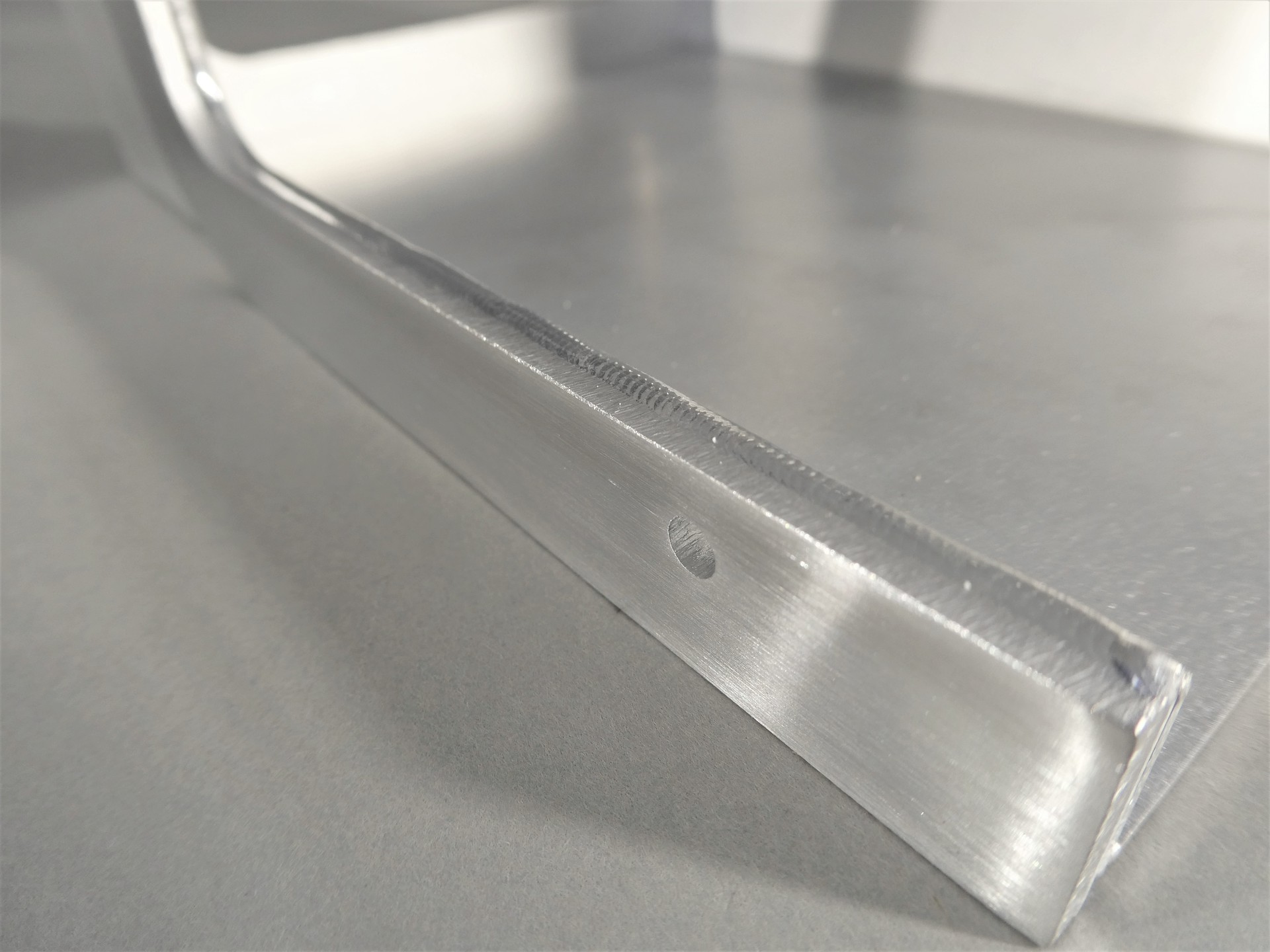

The flatness and dimensional accuracy of the weld bead are very well controlled.
