37th Precision Sheet Metal Technology Fair

Welding fabrication (23 entries)

360° Viewer

Welding306

Technical Encouragement Award

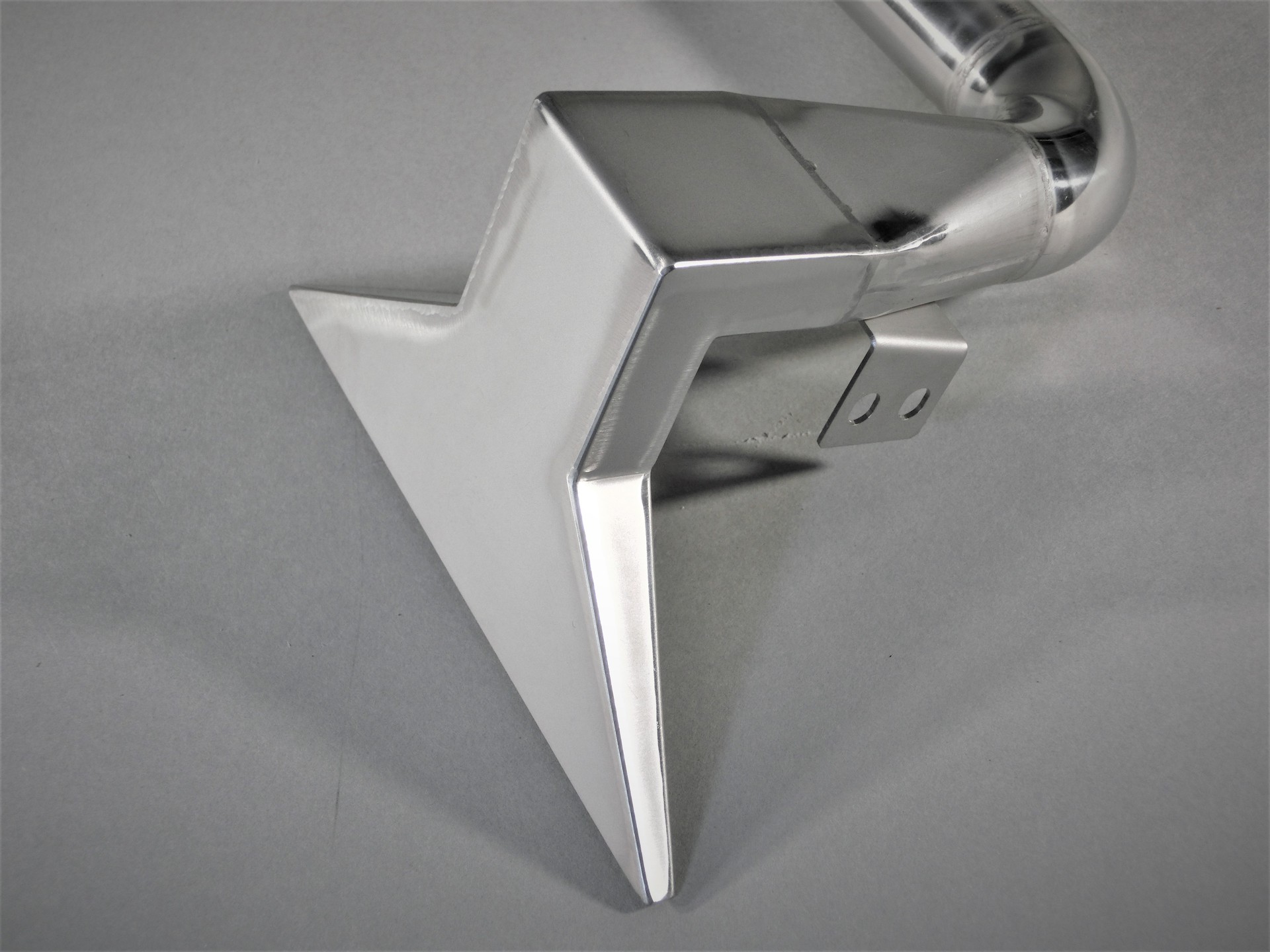

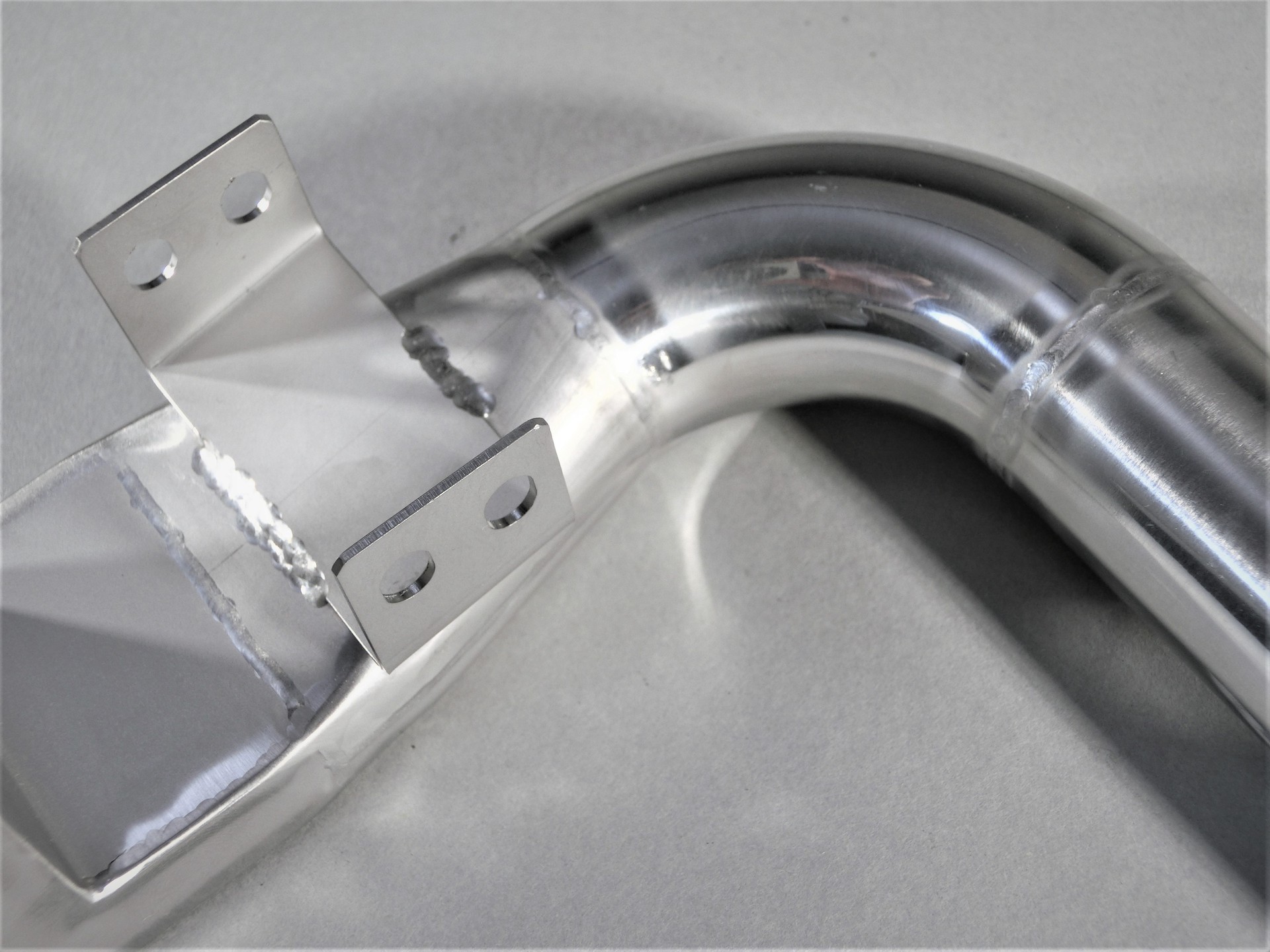

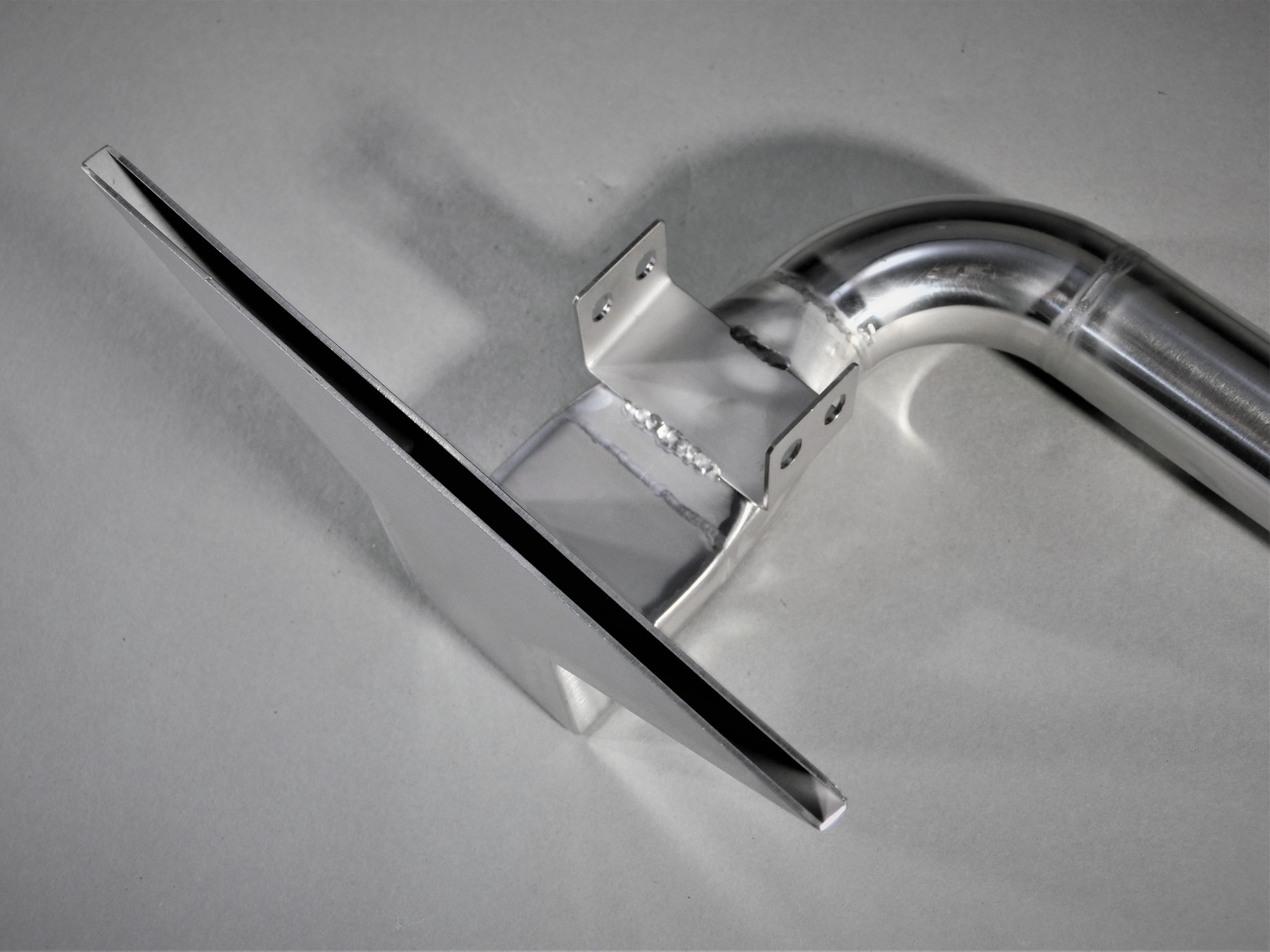

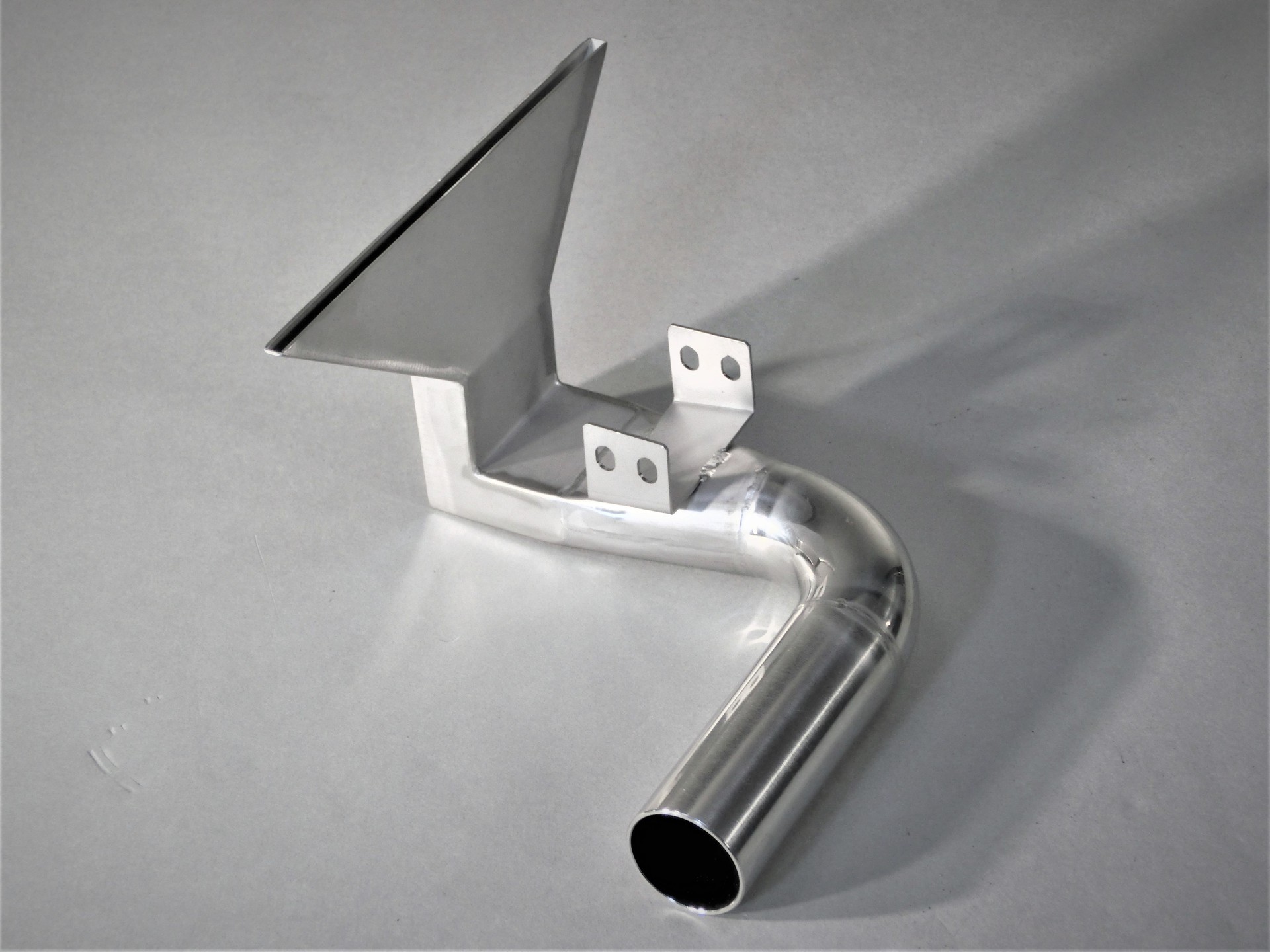

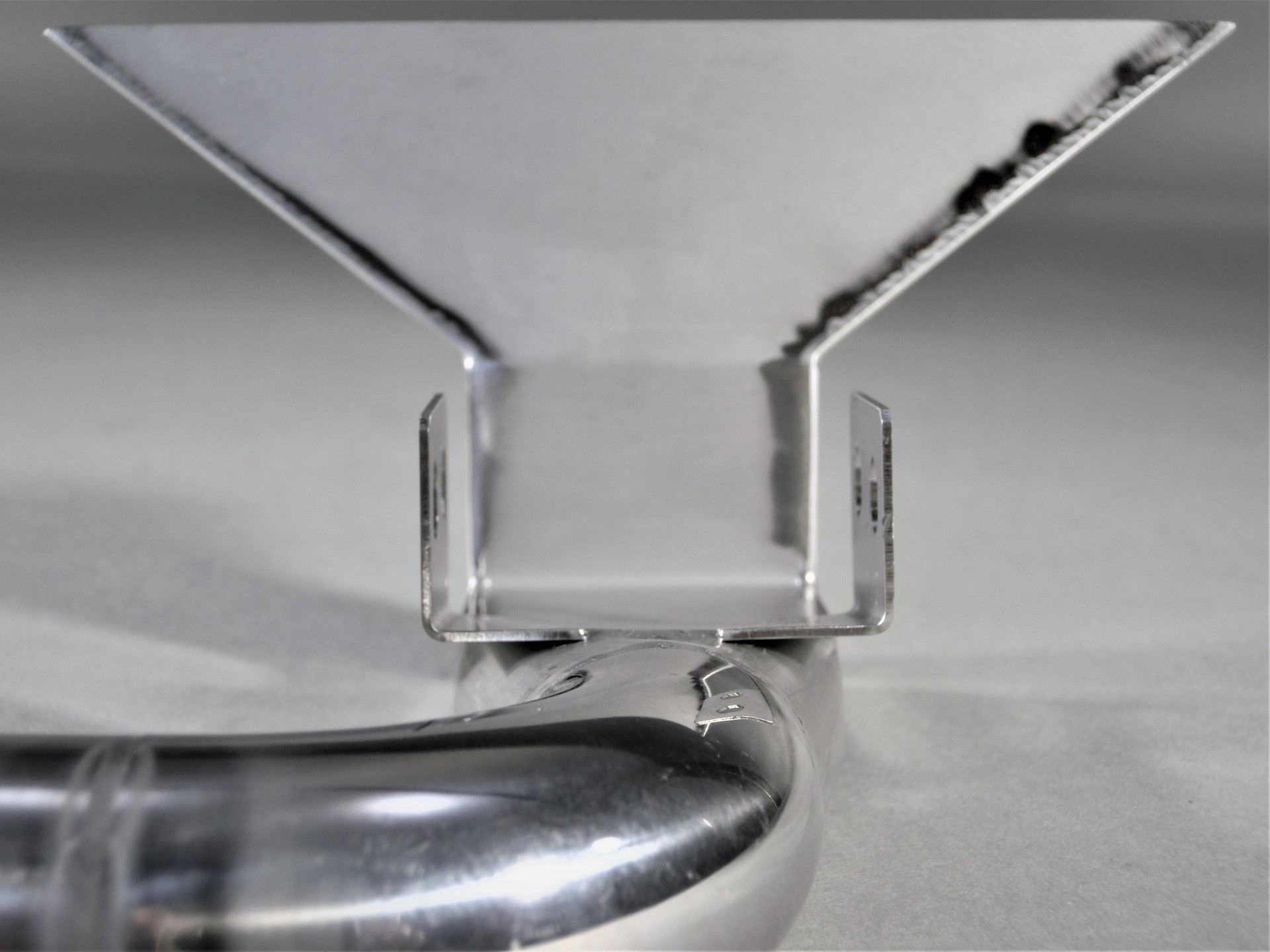

Duct for dust collector

Yonazawaseisaku Co., Ltd. (Shizuoka, Japan)

  • ・Size: W150 x D150 x H100 mm

  • ・Accuracy: ± 0.8 mm

  • ・Programming time: 60 min

  • ・Processing time: 180 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 1.0 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

  • Welding

  • 仕上げ

Strengths

苦労した点は、角丸のレデューサーの展開・曲げ・溶接です。
