37th Precision Sheet Metal Technology Fair

Student's fabrication (16 entries)

Students509

Encouragement Award

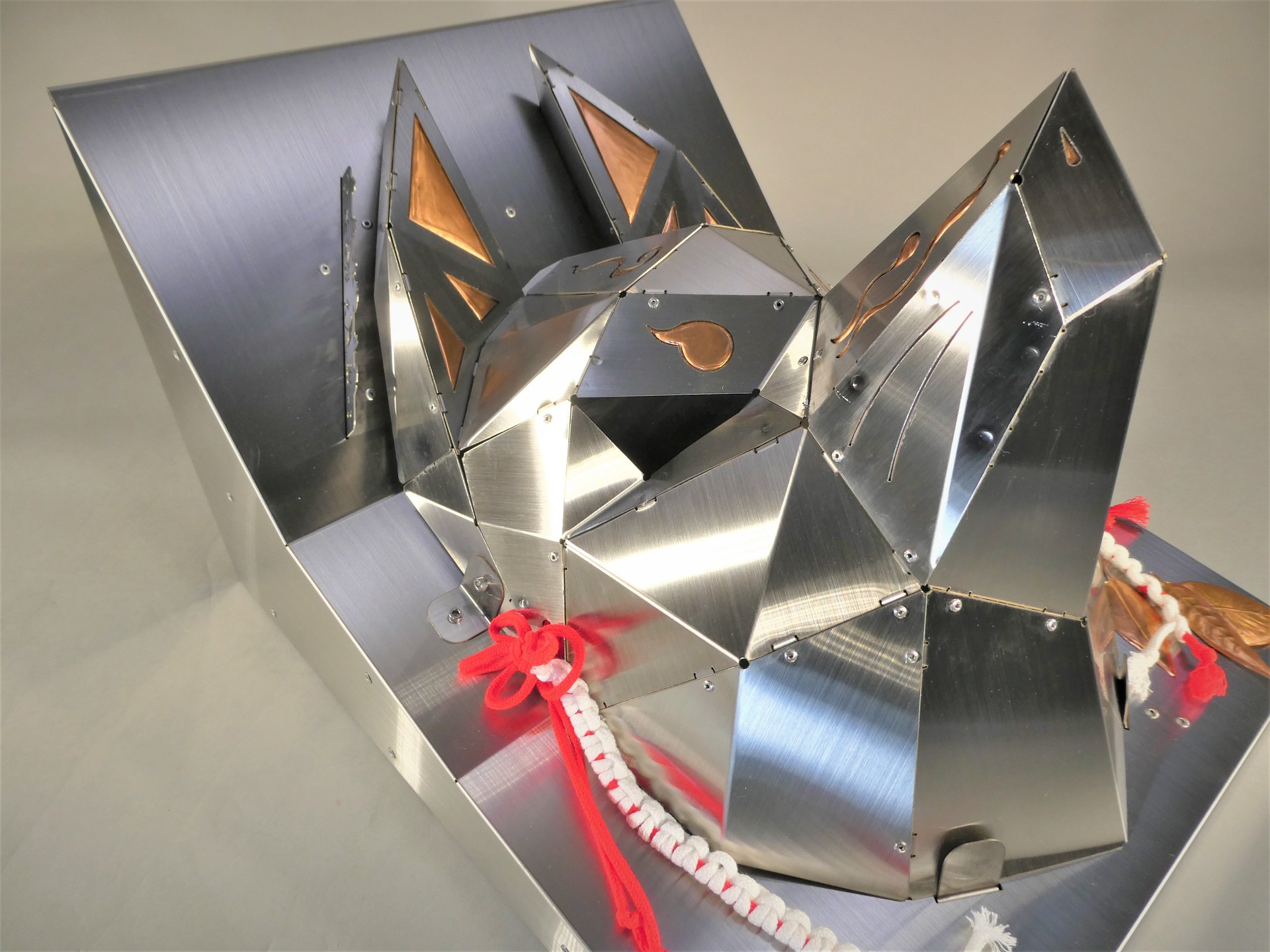

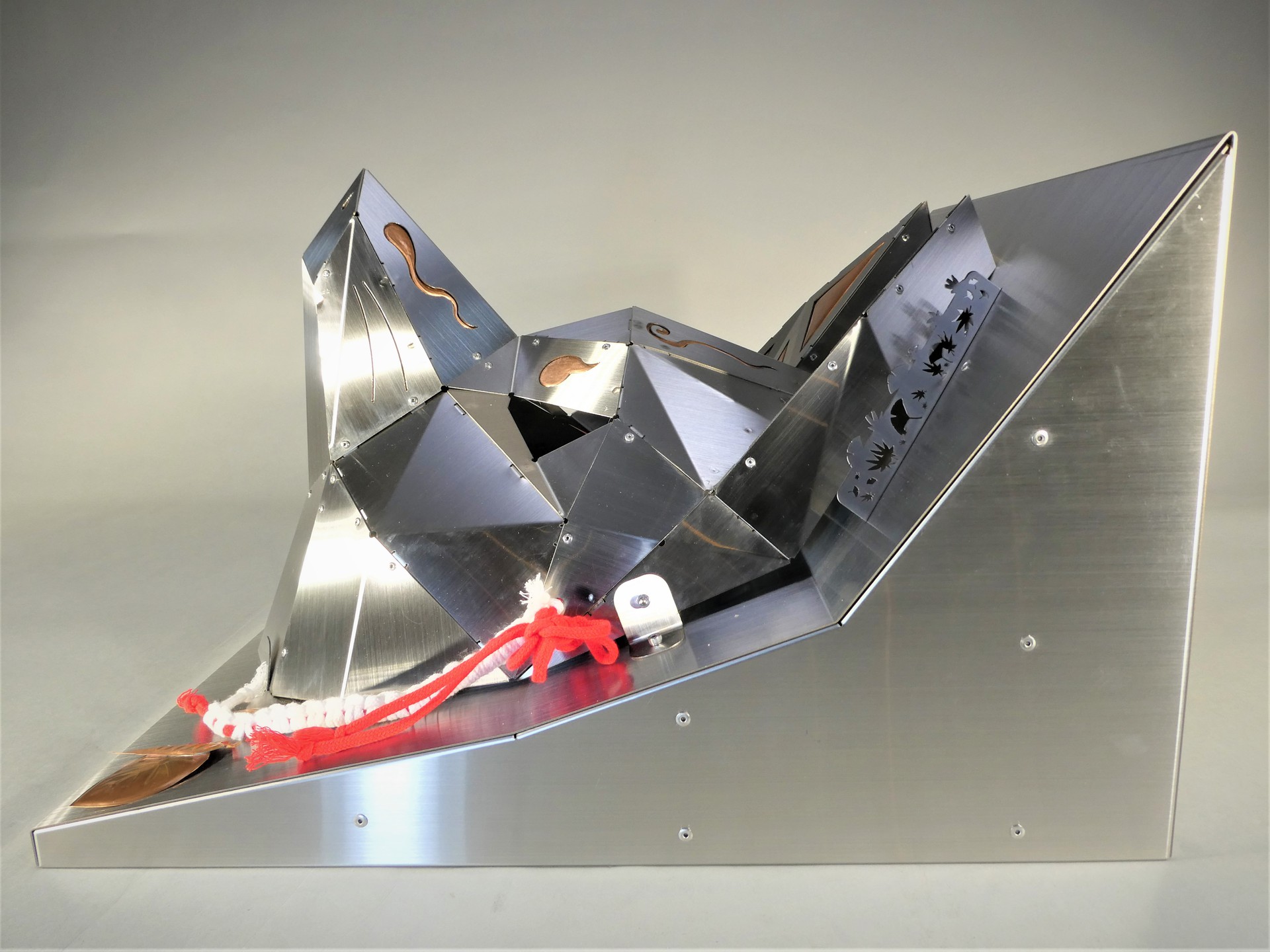

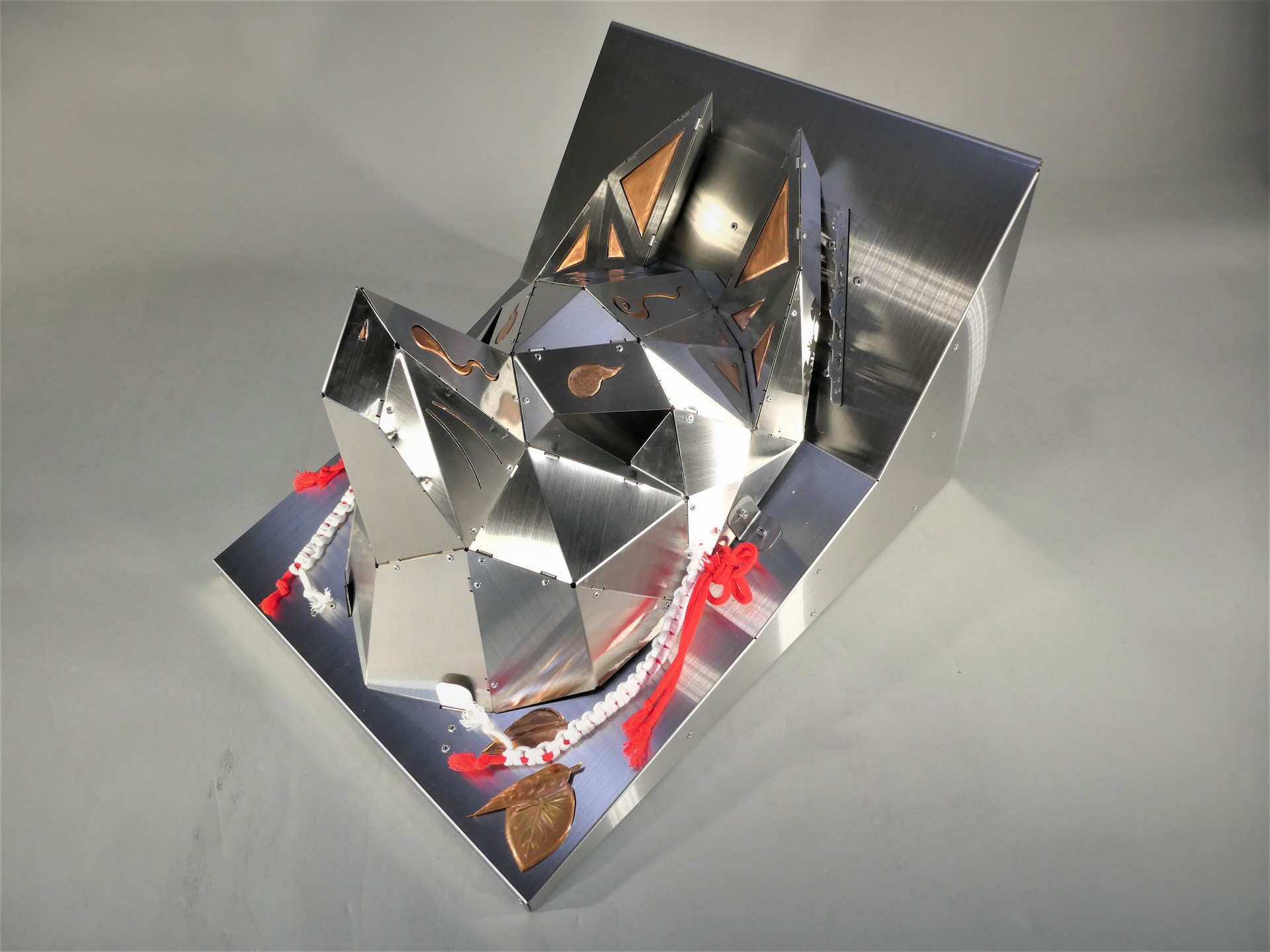

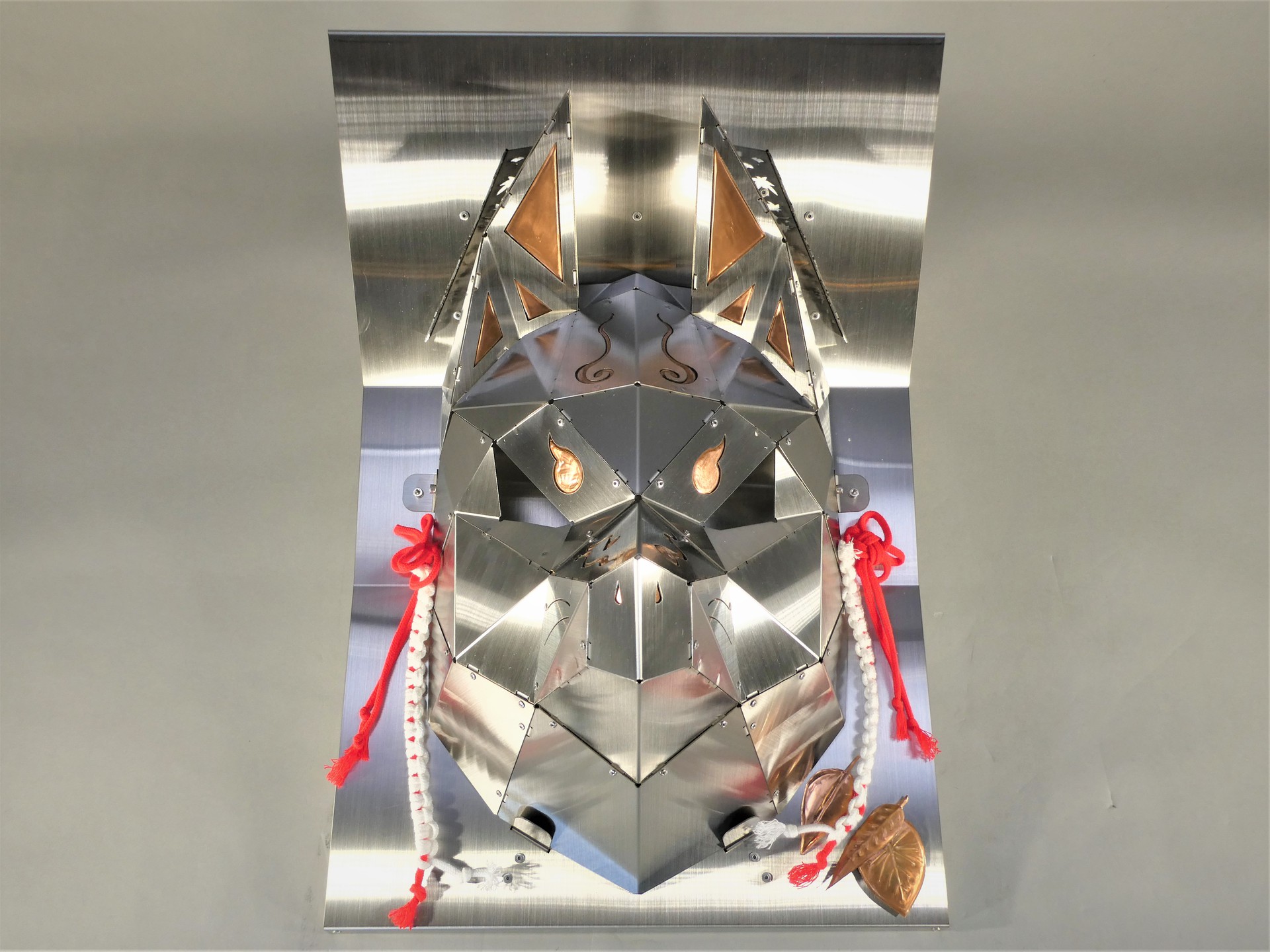

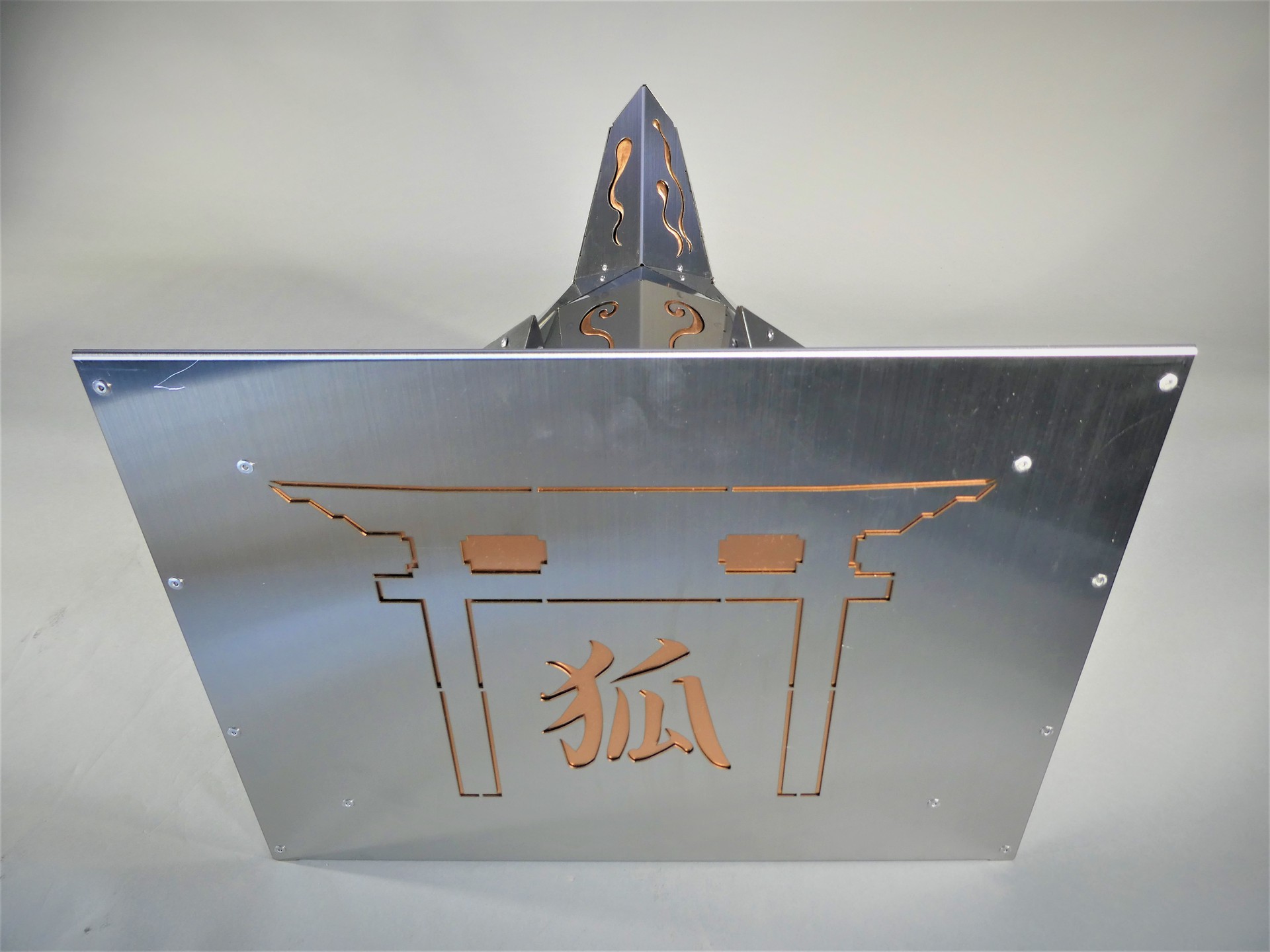

Fox

Tsu Advanced Vocational Technical Training School (Mie, Japan)

  • Size: W420 x D570 x H380 mm

  • Accuracy: ± 0.5 mm

  • Programming time: 4200 min

  • Processing time: 8400 min/quantity

  • Quantity: 30

  • Material: Stainless steel (SUS304)

  • Thickness: 1.0 mm

  • Type: -

Process

  • Planning

  • CAD/CAM

  • Laser-Cutting

  • Bending

  • Spot Welding

  • Assembly

  • リベット

  • Surface Finishing

Strengths

銅板で浮き出し加工をして、ステンレスの柄に合わせて存在感を出したところです。

顔の中心ラインをそろえて左右対称に仕上げたところです。

製品に傷をつけないように心がけて作製したところです。

  • Reasons for choosing the theme: 日本で震災や災害が多くなり復興の意味を込めたくて作製しました。

  • Reasons for choosing the material: ステンレスと銅板を合わせて和や大人の雰囲気を作り上げたかったから。

  • Most important points: 顔の中心のラインを揃えて左右対称に作製をしたところ。板を重ねていく際に上下になるようにしたこと。

  • Most difficult points: 接合の際の曲げの角度。製品の奥行き。スポット溶接や板材の伸び縮みによる接合部のズレ。

  • What I noticed when actually processed it from the drawing: 4人で作製に取り組んだので、報連相や連携プレーの大切さ。
