Modified Roulette (Students503)
Students503
Encouragement Award

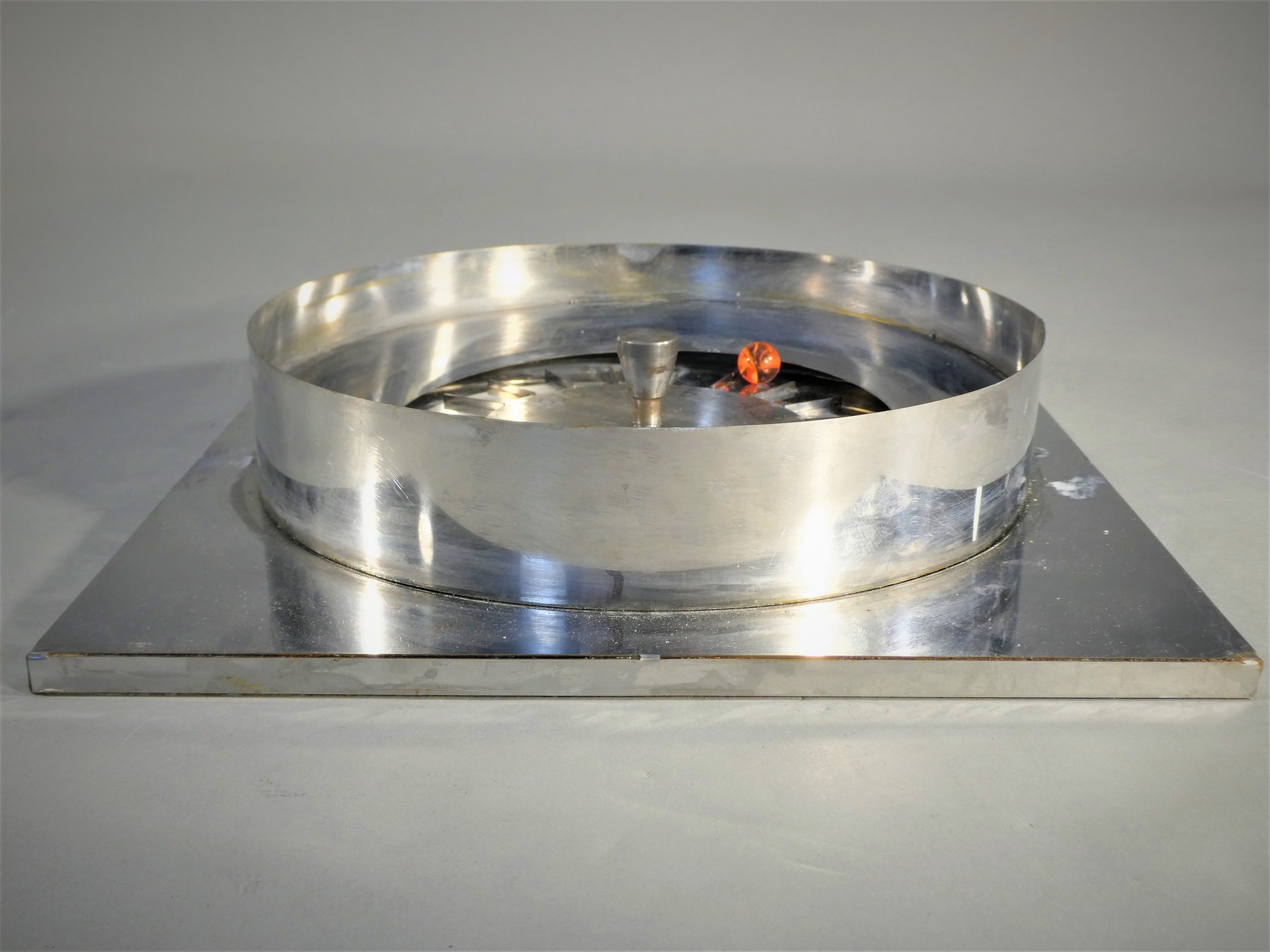

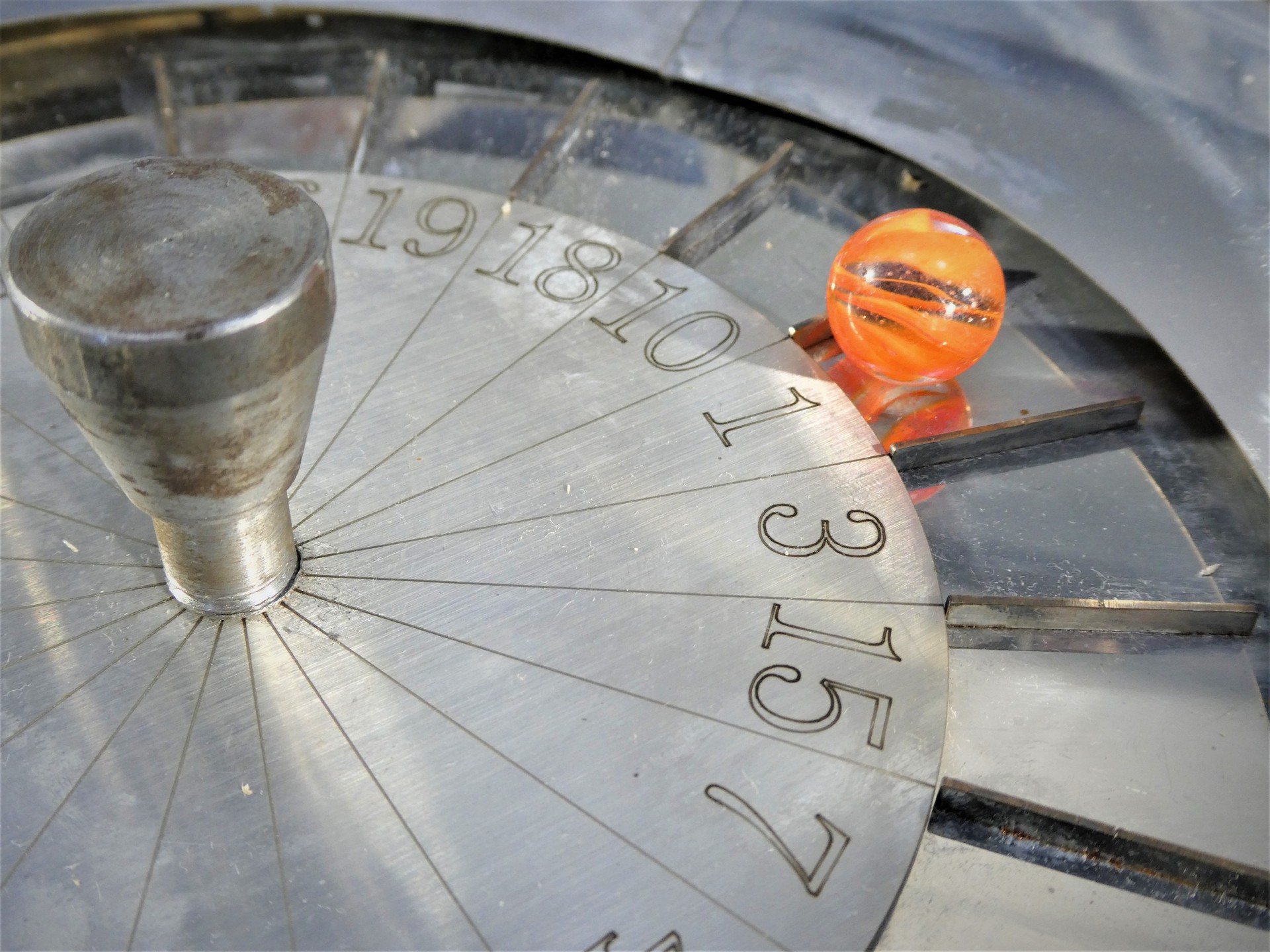

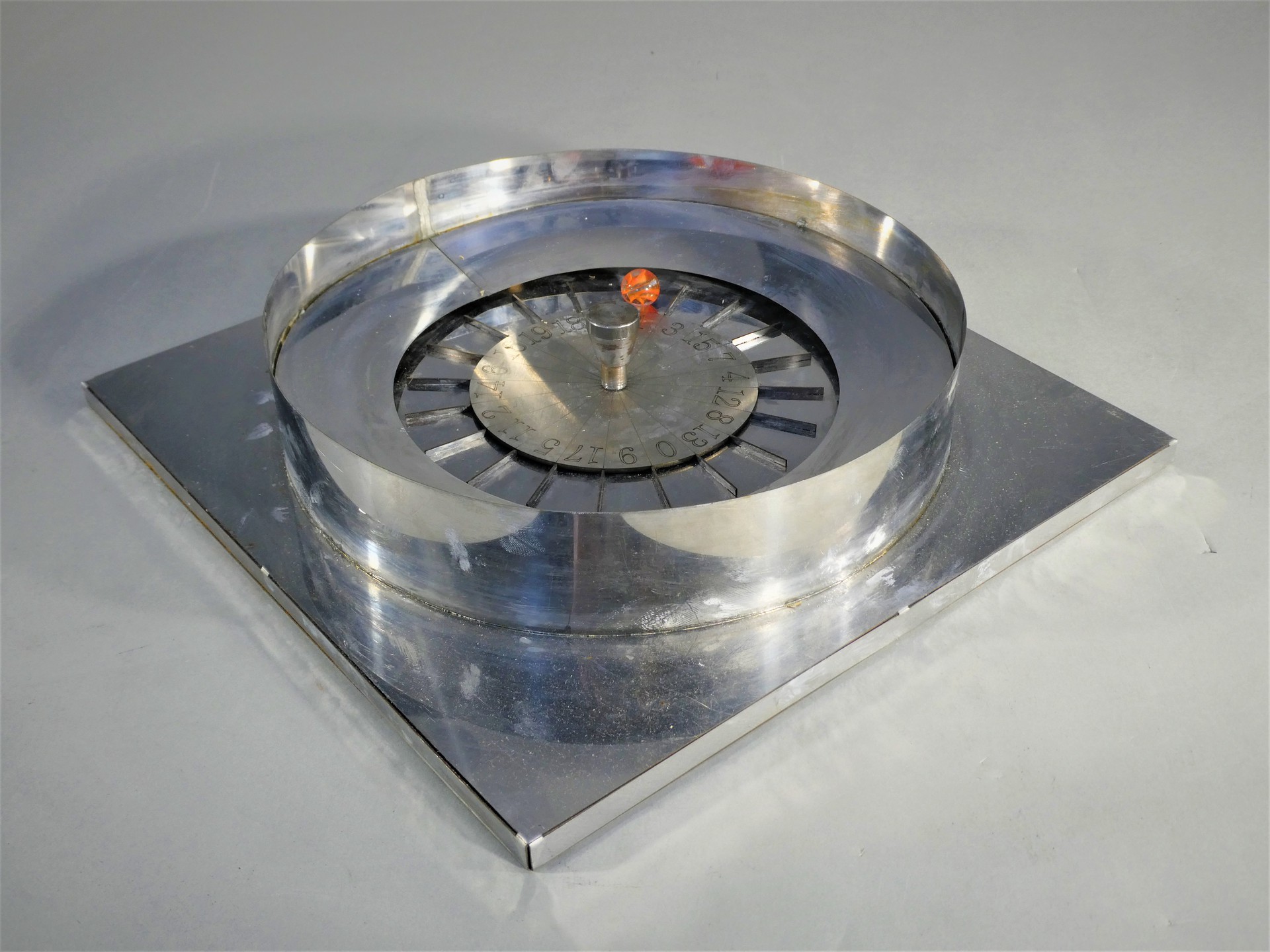

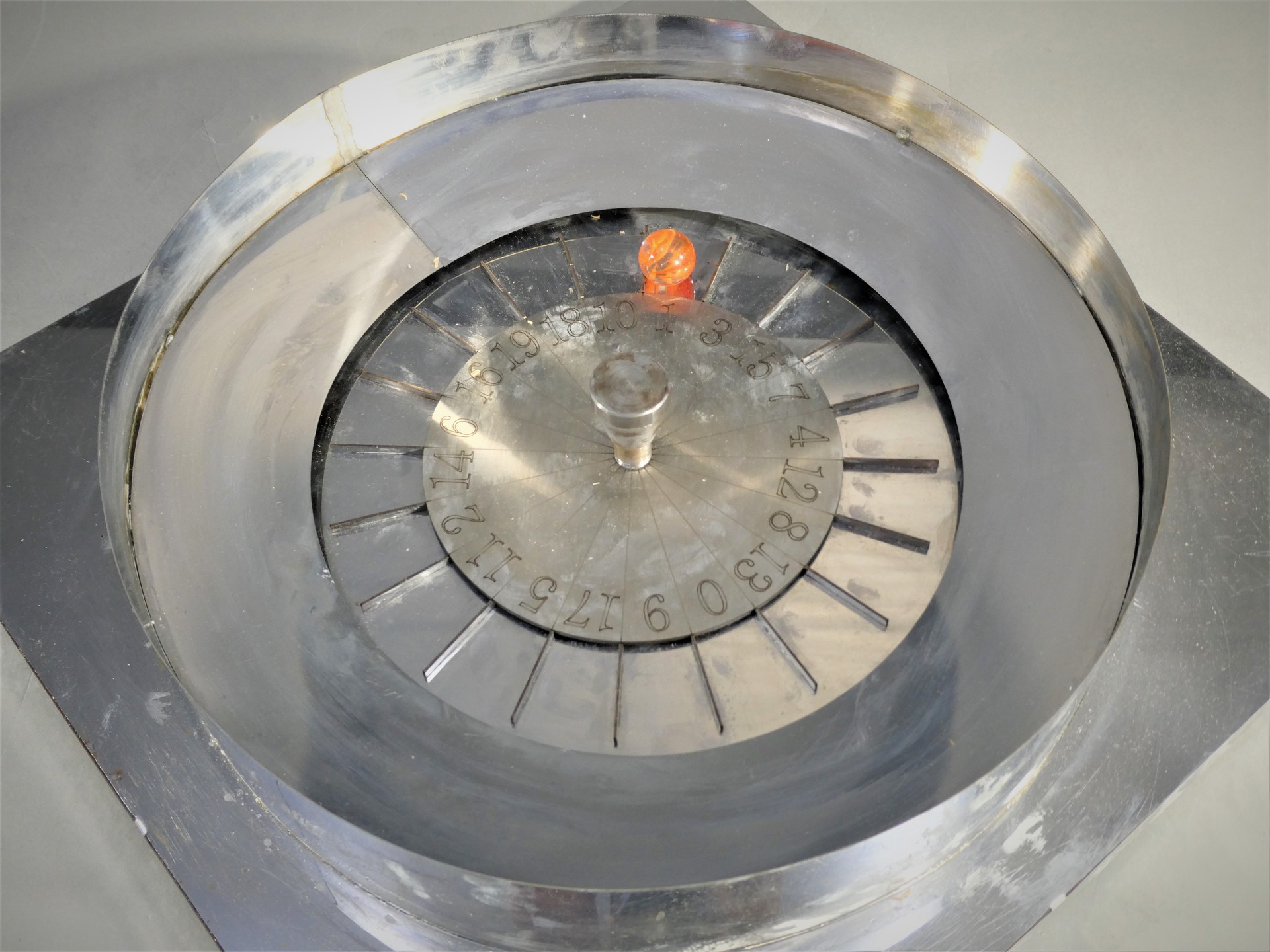

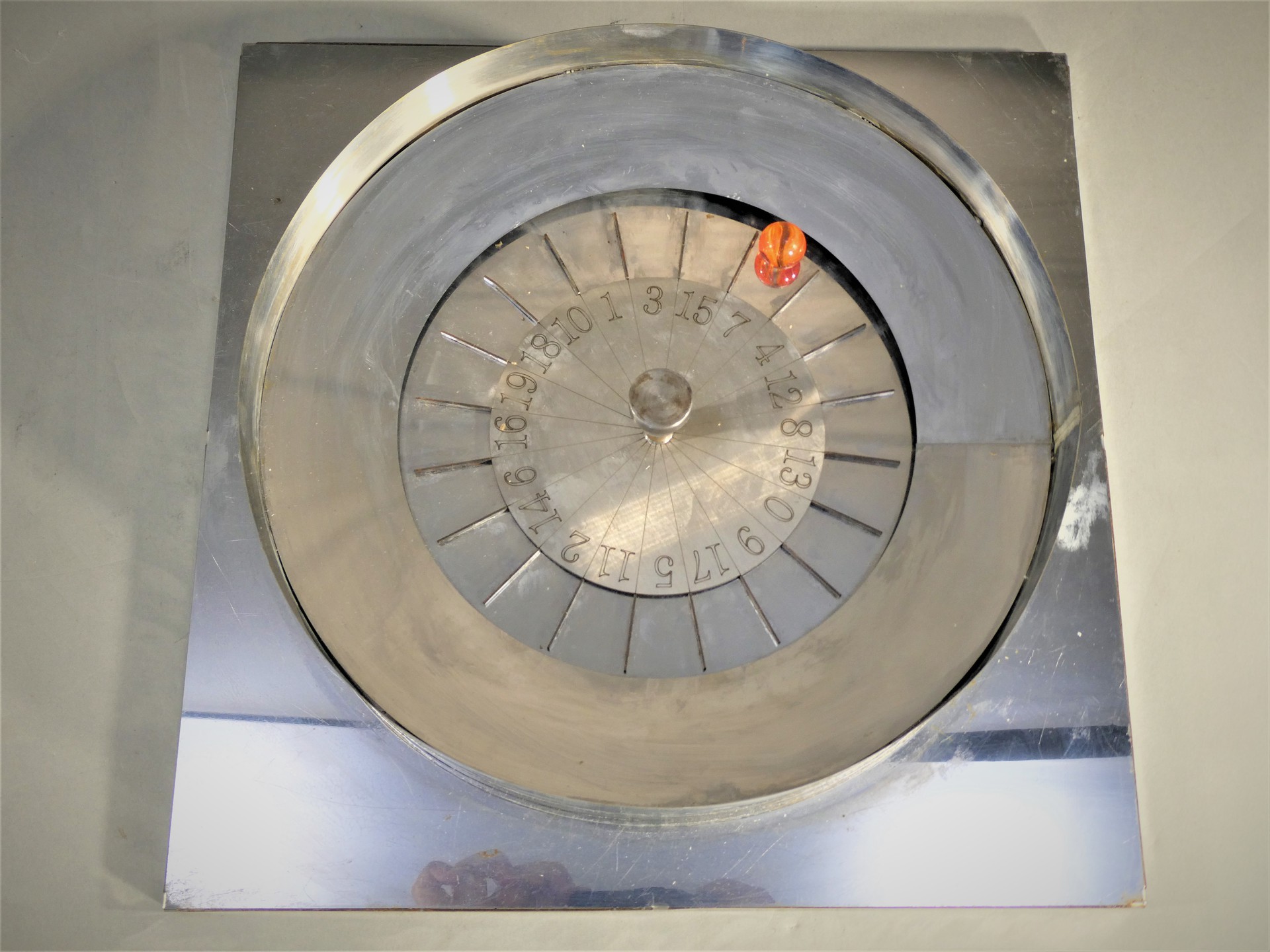

Modified Roulette
High School of Science and Technology (Hyogo, Japan)
-
・Size: W300 x D300 x H60 mm
-
・Accuracy: ± 1.0 mm
-
・Programming time: 30 min
-
・Processing time: 30 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 0.8,1.0,2.0 mm
-
・Type: Original work
Process
CAD/CAM
Laser-Cutting
旋盤加工
Assembly
Brazing
Strengths
Reasons for choosing the theme: 高校生ではあまり触れあえない物を作りたいと思い作成しました。
Reasons for choosing the material: 実習で使う指定材料のため
Most important points: 回転させる量を多くするために軽量化を図った。
Most difficult points: ビー玉を転がす坂の傾斜や、円の中のピッタリ入るように製作するのに苦労しました。
What I noticed when actually processed it from the drawing: ルーレットで使用するベアリングと自分たちで加工した部品をしっかりとはめれるように調整するのが難しい事に気づきました。
