37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts097

Technical Encouragement Award

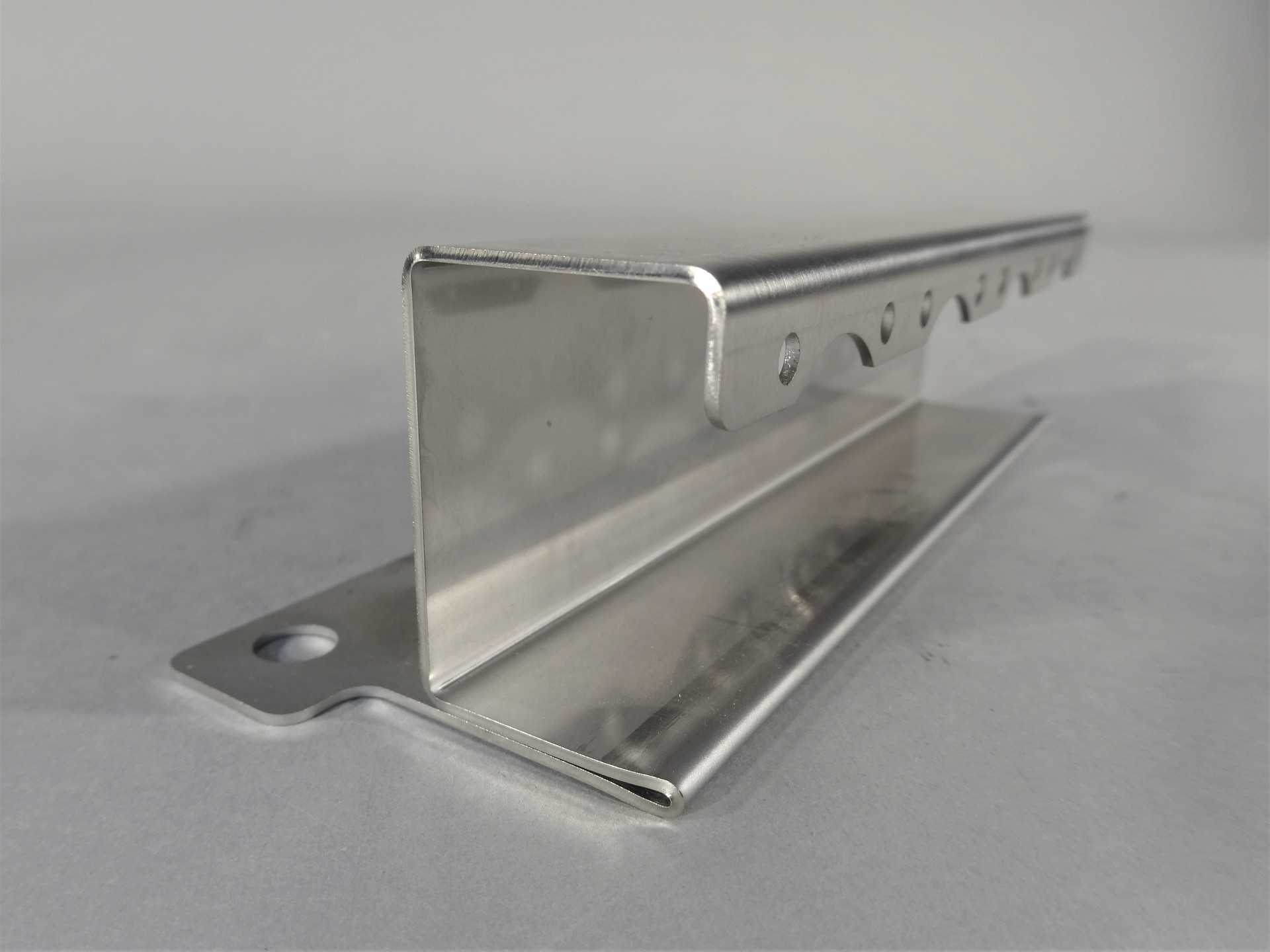

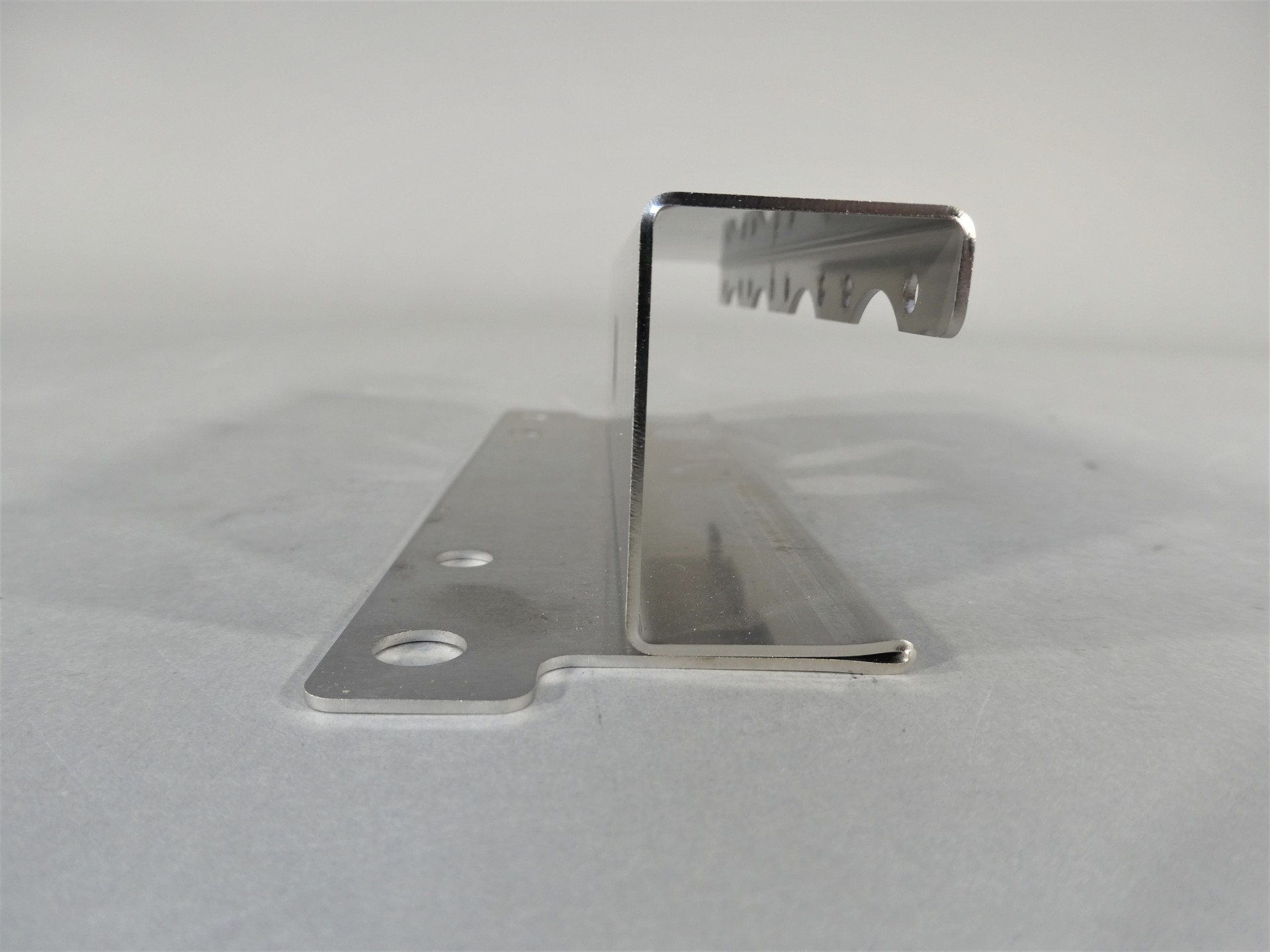

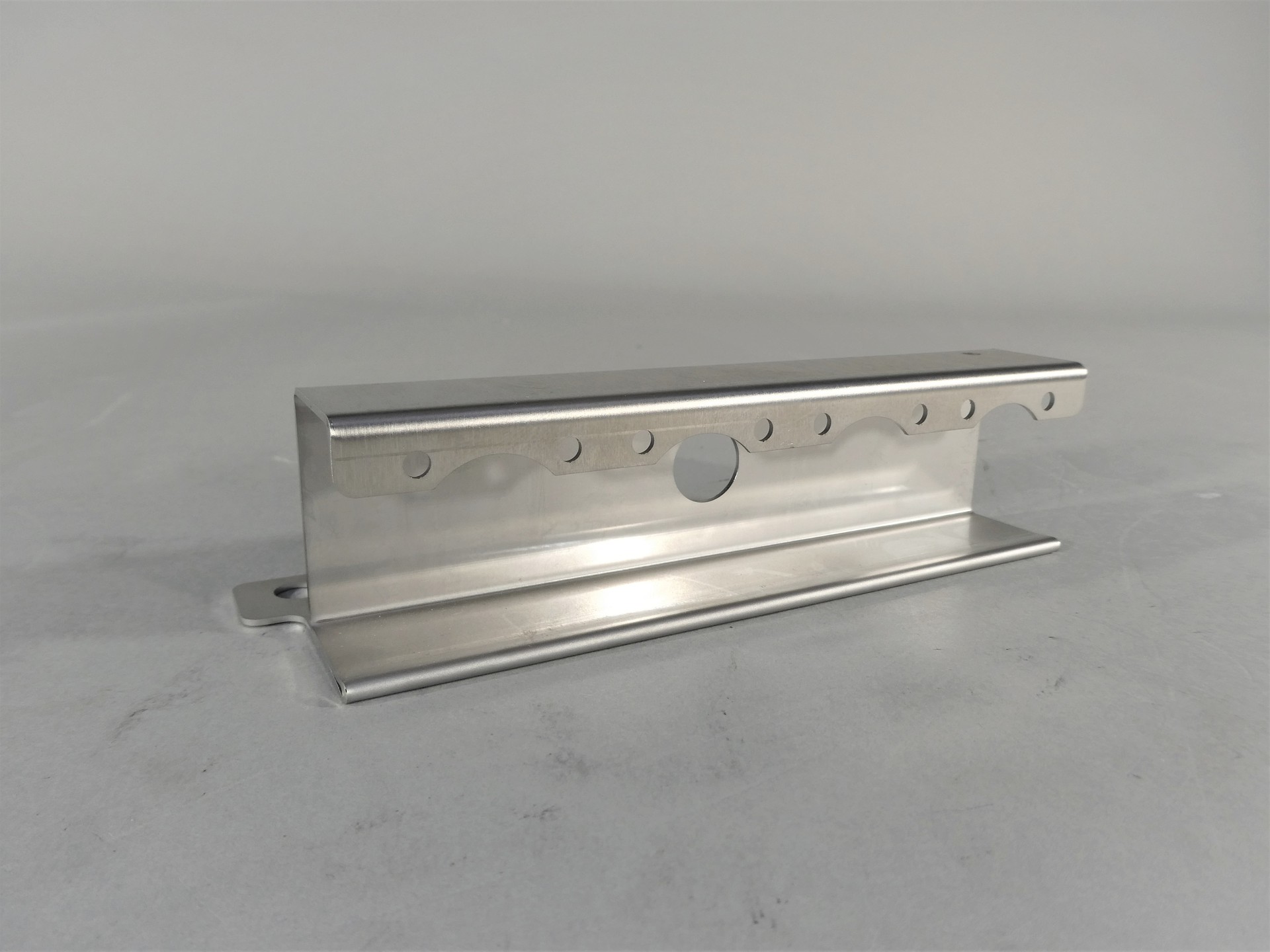

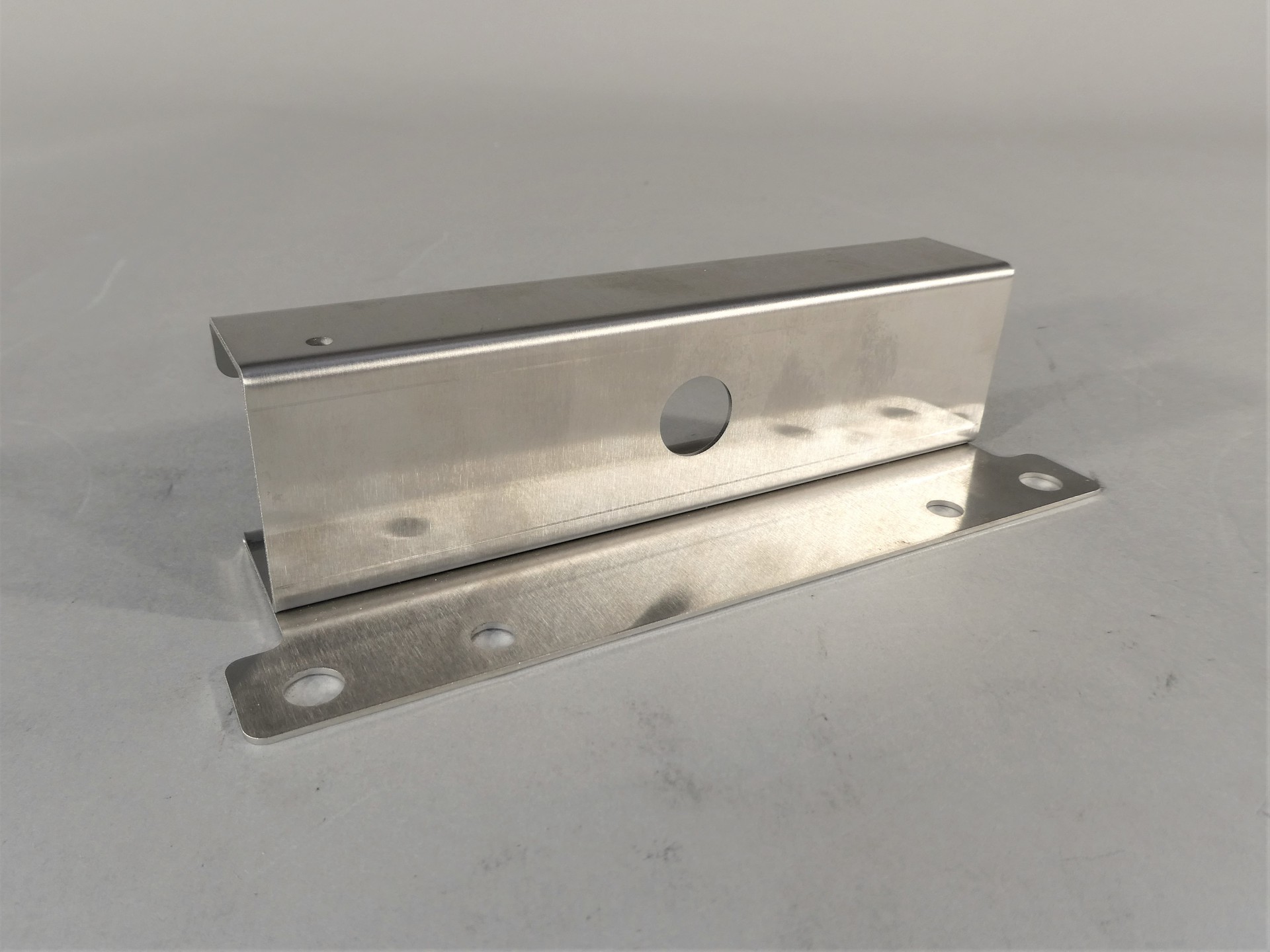

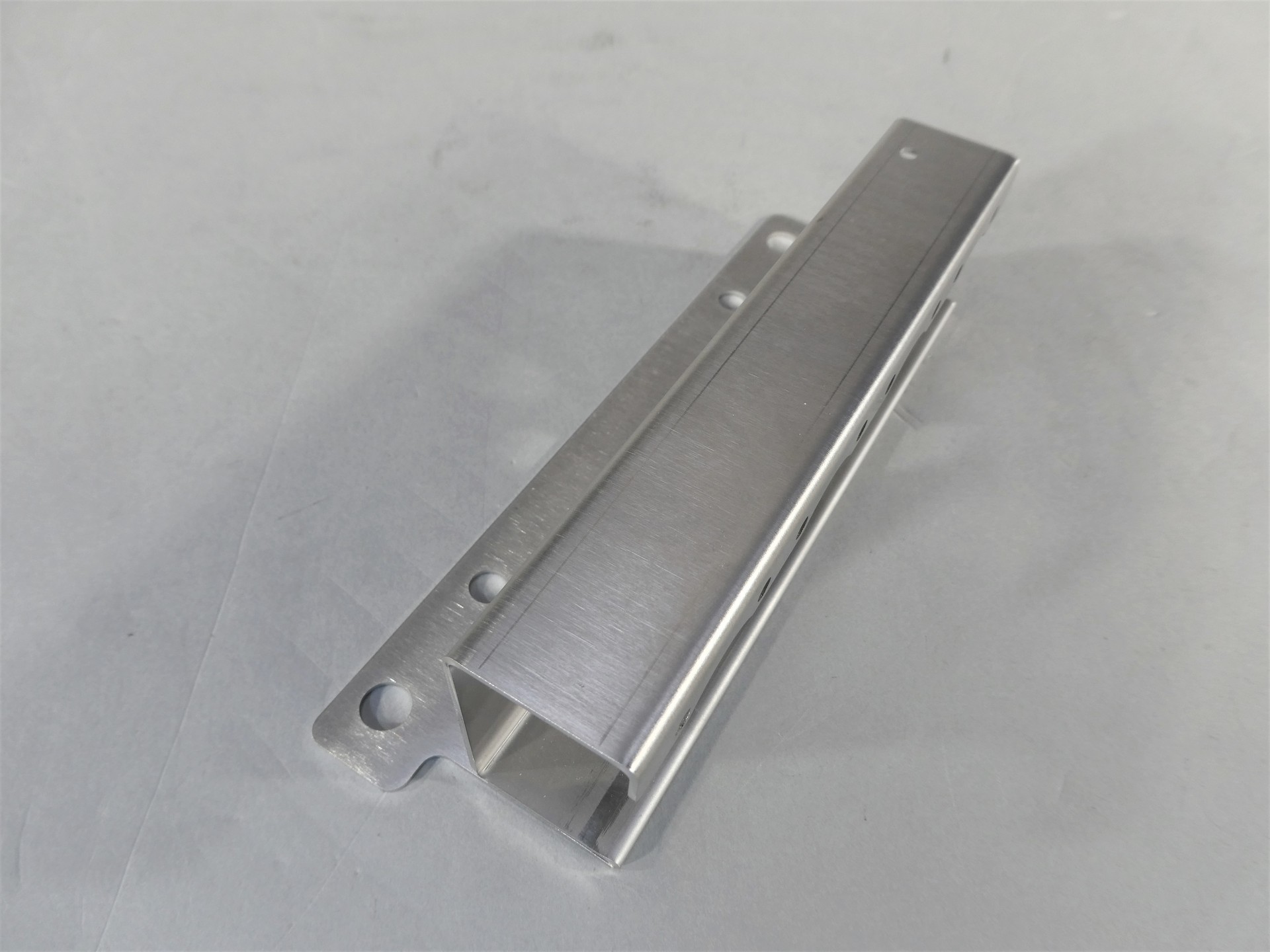

S/S Part

All-Fab, Inc. (U.S.A.)

  • ・Size: W54 x D170 x H42 mm

  • ・Accuracy: ± .10 mm

  • ・Programming time: 15 min

  • ・Processing time: 35 min/quantity

  • ・Quantity: 6

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 1.17 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

Strengths

Used customer 3D model and process with Amada Production Designer. - Program Ensis Fiber Laser and HG Press Brake with 3iVPSS. - Eliminate blank tooling and machine setup with Amada Ensis Laser. - Single Setup on HG brake with Amada double-decker hemming tool.
