Parts081

Technical Encouragement Award

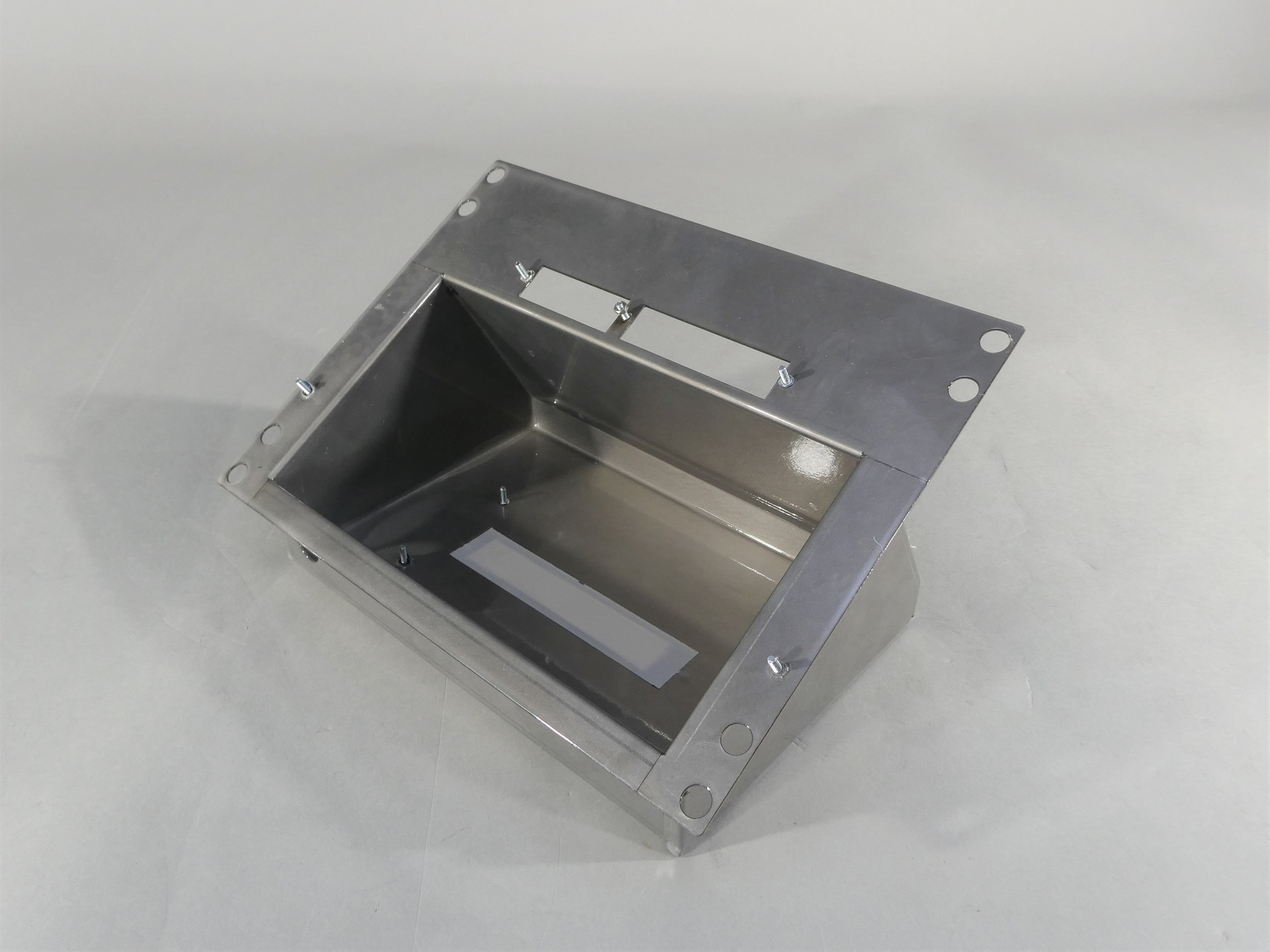

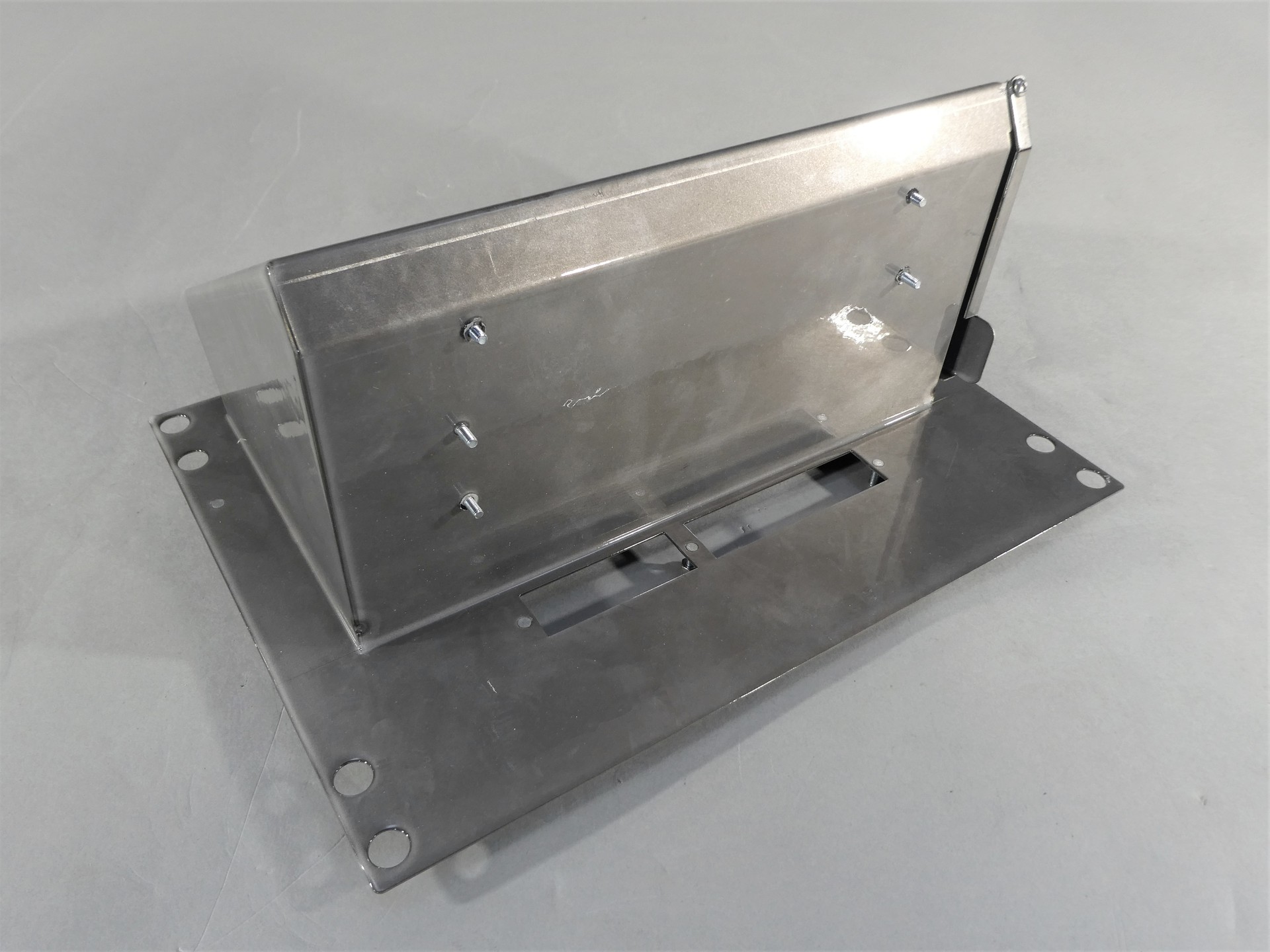

Electronic computer box for mixing paints

O.L.L. Srl (Italy)

  • ・Size: W273 x D156 x H140 mm

  • ・Accuracy: ± 0.1 mm

  • ・Programming time: 30 min

  • ・Processing time: - min/quantity

  • ・Quantity: -

  • ・Material: Iron

  • ・Thickness: 1 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • CAD/CAM

  • Laser-Cutting

  • Automatic insertion

  • Bending

  • Welding

Strengths

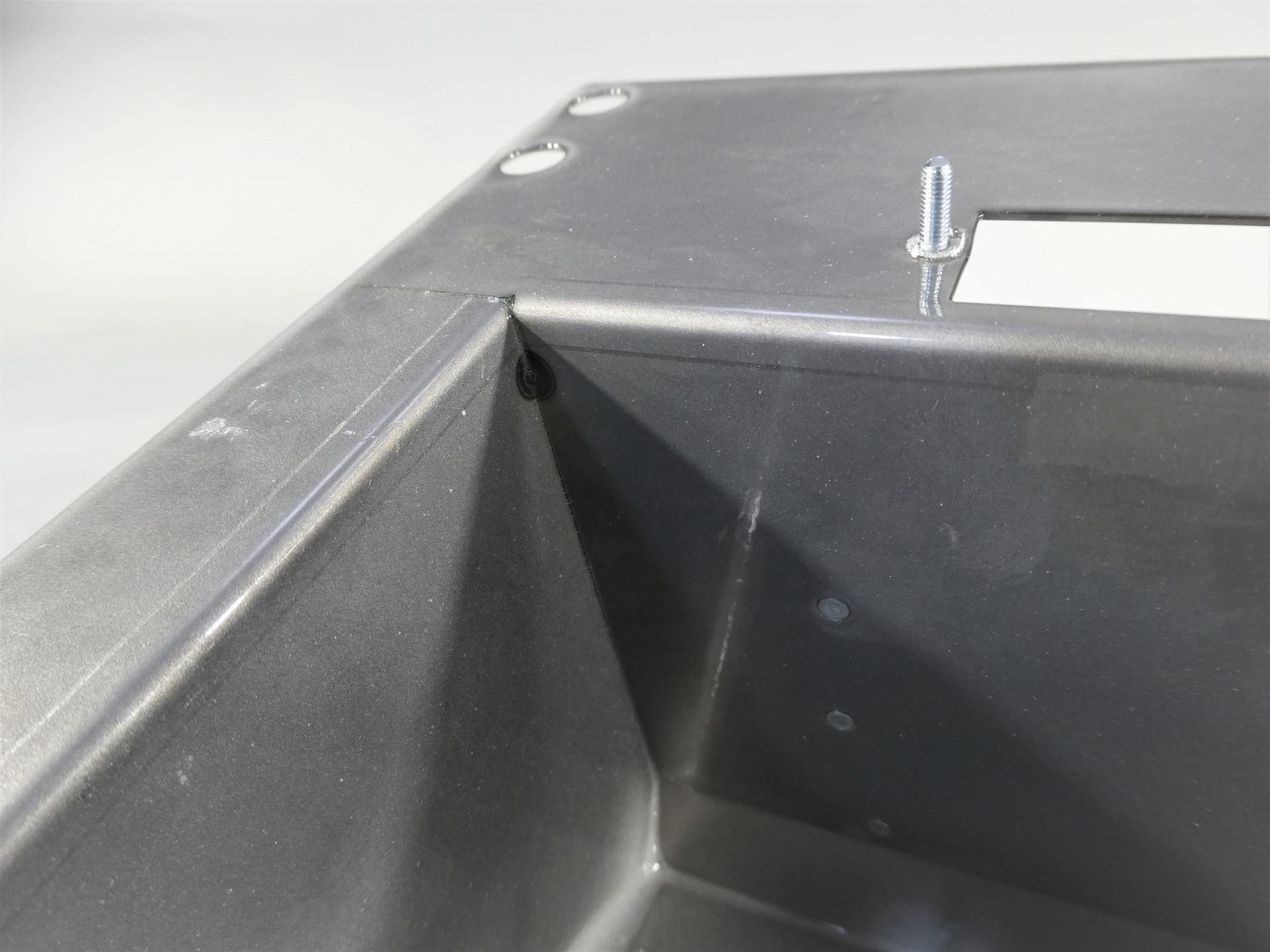

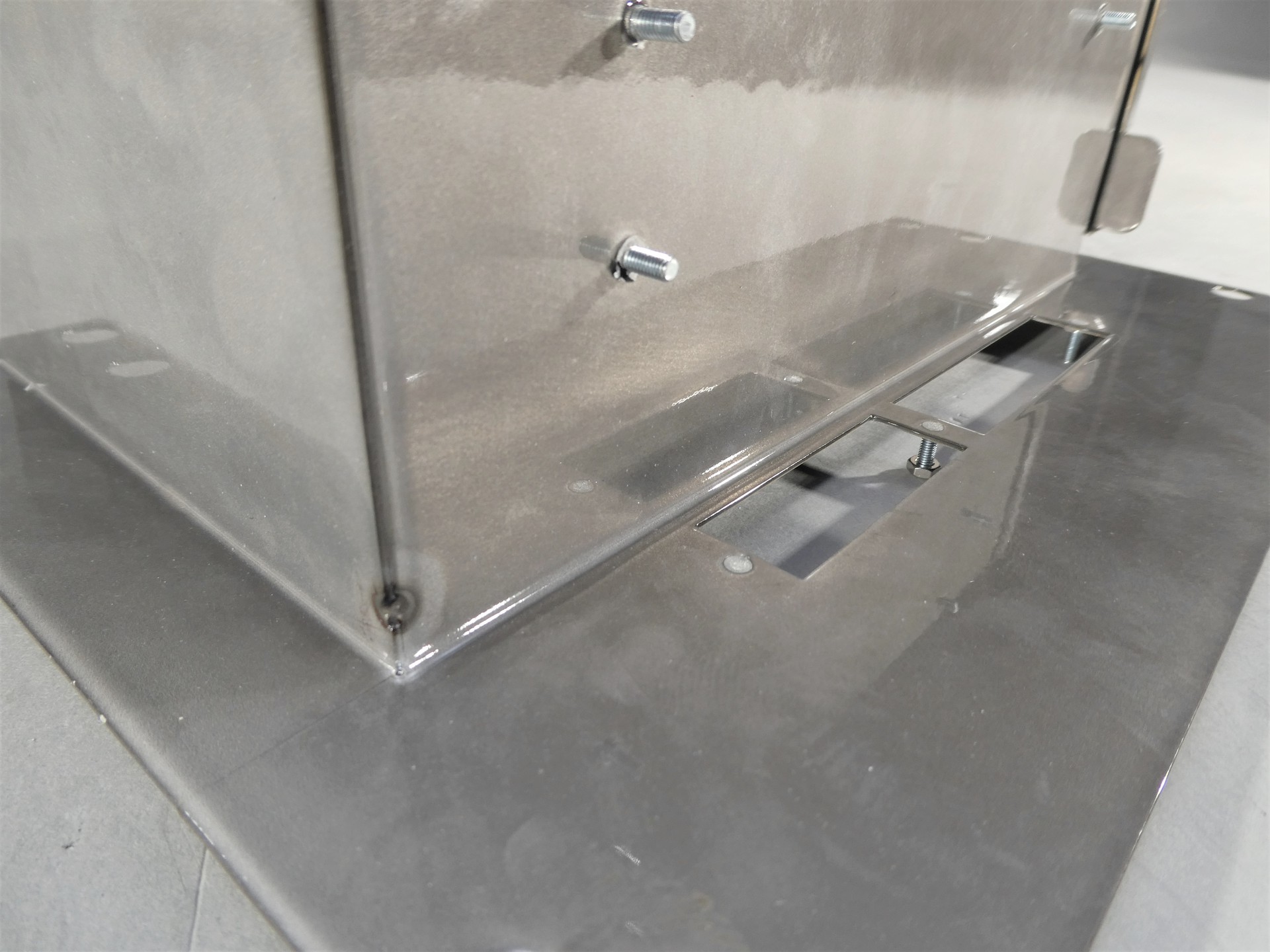

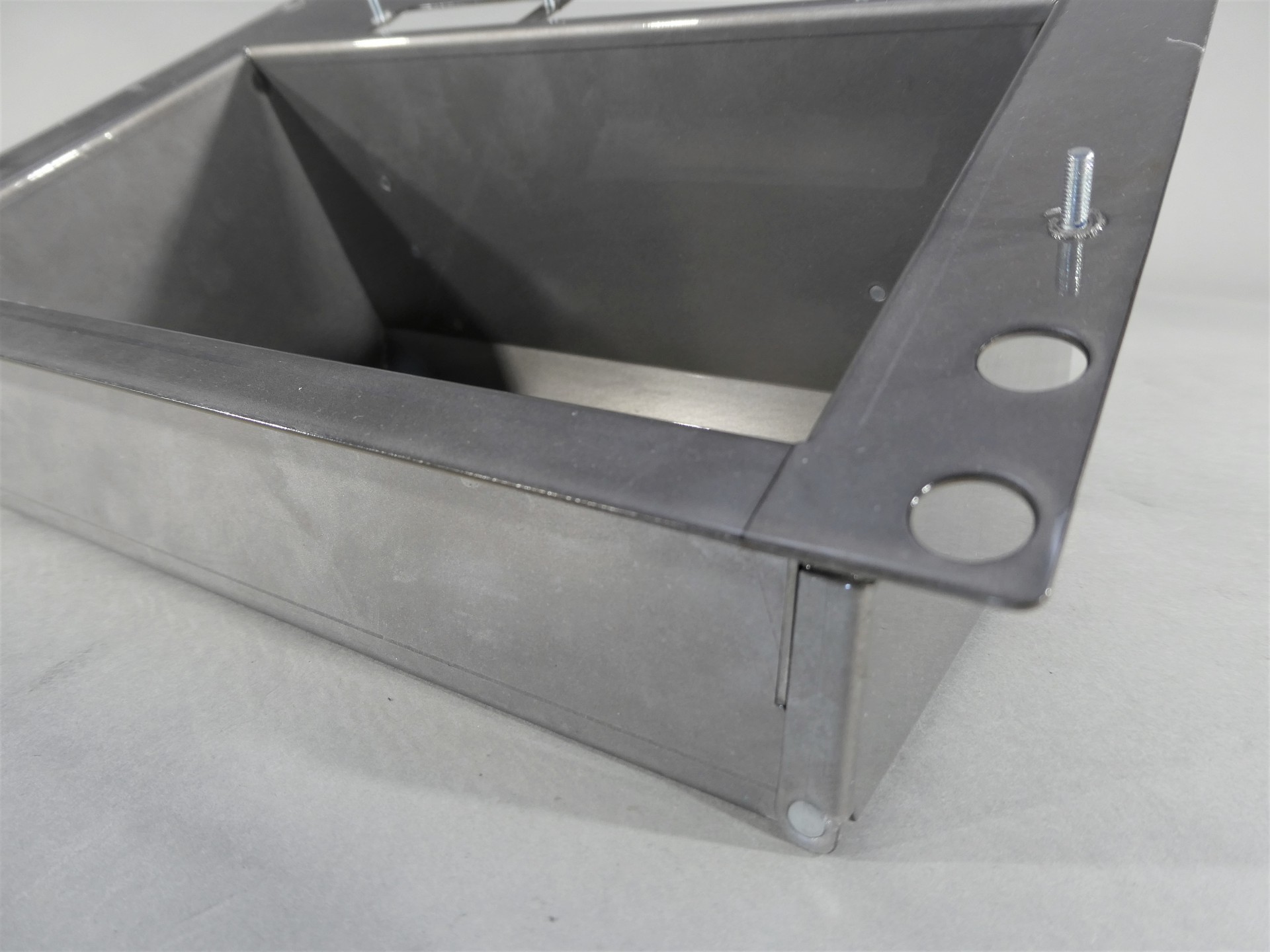

The part features numerous inserts, making the bending process complex. It is a single piece, except for the door, and requires high precision in its manufacturing due to the presence of many joints. The programming phase is also challenging.
