37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

Parts078

Technical Encouragement Award

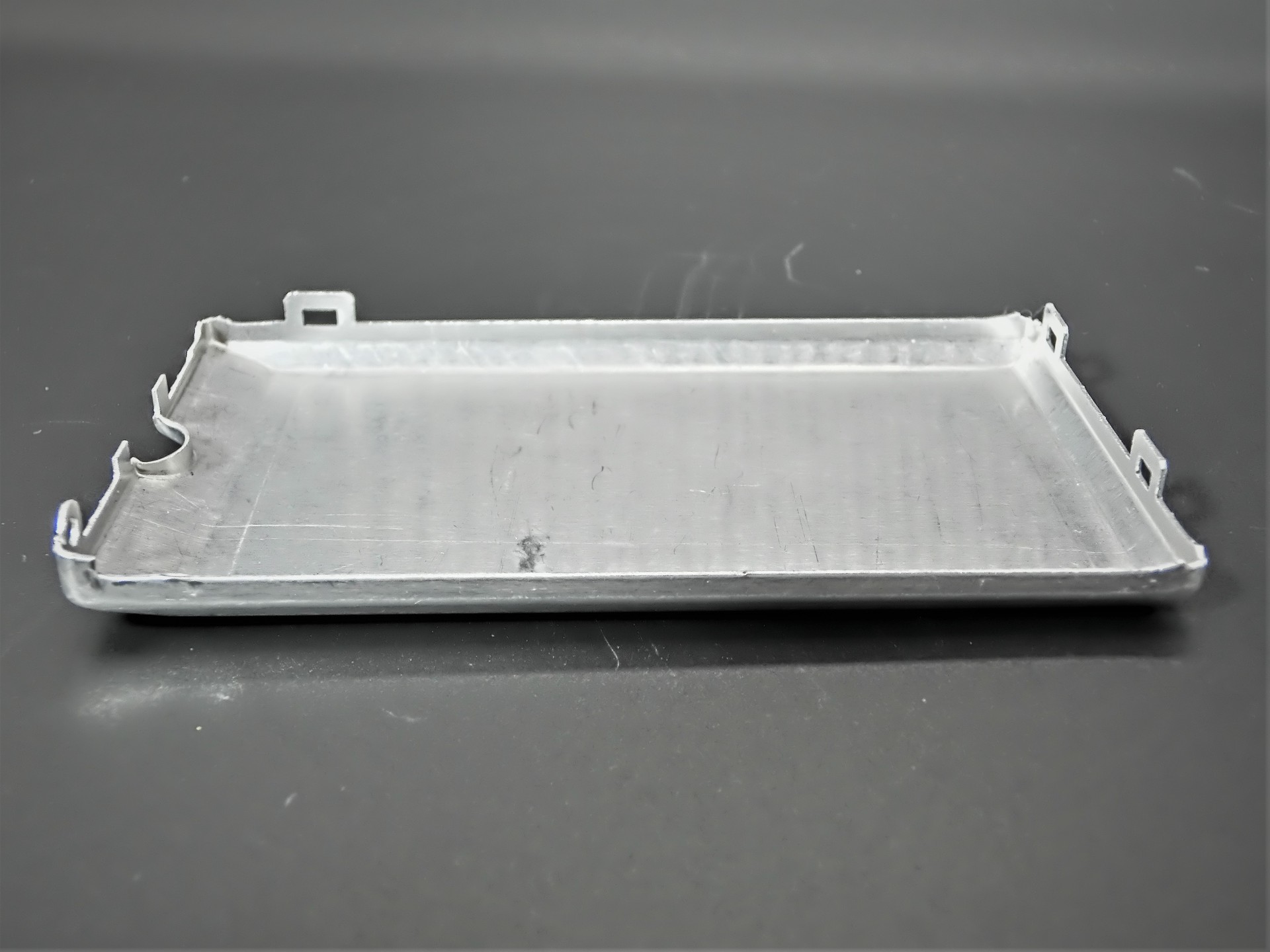

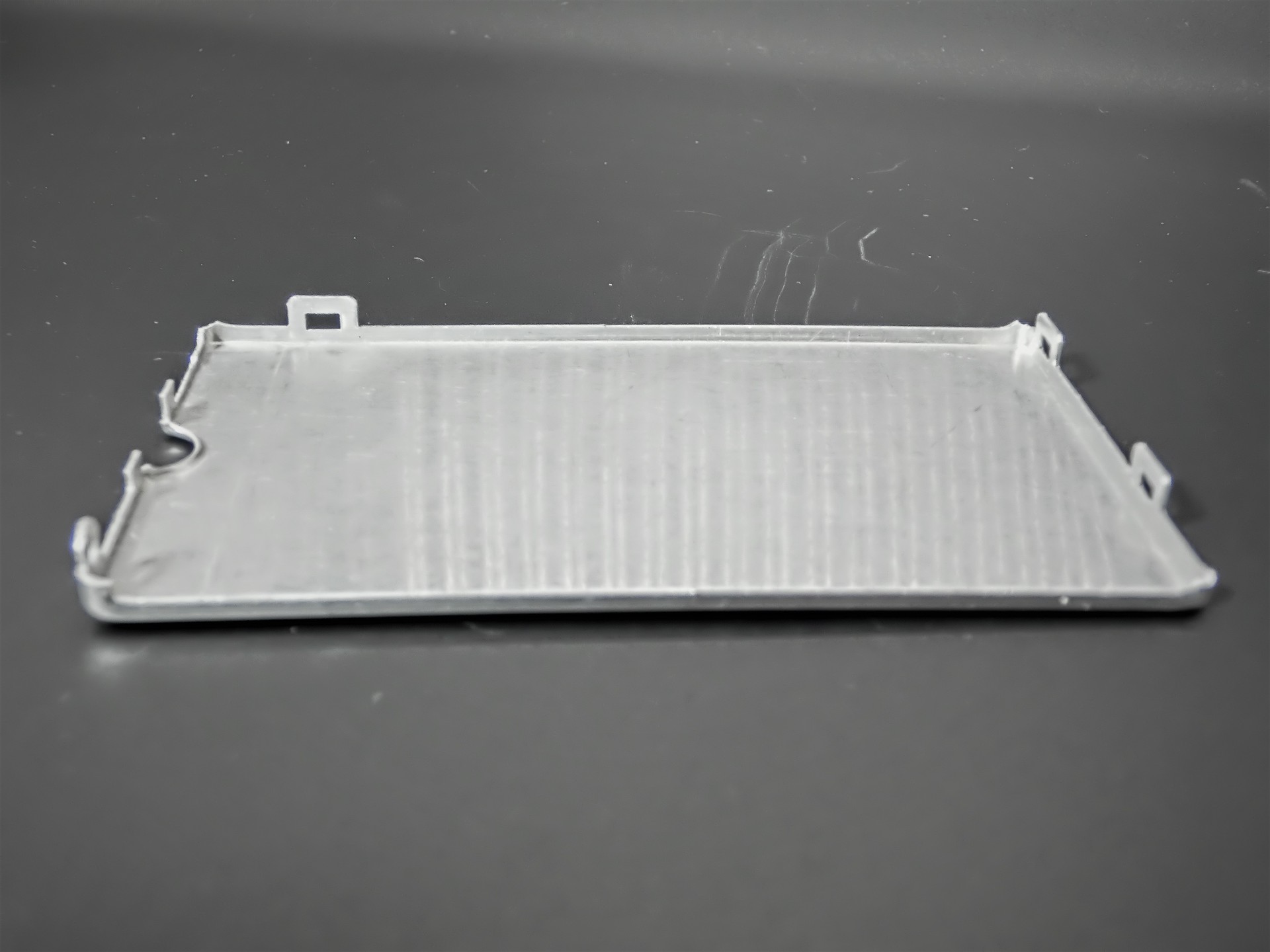

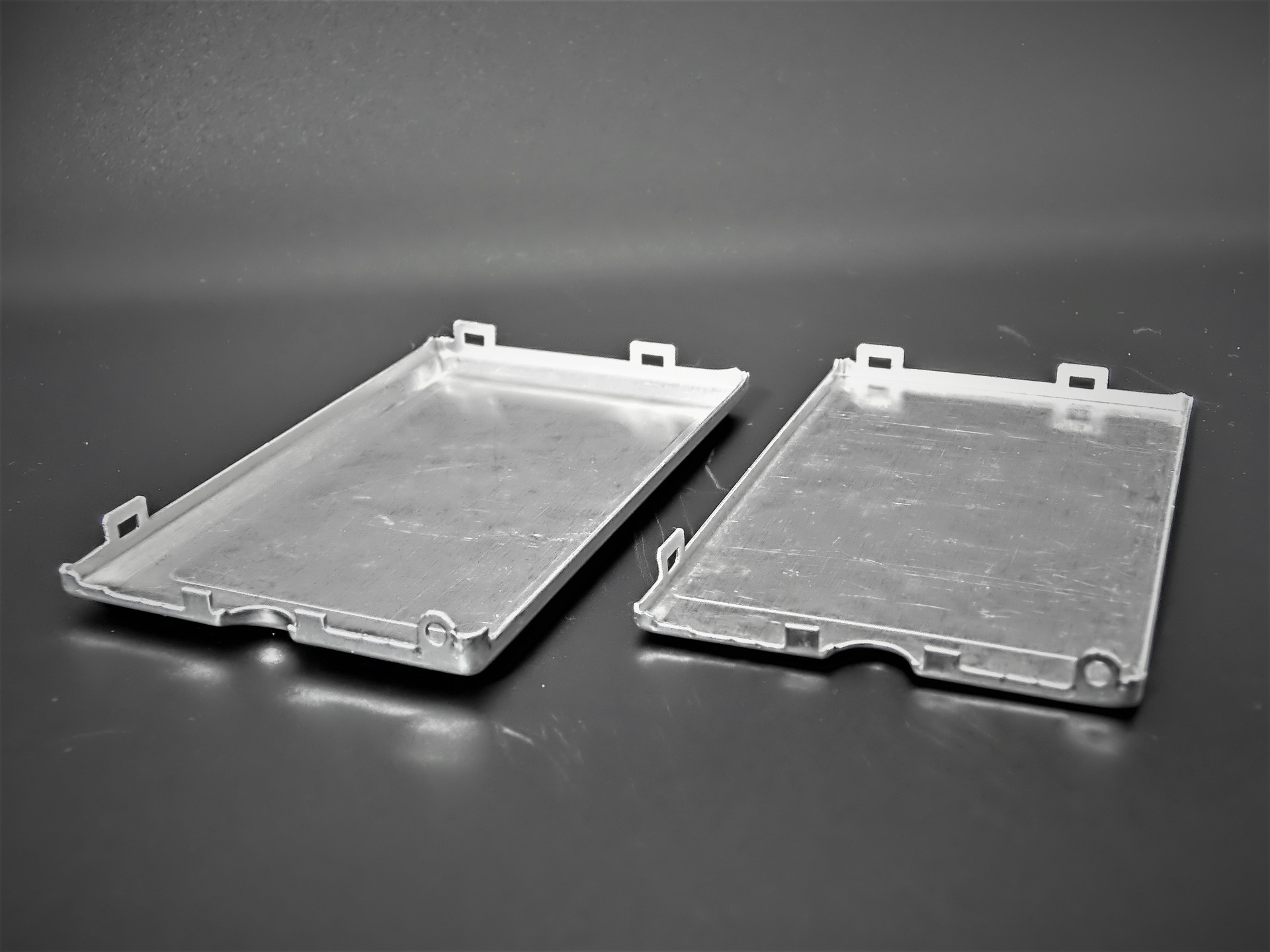

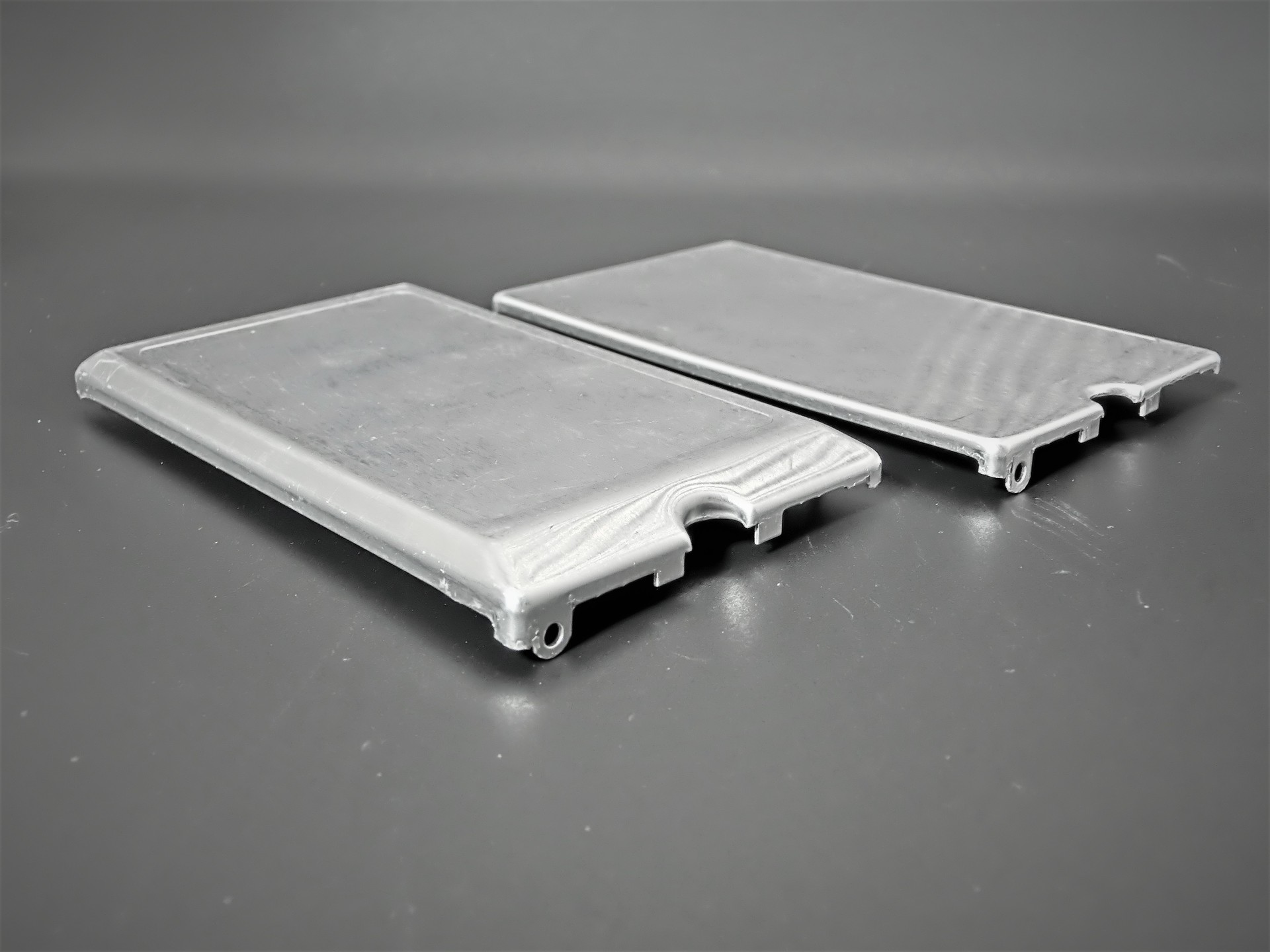

Mobile storage

サン工業 株式会社 (Toyama, Japan)

  • Size: W100 x D56 x H9 mm

  • Accuracy: ± 0.2 mm

  • Programming time: 480 min

  • Processing time: 1 min/quantity

  • Quantity: 1

  • Material: Aluminum (A5052)

  • Thickness: 0.6 mm

  • Type: Prototype

Process

  • 2D/3D Design

  • Programming

  • Punching

  • Drawing

  • 脱脂洗浄

Strengths

ブランク加工をタレパンで行うことにより短納期対応を実現
絞り加工に合わせてブランク加工を調整

板金とプレスの複合加工
