Thin stainless crystals (Parts063)
Parts063
Technical Encouragement Award

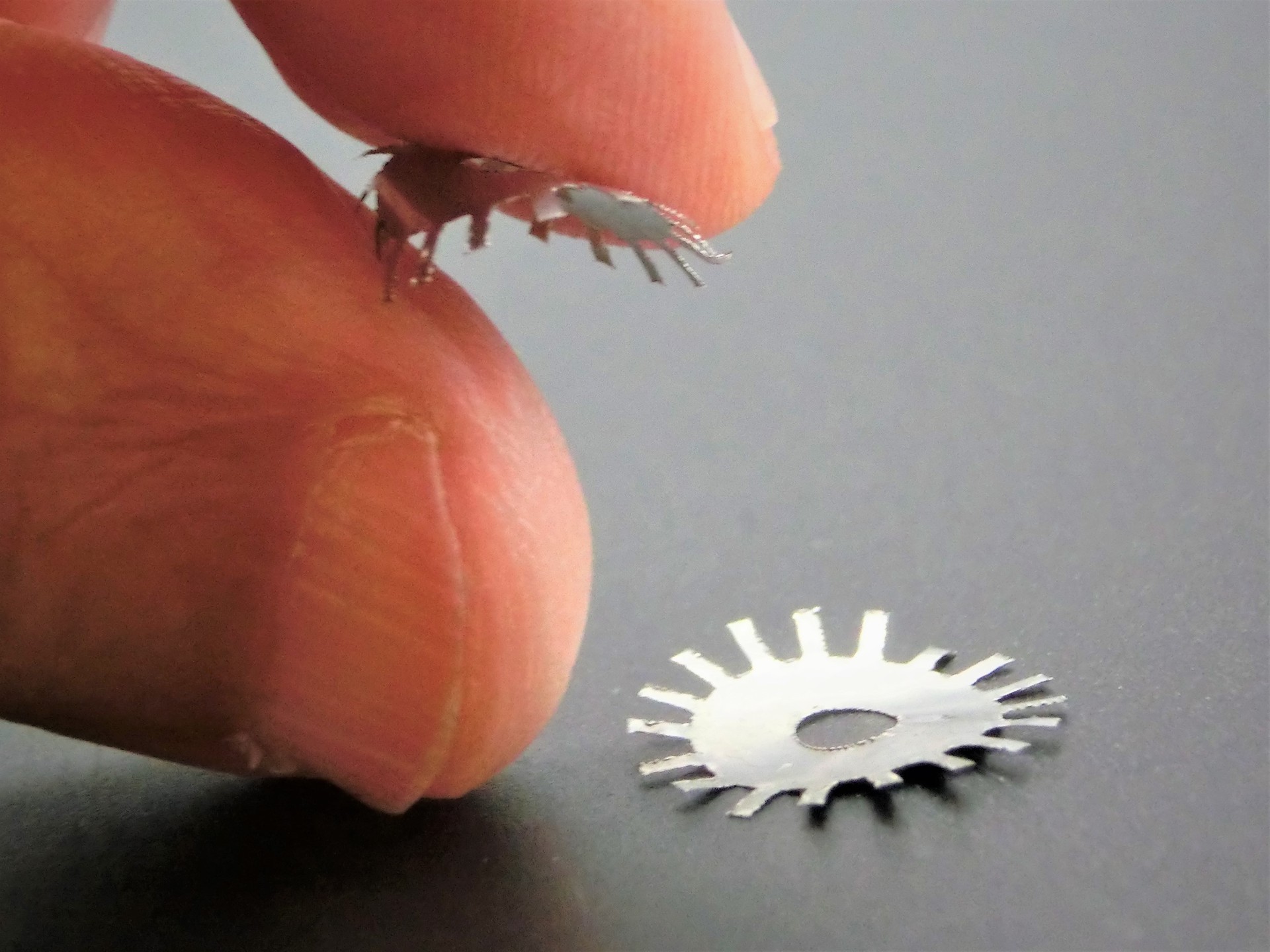

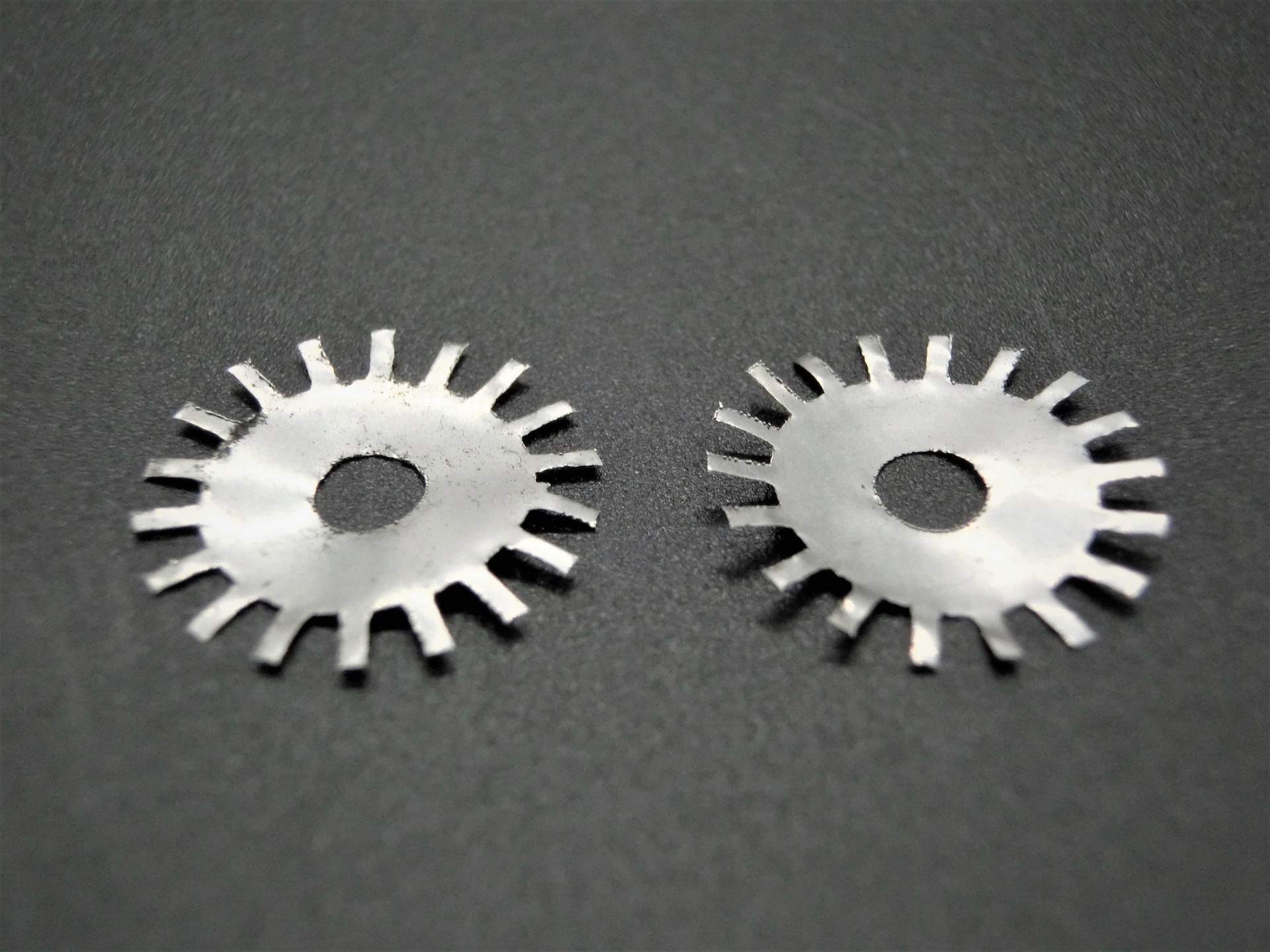

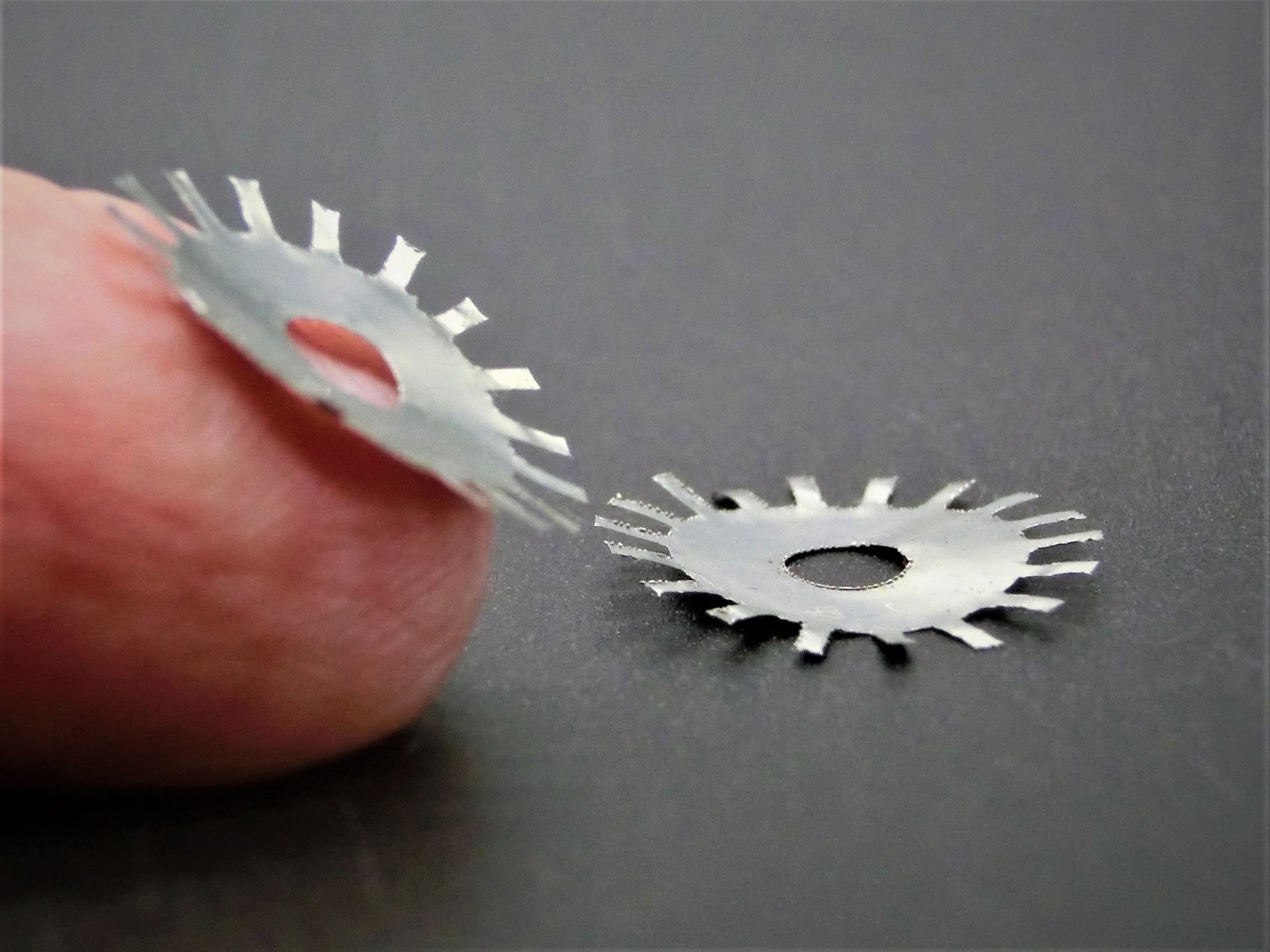

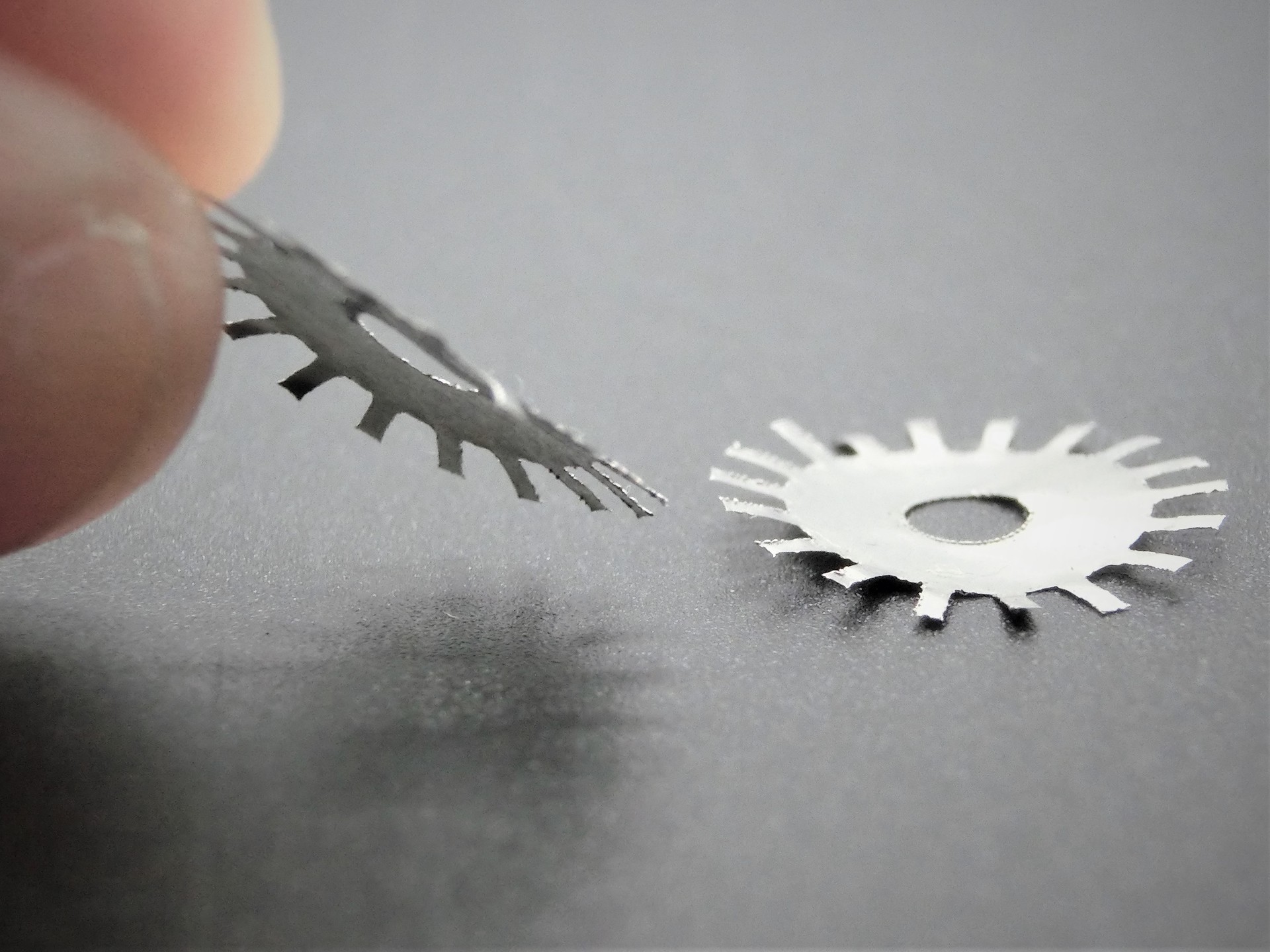

Thin stainless crystals
株式会社 ミワレーザー (Aichi, Japan)
-
・Size: W13 x D13 x H0.01 mm
-
・Accuracy: ± 0.01 mm
-
・Programming time: 10 min
-
・Processing time: 15 min/quantity
-
・Quantity: 2
-
・Material: Stainless steel (SUS304)
-
・Thickness: 0.01 mm
-
・Type: Prototype
Process
CAD/CAM
CAD/CAM
Laser-Cutting
Surface Finishing
Strengths
材料はハニカム材で固定し、BRE1212AJで加工しました。
足元でシム等薄板の加工依頼が増えており、歪みを抑えられるよう出力を落として加工しました。
