37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts060

Technical Award

photo art

ZEE INDUSTRIES L.L.C (United Arab Emirates)

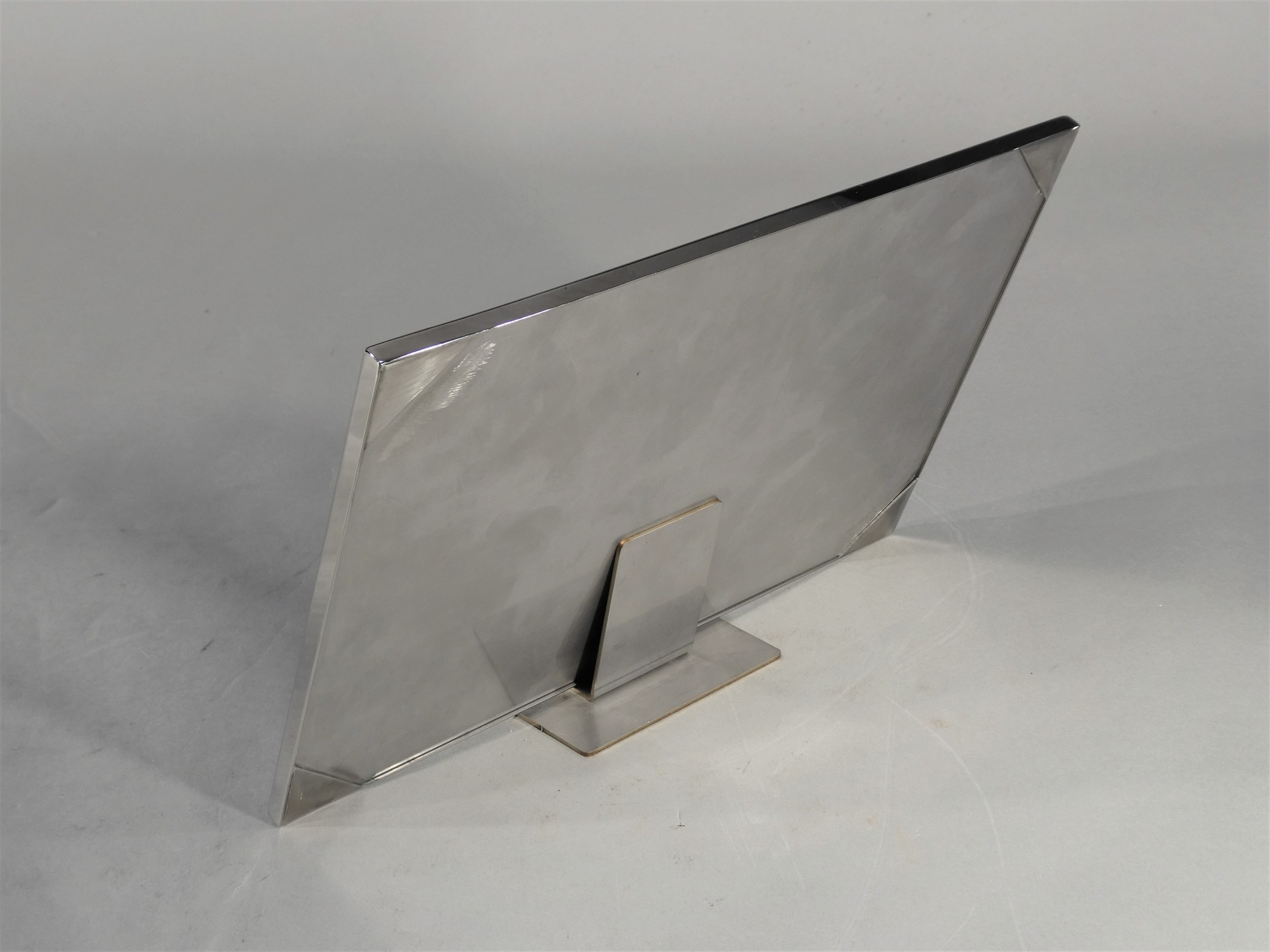

  • ・Size: W40 to 60 x D40 to 60 x H1 mm

  • ・Accuracy: ± 0.1 mm

  • ・Programming time: 5 min

  • ・Processing time: 2 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 1 mm

  • ・Type: Prototype

Process

  • Planning

  • 2D/3D Design

  • Programming

  • Laser-Cutting

  • Assembly

  • Surface Finishing

Strengths

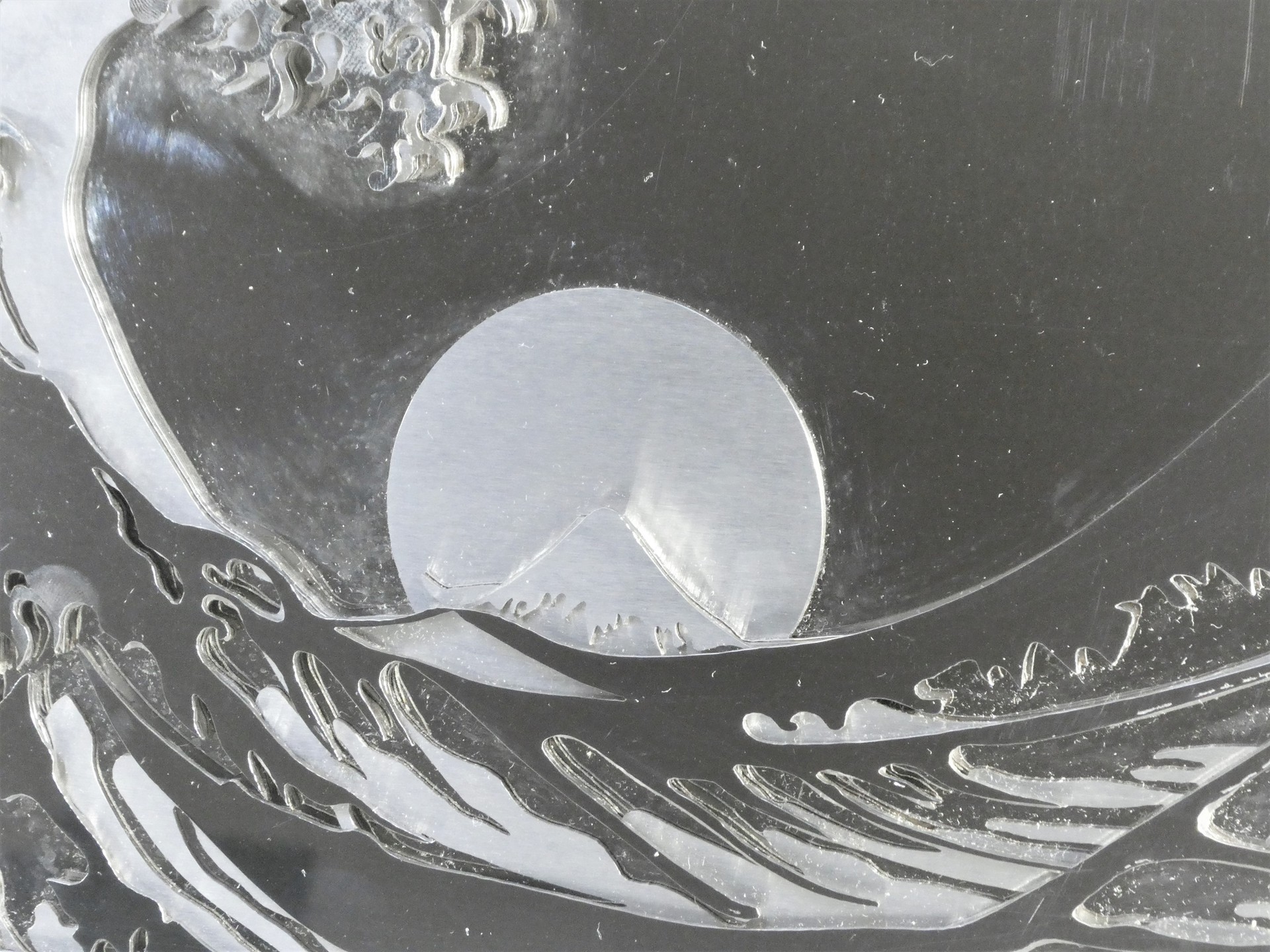

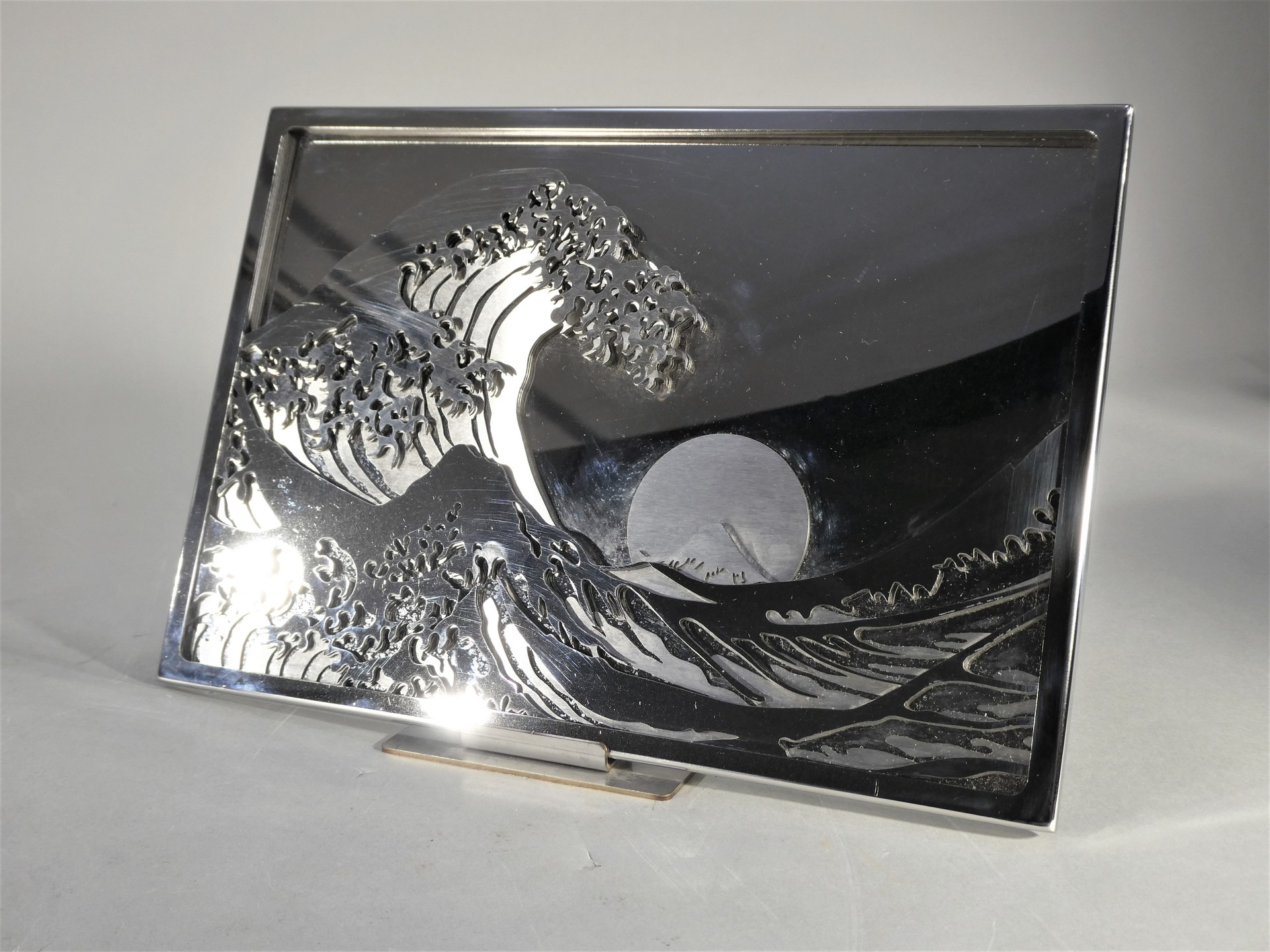

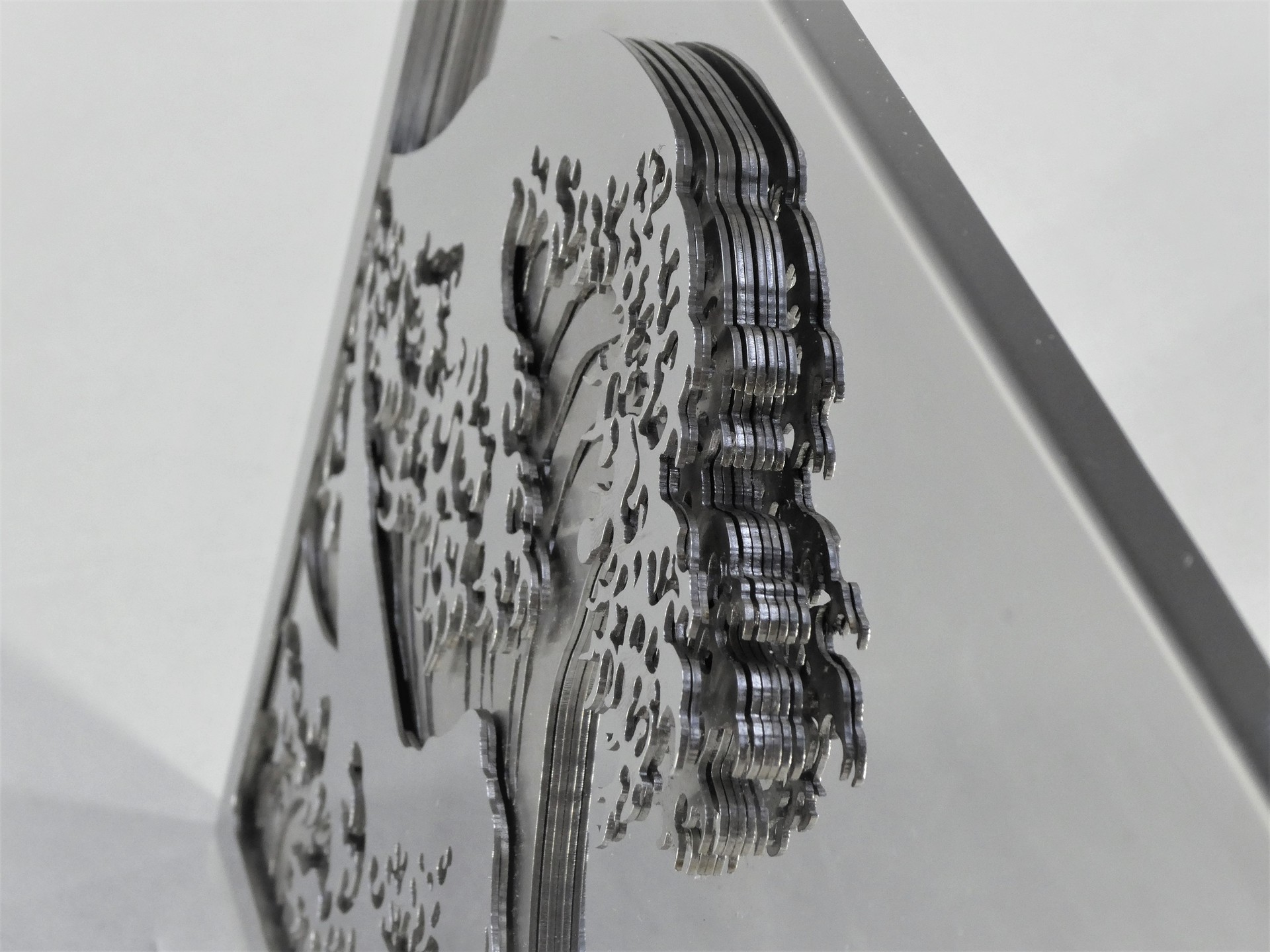

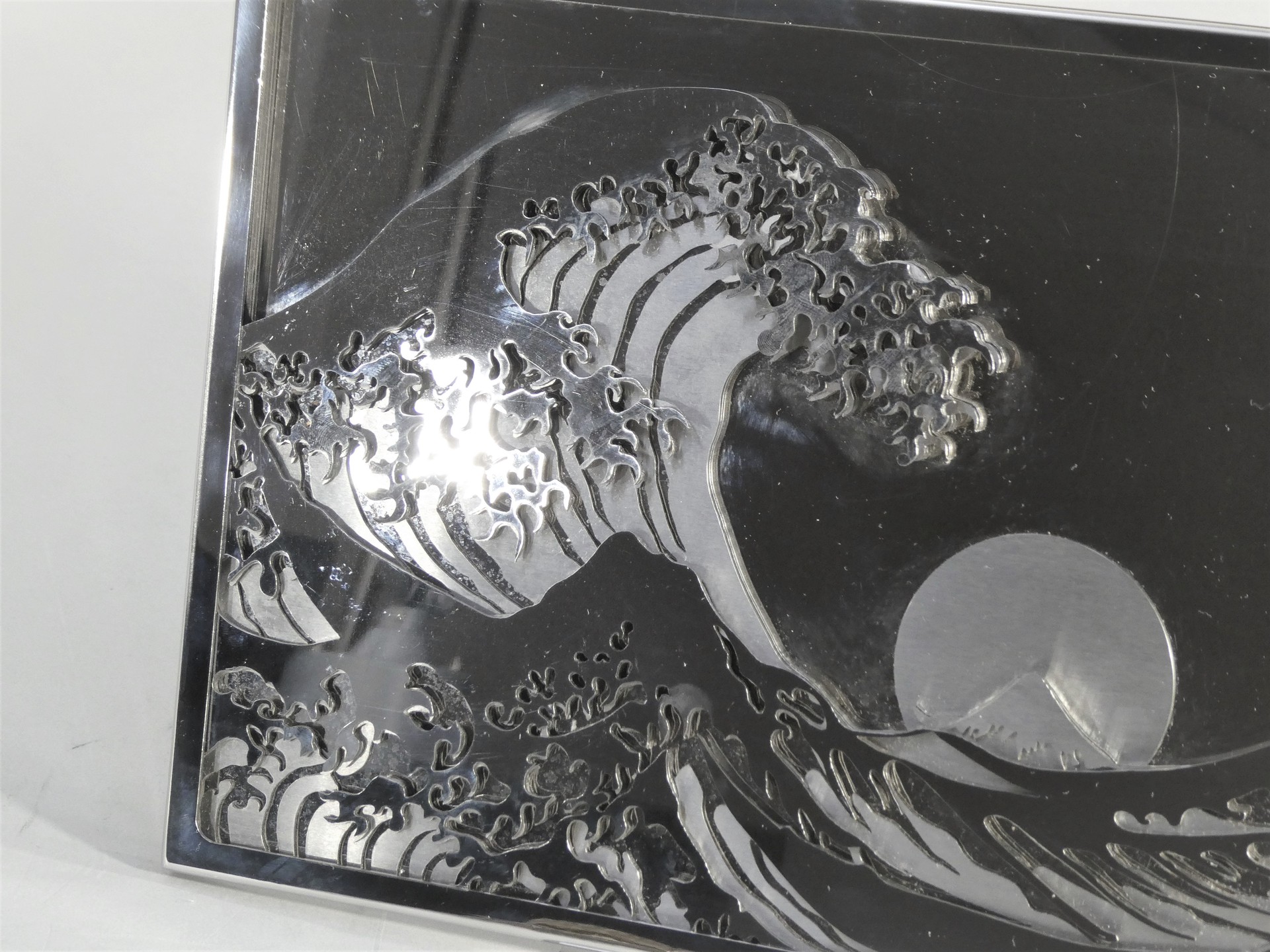

we using stencil maker as covert normal image to stencil image and draw by using AutoCAD. Laser cutting machine utilize the cutting density knowing after we create the drawing and cutting the image.
