Grand Piano~Music changes the world~ (Parts054)
Parts054
Technical Award

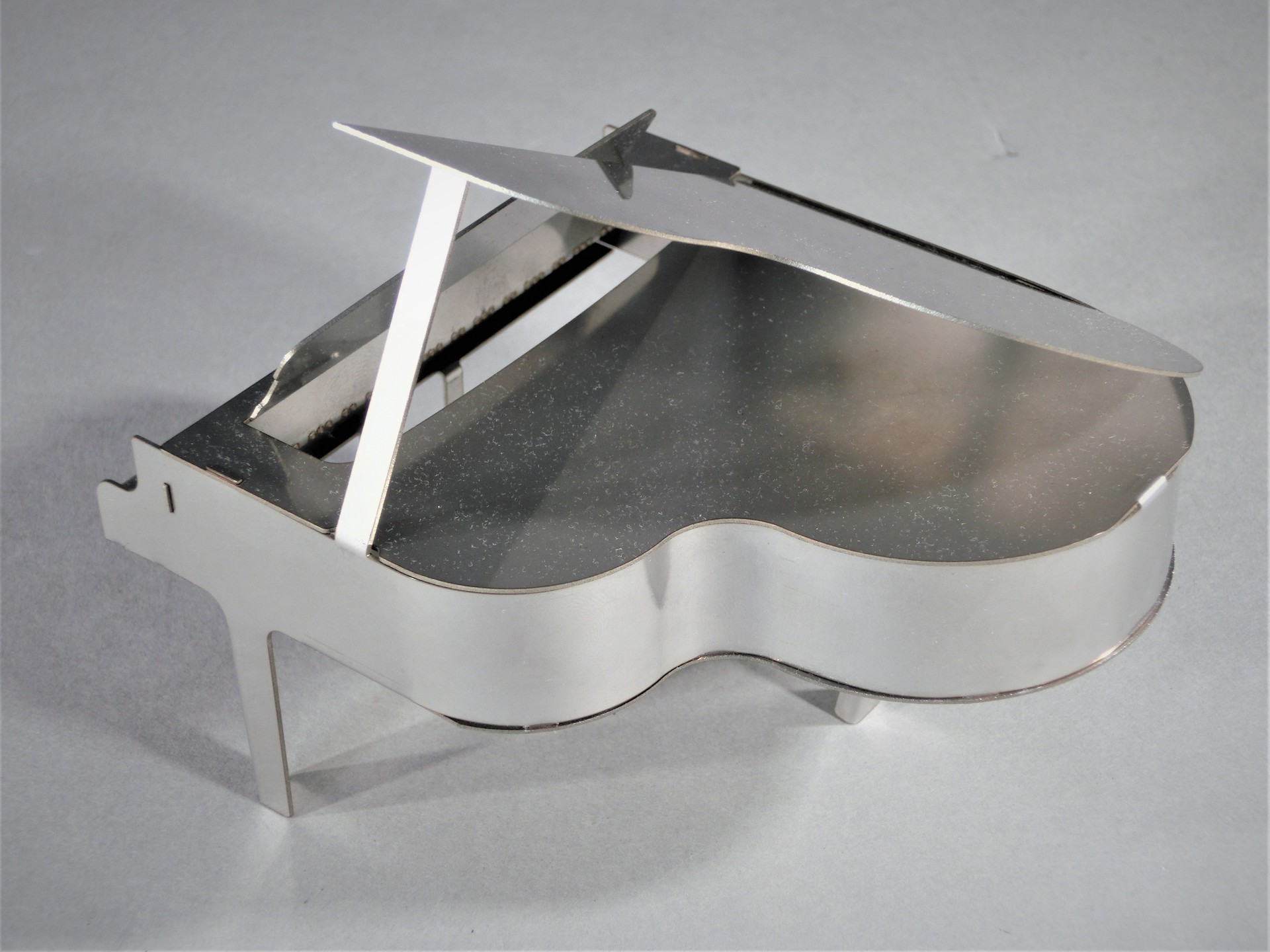

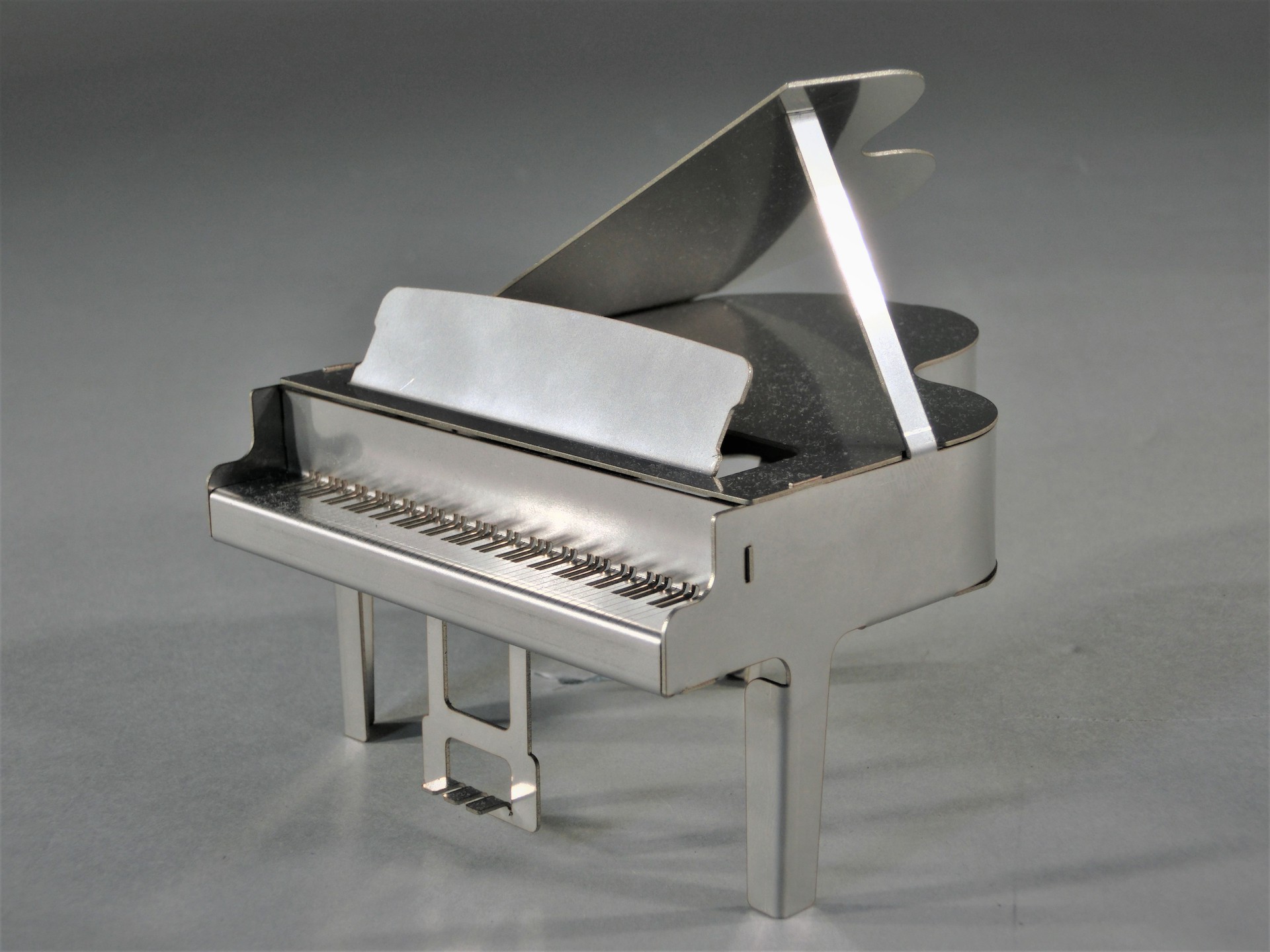

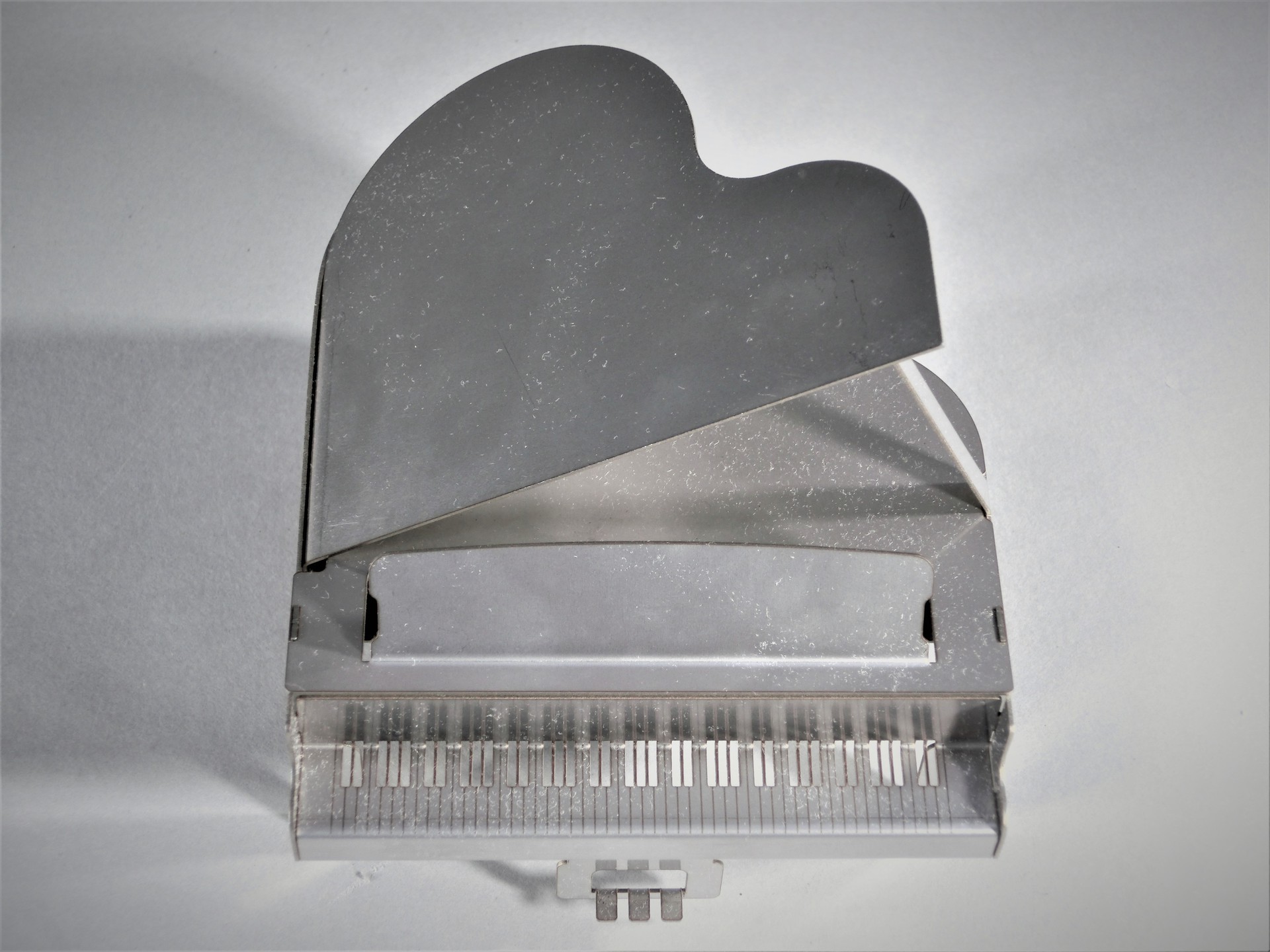

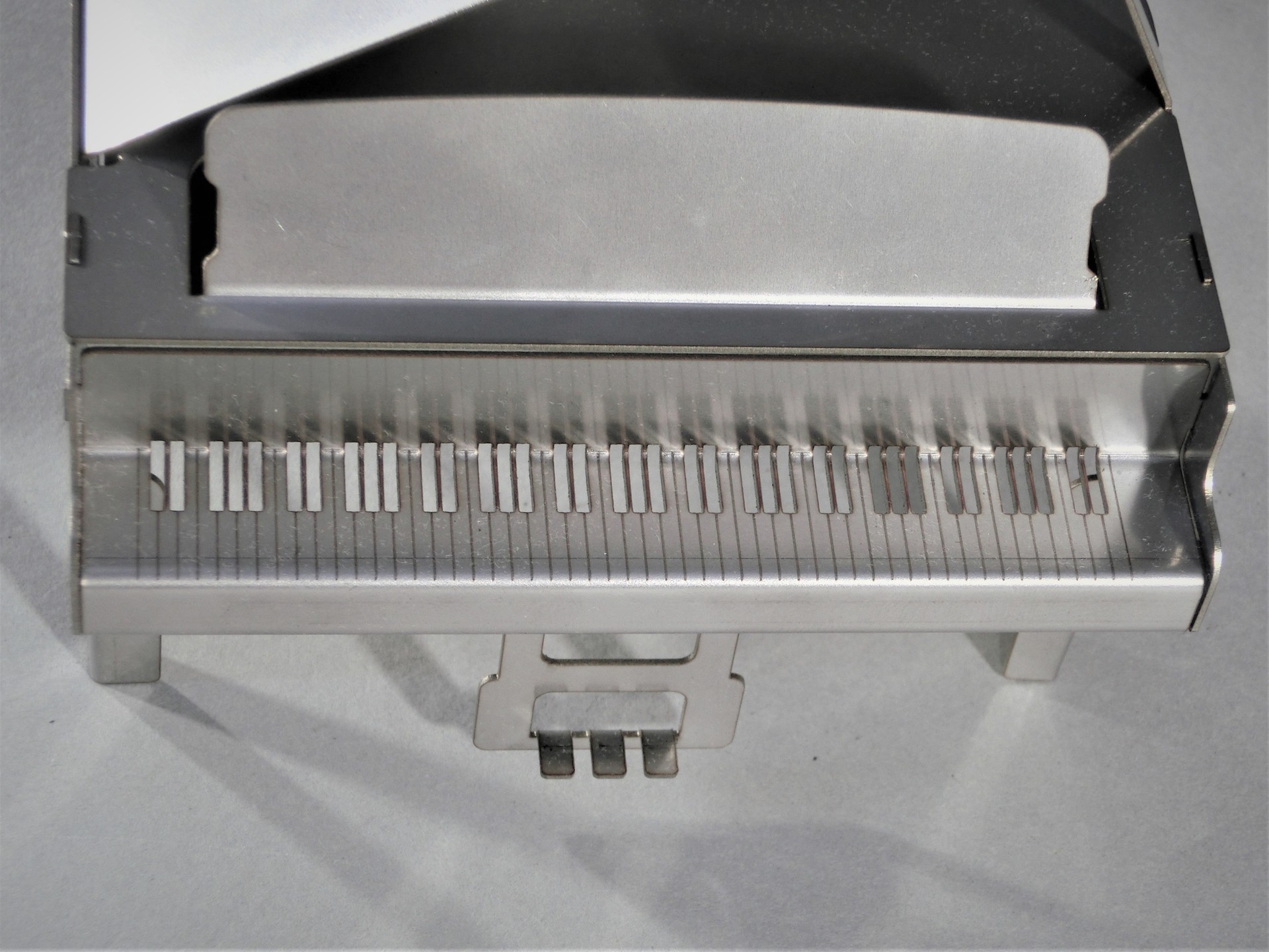

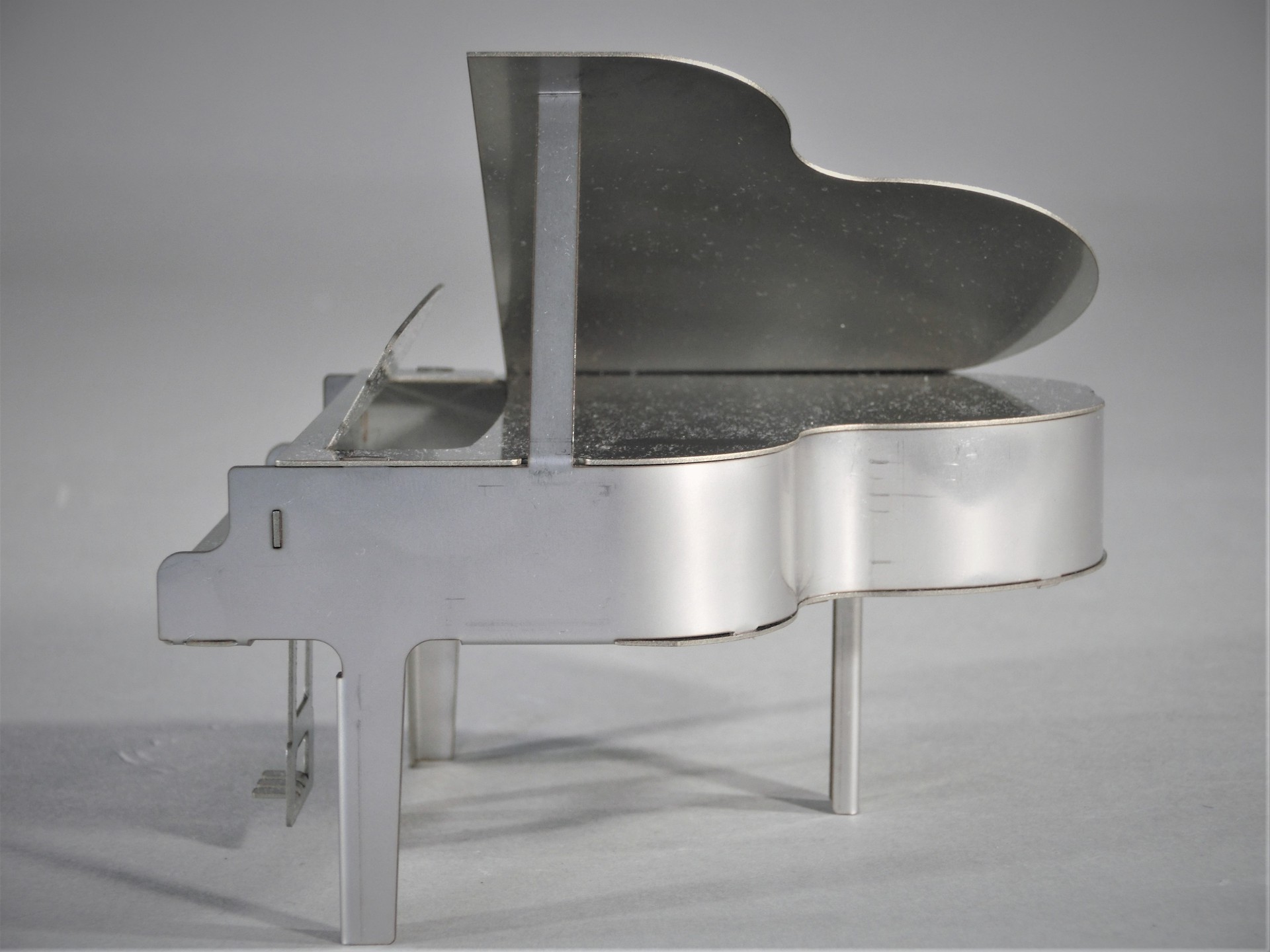

Grand Piano~Music changes the world~
リンナイ 株式会社 (Aichi, Japan)
-
・Size: W91 x D111 x H98 mm
-
・Accuracy: ± 0.25 mm
-
・Programming time: 100 min
-
・Processing time: 180 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 0.6 mm
-
・Type: Original work
Process
Planning
2D/3D Design
Unfolding
CAD/CAM
Laser-Cutting
Bending
Strengths
アピールポイントとしましては、
ピアノを製作するにあたり複数ではなく単品の部品にて作製する為に、加工がしやすい形でモデル、展開形状を構成し作製することができたことです。
