Parts041

Technical Encouragement Award

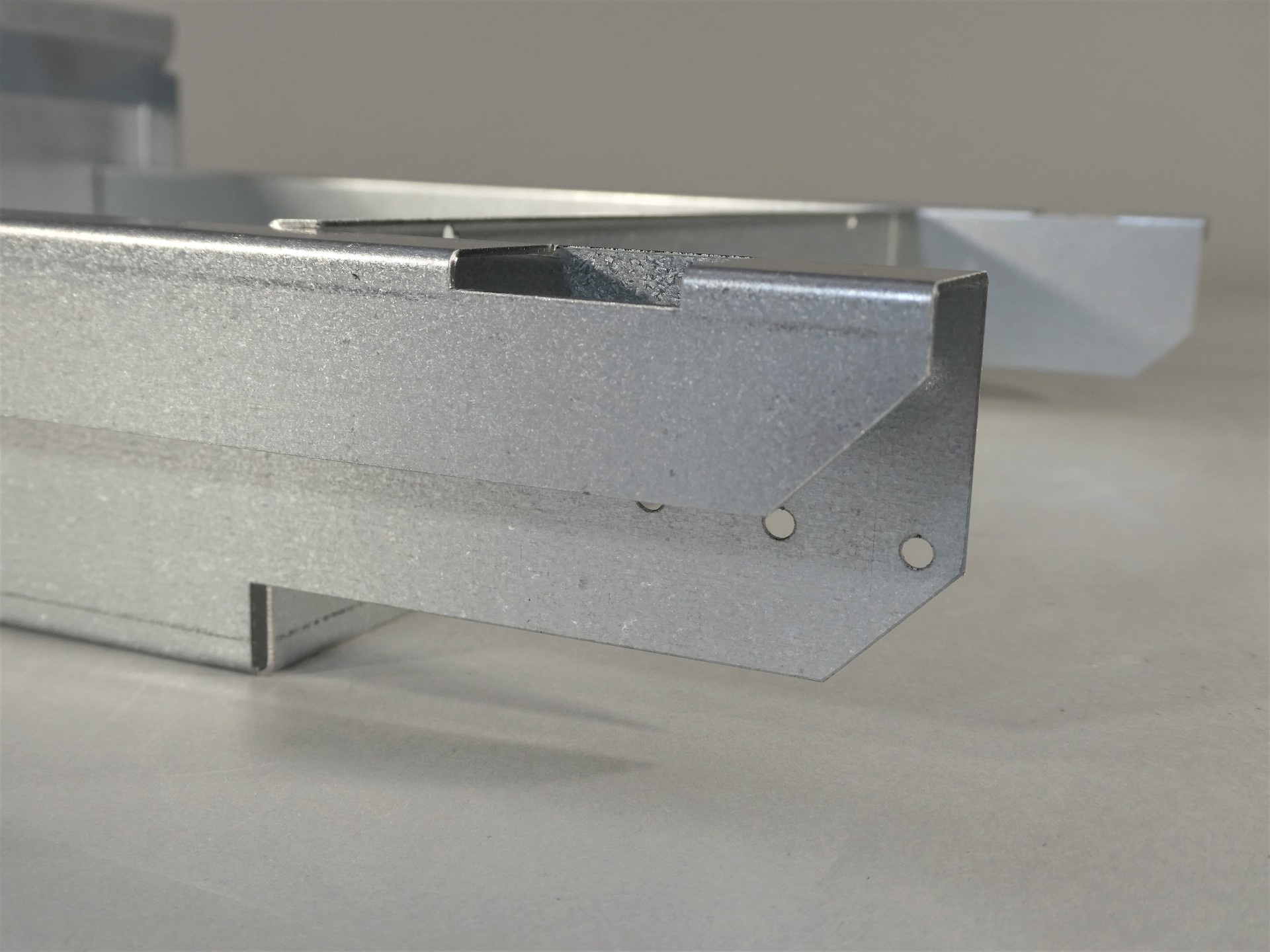

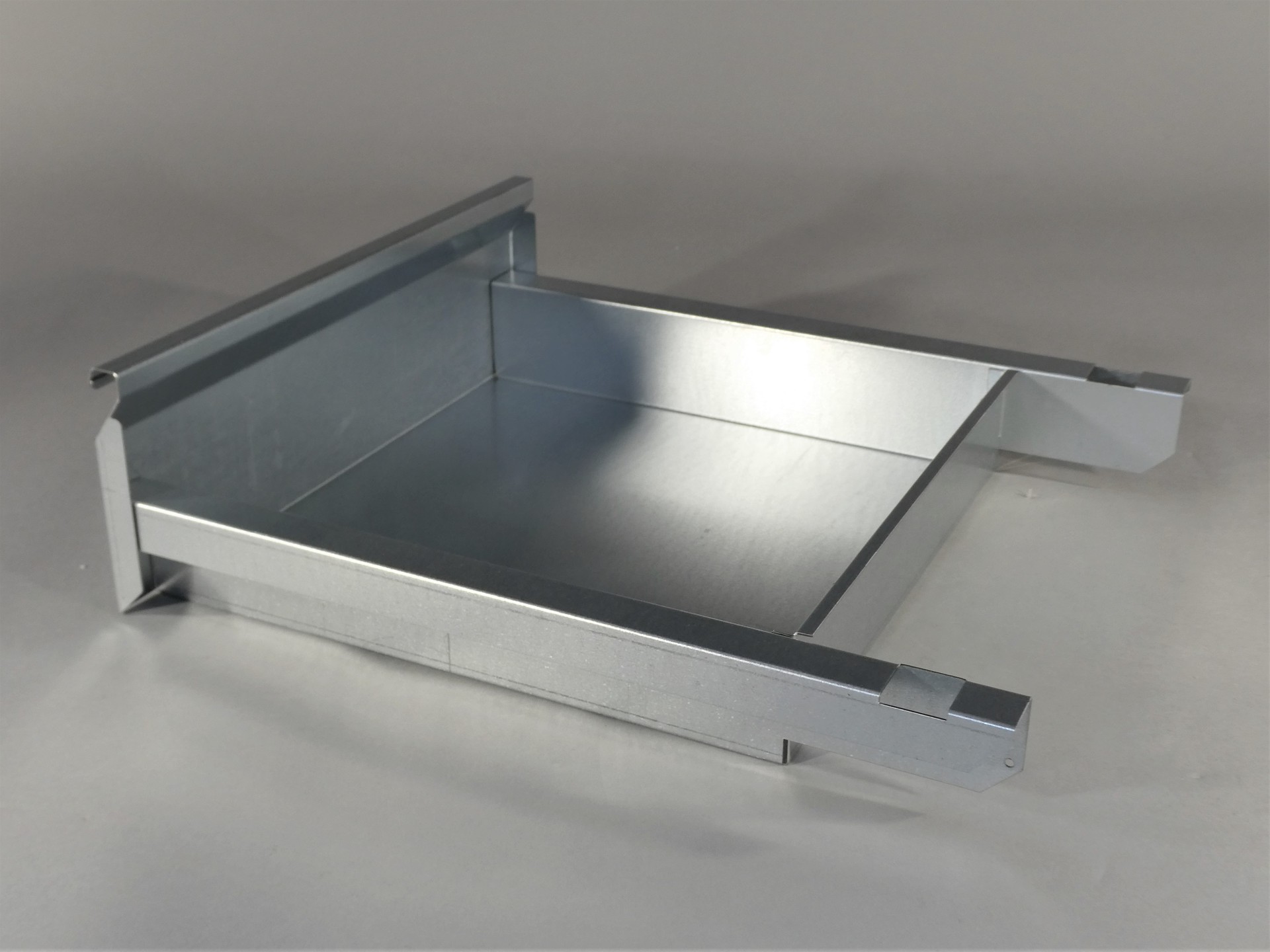

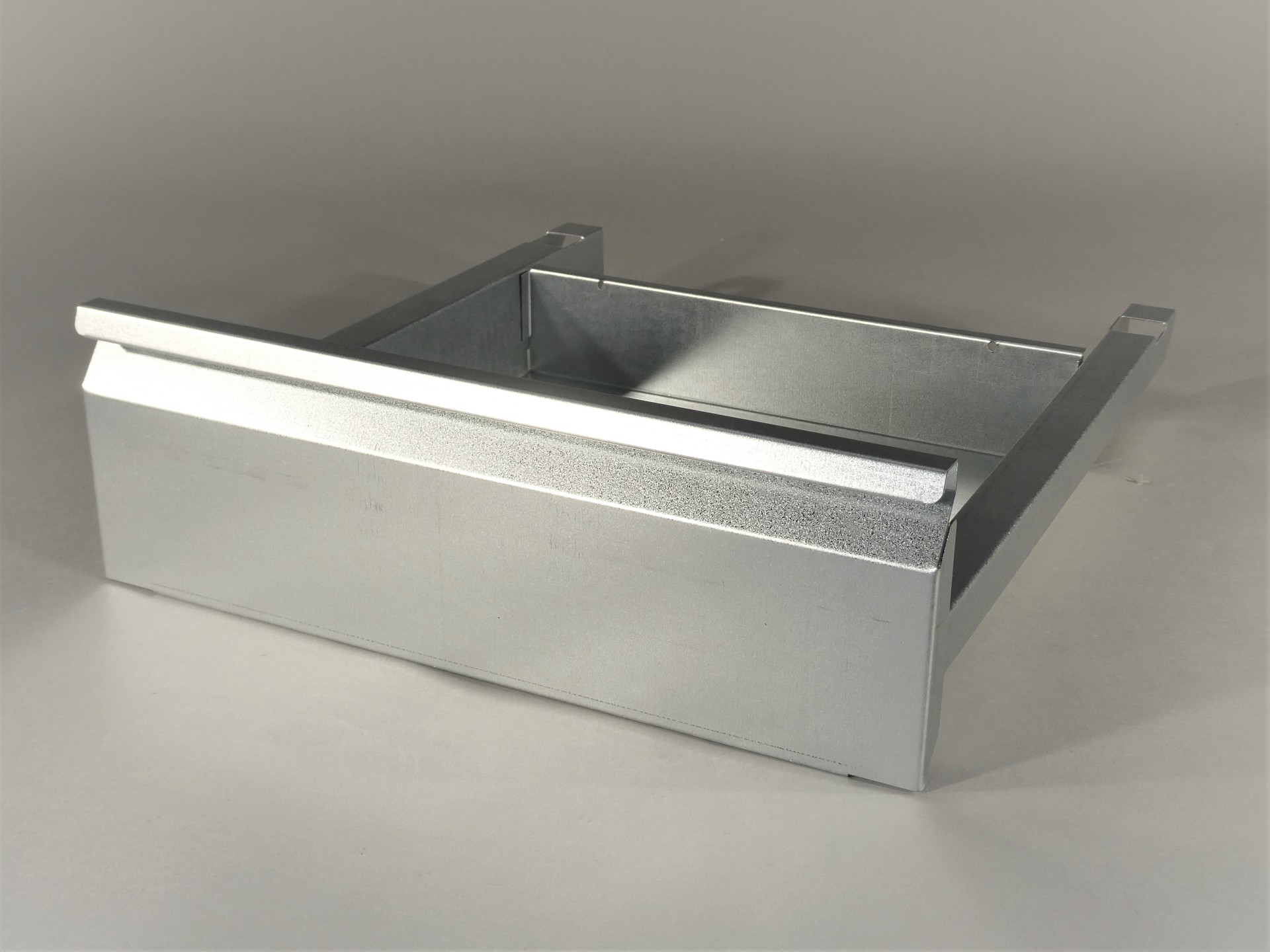

Schublade einteilig (One-piece drawer)

Mauser Einrichtungssysteme GmbH & Co. KG (Germany)

  • ・Size: W412,5 x D365,9 x H125 mm

  • ・Accuracy: ± 0,5 mm

  • ・Programming time: 1 min

  • ・Processing time: 2 min/quantity

  • ・Quantity: 1

  • ・Material: Mild Steel (SPCC)

  • ・Thickness: 0,88 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

Strengths

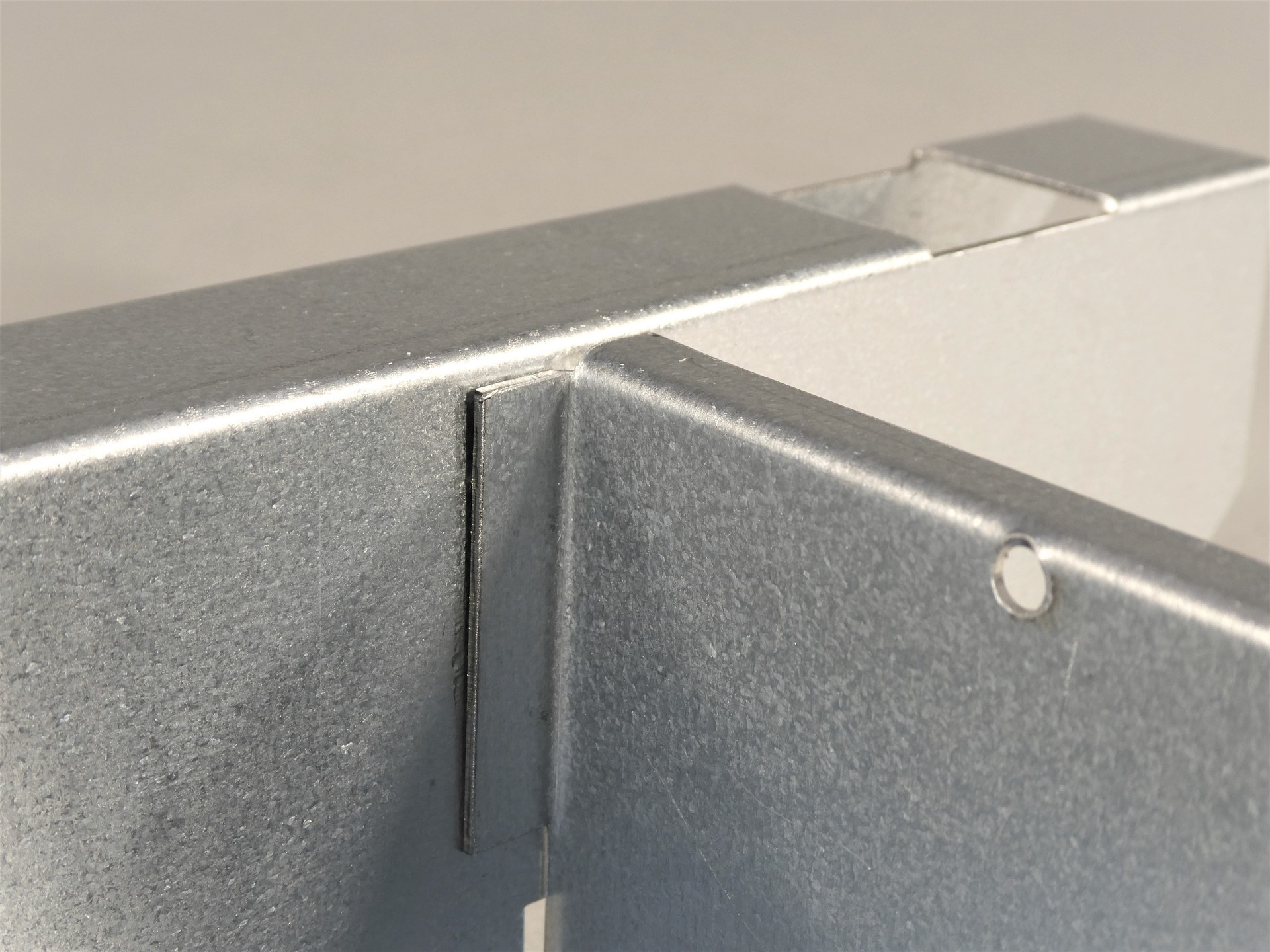

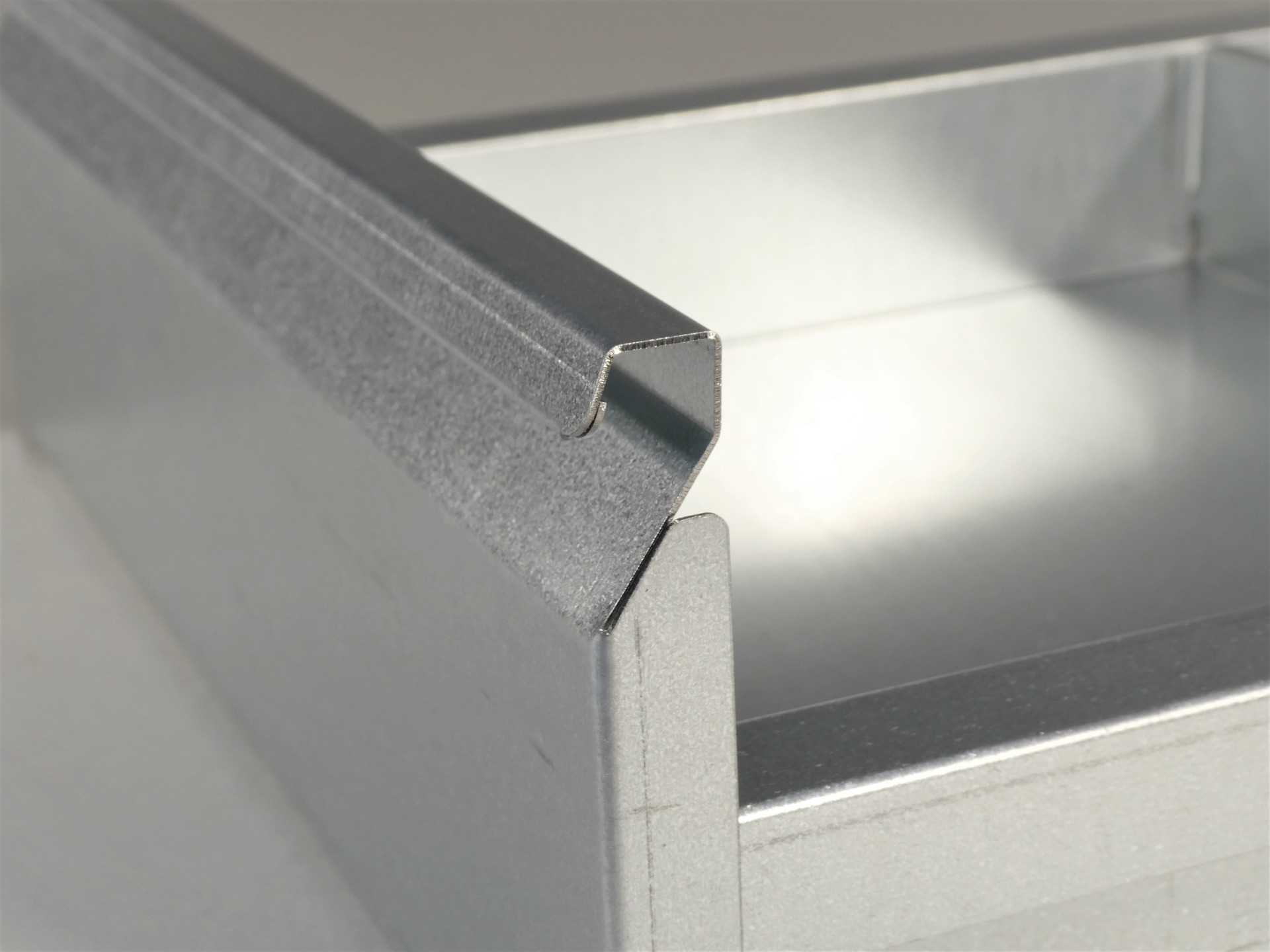

The drawer does not need to be welded because it holds itself in place thanks to the clamping edge
