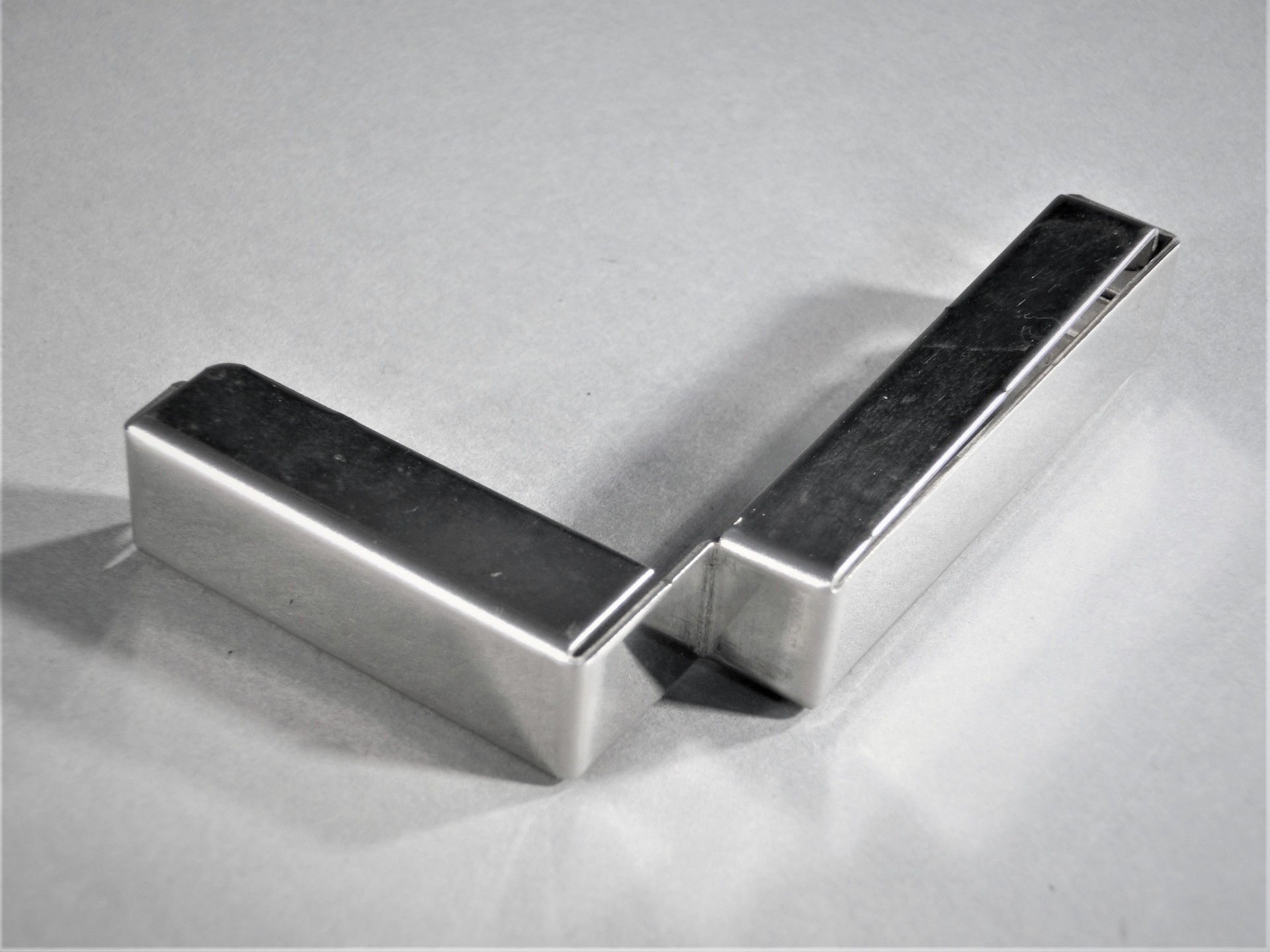

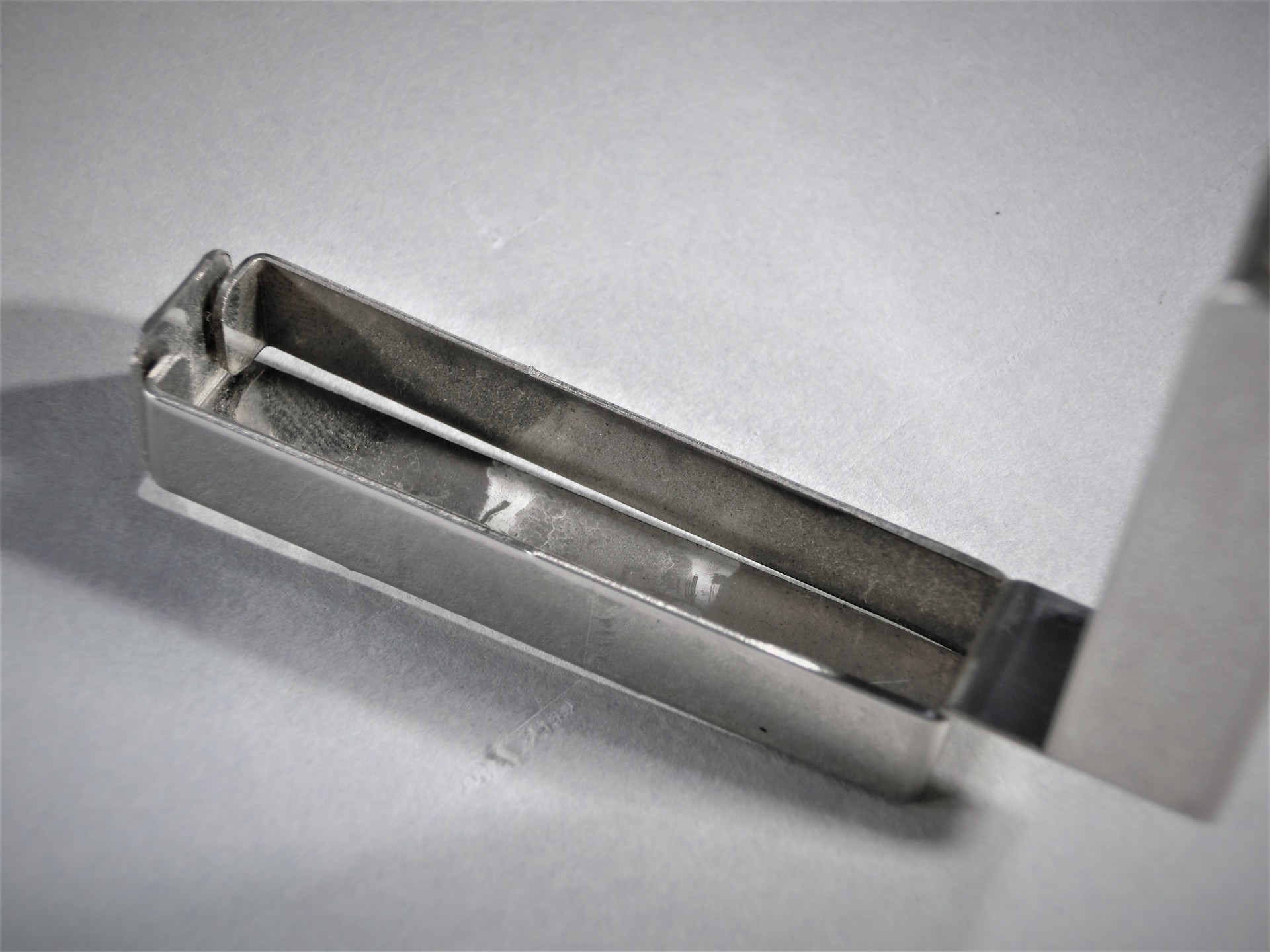

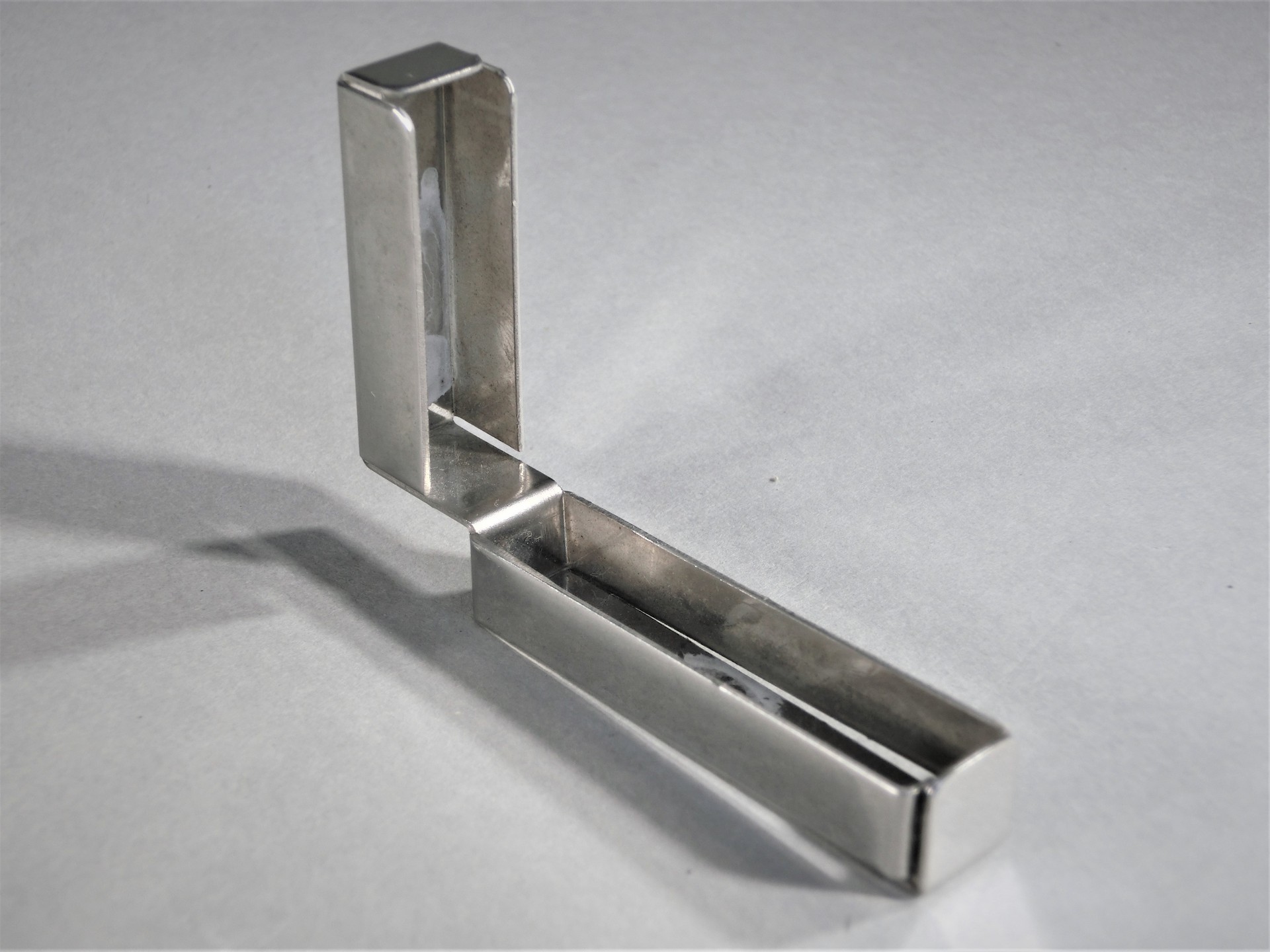

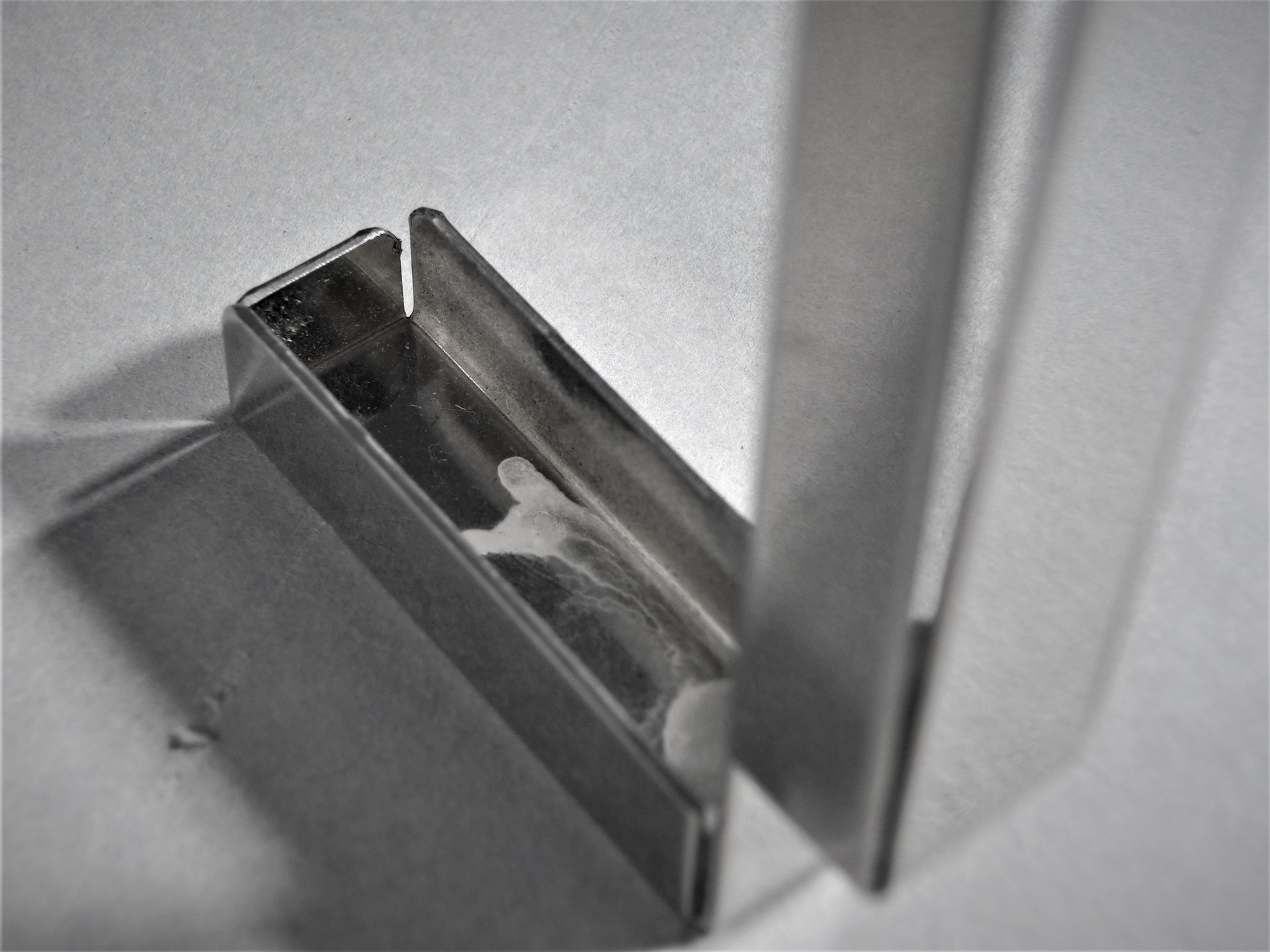

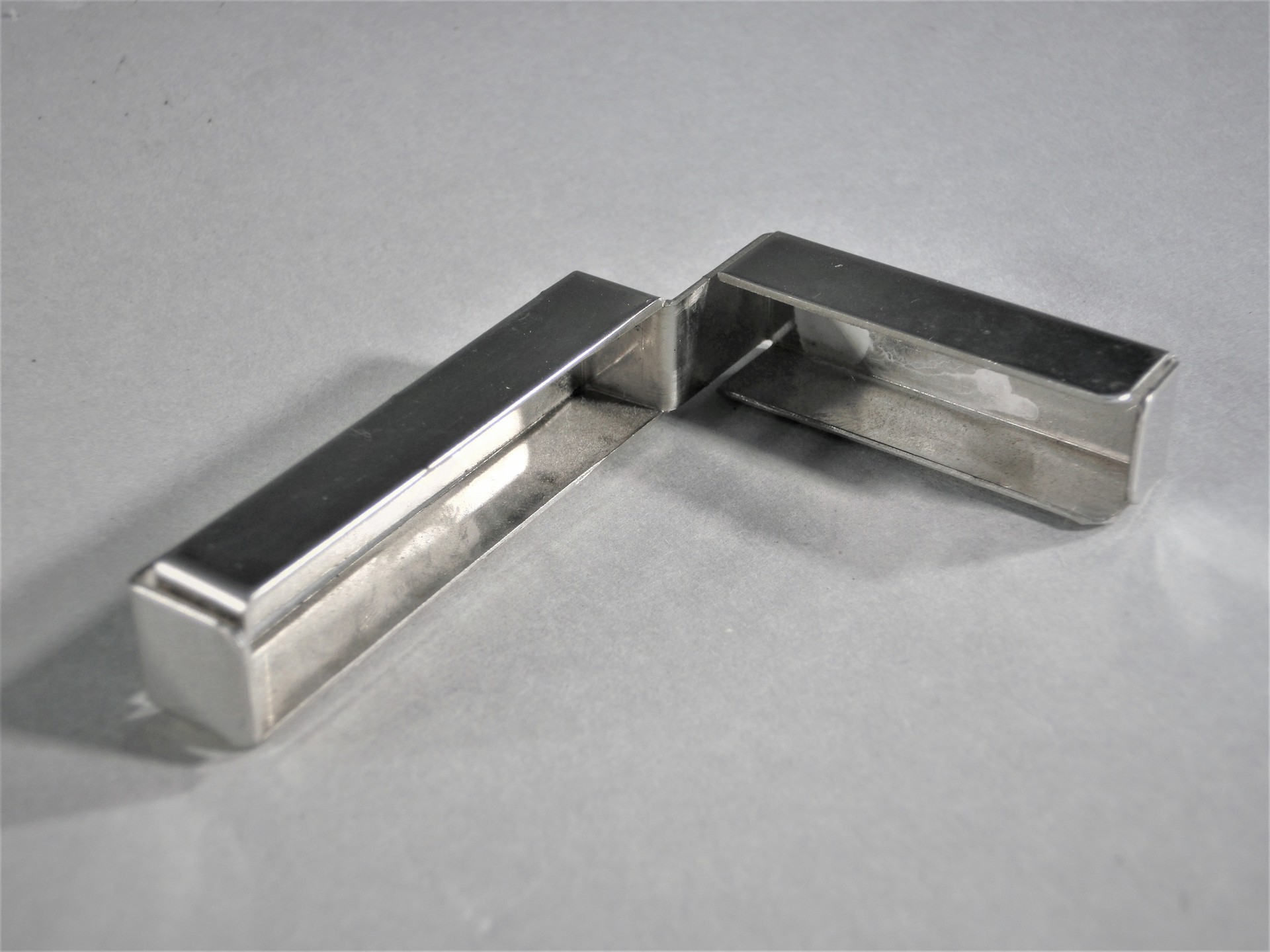

Showcase parts (Parts039)
Parts039
Technical Encouragement Award
Showcase parts
株式会社 アサヒテック (Osaka, Japan)
-
・Size: W60 x D40 x H10 mm
-
・Accuracy: ± 0.5 mm
-
・Programming time: 41 min
-
・Processing time: 30 min/quantity
-
・Quantity: 3
-
・Material: Aluminum (A5052)
-
・Thickness: 0.6 mm
-
・Type: Prototype
Process
CAD/CAM
Punching
Bending
Strengths
曲げ後、一部がばねの様に動きます。
取付け時の部品の固定に上手くできています。
