Tripod screw for digital camera (Parts032)
Parts032
Technical Encouragement Award

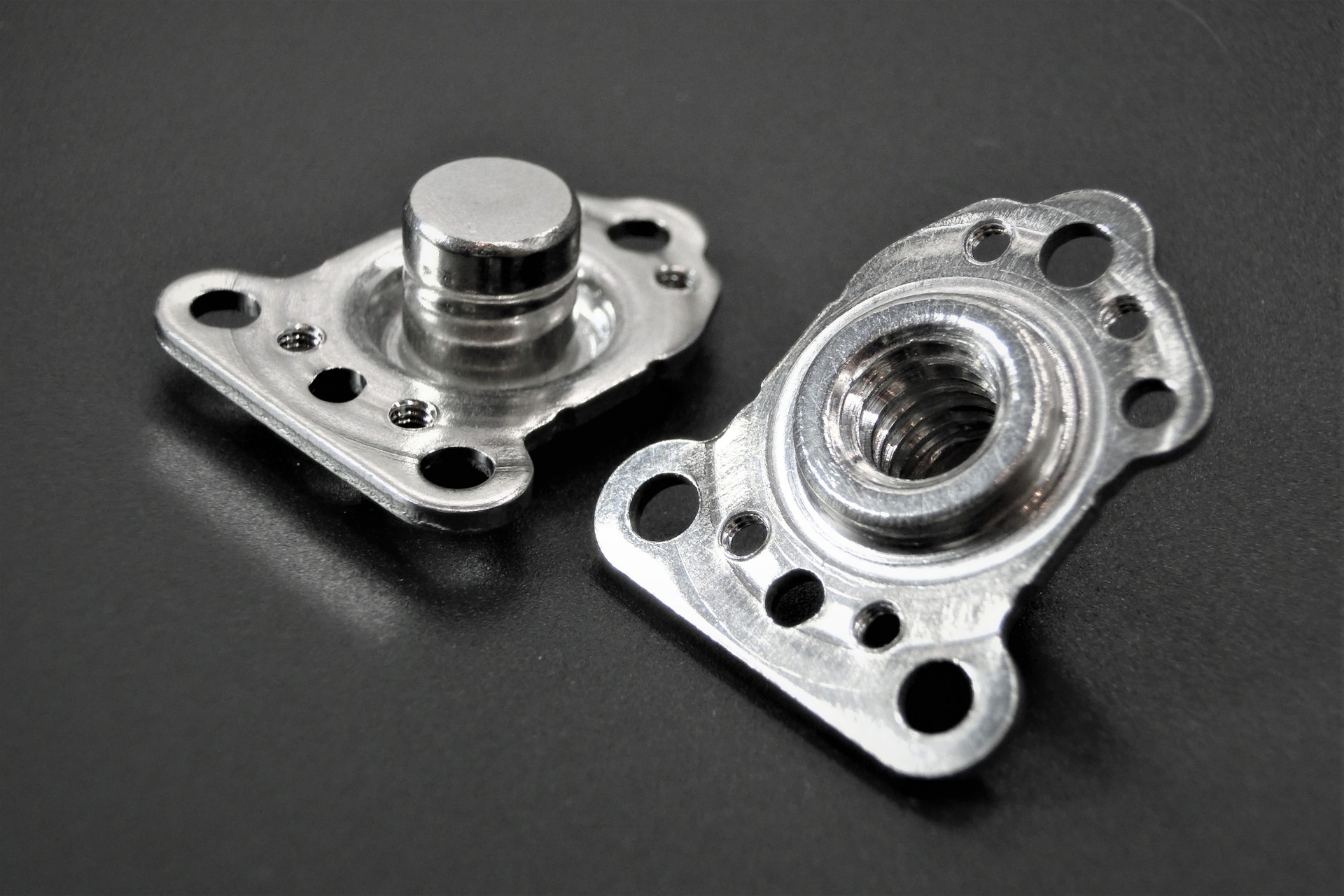

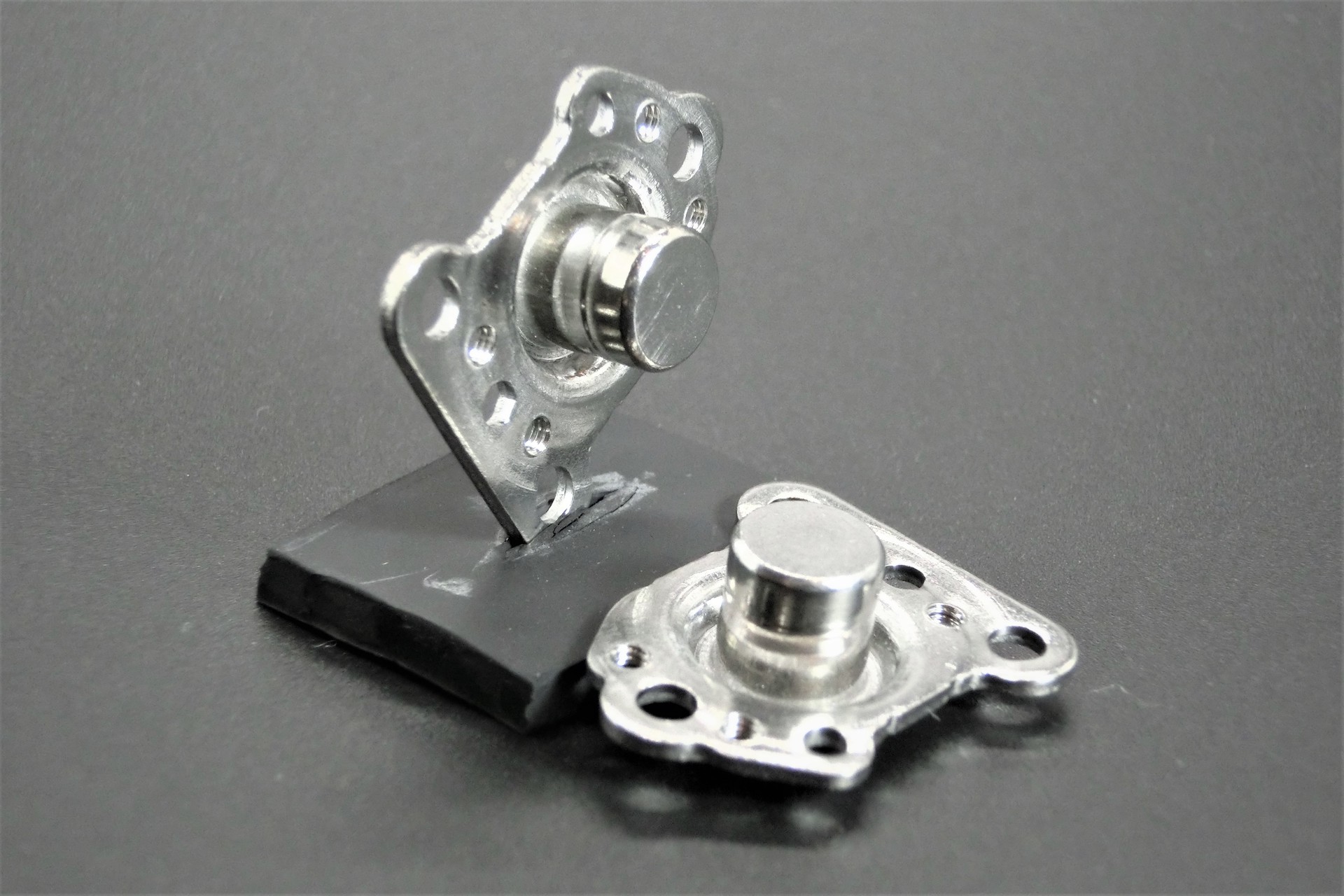

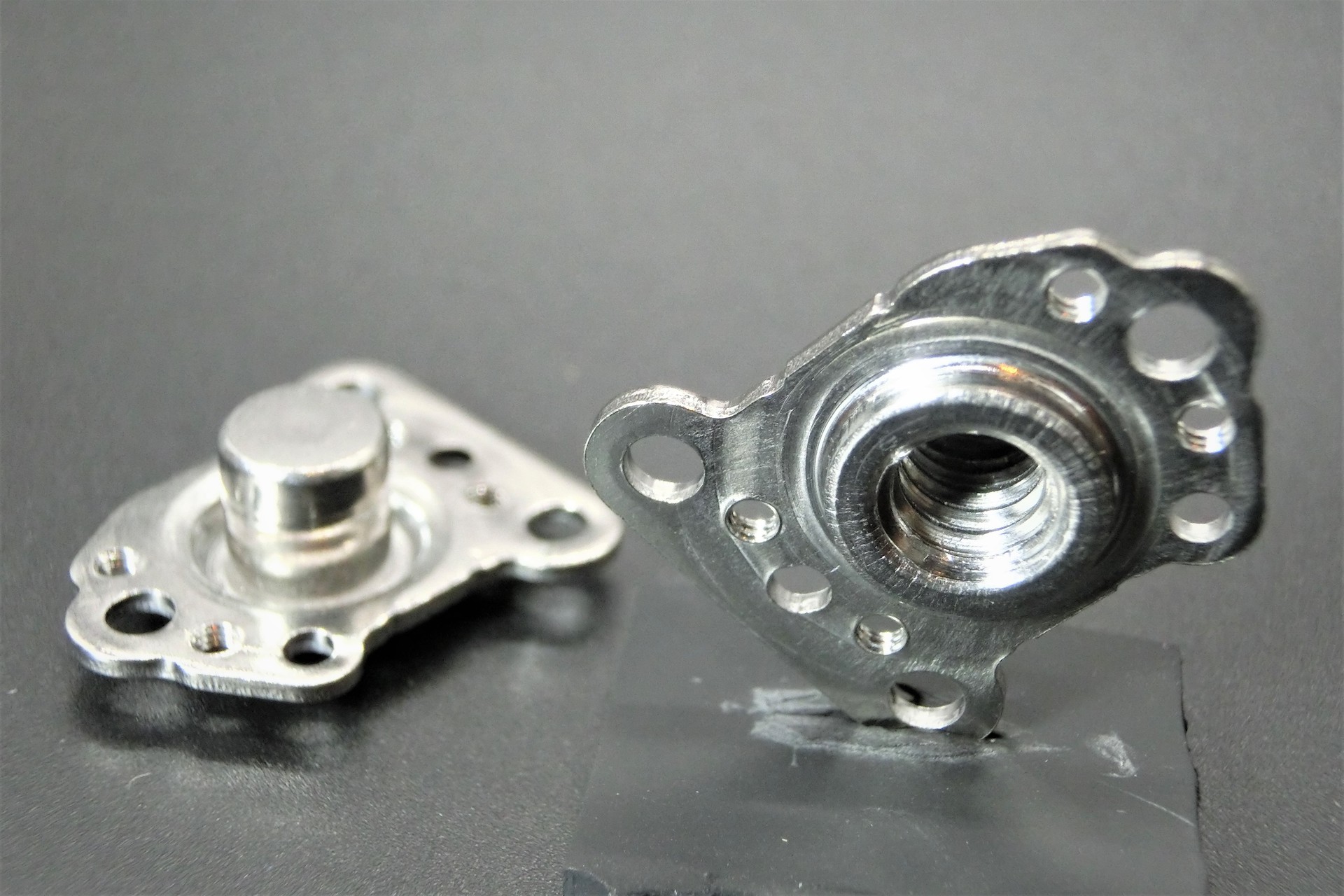

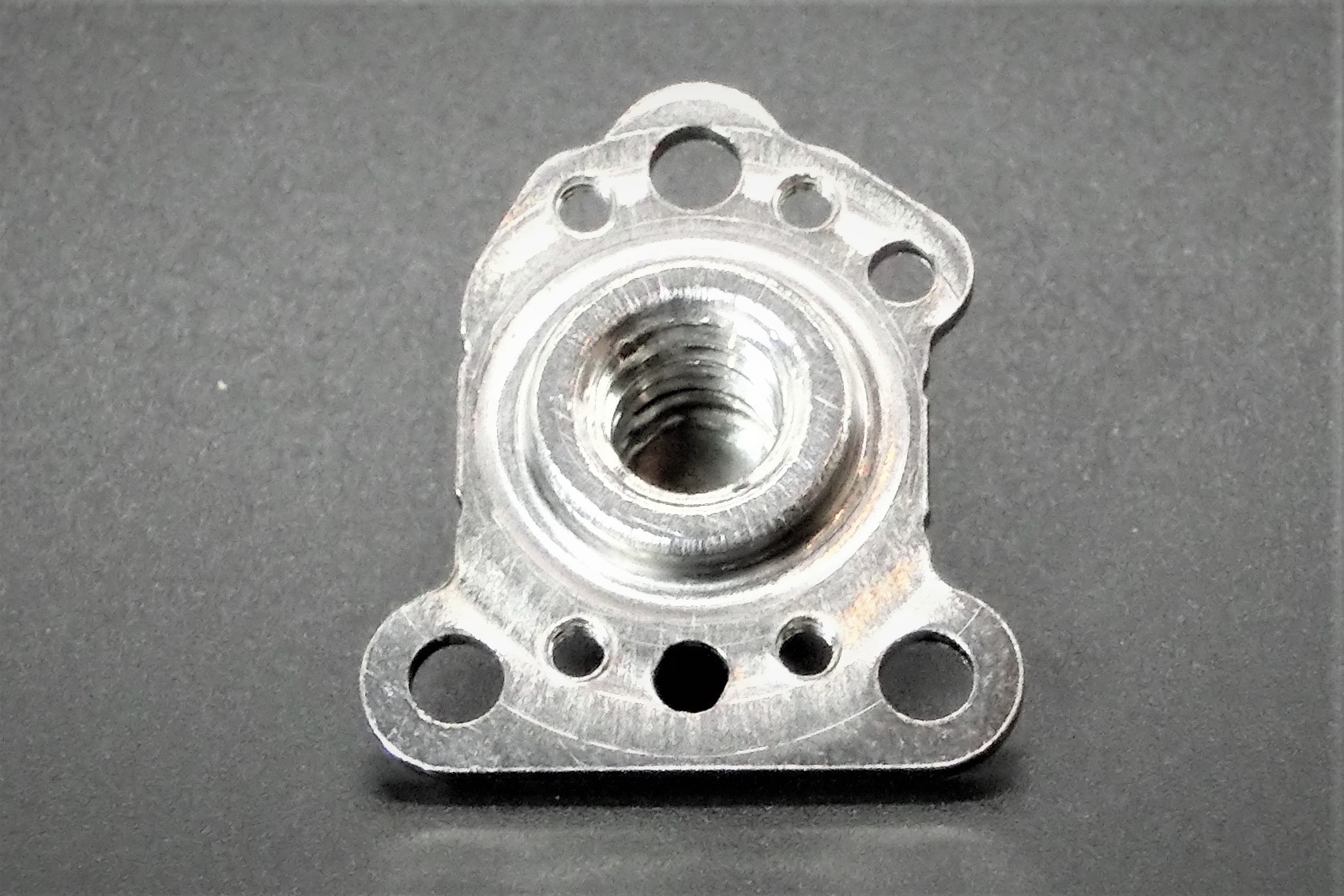

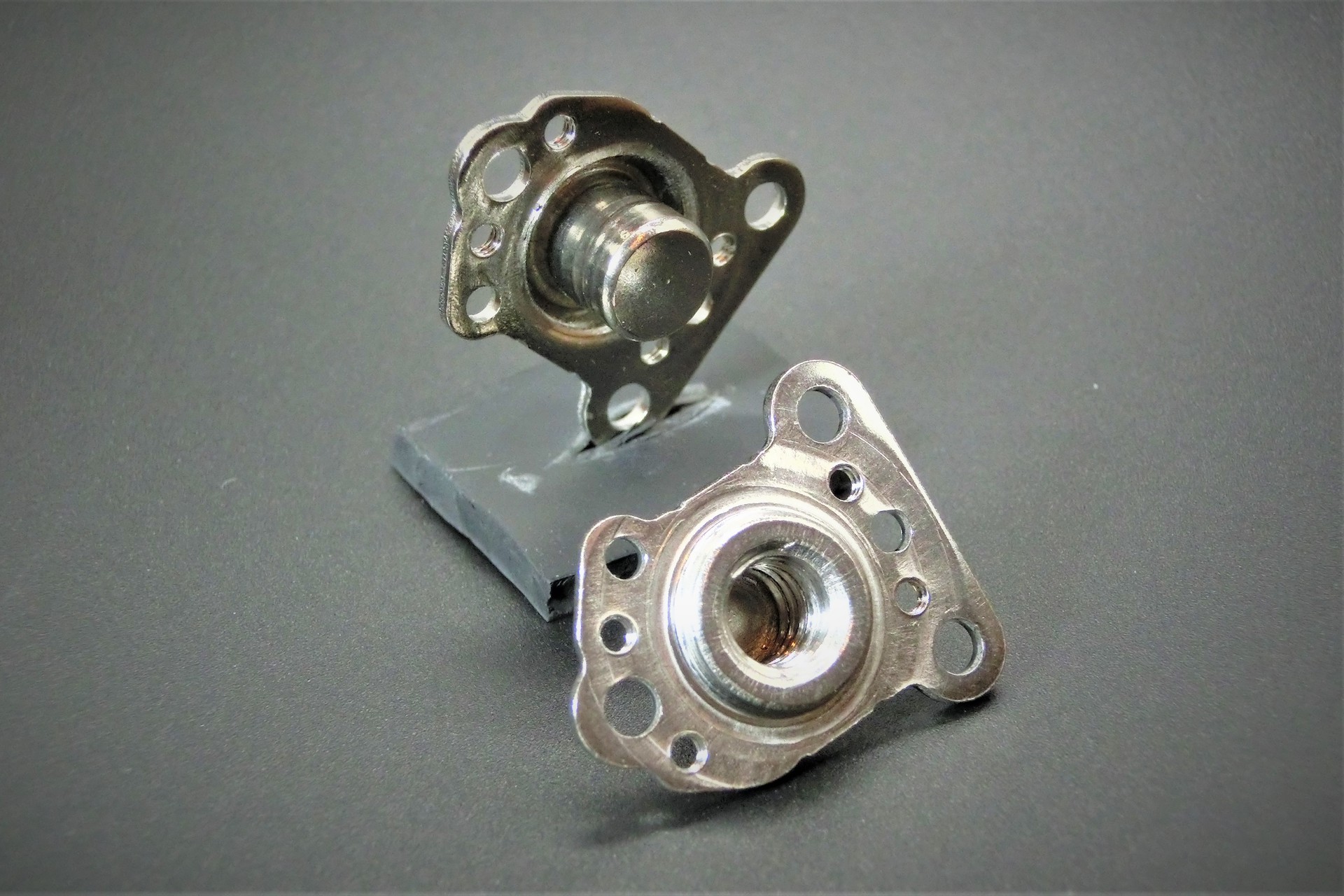

Tripod screw for digital camera
Seki Corporation Co., Ltd. (Tokyo, Japan)
-
・Size: W21 x D23 x H9 mm
-
・Accuracy: ± 0.02 mm
-
・Programming time: 1 min
-
・Processing time: 1 min/quantity
-
・Quantity: 1000
-
・Material: ステンレス(SUS430)
-
・Thickness: 1.2 mm
-
・Type: Production work
Process
プレス順送加工 31ステージ
Strengths
31ステージの多工程順送加工です。
板鍛造加工;板厚を必要箇所ごとに増肉とコイニング減肉、
(シゴキ加工により減肉させています。)
高精度絞り加工
絞り肩外R(凸形状部)をR0.5以下にツブシ成形加工
プレス加工後タップ加工
