37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

Parts024

Technical Encouragement Award

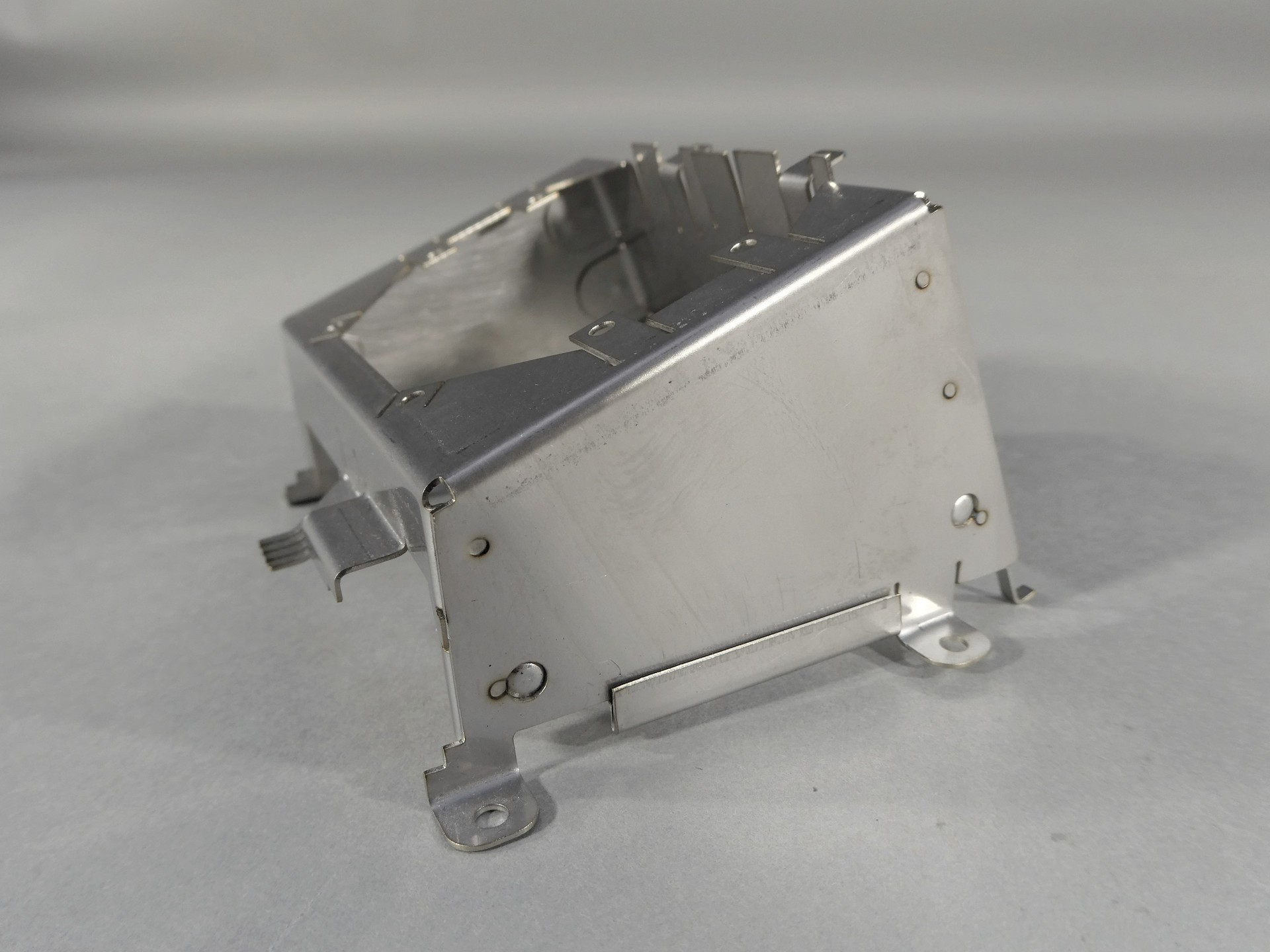

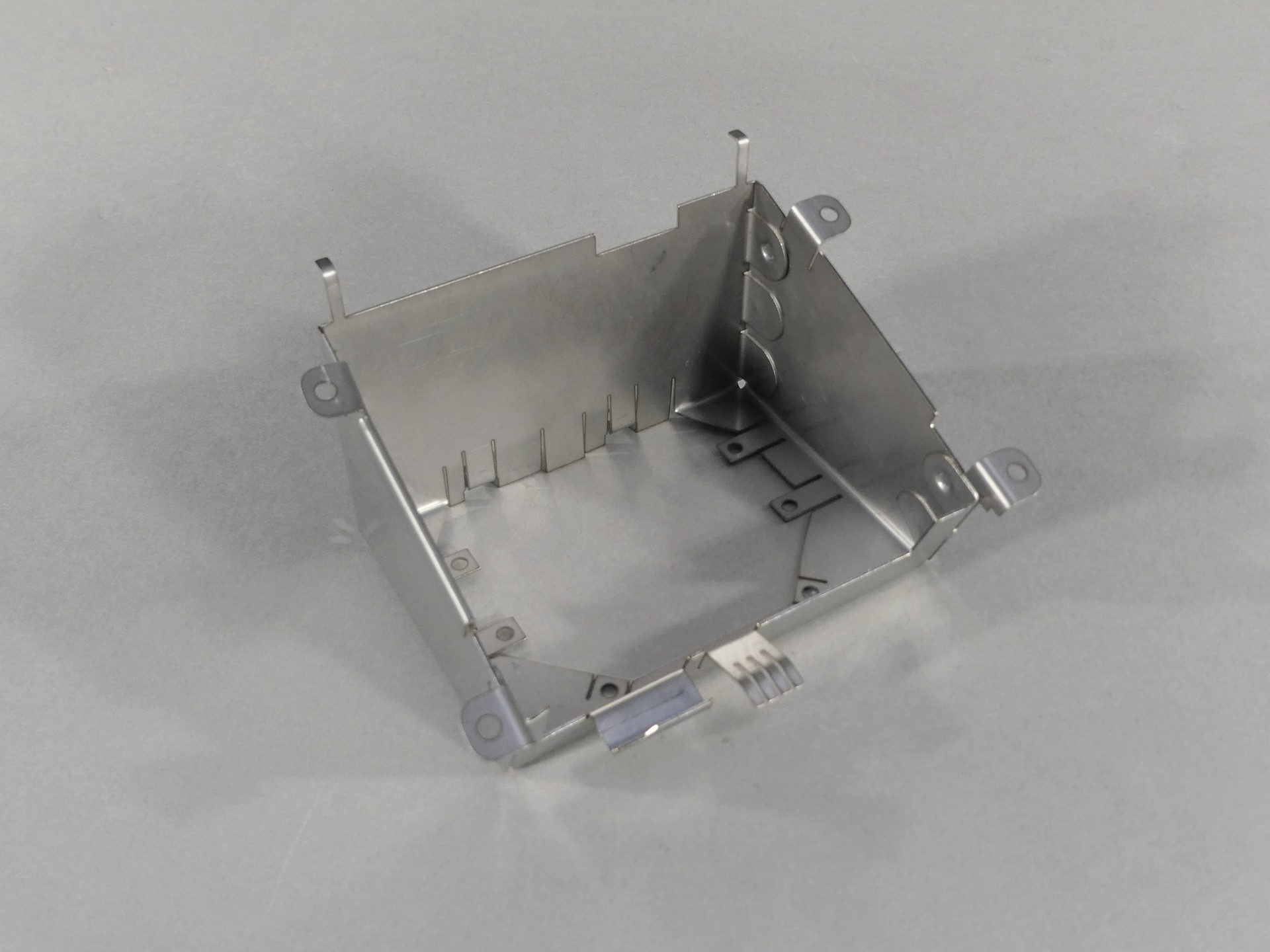

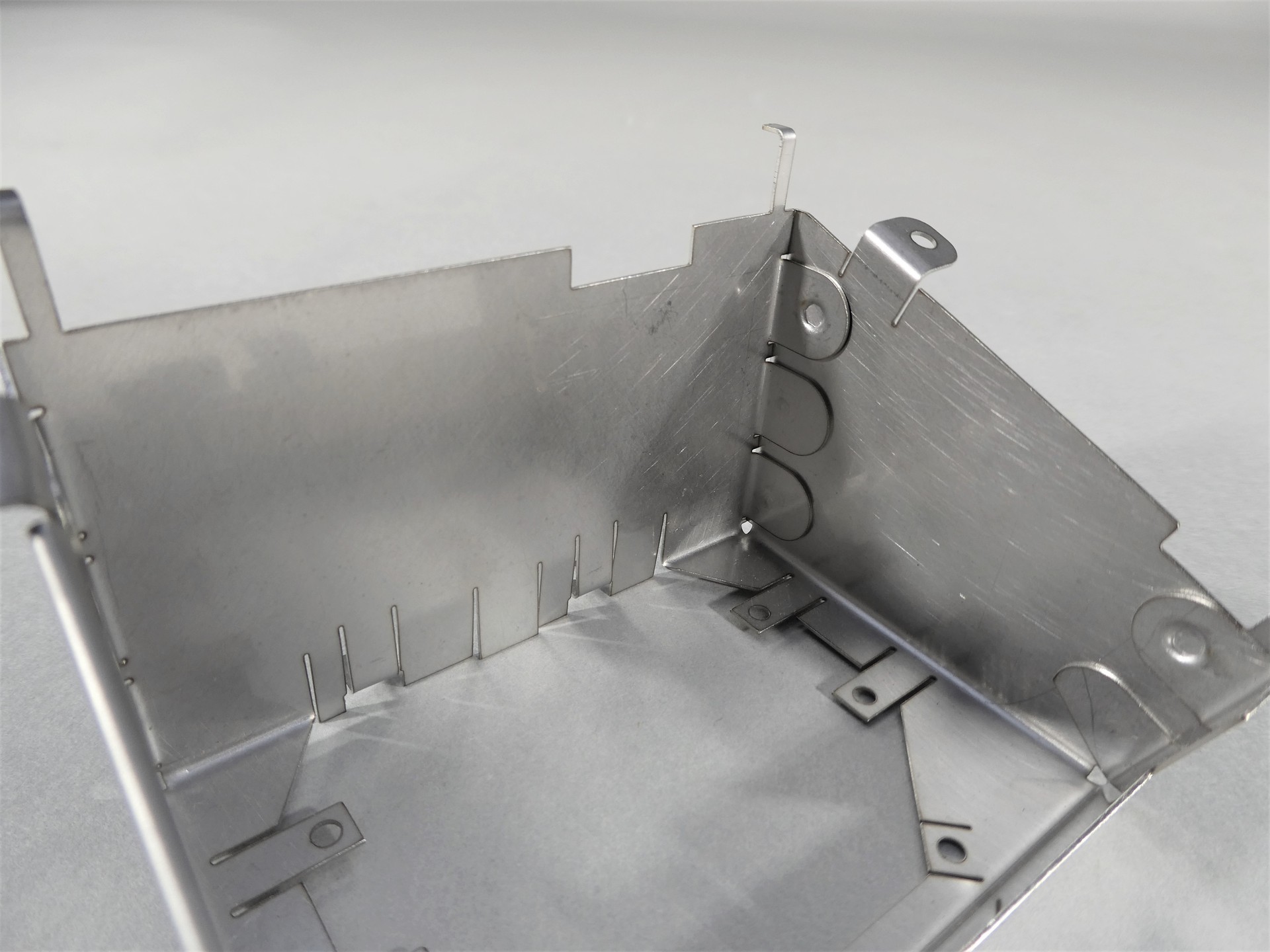

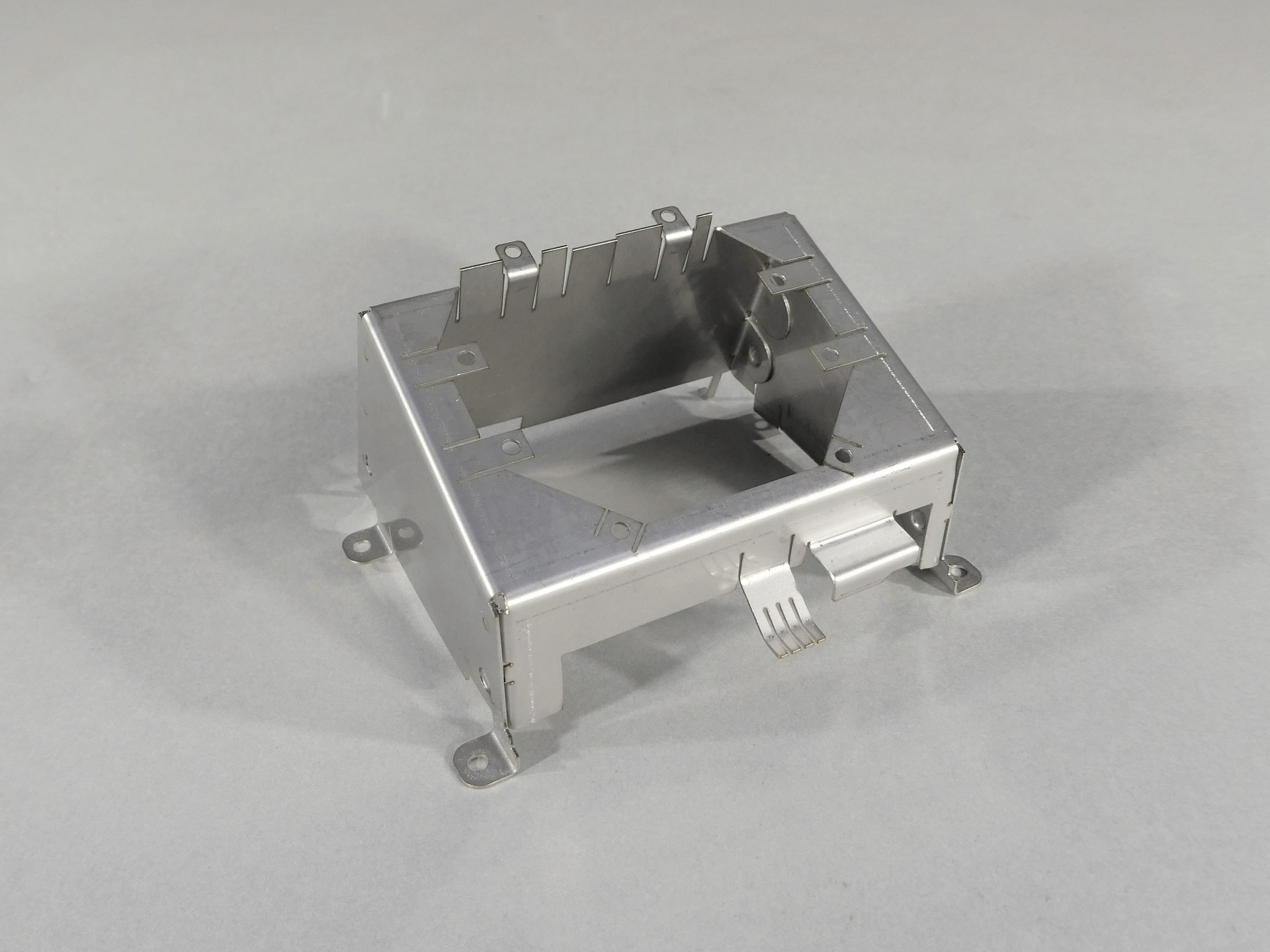

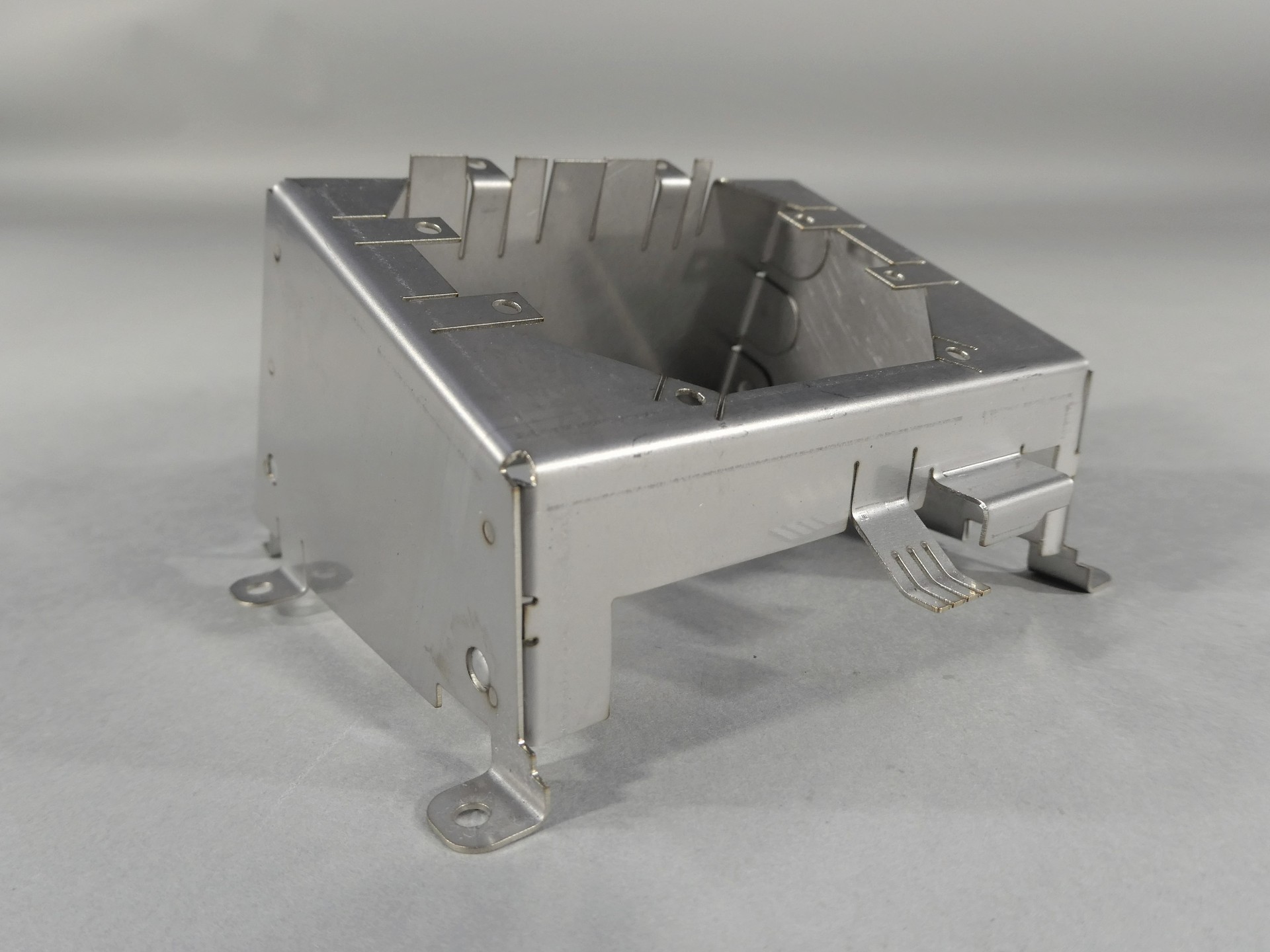

EMC Shield

Plåt & Mekano Romator (Sweden)

  • Size: W74 x D67.7 x H44.2 mm

  • Accuracy: ± 0.2 mm

  • Programming time: 20 min

  • Processing time: 4 min/quantity

  • Quantity: 6000

  • Material: Stainless steel (SUS304)

  • Thickness: 0.5 mm

  • Type: Production work

Process

  • Unfolding

  • Programming

  • Punch & Laser

  • Forming

  • Forming

Strengths

Plåt & Mekano has produced this part for the electrical industry for more than 10 years. From the beginning it was bent on a manually operated press brake. The batch setup time was about 8 hours due to tool change and adjustments required. With the EG AR the bending setup was reduced to only 5 minutes. The total bending time is about the same as with a manual press brake, but the big gain, in addition to the setup time, is that the machine operates alone, no operator is needed. Furthermore, the accuracy is much greater/more consistent as there are less risk of human errors. As you can see from this information and the part, tolerances are tight and there are many folds with a very small part, using the EG AR secures the consistent accuracy across thousands of parts, this reduces costs of rework/scrap and ensures our/our customers quality.
