37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts023

Technical Encouragement Award

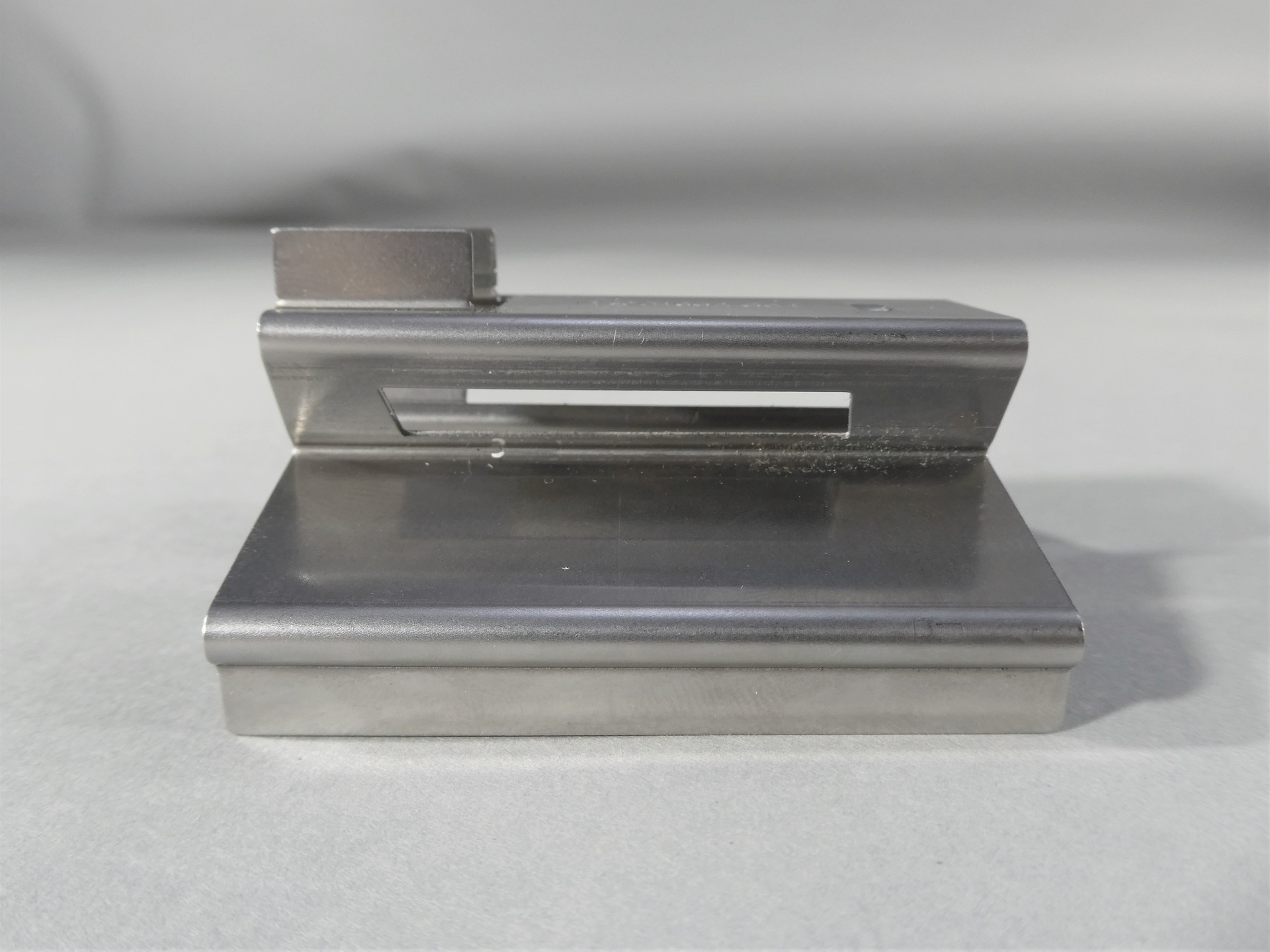

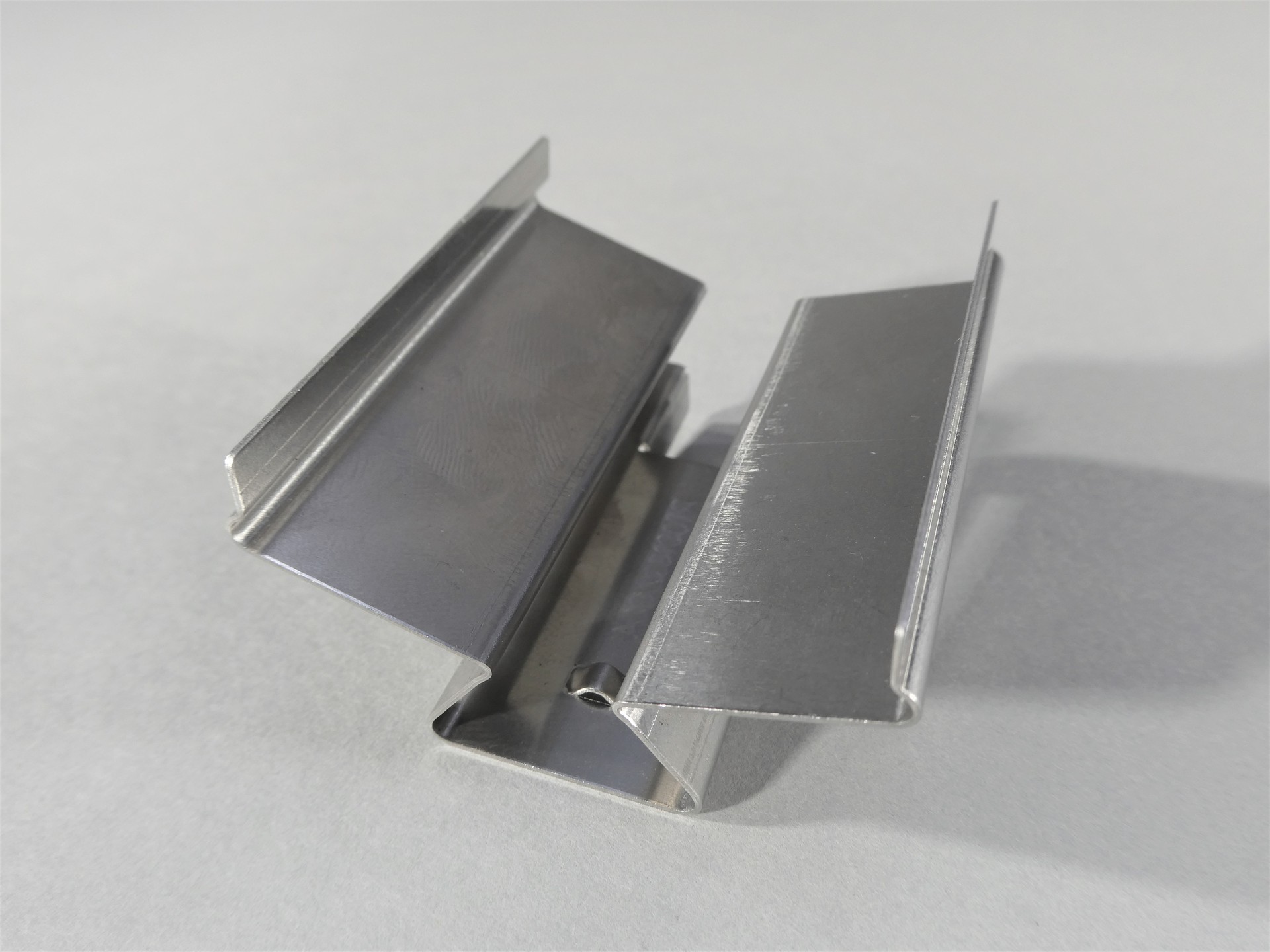

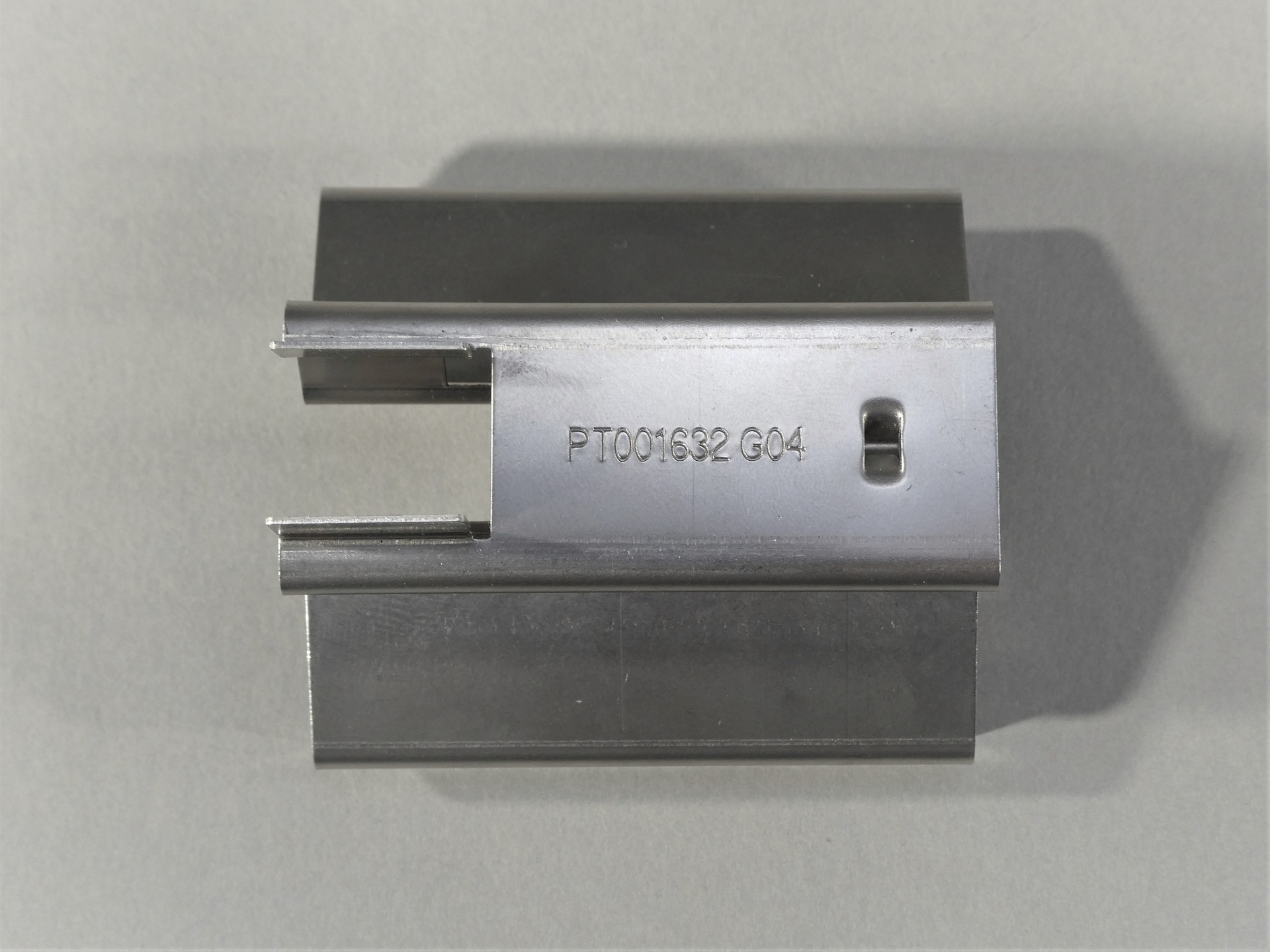

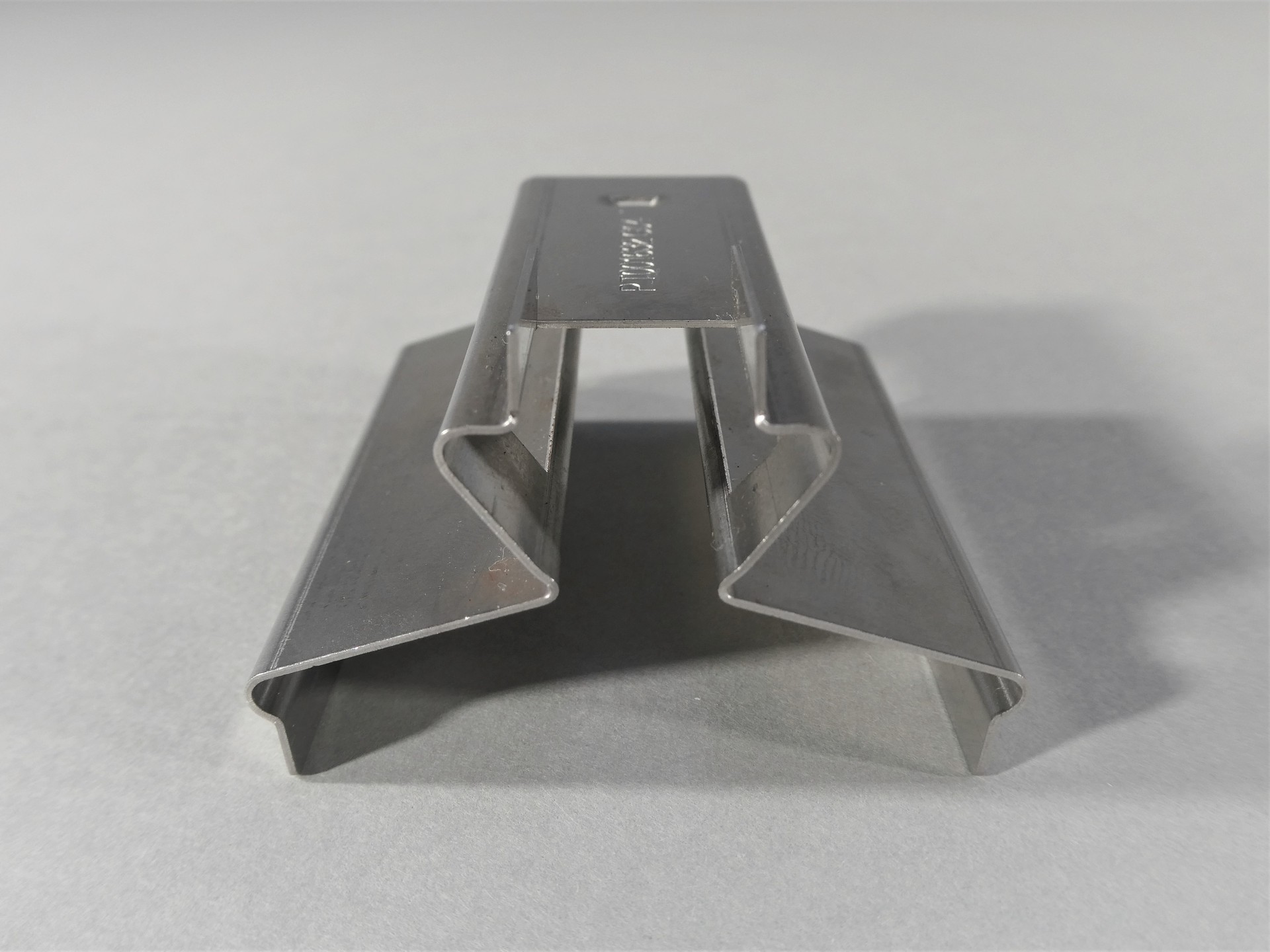

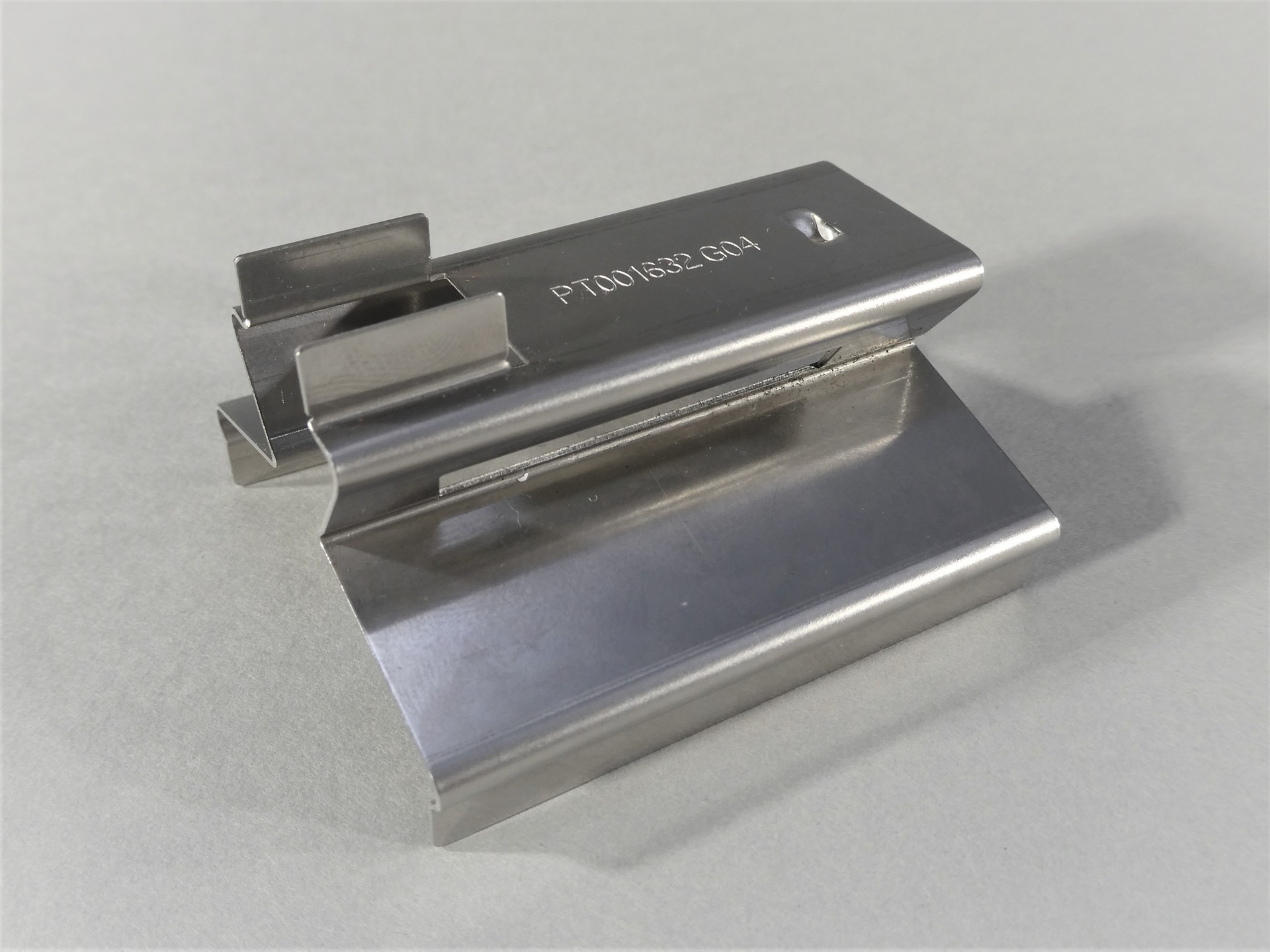

Masking Clip (Blaster labeling for Aircraft Component)

Global Technology Integrator Pte Ltd (SINGAPORE)

  • ・Size: W58mm x D52mm x H29mm mm

  • ・Accuracy: ± 0.1mm mm

  • ・Programming time: 20 min

  • ・Processing time: 25 min/quantity

  • ・Quantity: 1000

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 0.8mm mm

  • ・Type: Production work

Process

  • CAD/CAM

  • Laser-Cutting

  • Stamping

  • Bending

Strengths

1) Measuring the actual dimension of product. Use AP100 to drawing. The made product is to be within 0.2mm as it needs to slot onto the "measure" product for "blasting" marking purpose.
2) Special bending tooling and skill is needed
