Sheet metal parts (121 entries)

Parts002

Technical Encouragement Award

Air conditioning components

下平金属工業 株式会社 (Osaka, Japan)

  • Size: W200 x D150 x H150 mm

  • Accuracy: ± 0.5 mm

  • Programming time: 39 min

  • Processing time: 30 min/quantity

  • Quantity: 2

  • Material: Mild Steel (SPCC)

  • Thickness: 0.8 mm

  • Type: Prototype

Process

  • CAD/CAM

  • Punching

  • Bending

Strengths

曲げ後の対角精度

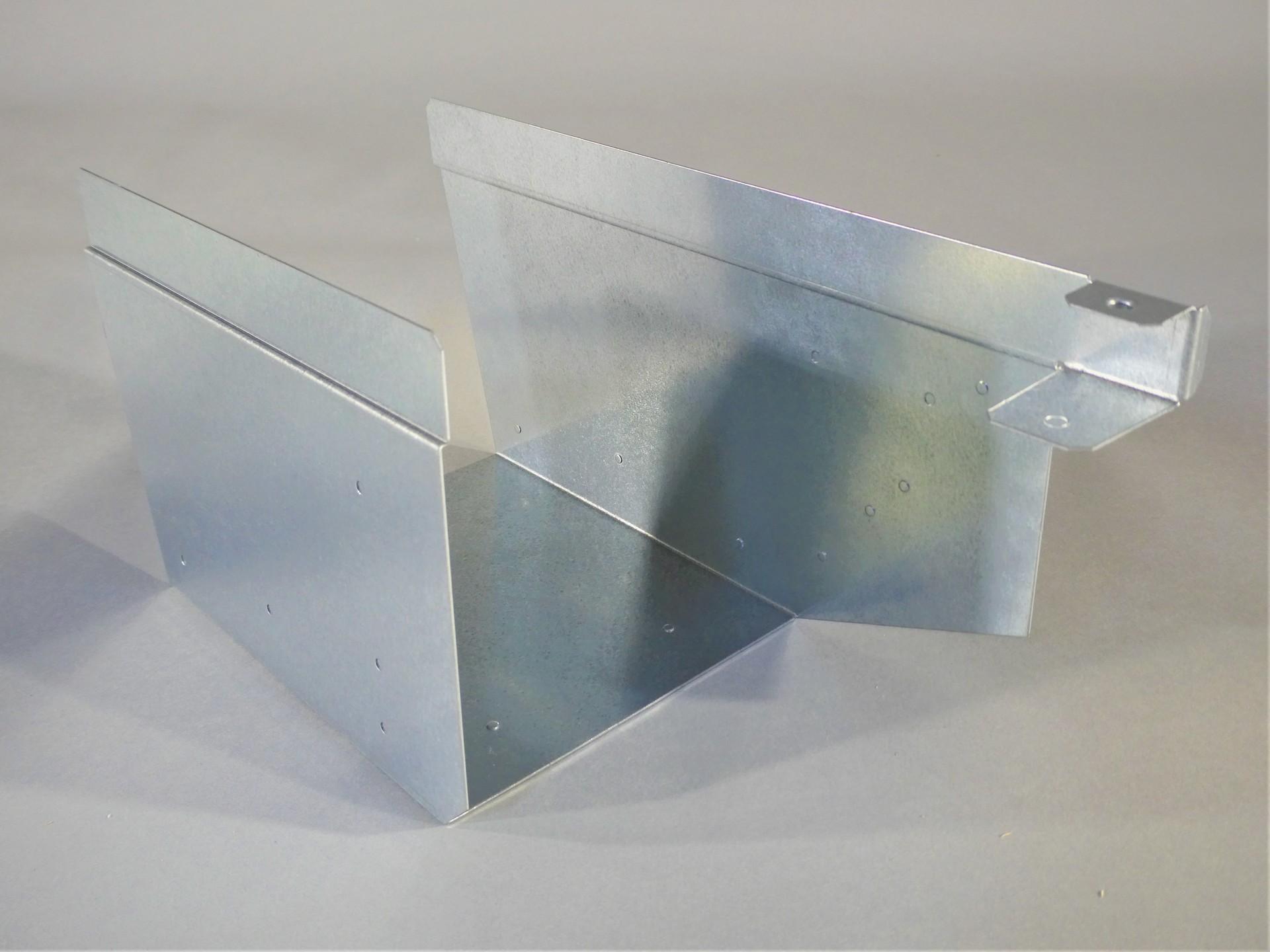

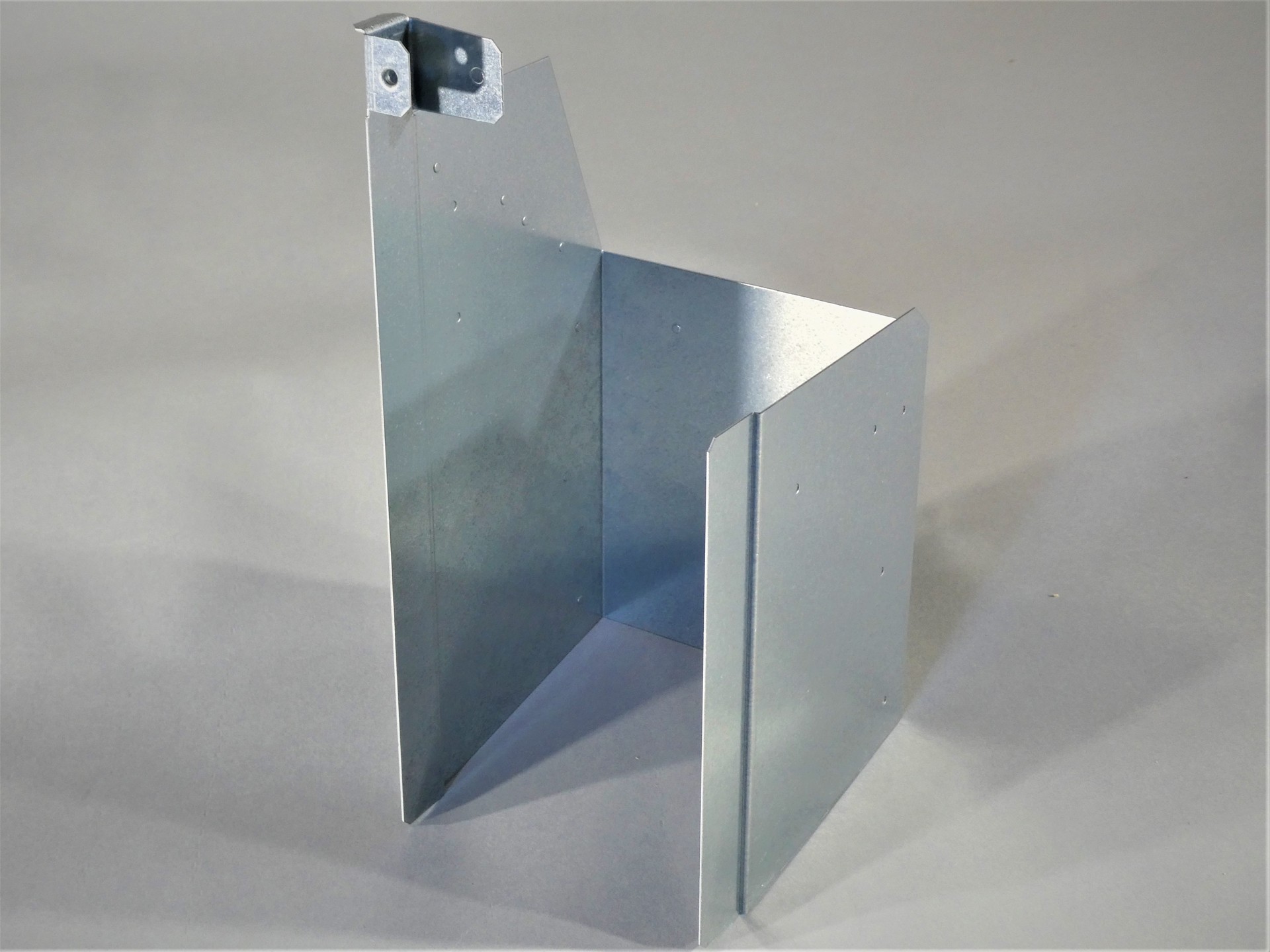

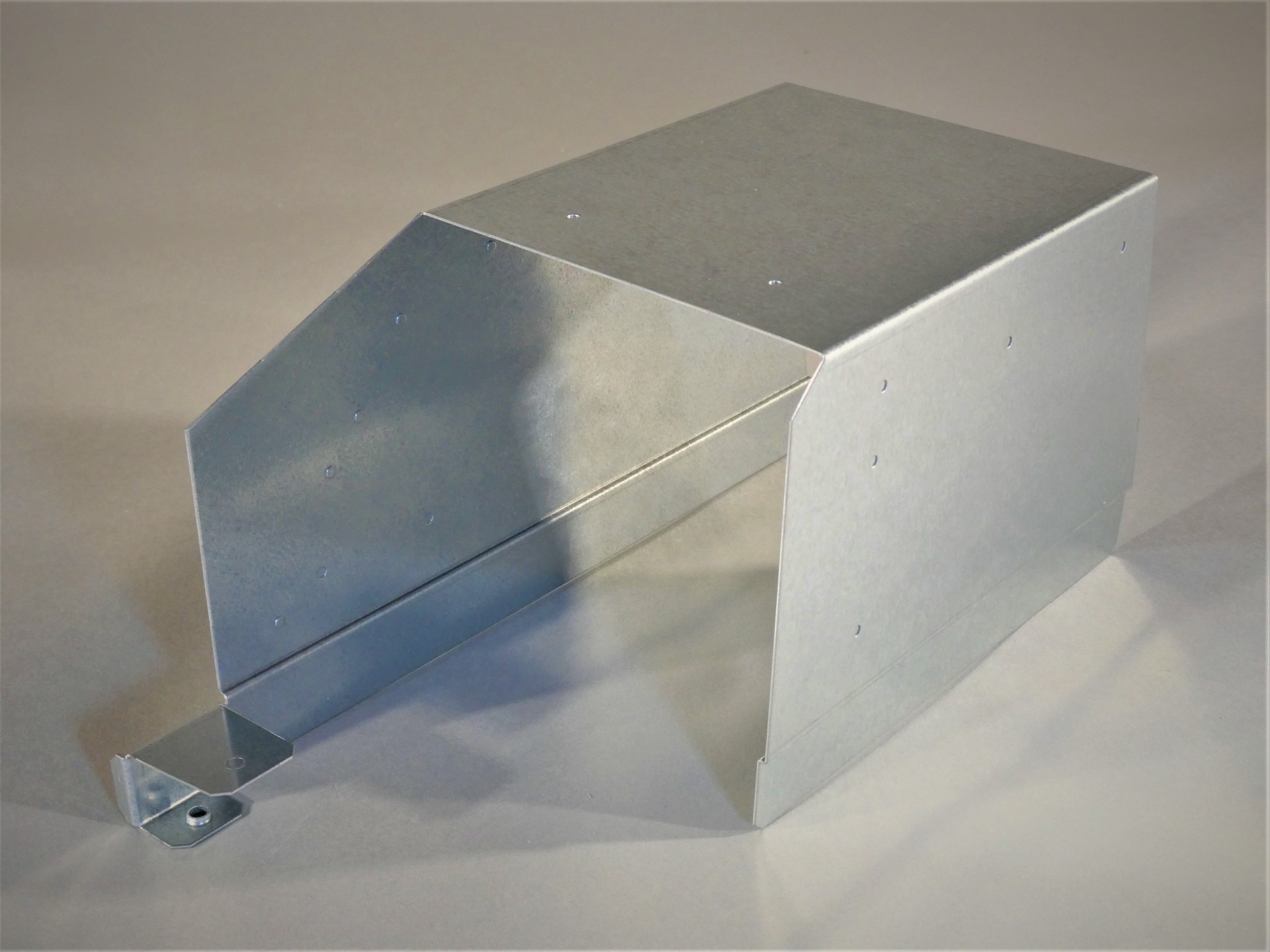

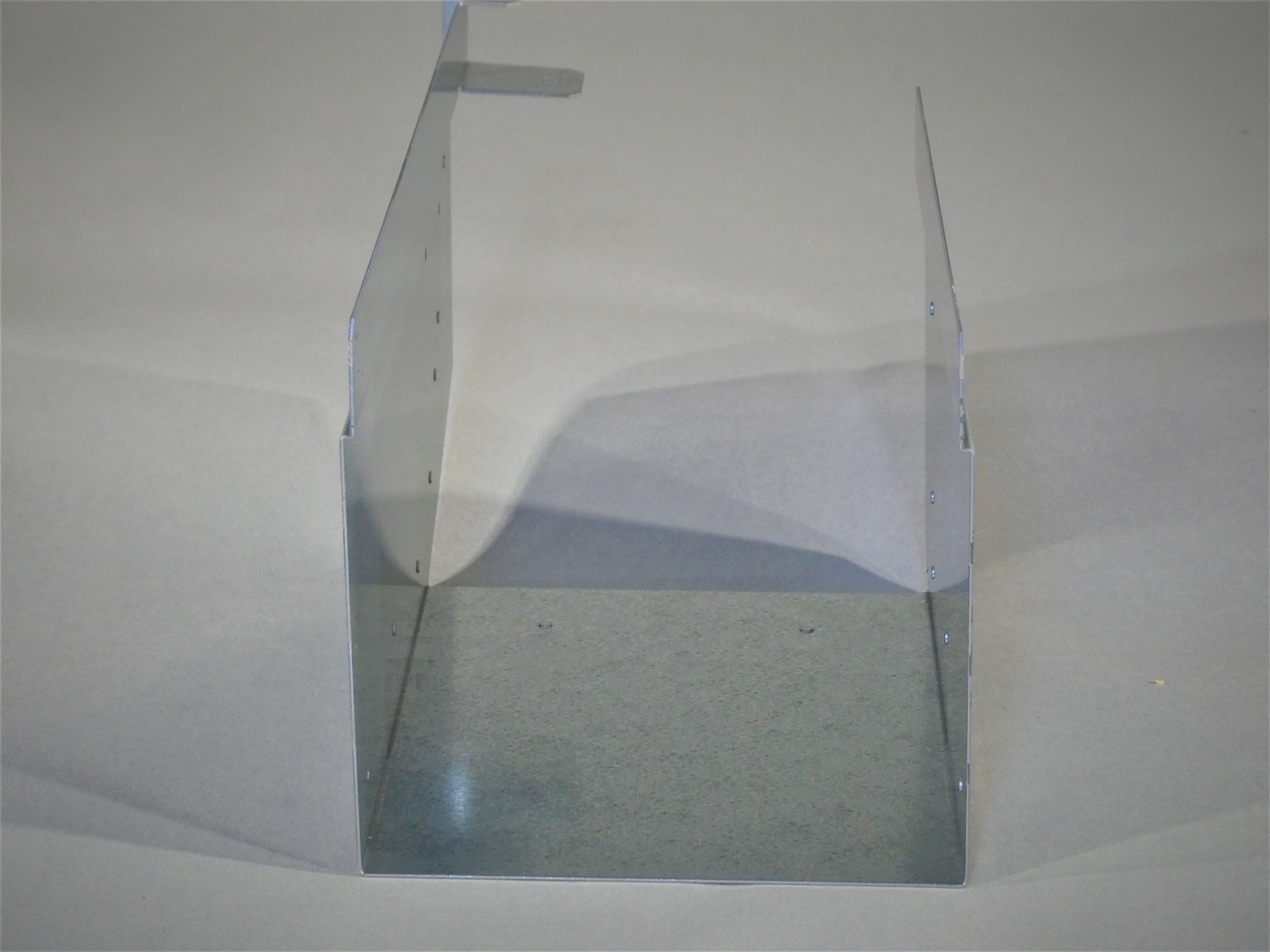

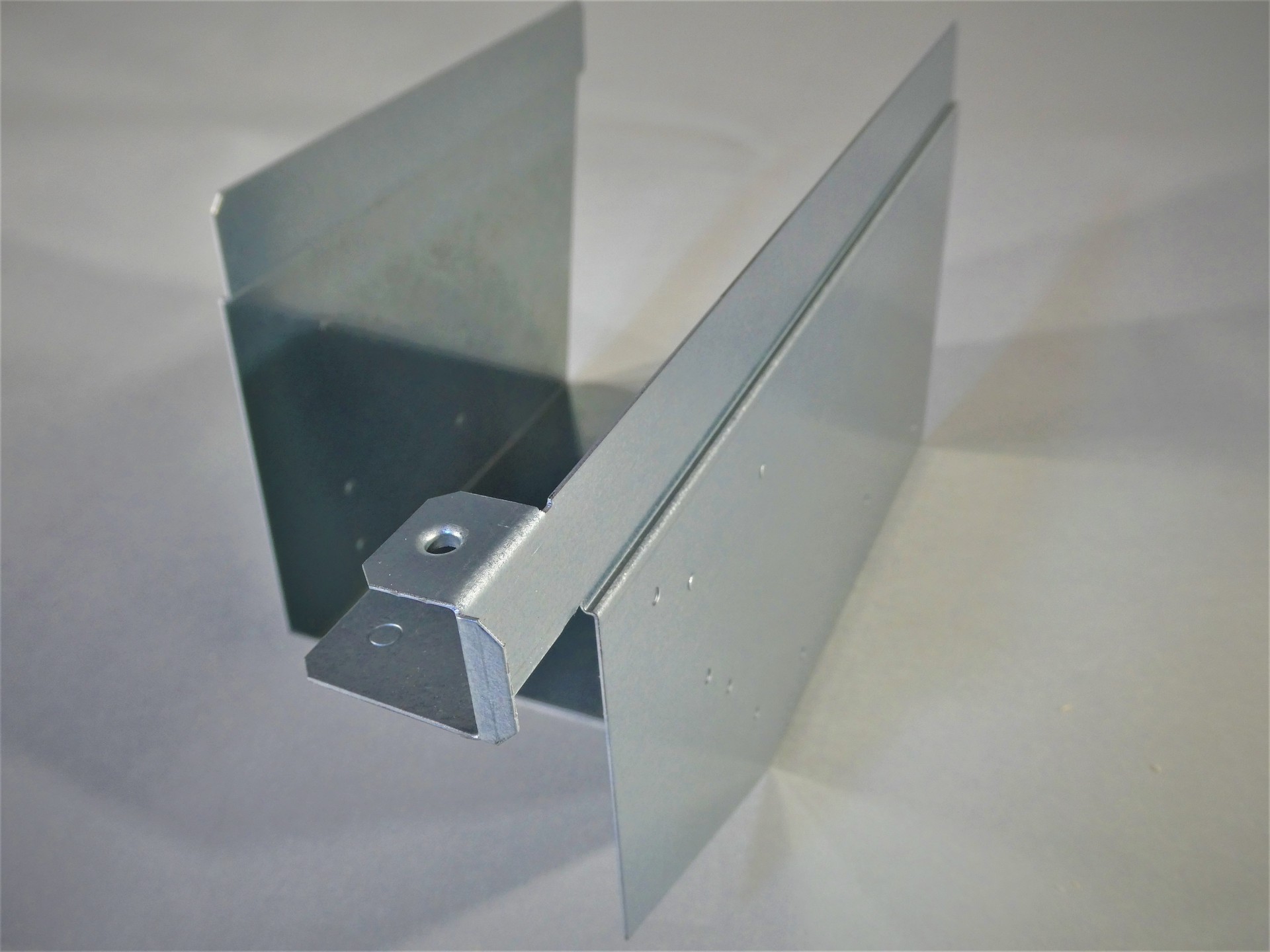

この製品はダイキンの空調機の部品です。

内側の曲げや内内寸法部分を曲げ職人の感で曲げている。

見た目より難しい曲げ作業が要求される製品。
