37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts123

Technical Encouragement Award

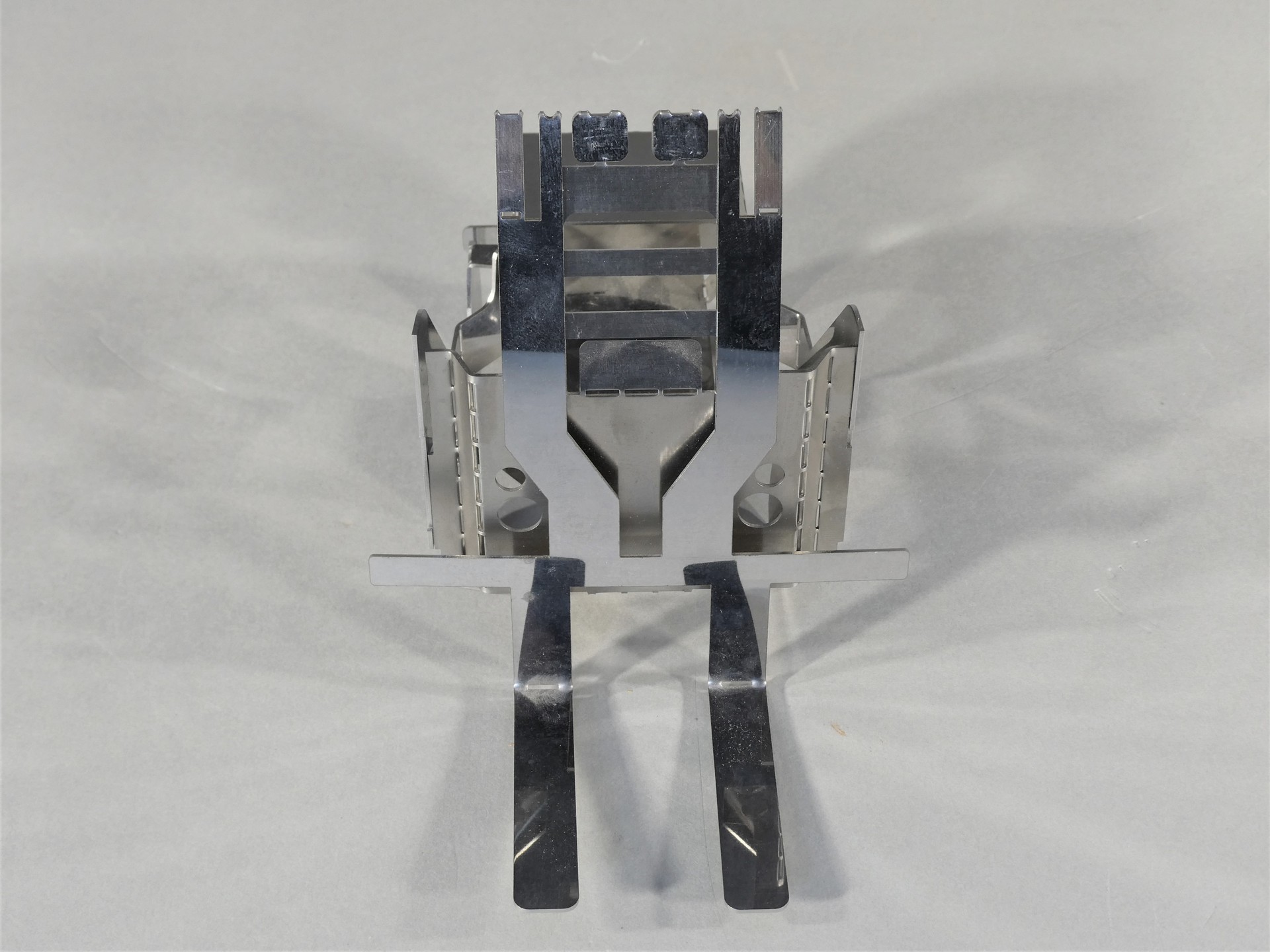

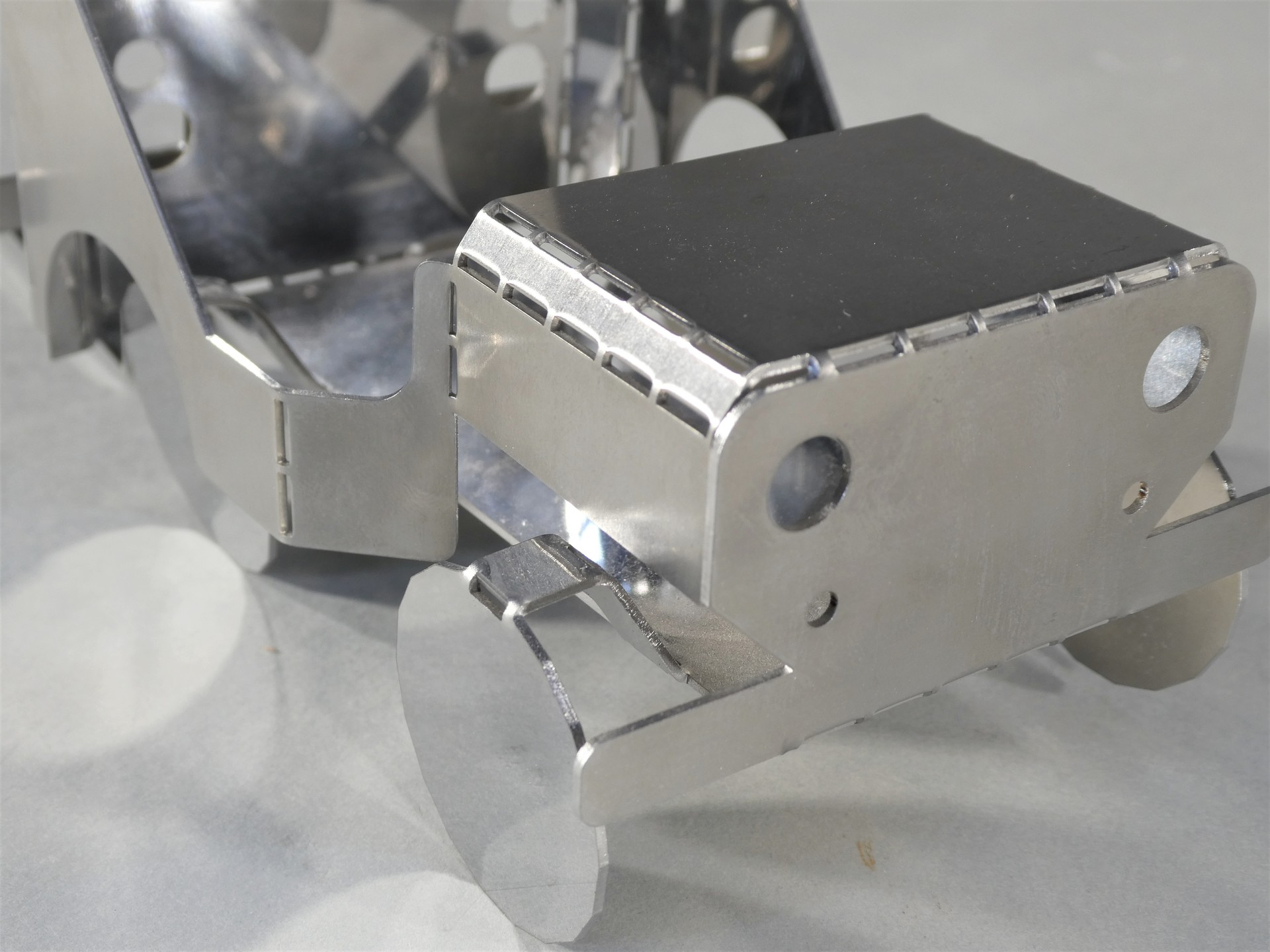

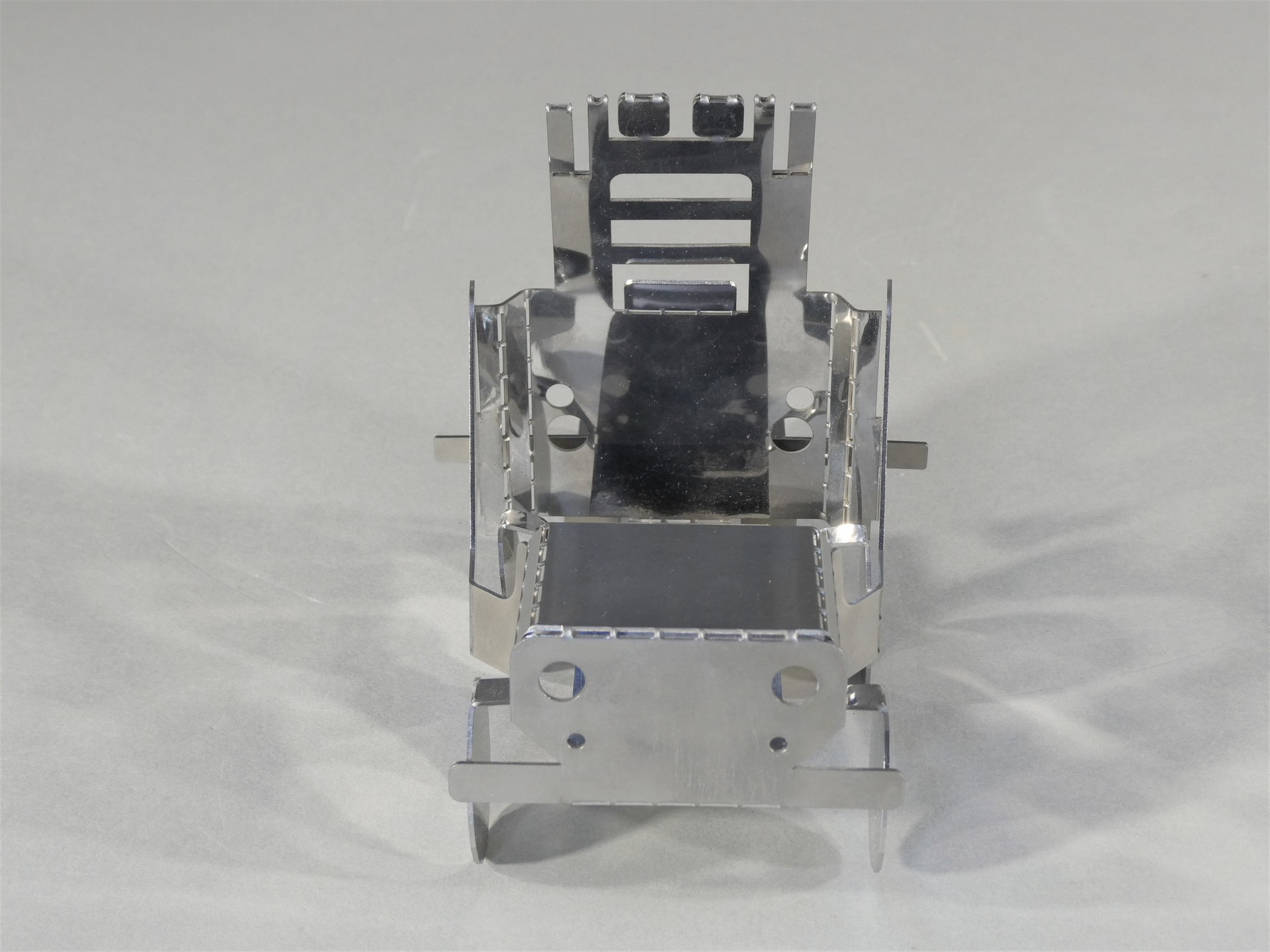

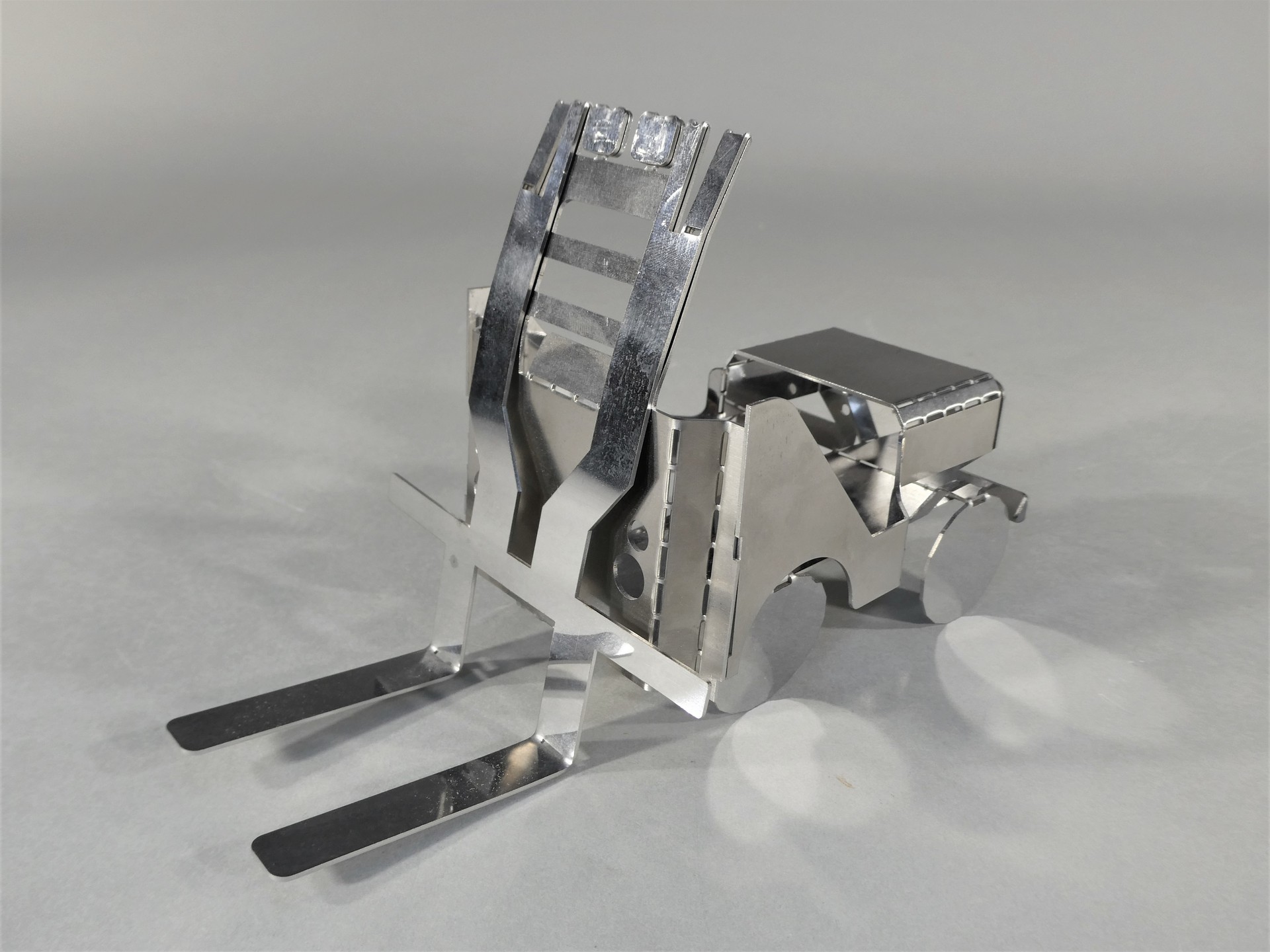

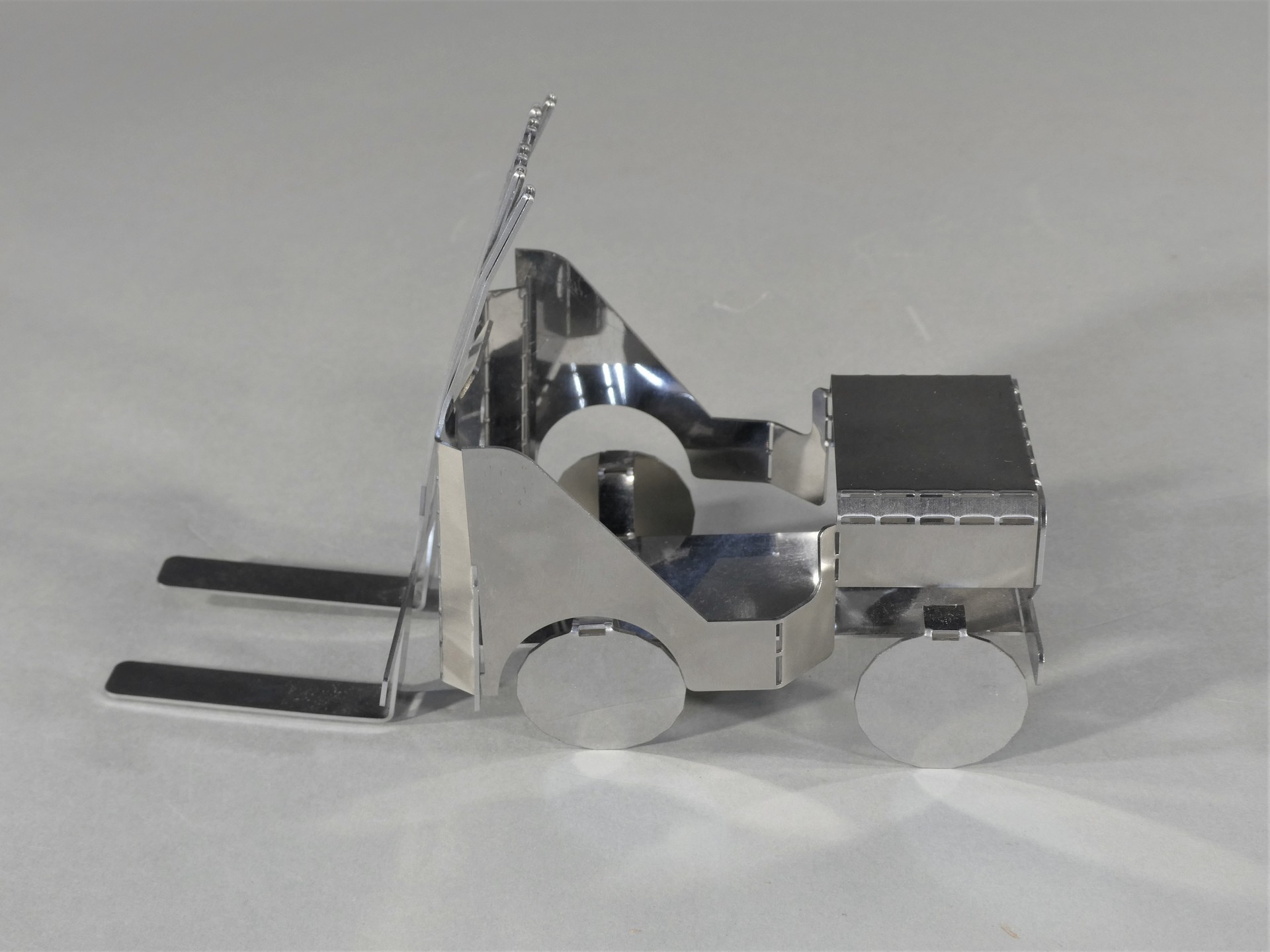

Fork lift

Mech-Tron GmbH & Co. KG (Germany)

  • ・Size: W108 x D190 x H60 mm

  • ・Accuracy: ± 0,2 mm

  • ・Programming time: 5 min

  • ・Processing time: 4 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS430)

  • ・Thickness: 1 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • CAD/CAM

  • Punch & Laser

Strengths

After cutting with laser at the EML, the part was Bend by hand
