Technical Encouragement Award

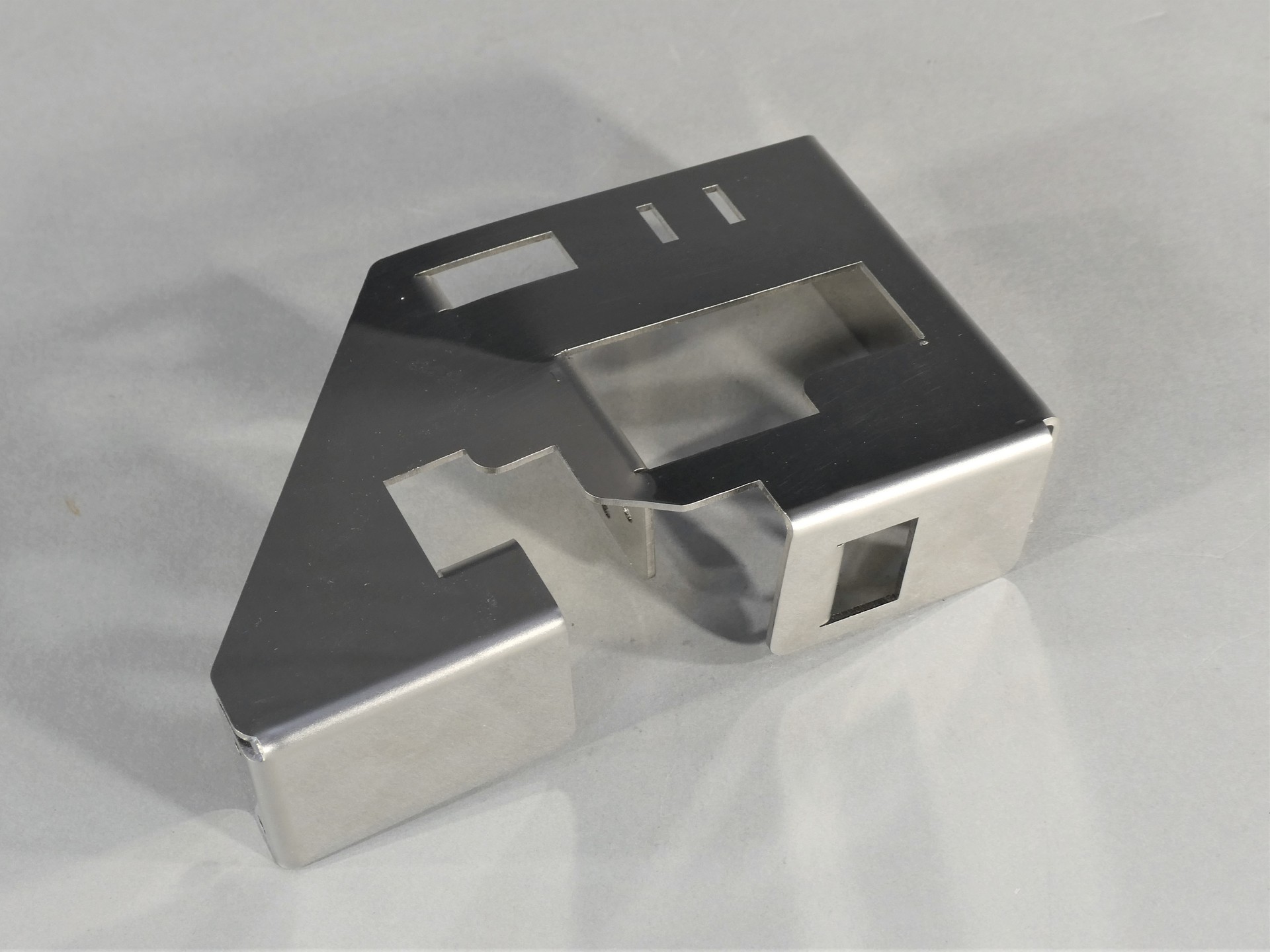

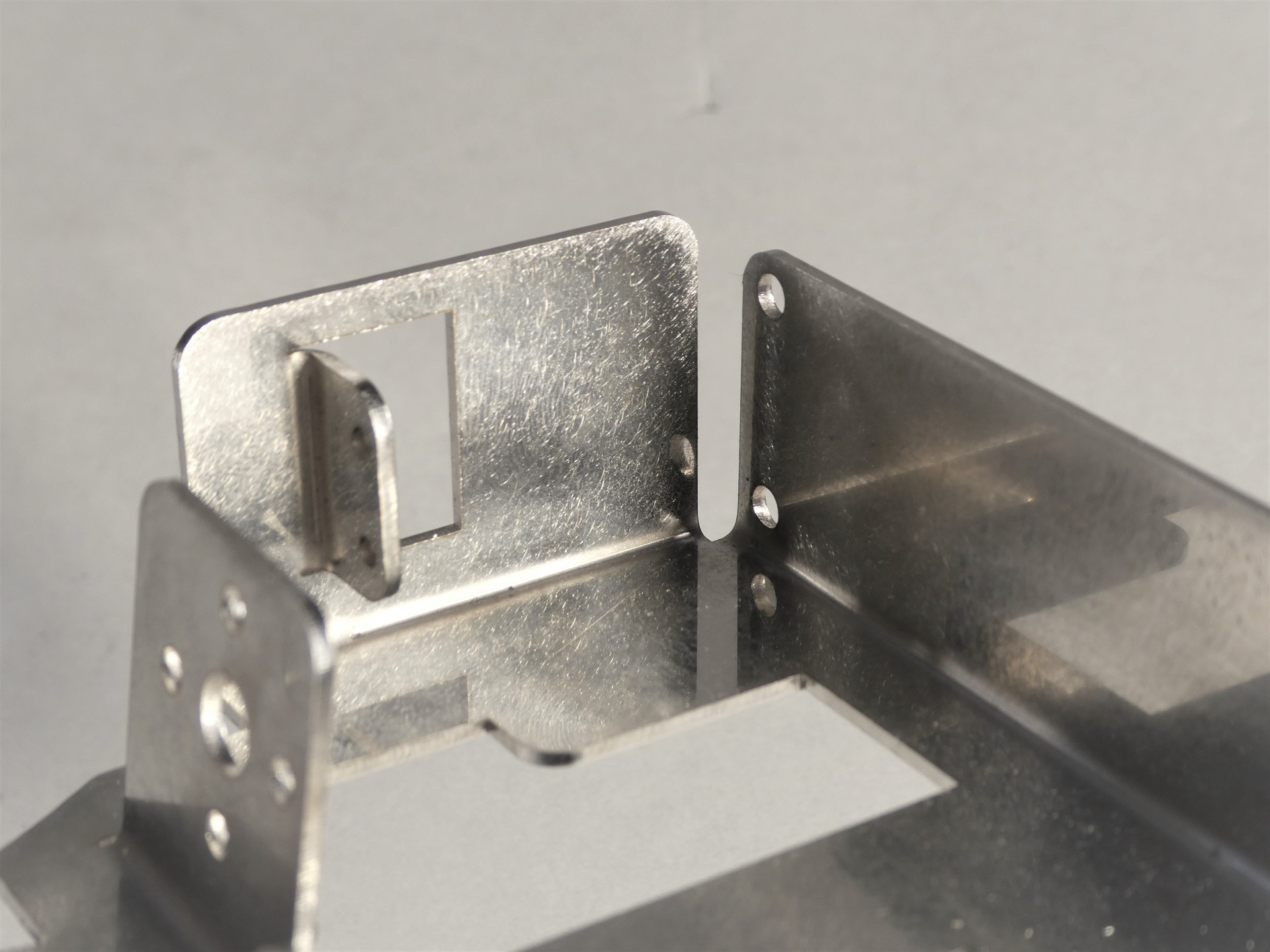

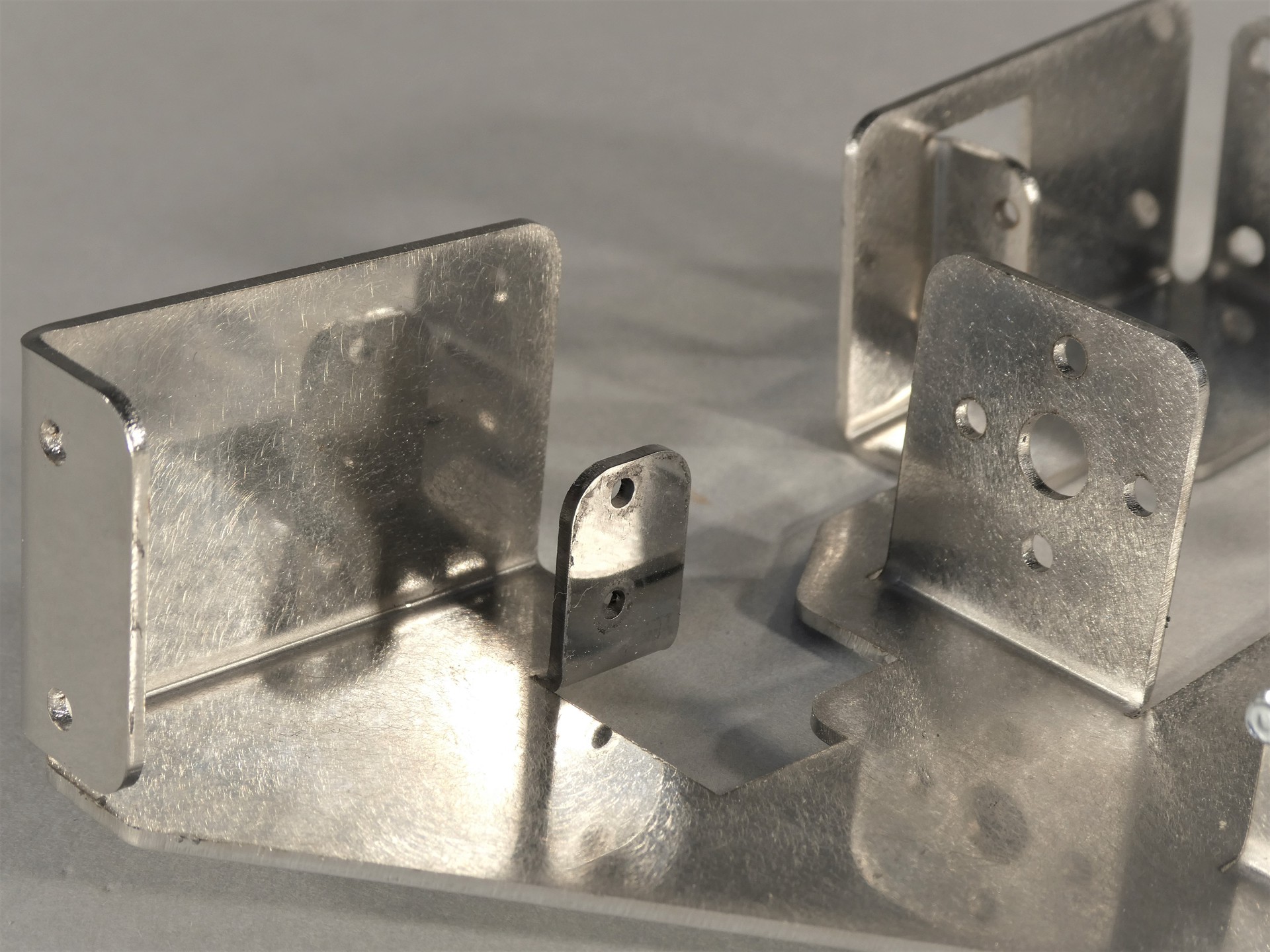

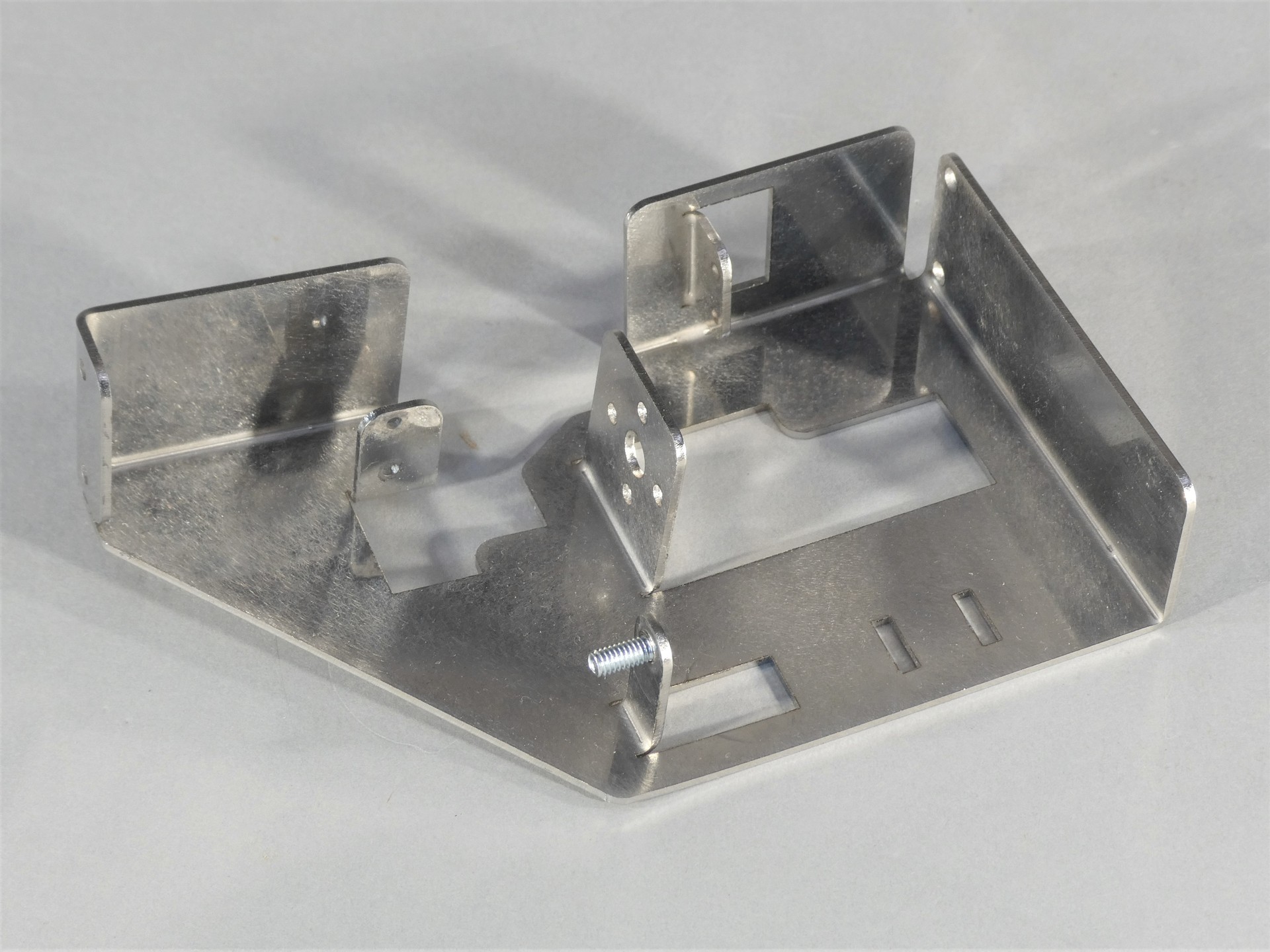

EXTRACTION MOTOR SUPPORT

GND97, S.L (Spain)

  • ・Size: W136.9 x D97.94 x H30 mm

  • ・Accuracy: ± 0.2 mm

  • ・Programming time: 2 min

  • ・Processing time: 5 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS430)

  • ・Thickness: 1.5 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • Laser-Cutting

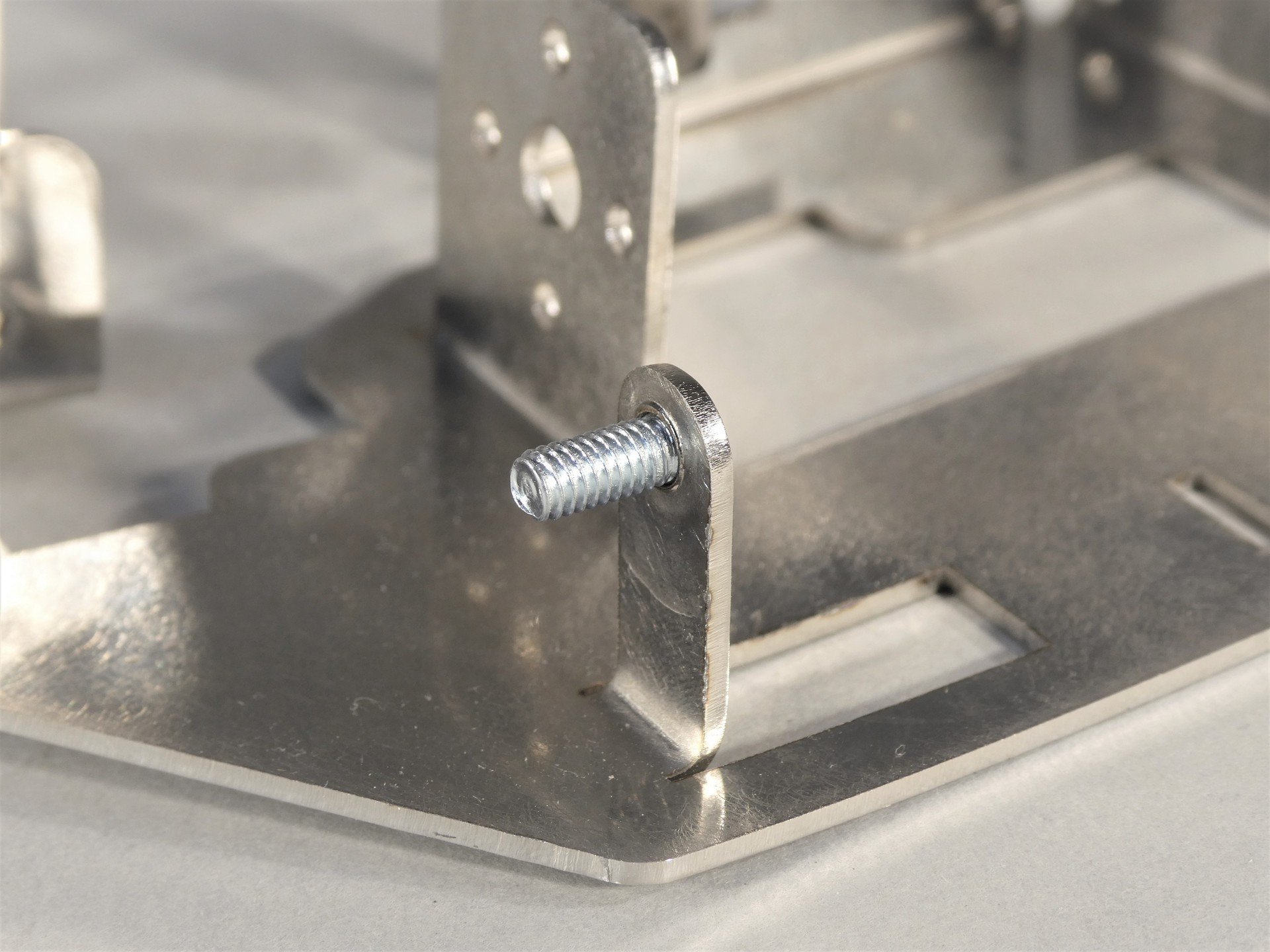

  • Calking Insertin

  • Bending

  • Surface Finishing

Strengths

WITH THIS NEW MOTOR SUPPORT DESING, WE ARE ABLE TO REDUCE THE VIBRATIONS OF THE MOTOR ITSELF WHEN SHIPPING THE PRODUCT, GETTING BETTER RESULTS IN SHIPPING AND AVOIDING PRODUCT JAMS
