Brass wash basin unit and handrail for premium restaurant (Parts119)
Parts119
Technical Encouragement Award
Brass wash basin unit and handrail for premium restaurant
MOMEK Rostfria AB (Sweden)
-
・Size: W4000mm x D1000mm x H430mm mm
-
・Accuracy: ± 1 mm
-
・Programming time: 180 min
-
・Processing time: 150 min/quantity
-
・Quantity: 1
-
・Material: Brass (C2801)
-
・Thickness: 2mm (wash basin) & 6mm (handrail) mm
-
・Type: Original work
Process
Programming
Punch & Laser
Bending
Welding
Surface Finishing
Assembly
Strengths

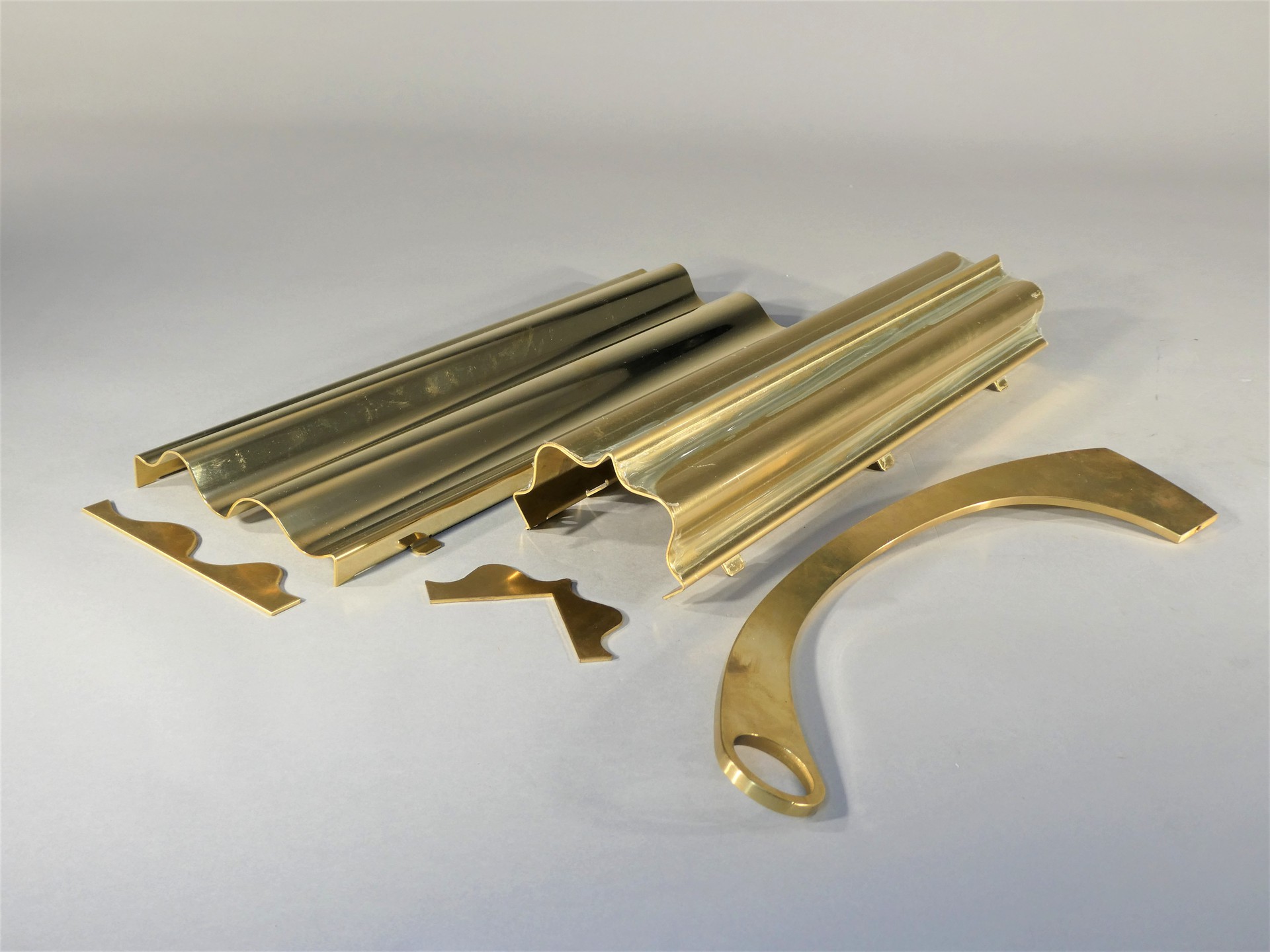

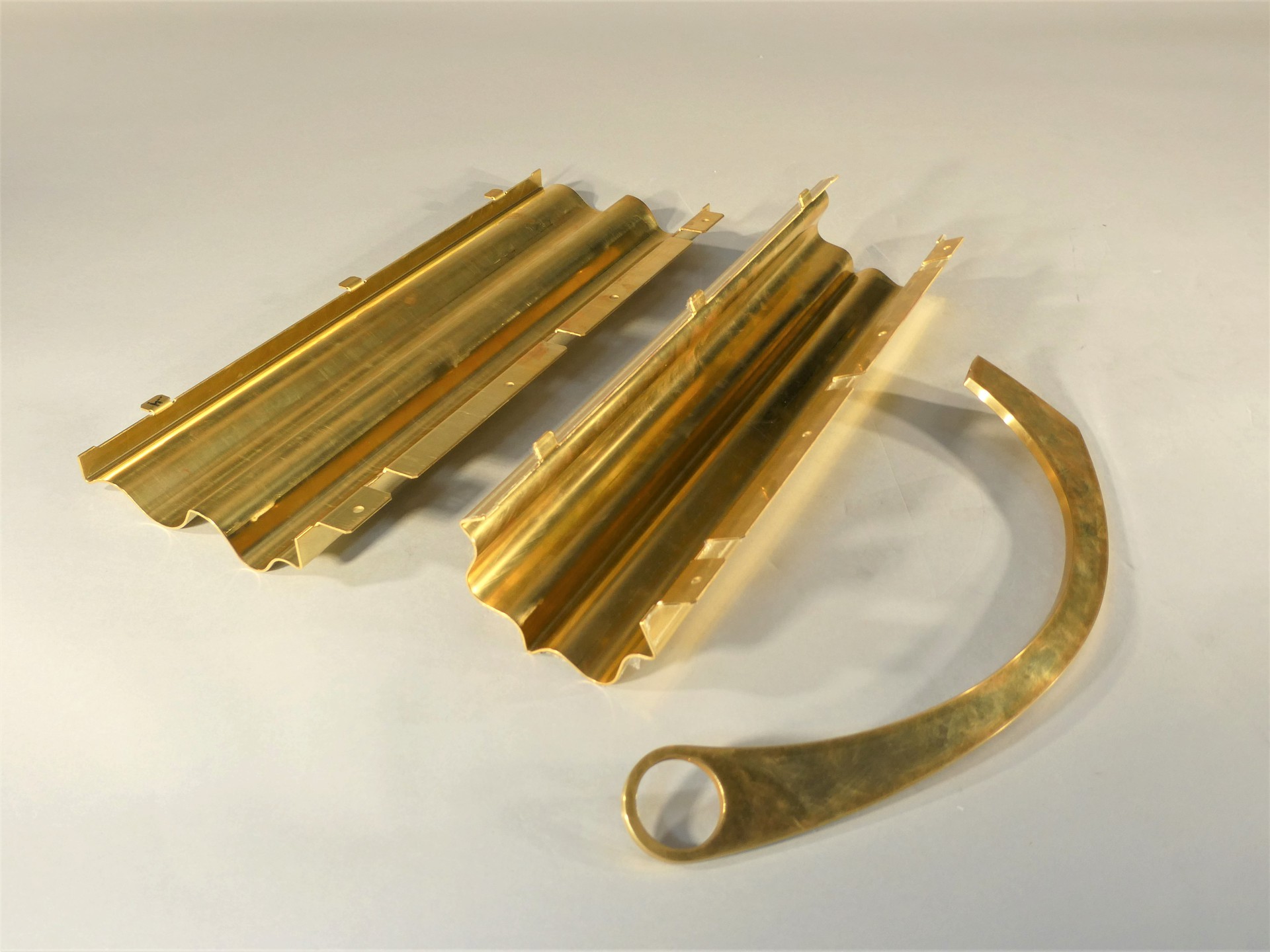

This wash basin surround and stair case handrail was designed and produced for the same building. This building built in 1862 is situation in Gothenberg Sweden and houses a high end restaurant.

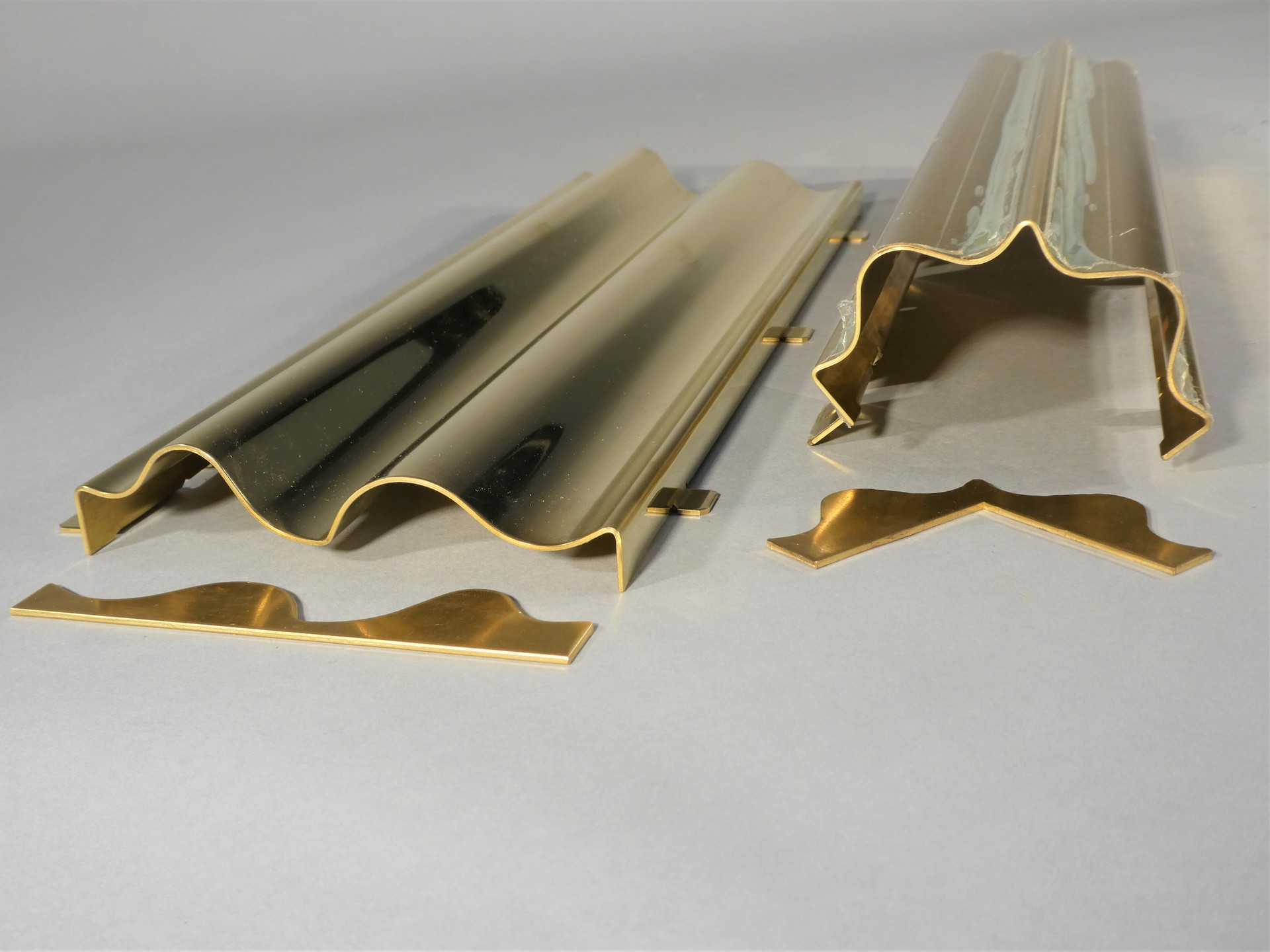

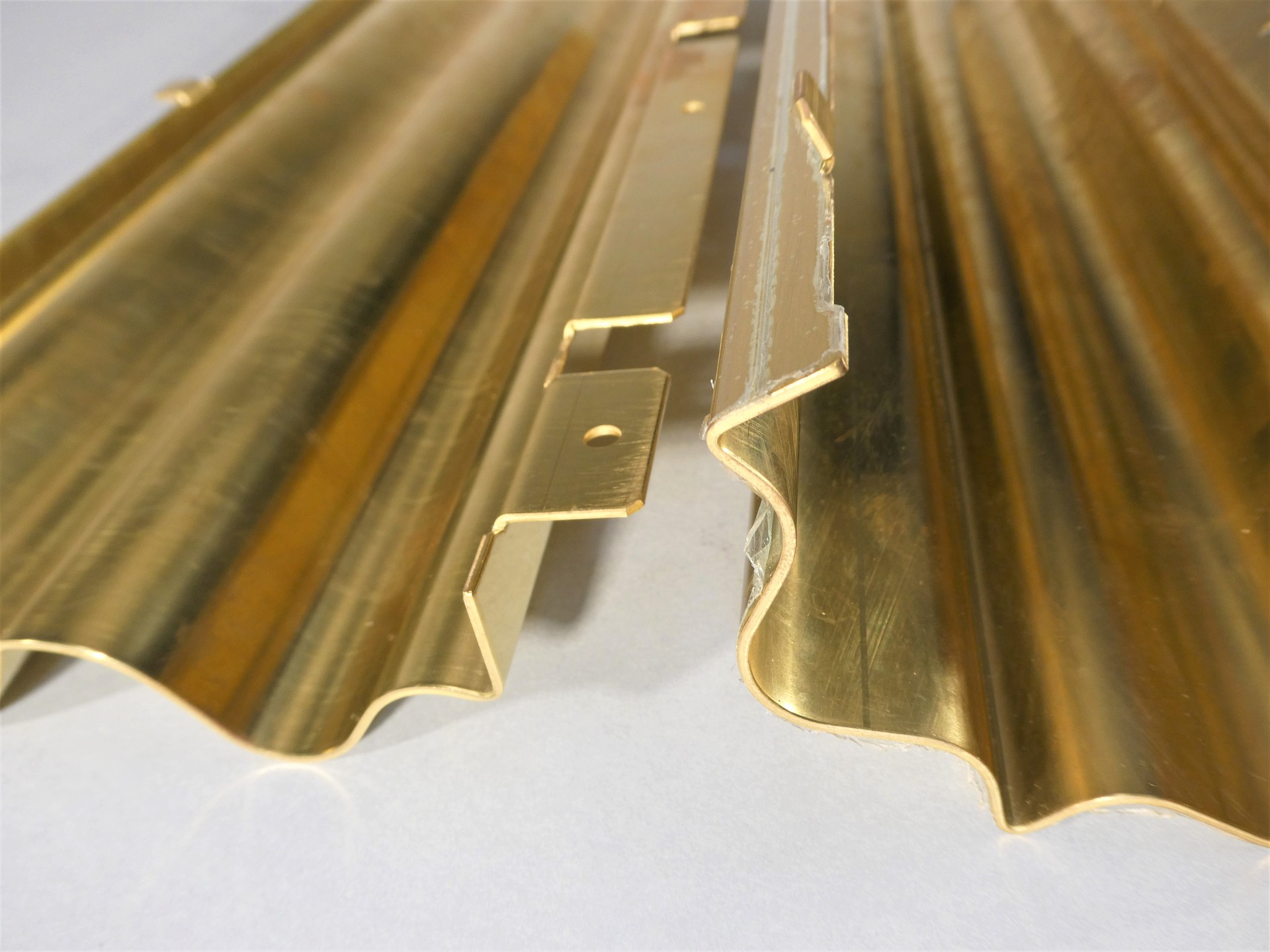

Aside from the attractive bending profile, the end caps were produced used a Amada contouring punch tool. The adjustments to create the right bending program took a great deal of time (this is included in the programming time), as did finishing and installation of the approximately 80 panels.

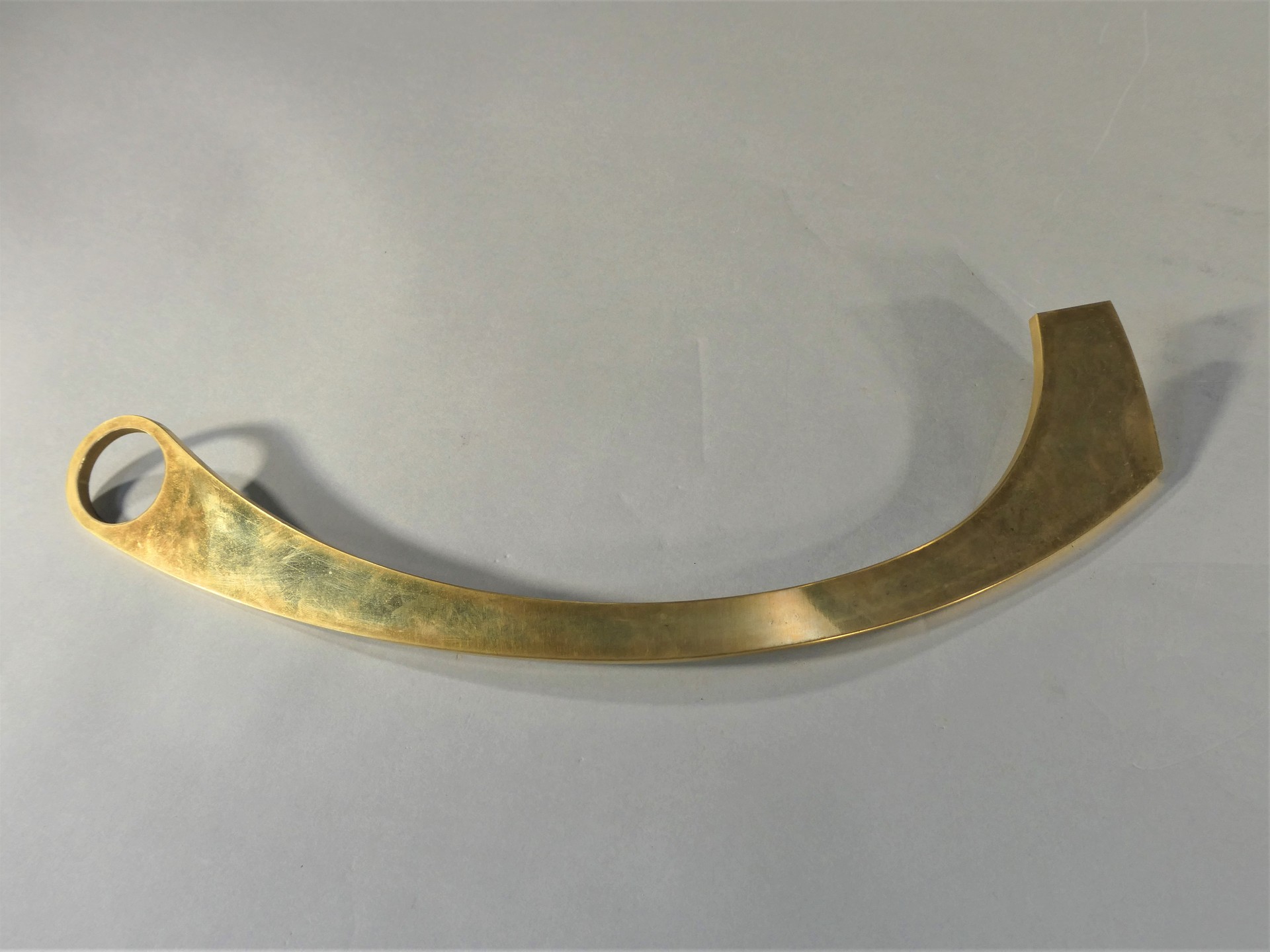

The example part from the handrail was step bent at an angle with the EG4010 to follow the corner path of the handrail.
The sizes stated are for the wash basin unit, not the hand rail.
Aside from the attractive bending profile, the end caps were produced used a Amada contouring punch tool. The adjustments to create the right bending program took a great deal of time (this is included in the programming time), as did finishing and installation of the approximately 80 panels.
The example part from the handrail was step bent at an angle with the EG4010 to follow the corner path of the handrail.
The sizes stated are for the wash basin unit, not the hand rail.
