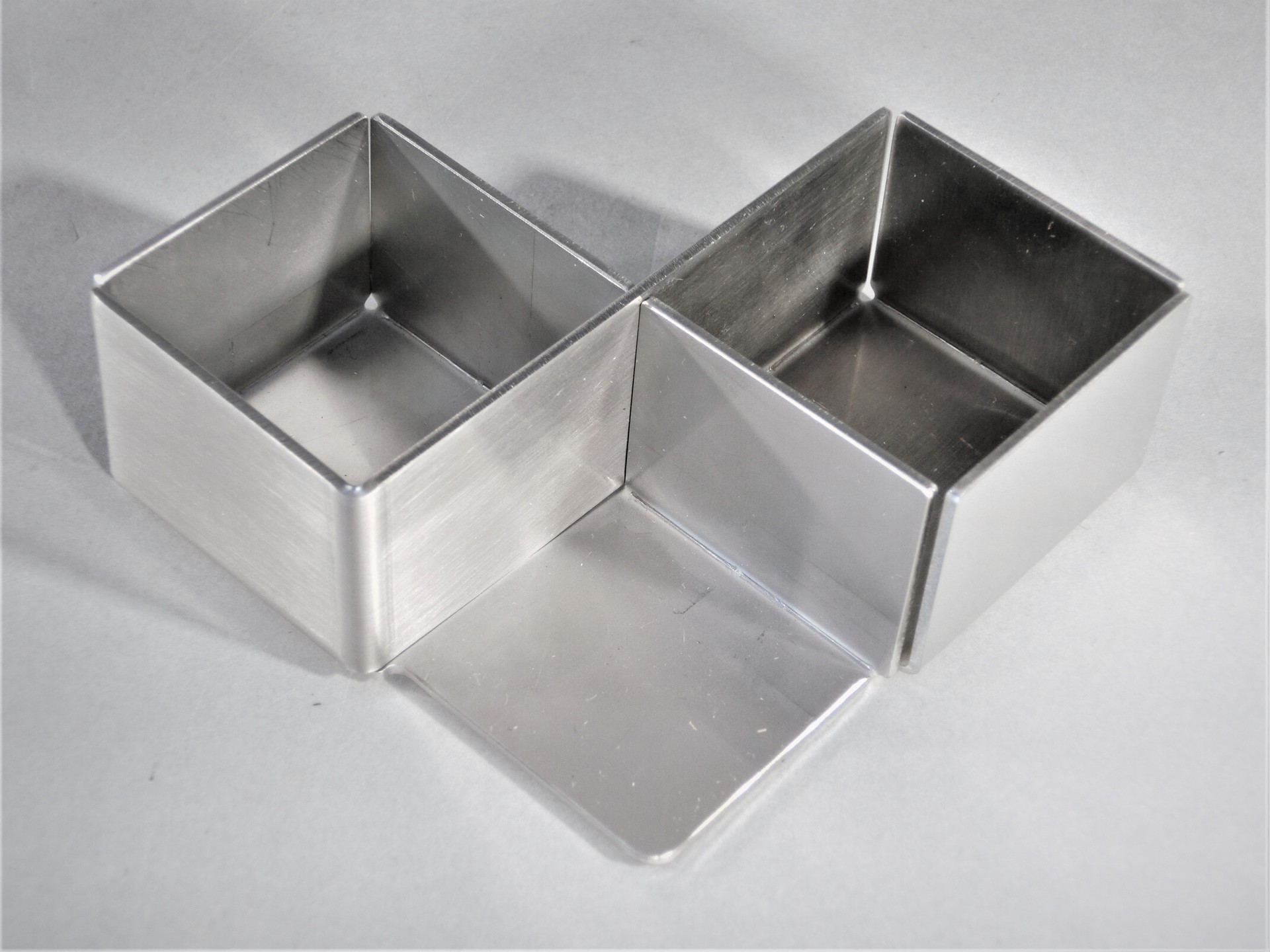

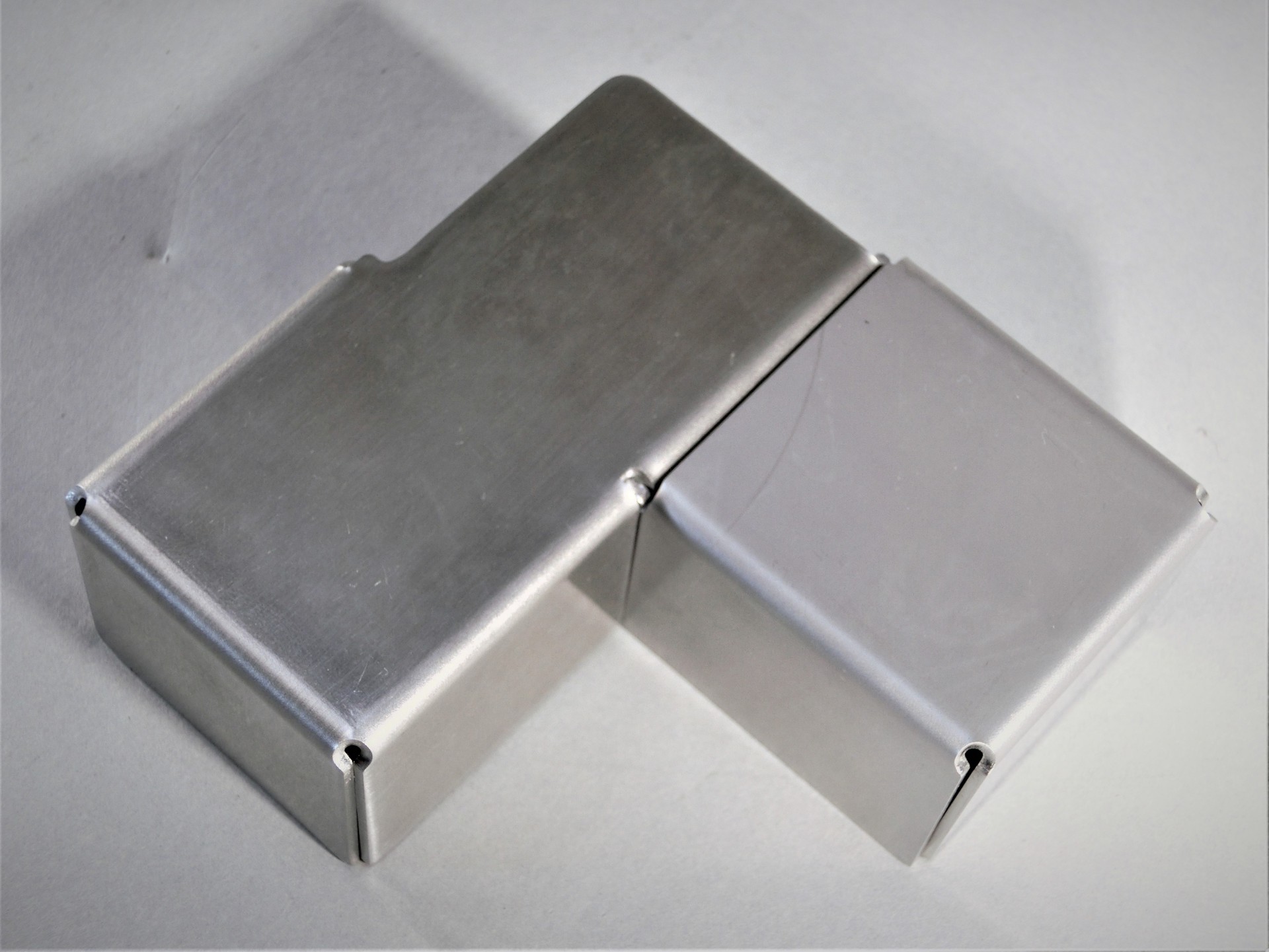

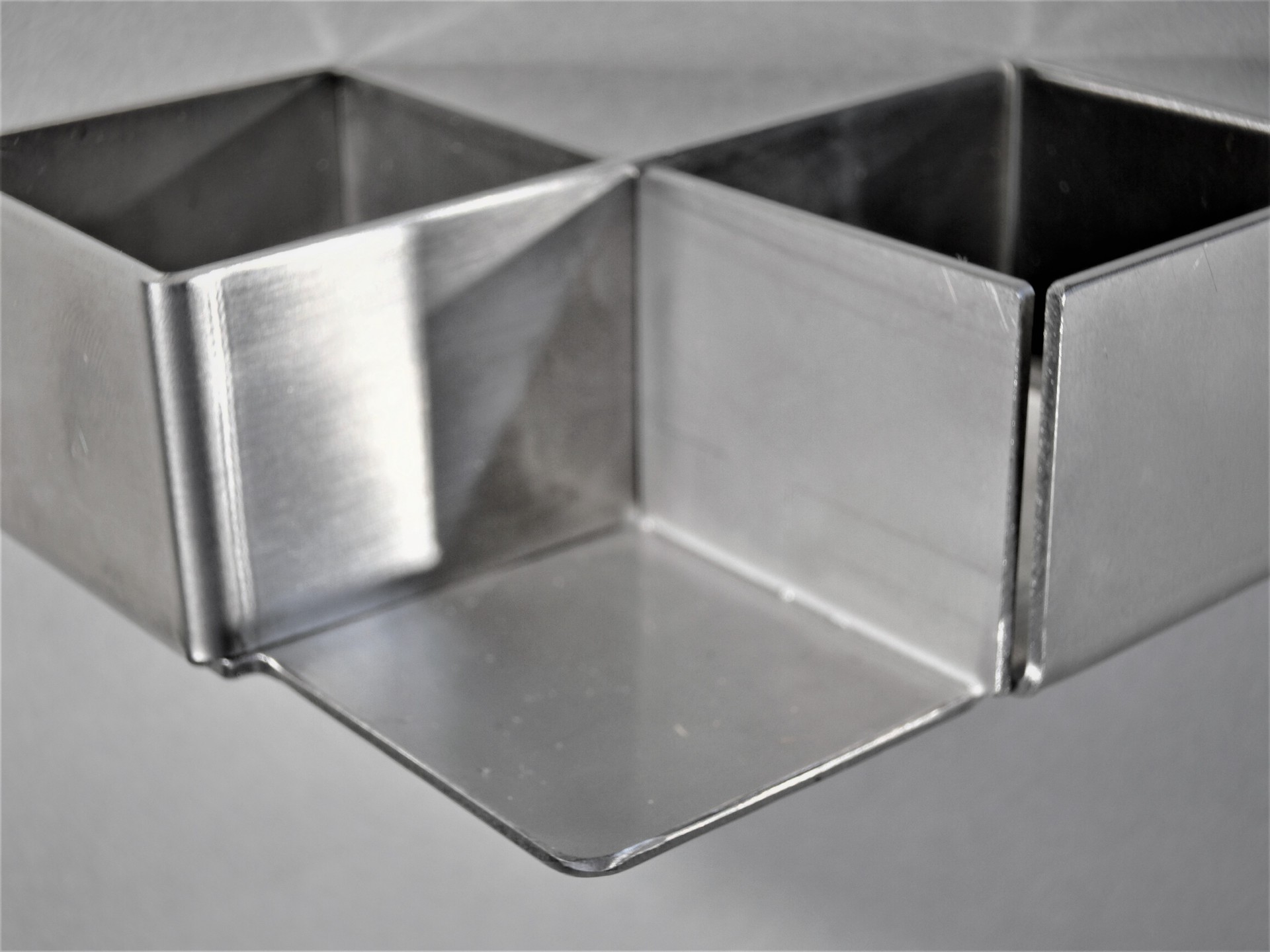

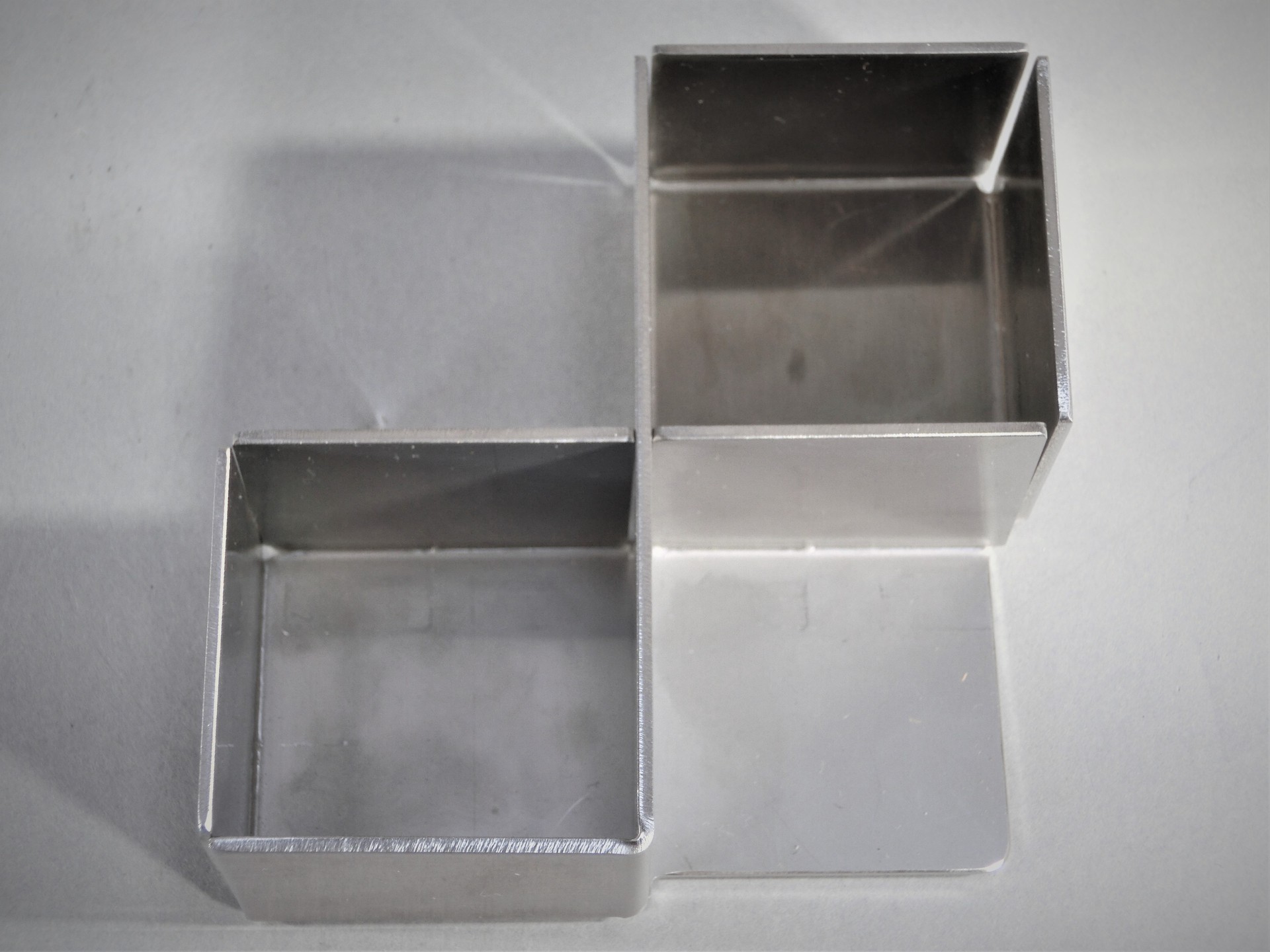

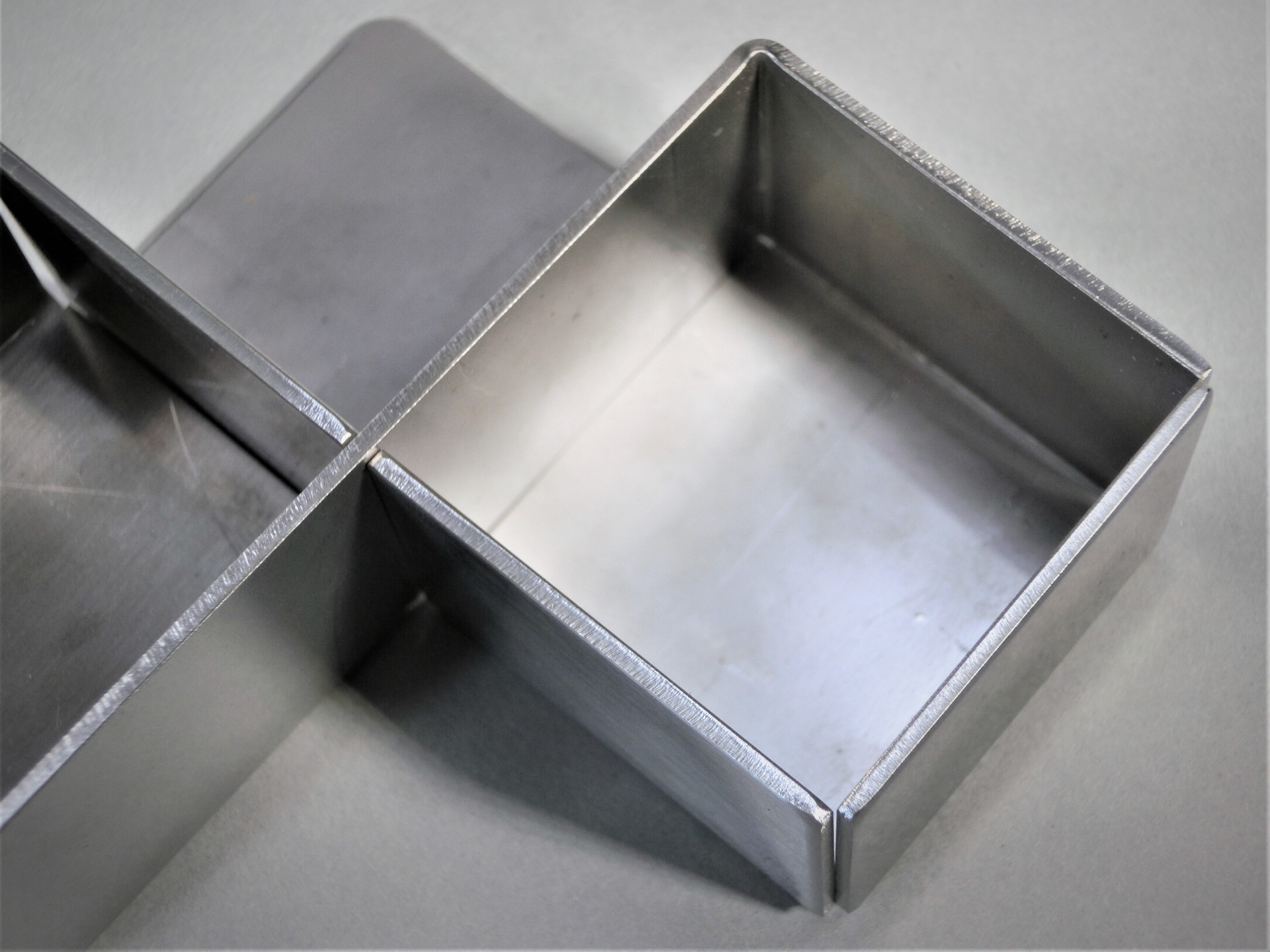

Two sides of the same coin (Parts102)
Parts102
Technical Encouragement Award
Two sides of the same coin
-
・Size: W110 x D30 x H77 mm
-
・Accuracy: ± 1 mm
-
・Programming time: 1 min
-
・Processing time: 2 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS430)
-
・Thickness: 1.5 mm
-
・Type: Original work
Strengths
普段の図面展開業務において当たり前となっている展開方法を見直し、如何に分割を減らし溶接量と工数を減らすかを考えました。
新たな曲げの可能性と新しい金型の開発に貢献できればと思います。
