37th Precision Sheet Metal Technology Fair

Formative arts fabrication (43 entries)

360° Viewer

Formative438

Technical Encouragement Award

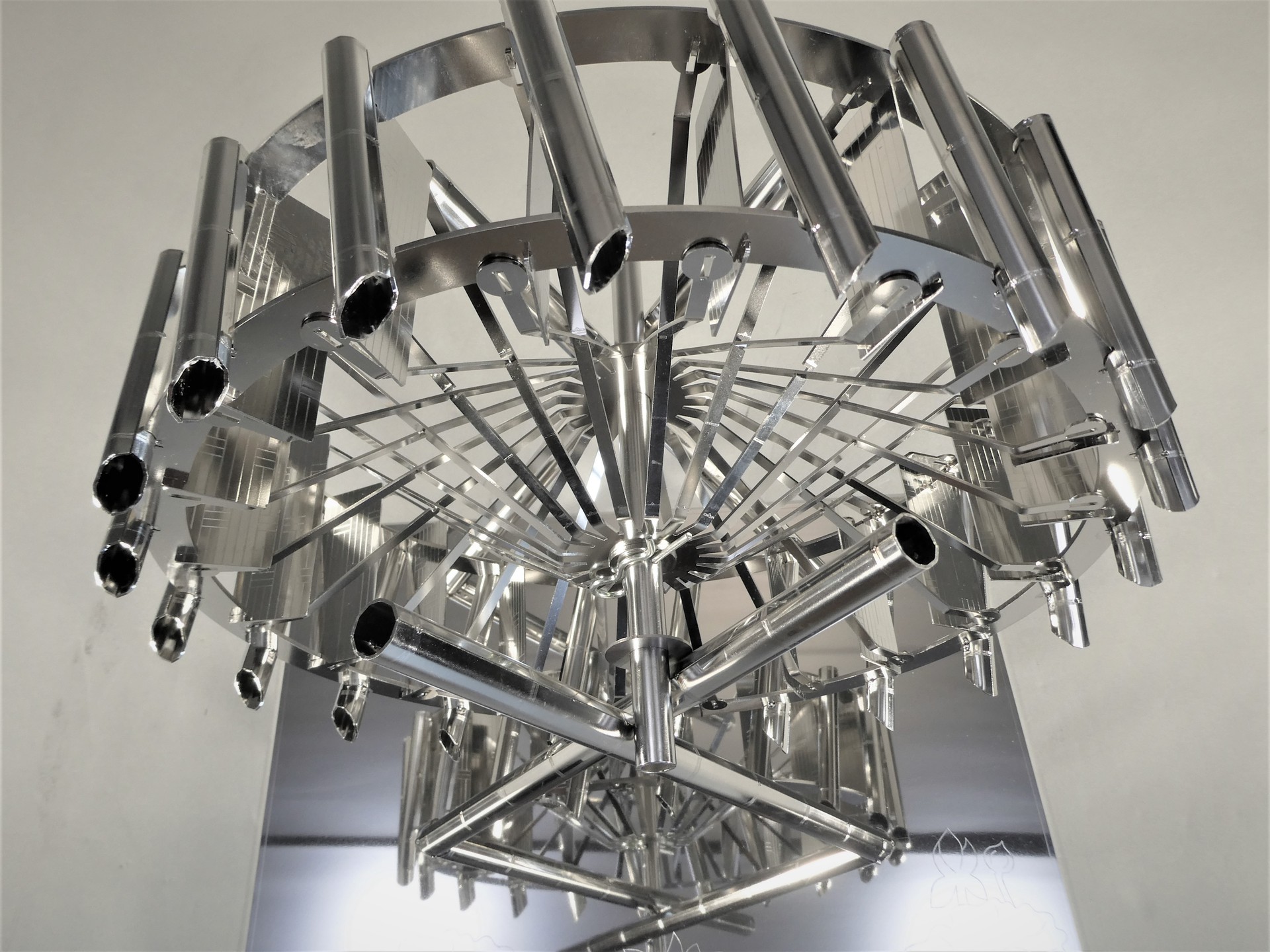

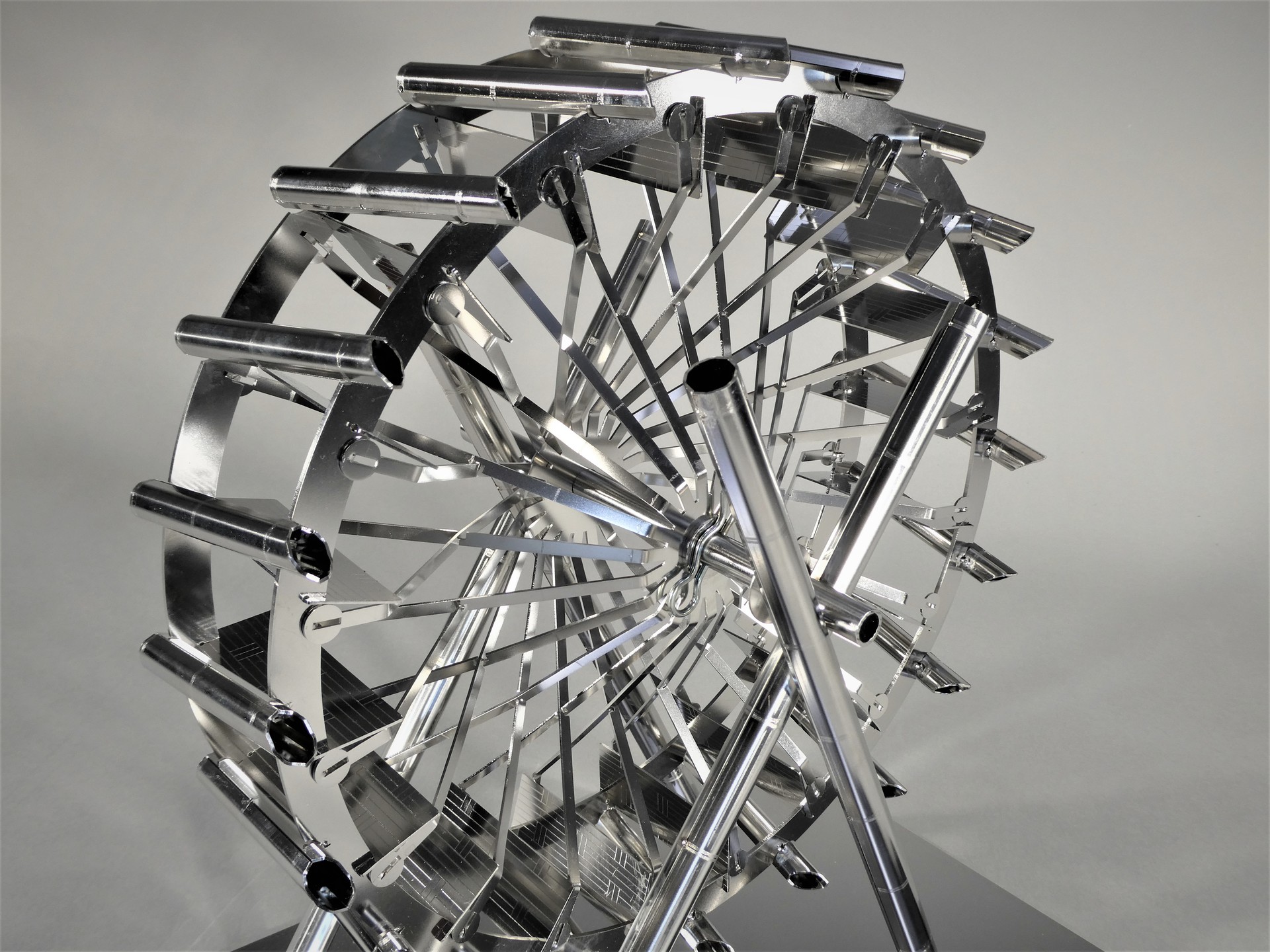

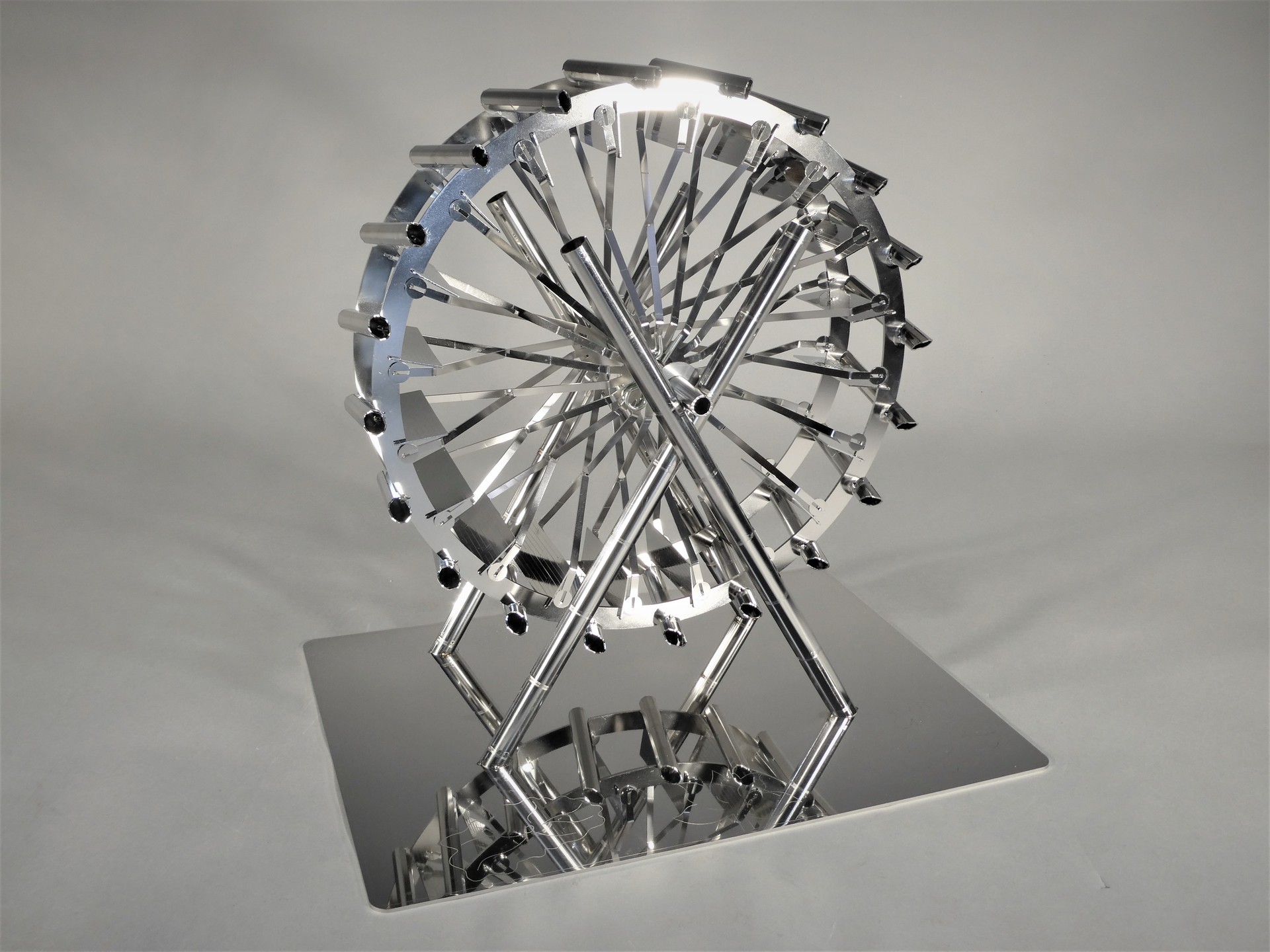

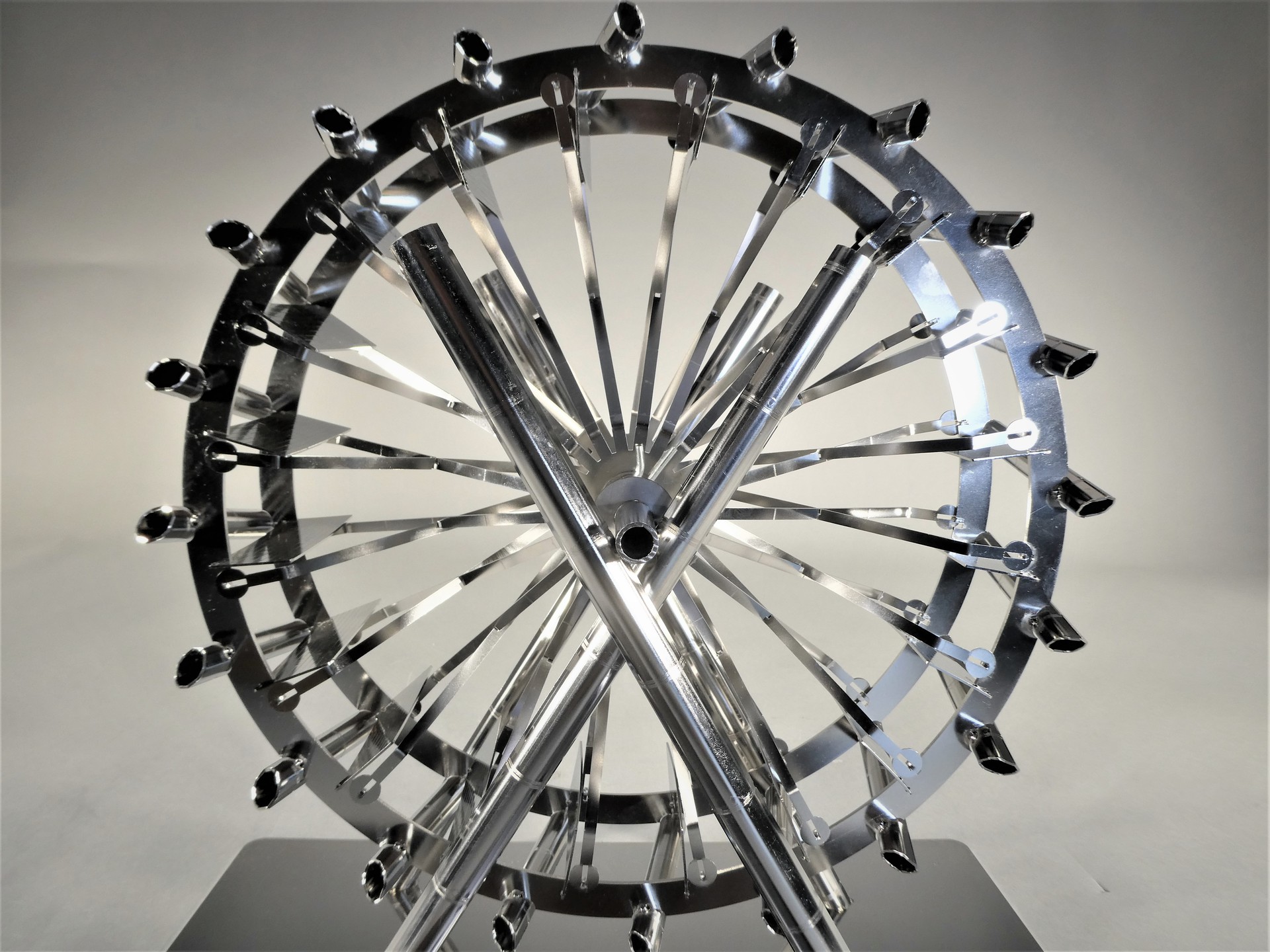

"Bamboo" water wheel

INDEMA JOINT STOCK COMPANY (Vietnam)

  • ・Size: W300 x D400 x H420 mm

  • ・Accuracy: ± 0.1 mm

  • ・Programming time: 500 min

  • ・Processing time: 480 min/quantity

  • ・Quantity: 2

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 0.8, 1.0 mm

  • ・Type: Original work

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

  • Welding

  • Surface Finishing

  • Assembly

Strengths

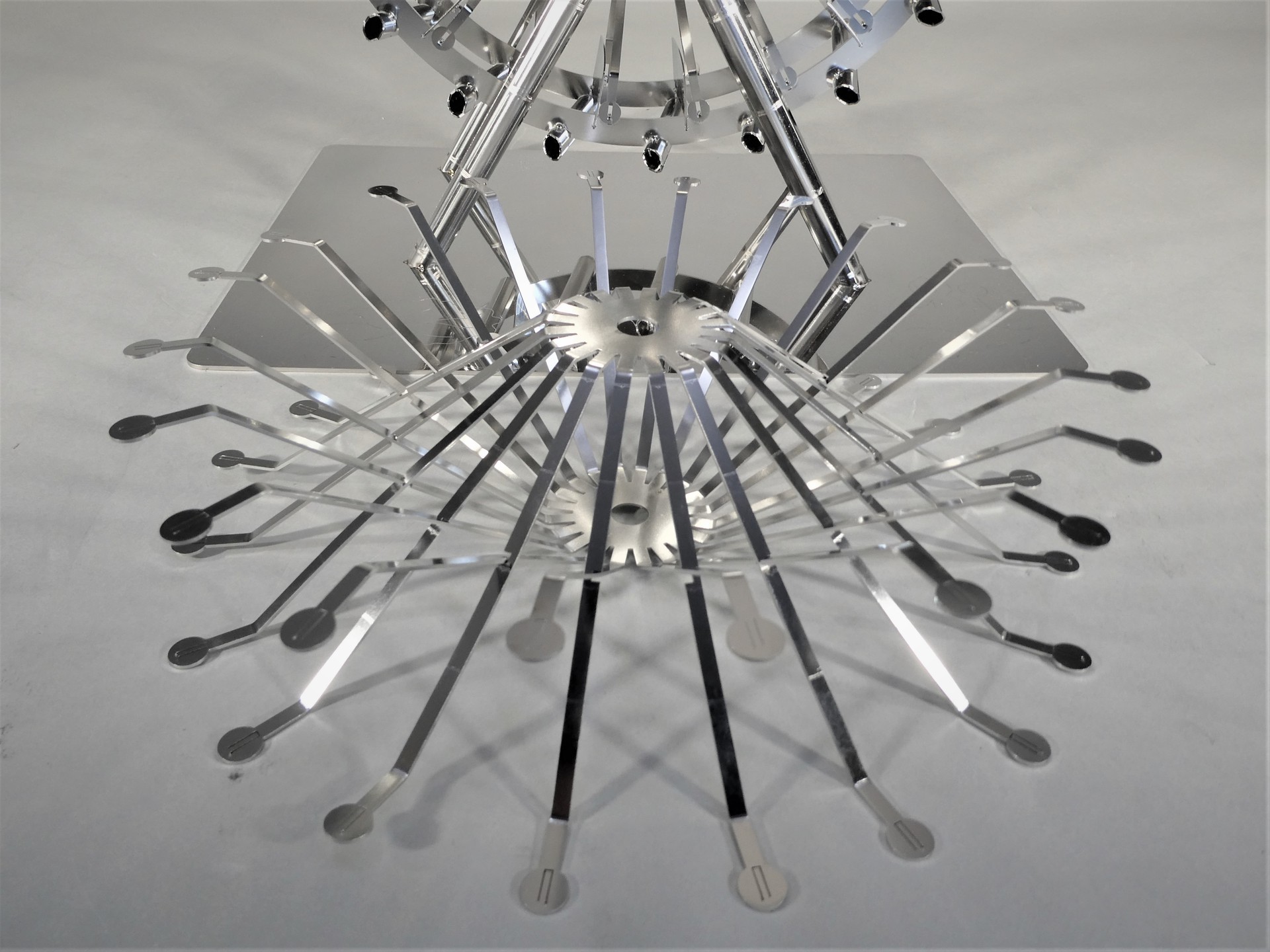

1. The middle stiffener frame is designed and made by a single sheet

2. The pipe: designed and made by bending from unfold sheet

3. This is a miniature sample of the water wheel that Vietnamese mountain farmers used to transport water or generate energy for rice processing from water energy.
