37th Precision Sheet Metal Technology Fair

Formative arts fabrication (43 entries)

360° Viewer

Formative413

Technical Encouragement Award

GOLDEN BULL

HSIN WEI TECH. CO., LTD. (Taiwan)

  • ・Size: W345 x D275 x H300 mm

  • ・Accuracy: ± N.A. mm

  • ・Programming time: - min

  • ・Processing time: 14400 min/quantity

  • ・Quantity: 1

  • ・Material: Mild Steel (SPHC)

  • ・Thickness: 2.0 mm

  • ・Type: Original work

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

  • Welding

Strengths

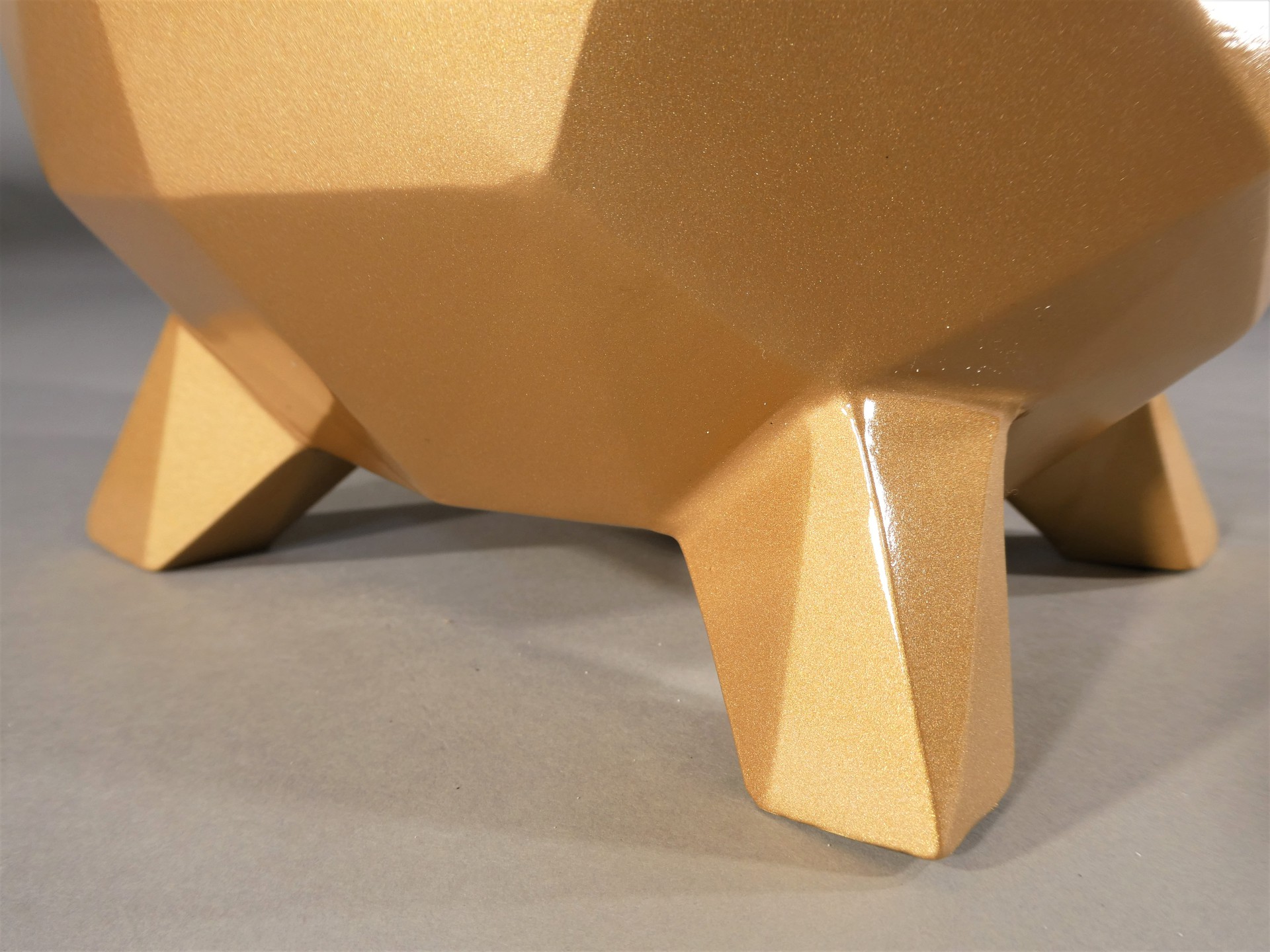

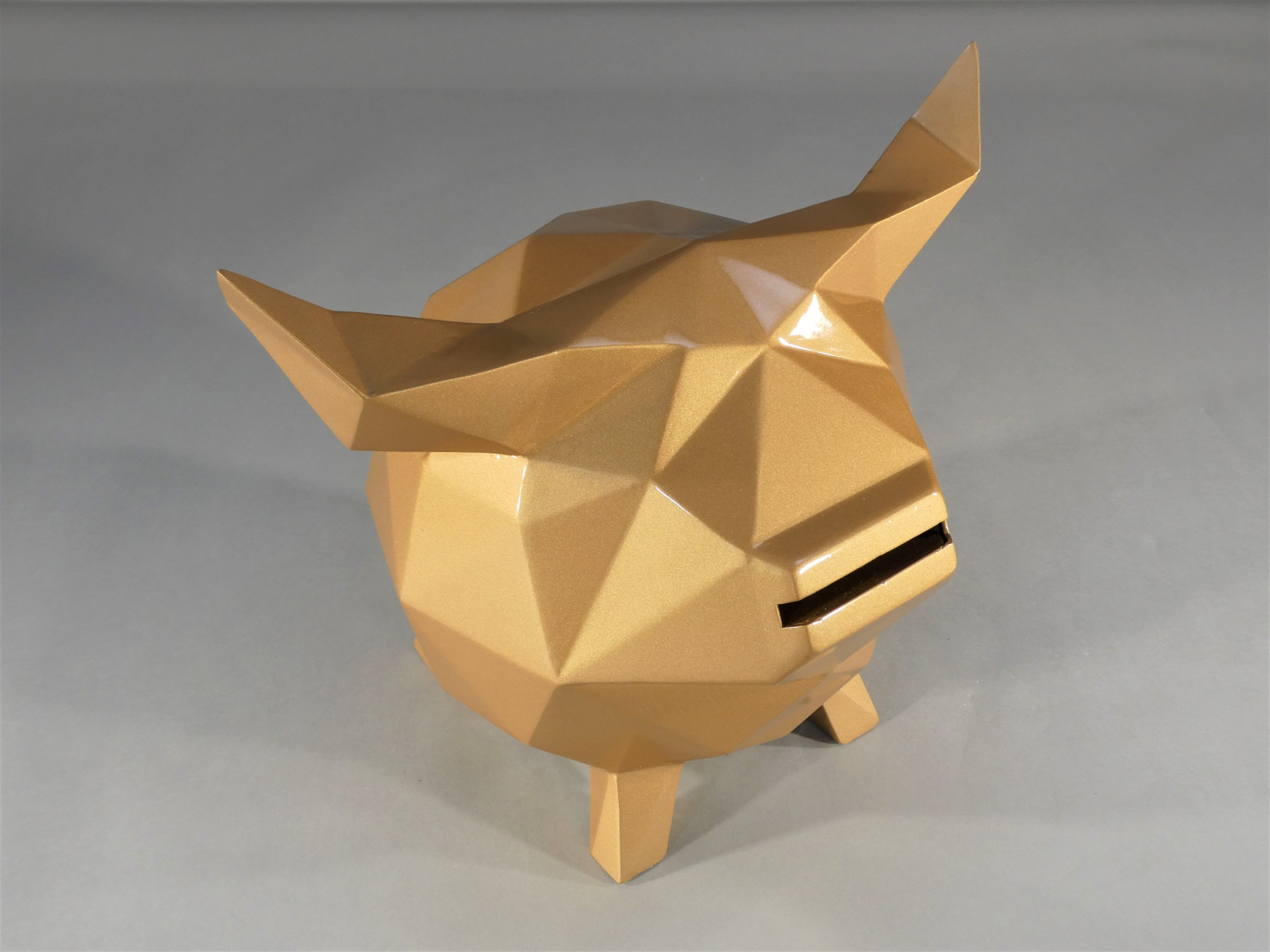

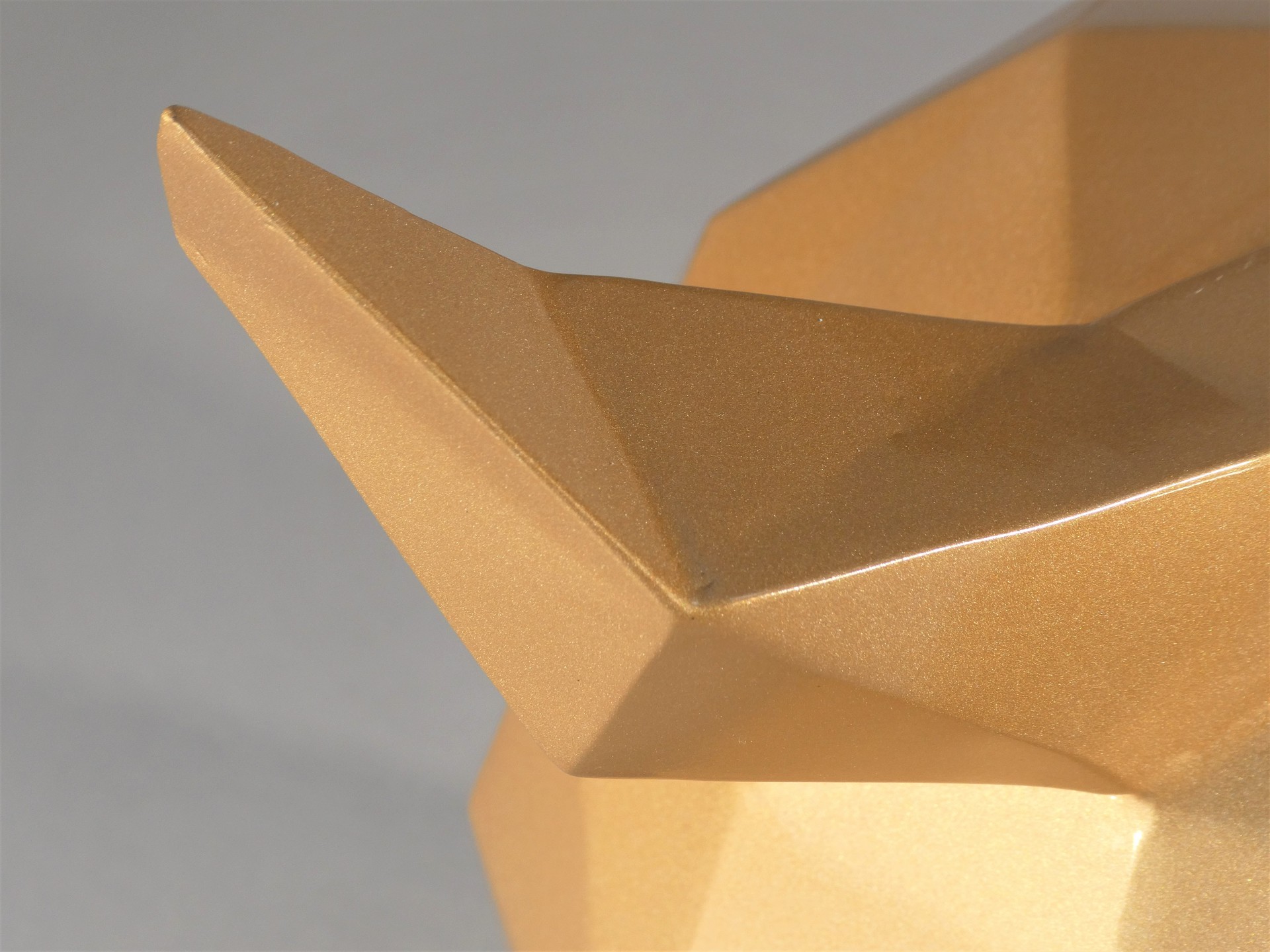

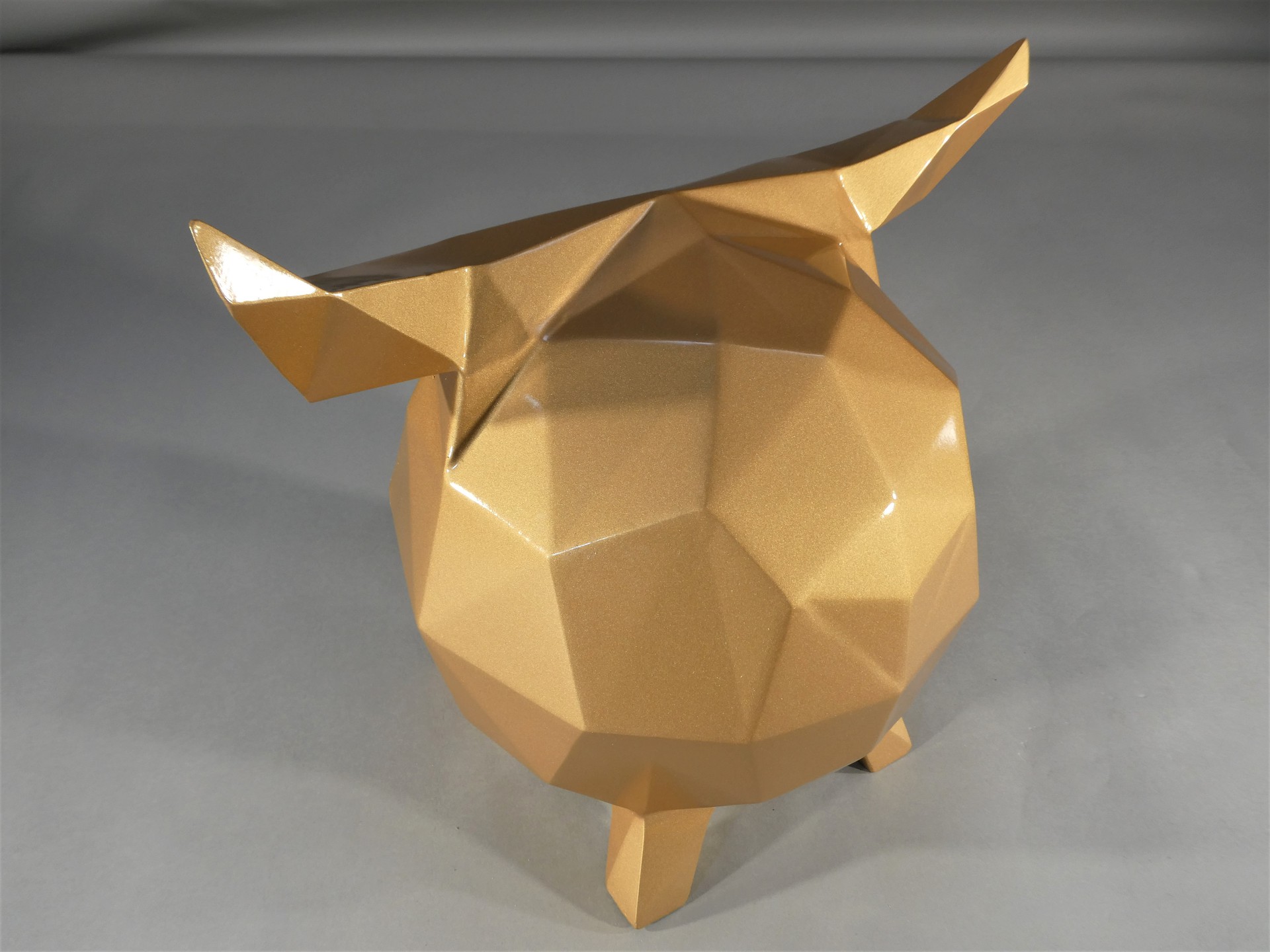

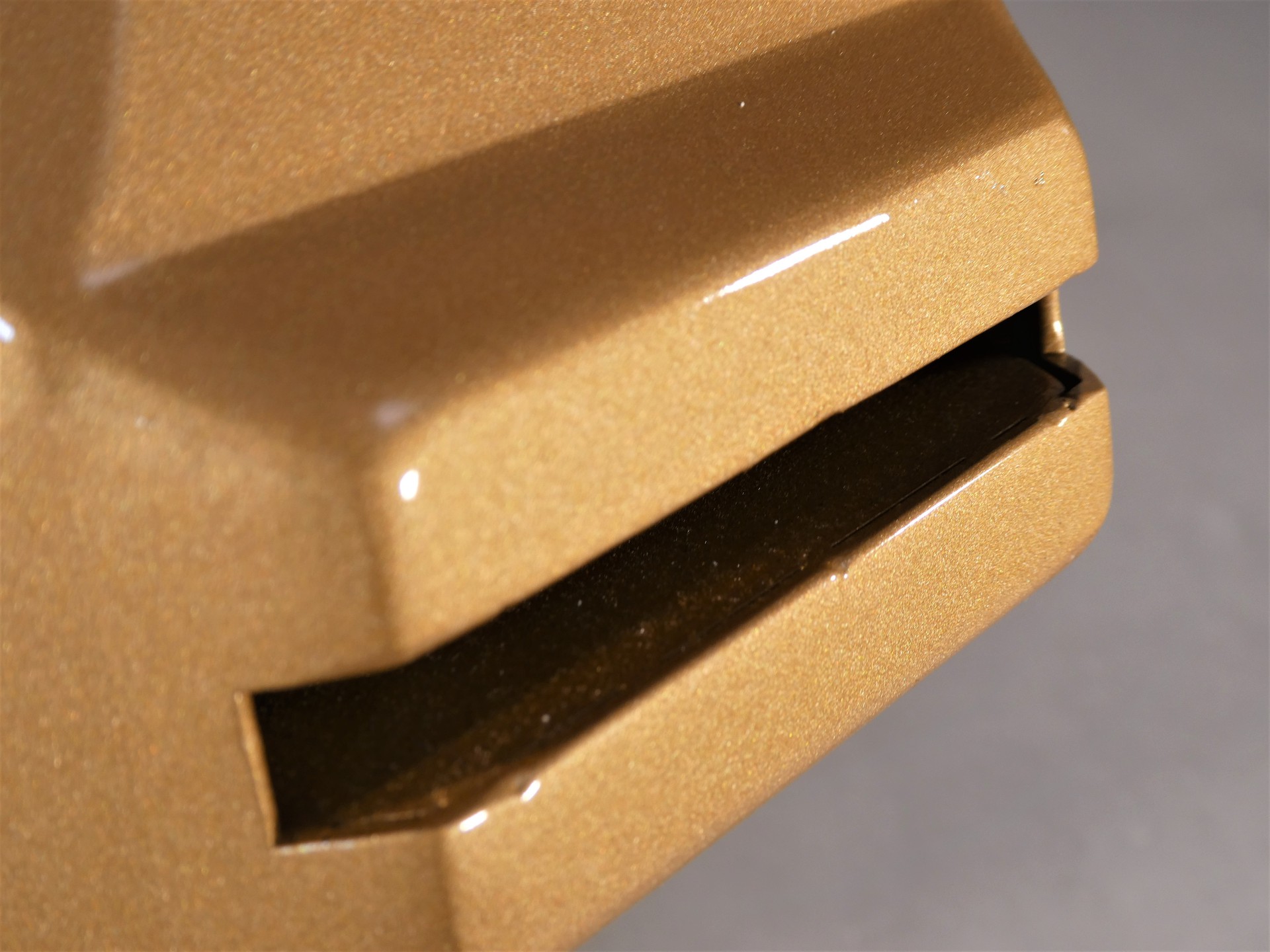

The geometric blocks are spliced ​​together using angular surfaces. First, use 3D drawing to unfold, laser cut the block surfaces, and fold out the angles. Then weld and assemble it. Then use a grinder to polish and paint to complete this work. Although the research process is time-consuming, but Being able to use leftover materials and reduce costs is a major concern for companies as they now focus on environmental protection and low-carbon issues.
