HARNESSING WILD NATURE (Formative409)
Formative409
Technical Award
HARNESSING WILD NATURE
R.P. PRODUCTS PHARMA EQUIPMENTS PVT. LTD. (India)
-
・Size: W250 x D175 x H300 mm
-
・Accuracy: ± 1 mm mm
-
・Programming time: 120 min
-
・Processing time: 2400 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS430)
-
・Thickness: 8 mm mm
-
・Type: Prototype
Process
2D/3D Design
Unfolding
Laser-Cutting
Surface Finishing
Welding
Assembly
Strengths

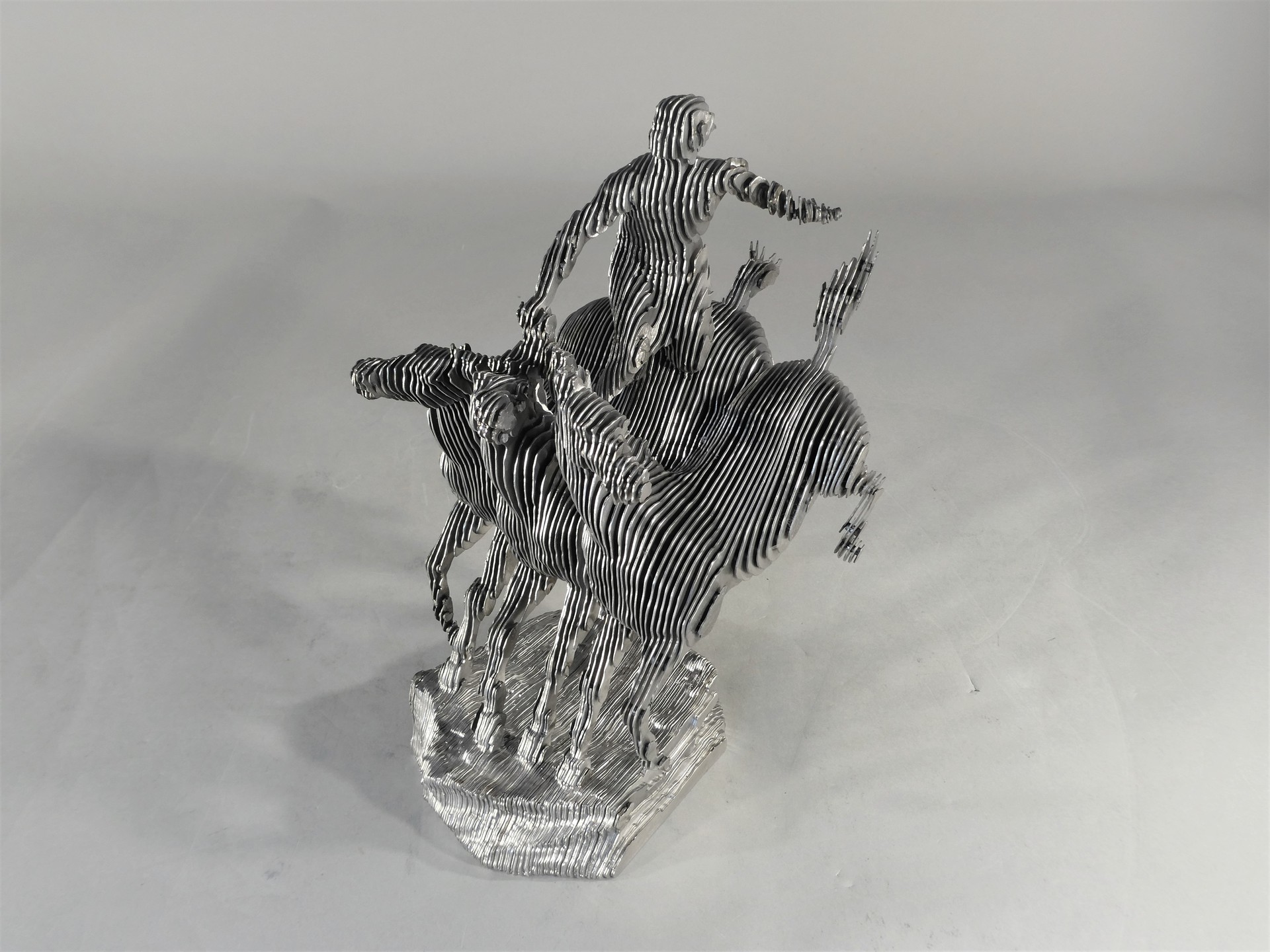

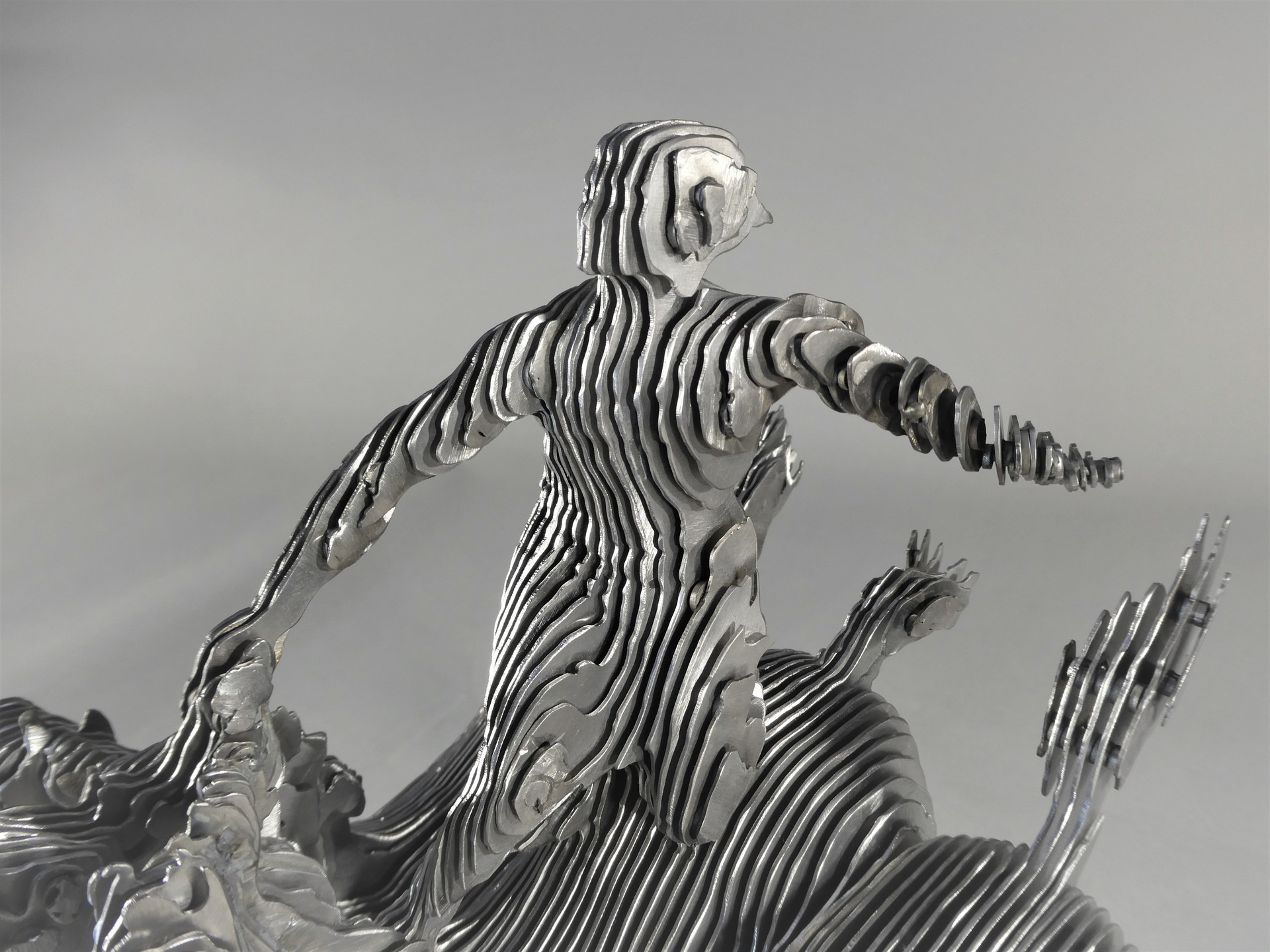

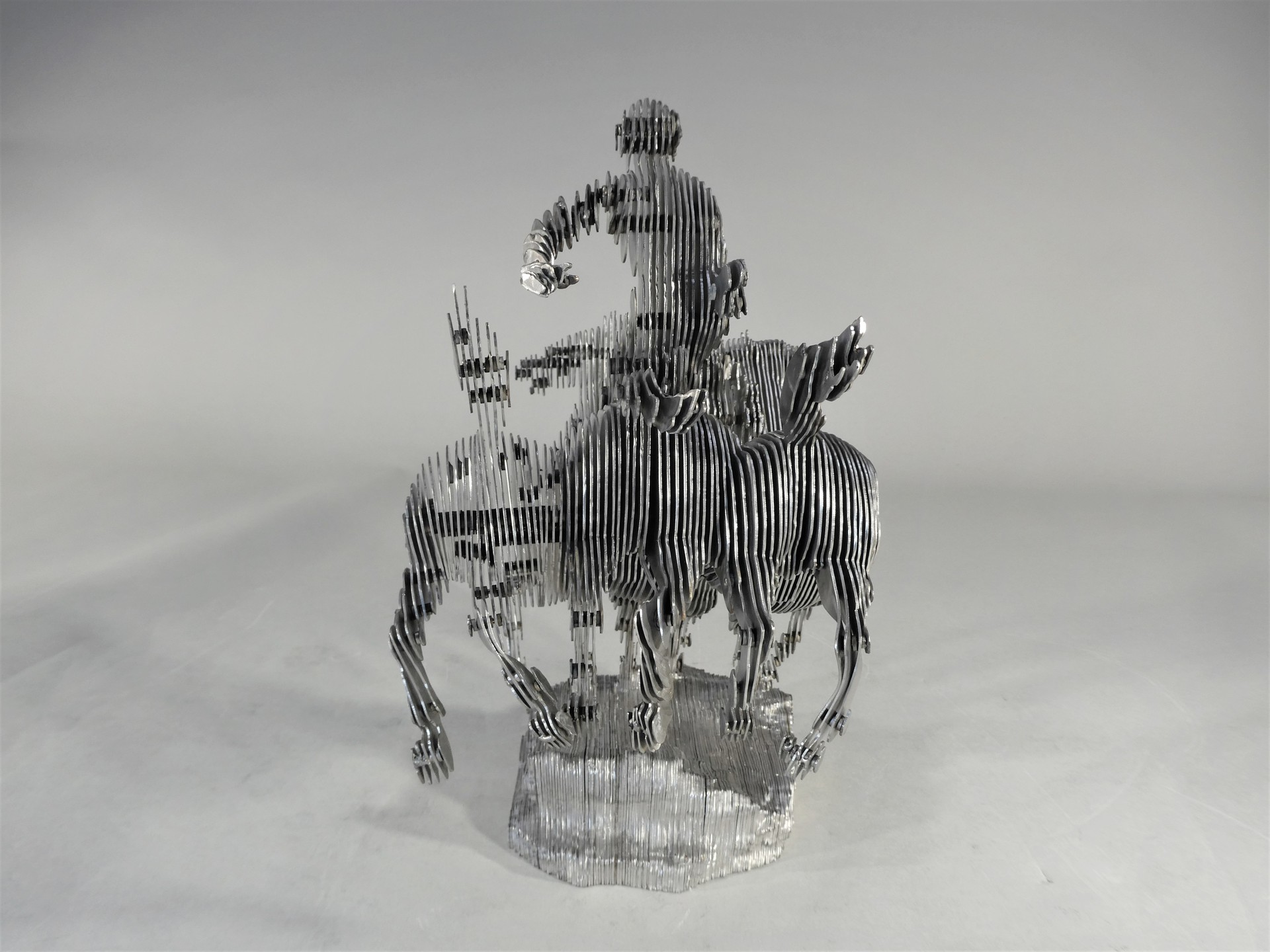

THIS IS A CONCEPT SCULPTURE DEPICTING THE STRUGGLE OF HUMAN TO HARNESS THE WILD NATURAL FORCES. THE THREE HORSES SIGNIFY THE THREE ELEMENTS OF WATER EARTH AND POWER WHILE THE MAN SITTING ATOP THE HORSES IS TRYING HIS BEST TO CONTROLL THEM.

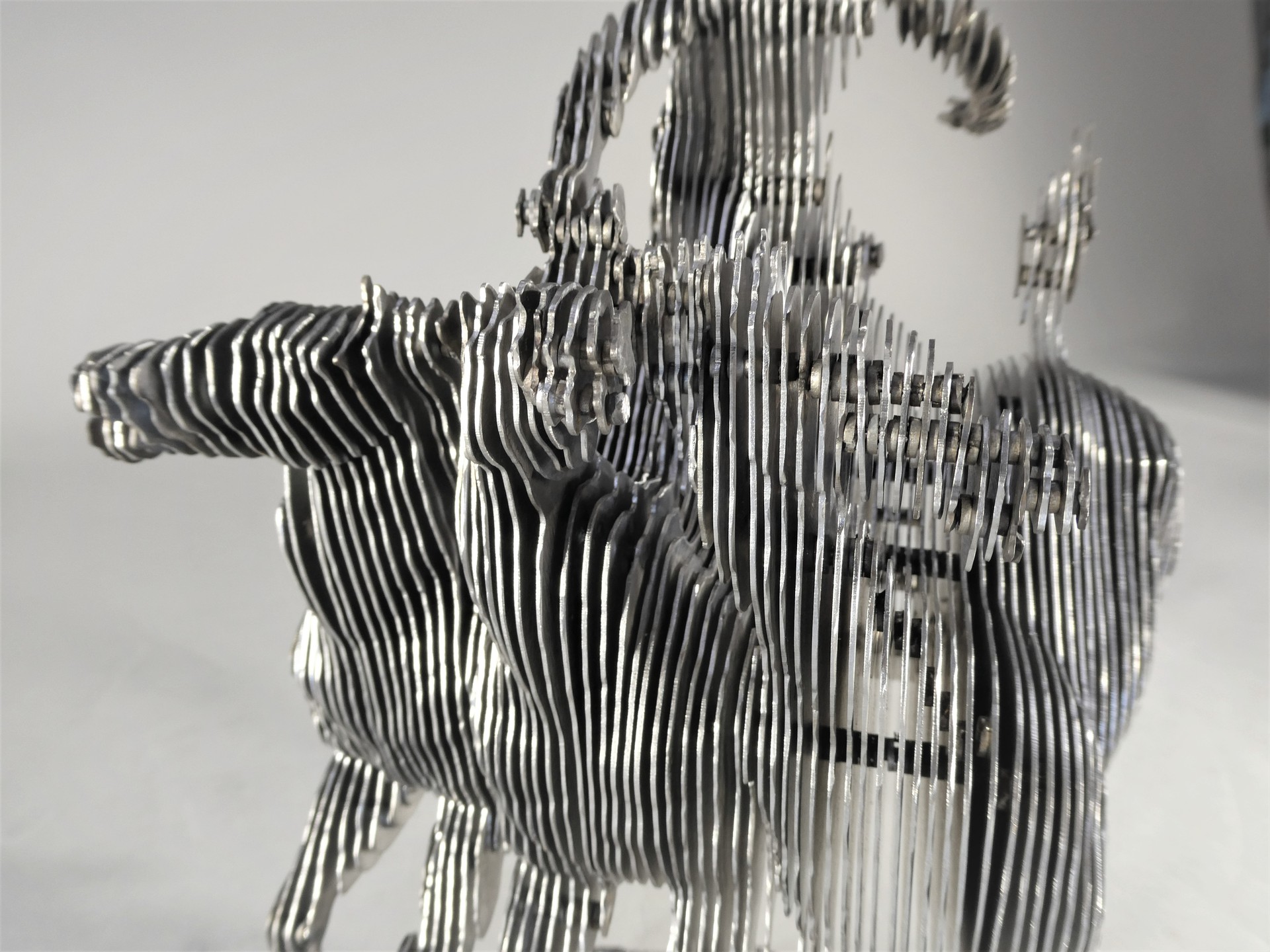

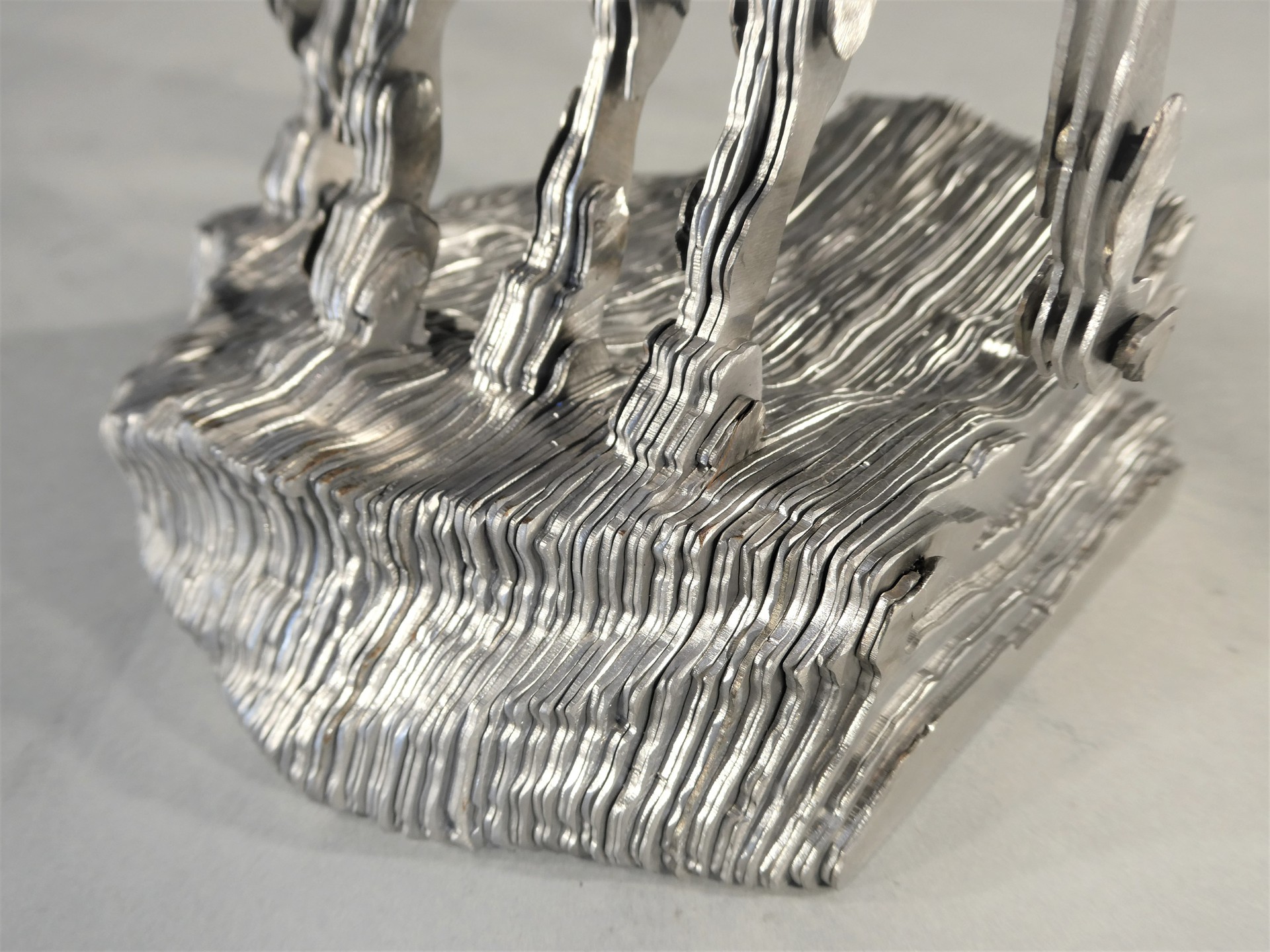

WE DEVELOPED THE 3D MODEL ON SOLIDWORK. IT WAS THEN SPLIT INTO SLICES AS REQUIRED AND TRANSFORMED INTO AUTOCAD FOR NESTING. THE INDIVIDUAL PARTS TOTALLING 443 COMPONENTS. WERE THEN CUT ON LASER CUTTING MACHINE, POLISHED ON TIMESAVER MACHINE. THESE WERE THEN ASSEMBLED ONE BY ONE IN SEQUENTIAL ORDER.
WE DEVELOPED THE 3D MODEL ON SOLIDWORK. IT WAS THEN SPLIT INTO SLICES AS REQUIRED AND TRANSFORMED INTO AUTOCAD FOR NESTING. THE INDIVIDUAL PARTS TOTALLING 443 COMPONENTS. WERE THEN CUT ON LASER CUTTING MACHINE, POLISHED ON TIMESAVER MACHINE. THESE WERE THEN ASSEMBLED ONE BY ONE IN SEQUENTIAL ORDER.
