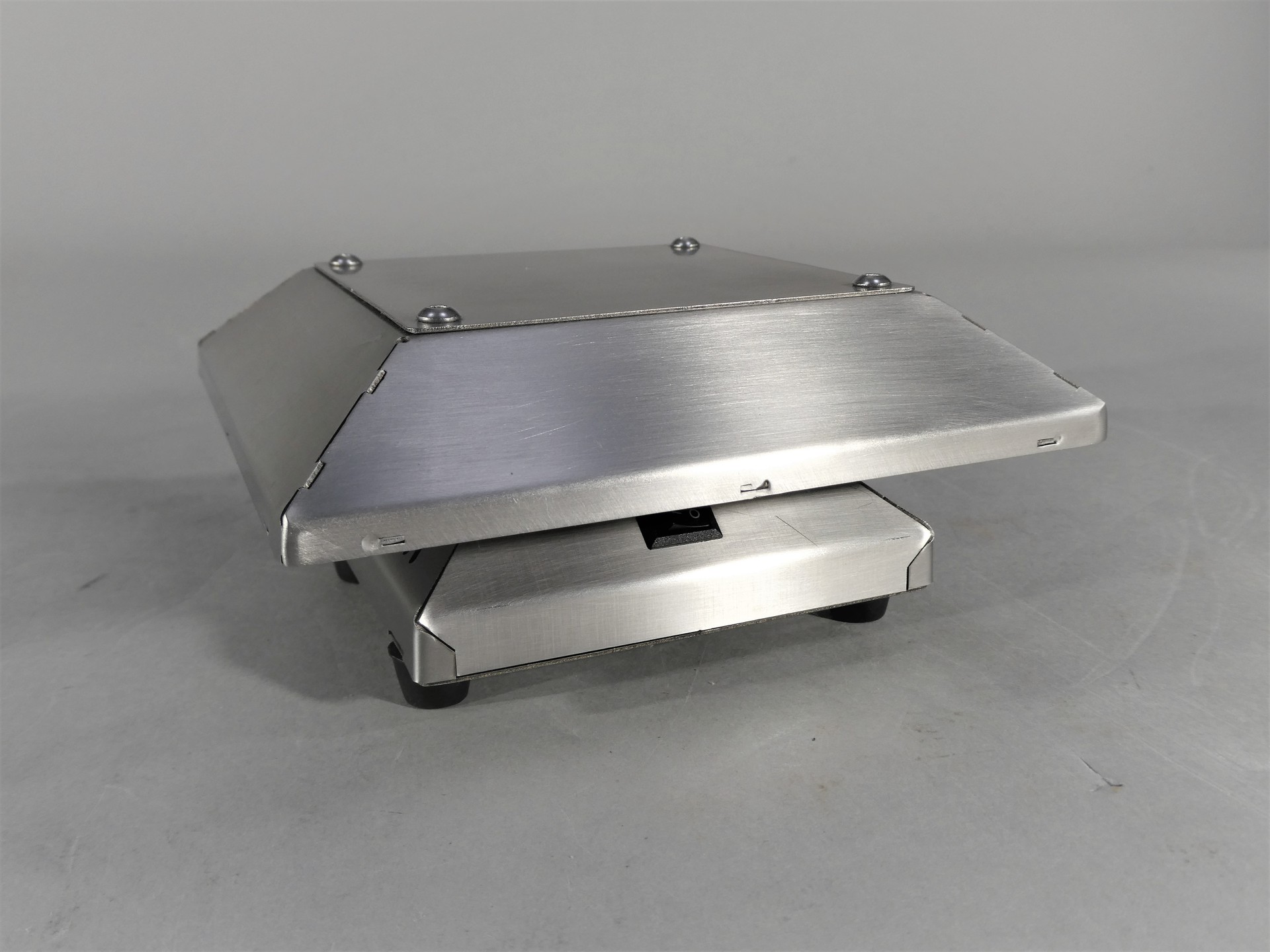

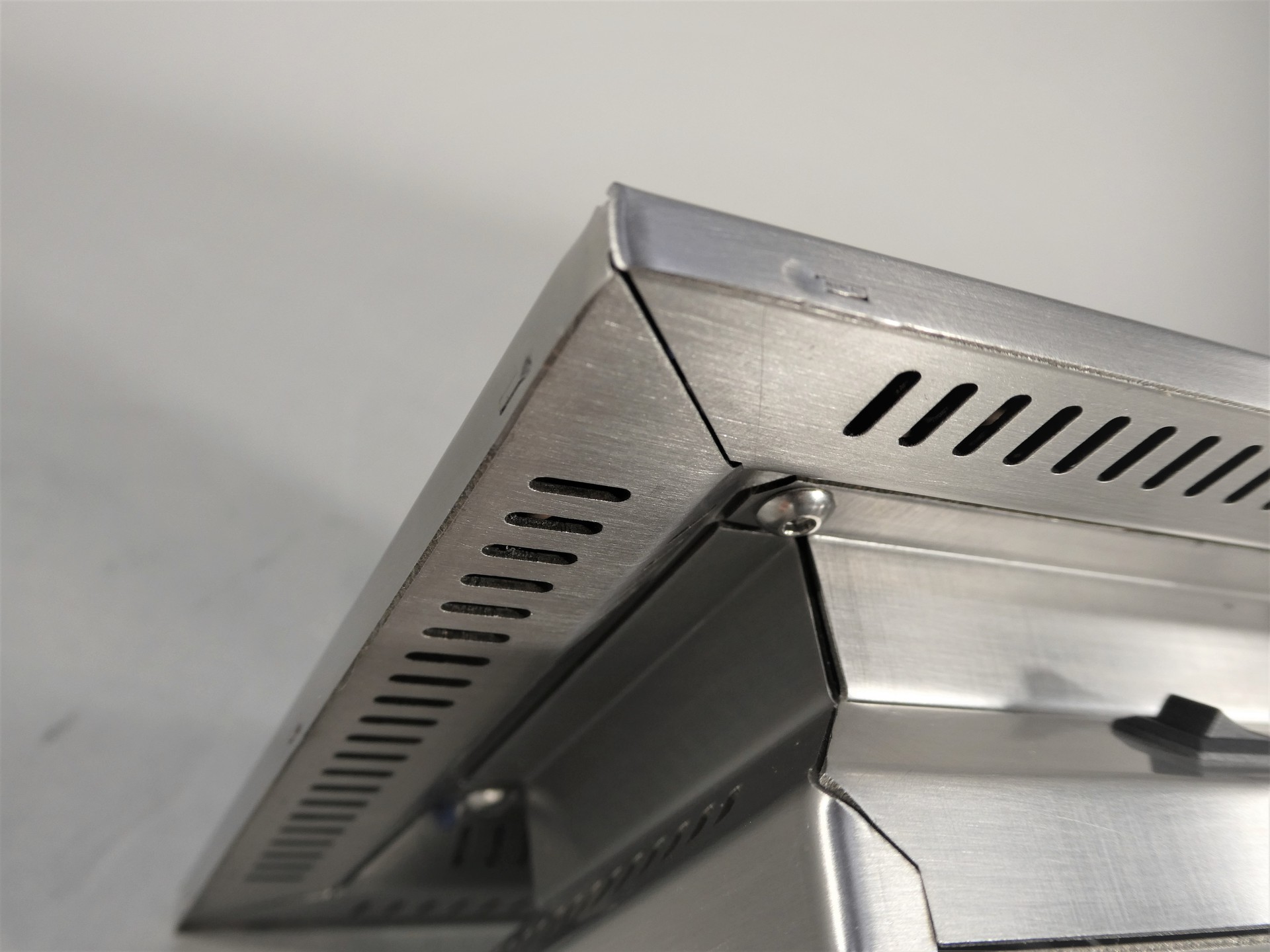

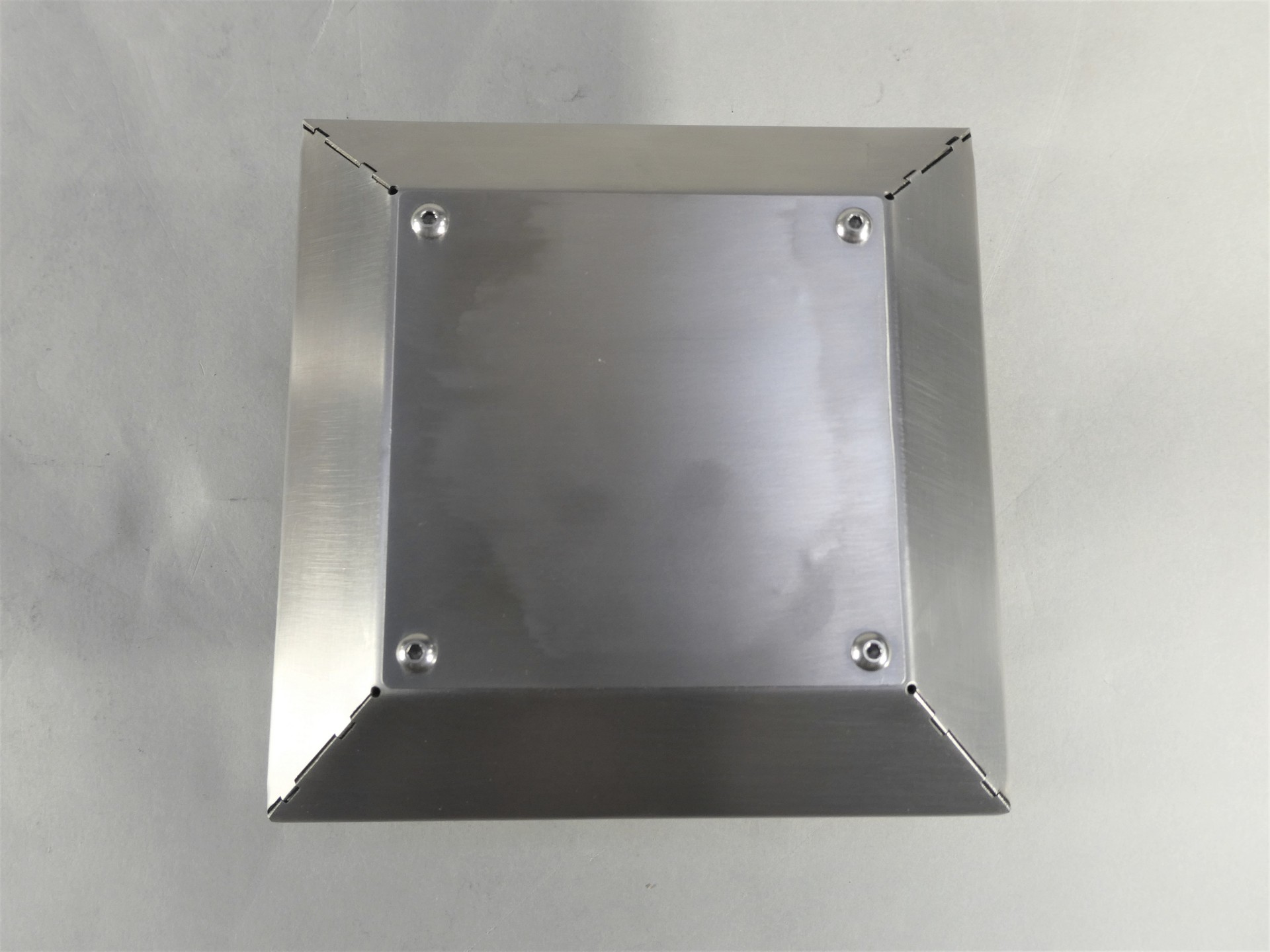

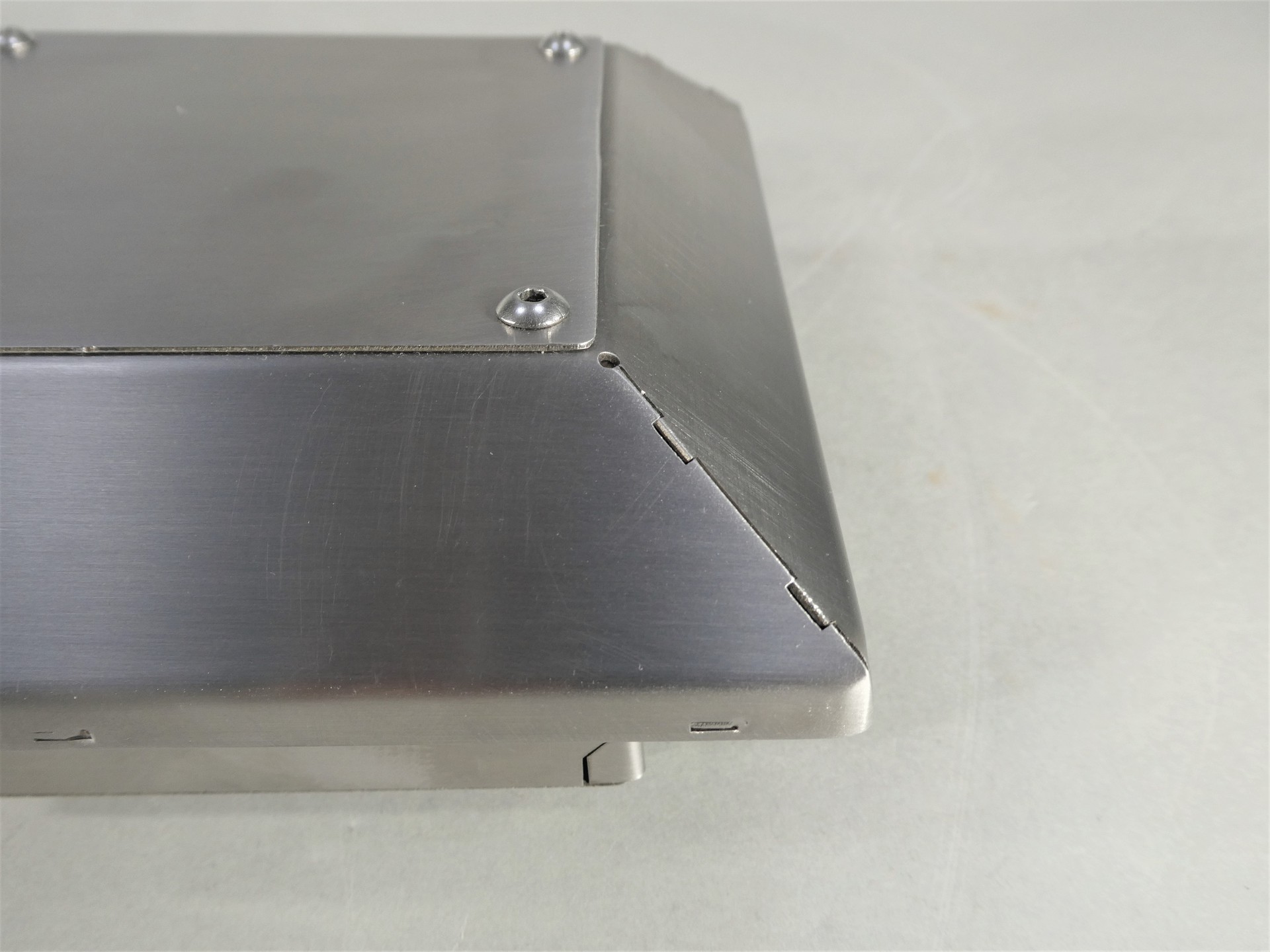

Ventilation fan

T. Witchukorn Co., Ltd. (Thailand)

  • ・Size: W150 x D150 x H72 mm

  • ・Accuracy: ± 1 mm mm

  • ・Programming time: 60 min

  • ・Processing time: 120 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 1.0 mm

  • ・Type: Prototype

Process

  • 2D/3D Design

  • Unfolding

  • Laser-Cutting

  • Bending

  • Spot Welding

  • Assembly

Strengths

This workpiece is prototype of ventilation fan for cooling use in MDB control.
Create Blank size by use Production Design software to meet bending accuracy by step bending and can be assembly completely.
