Bicycle basket(prototype) (Assemble264)
Assemble264
Technical Encouragement Award

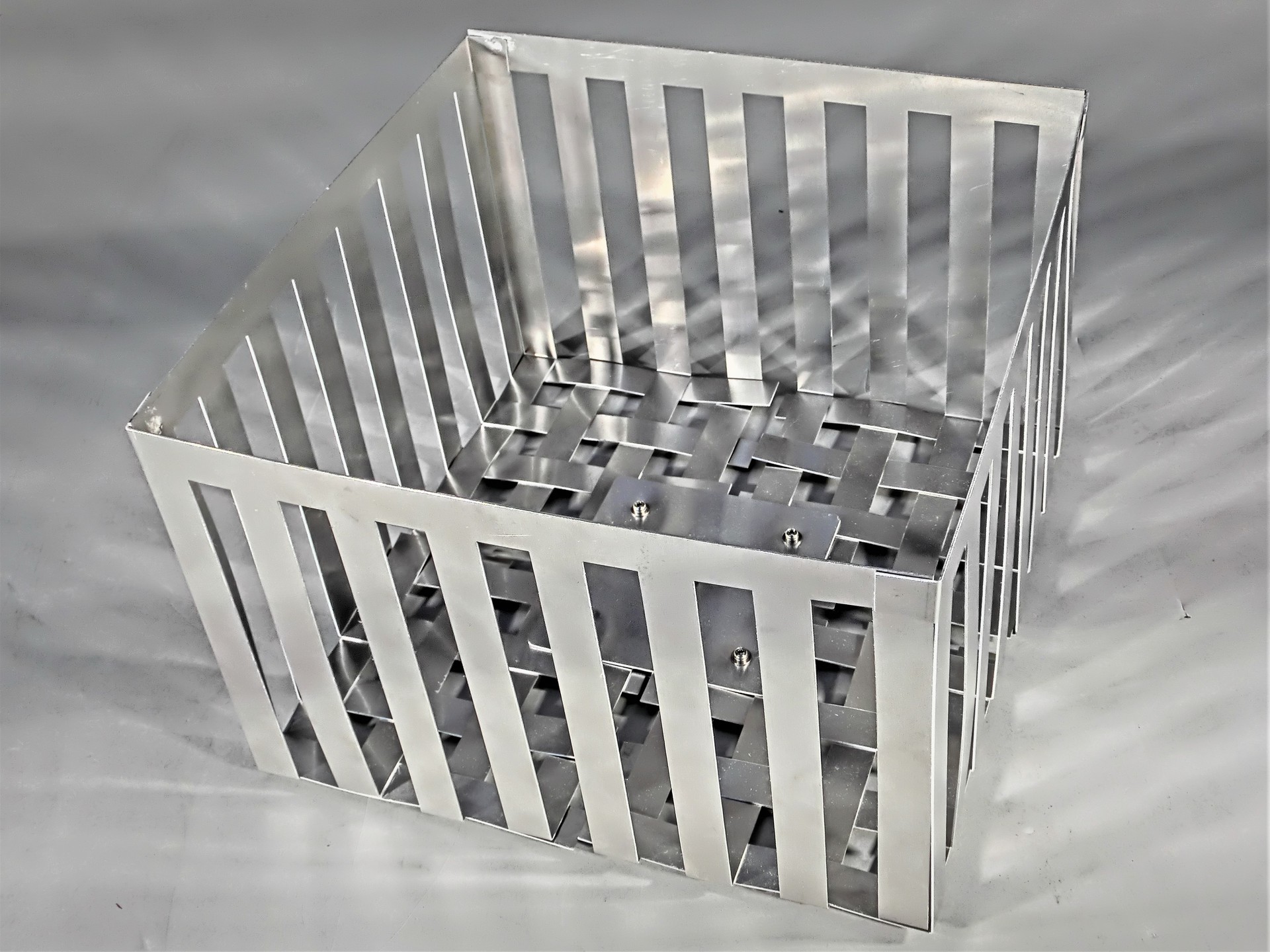

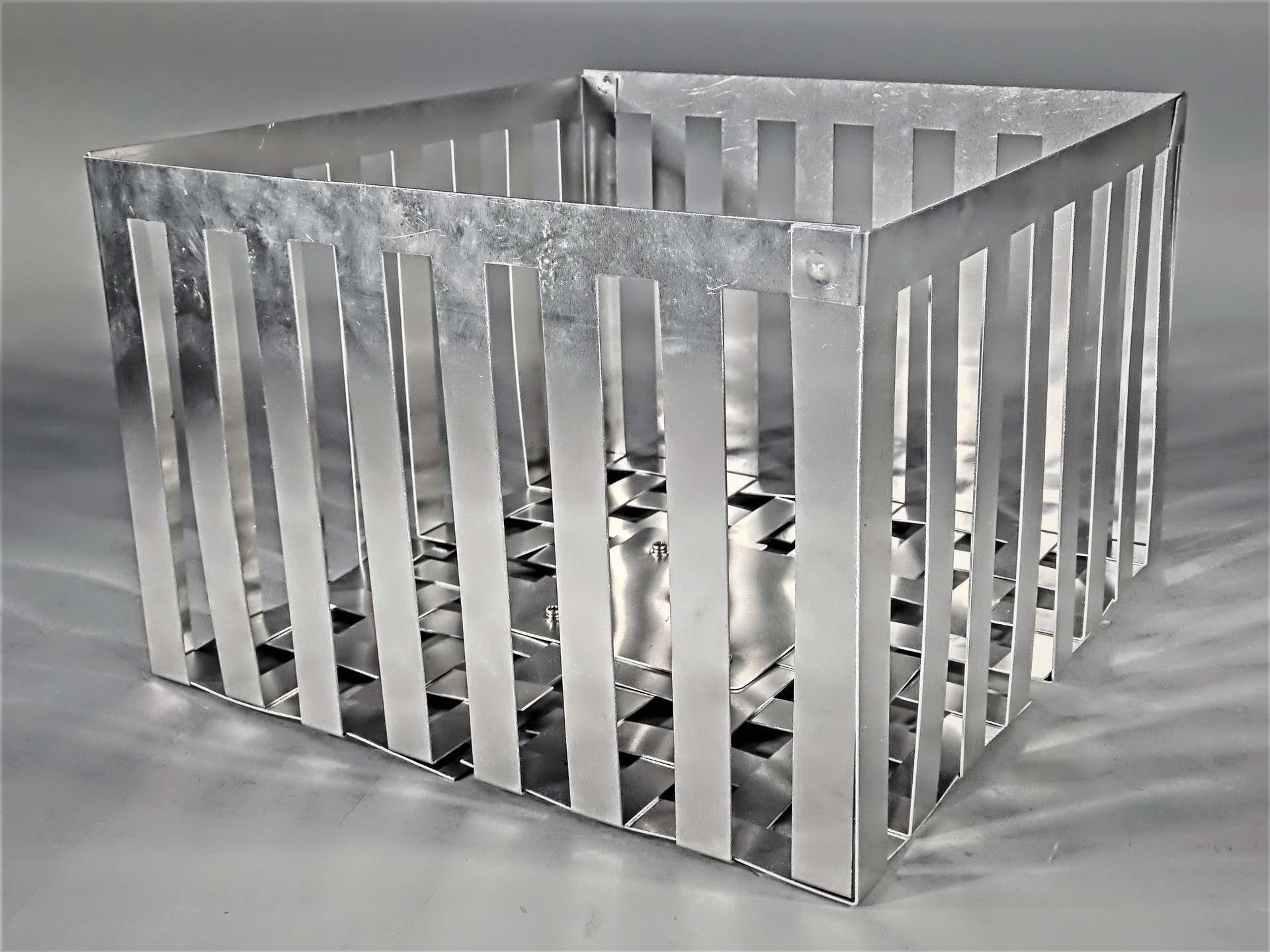

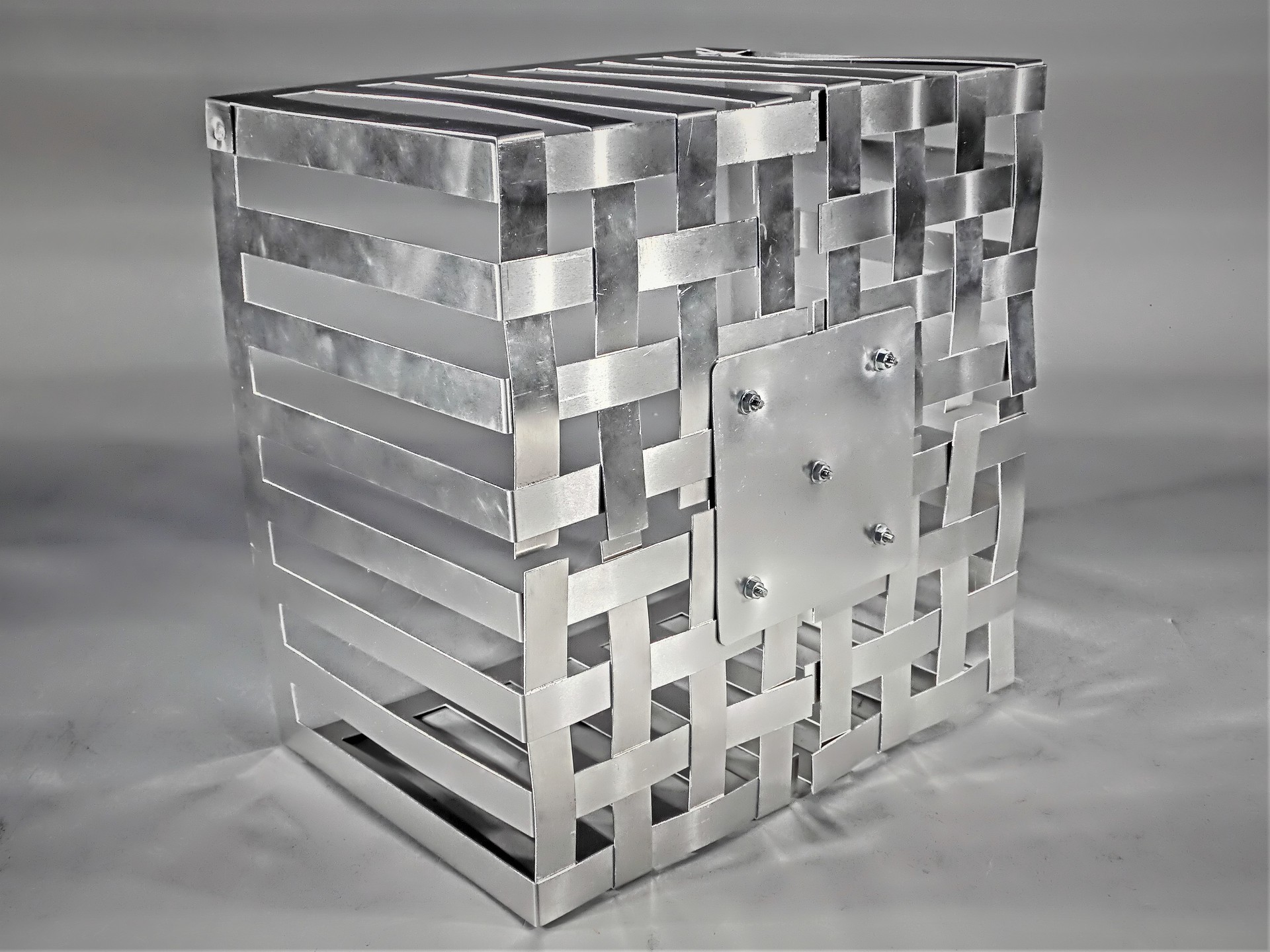

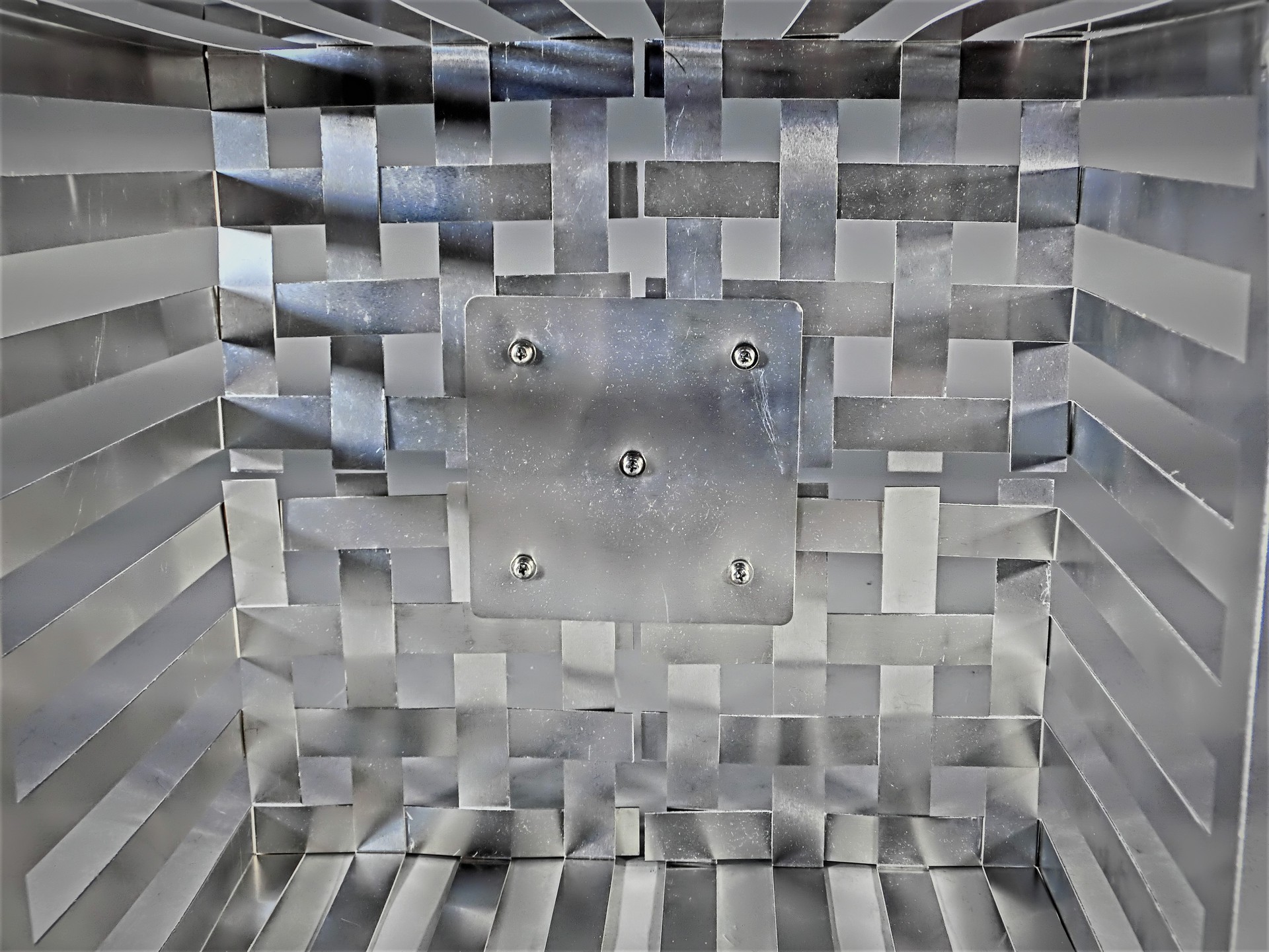

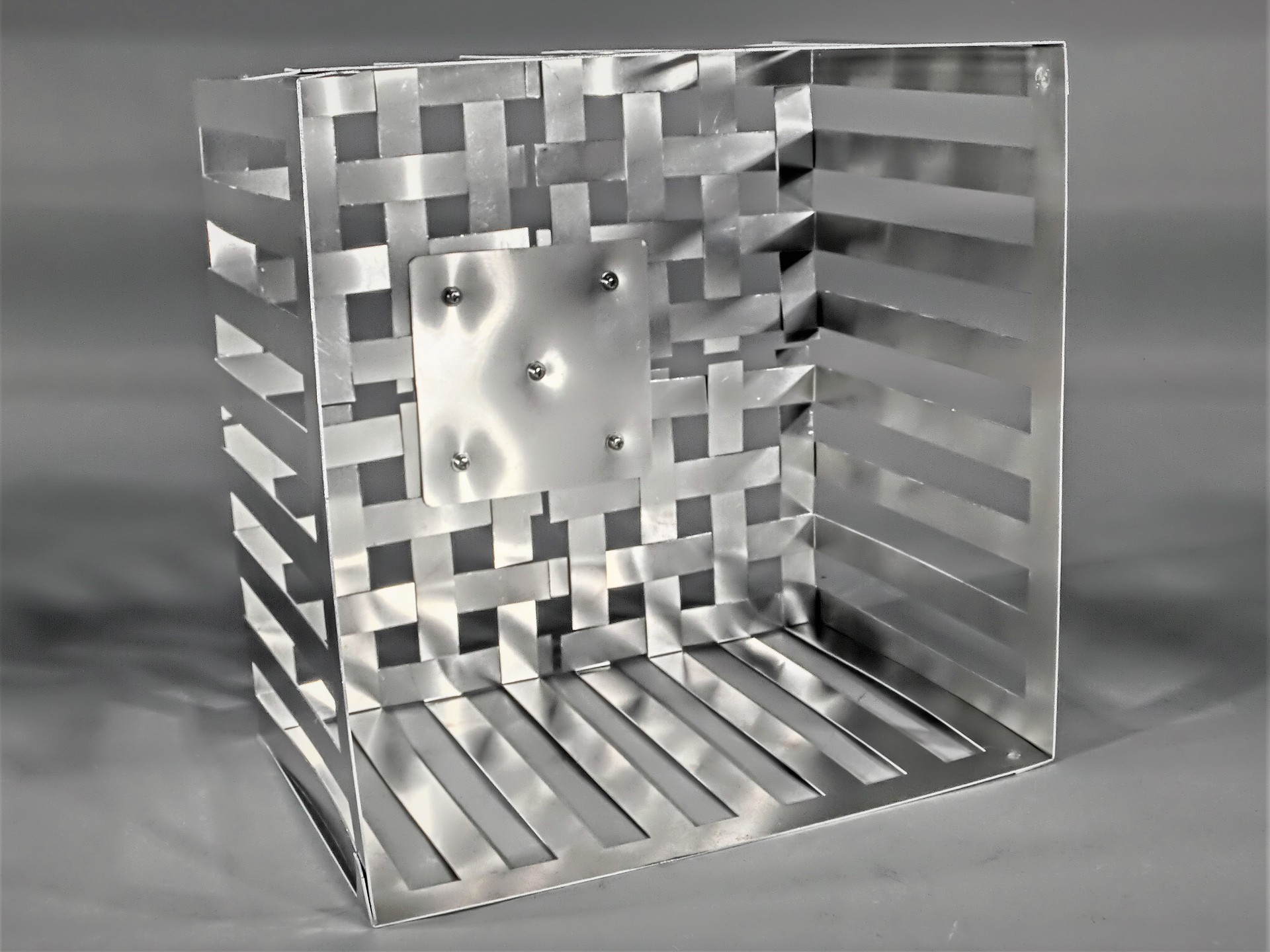

Bicycle basket(prototype)
National Institute of Technology, Akashi College (Hyogo, Japan)
-
・Size: W320 x D320 x H200 mm
-
・Accuracy: ± 3 mm
-
・Programming time: 15 min
-
・Processing time: 12 min/quantity
-
・Quantity: 4
-
・Material: Aluminum (A5052)
-
・Thickness: 1.0 mm
-
・Type: Prototype
Process
Laser-Cutting
Bending
Assembly
Spot Welding
Strengths
材料取りを意識して、廃棄部分を極力減らした設計を試みました。
使用した材料の面積のわりに、大きい製品ができているなという部分を見ていただけたらと思います。
