37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble260

Technical Encouragement Award

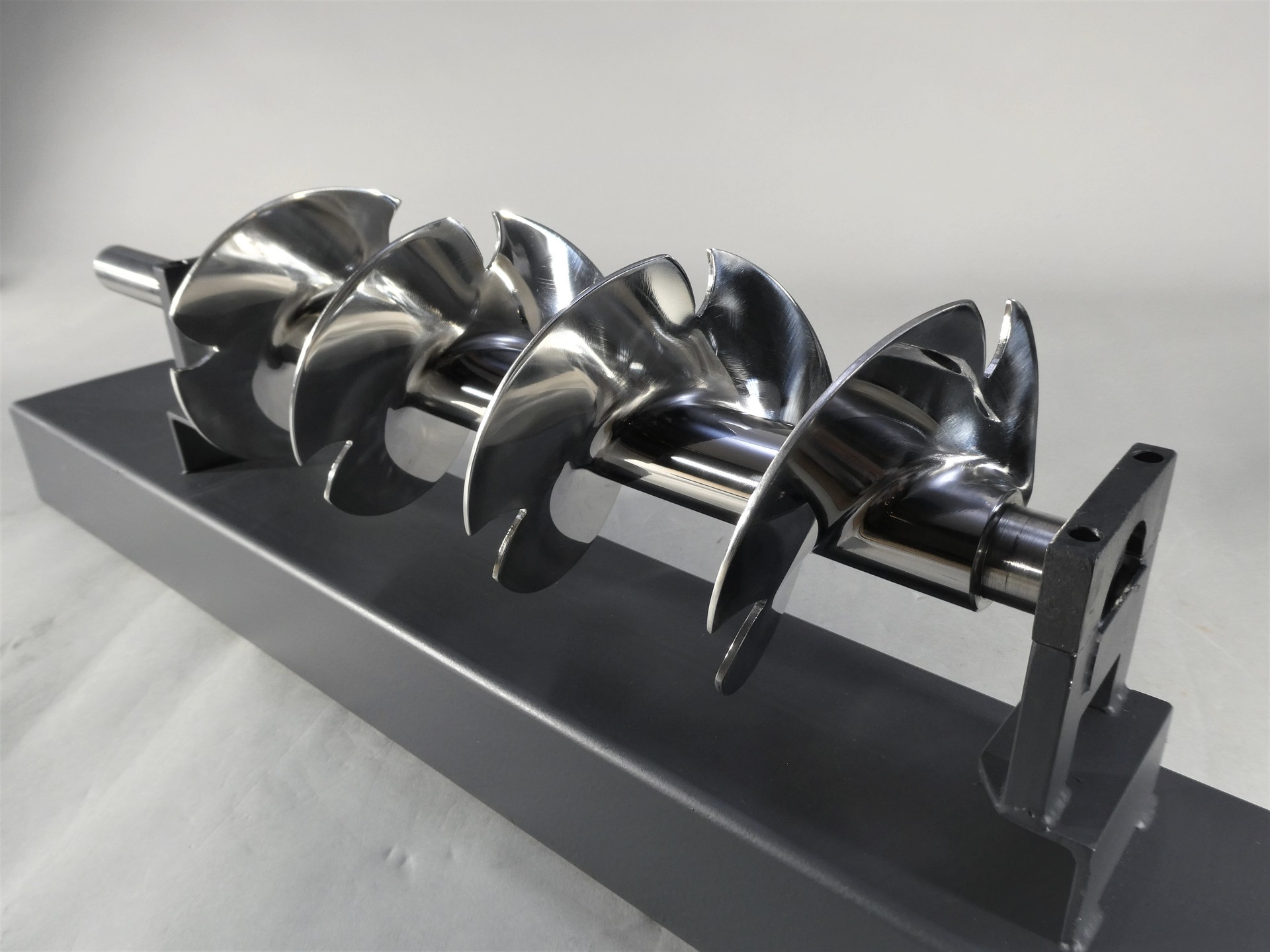

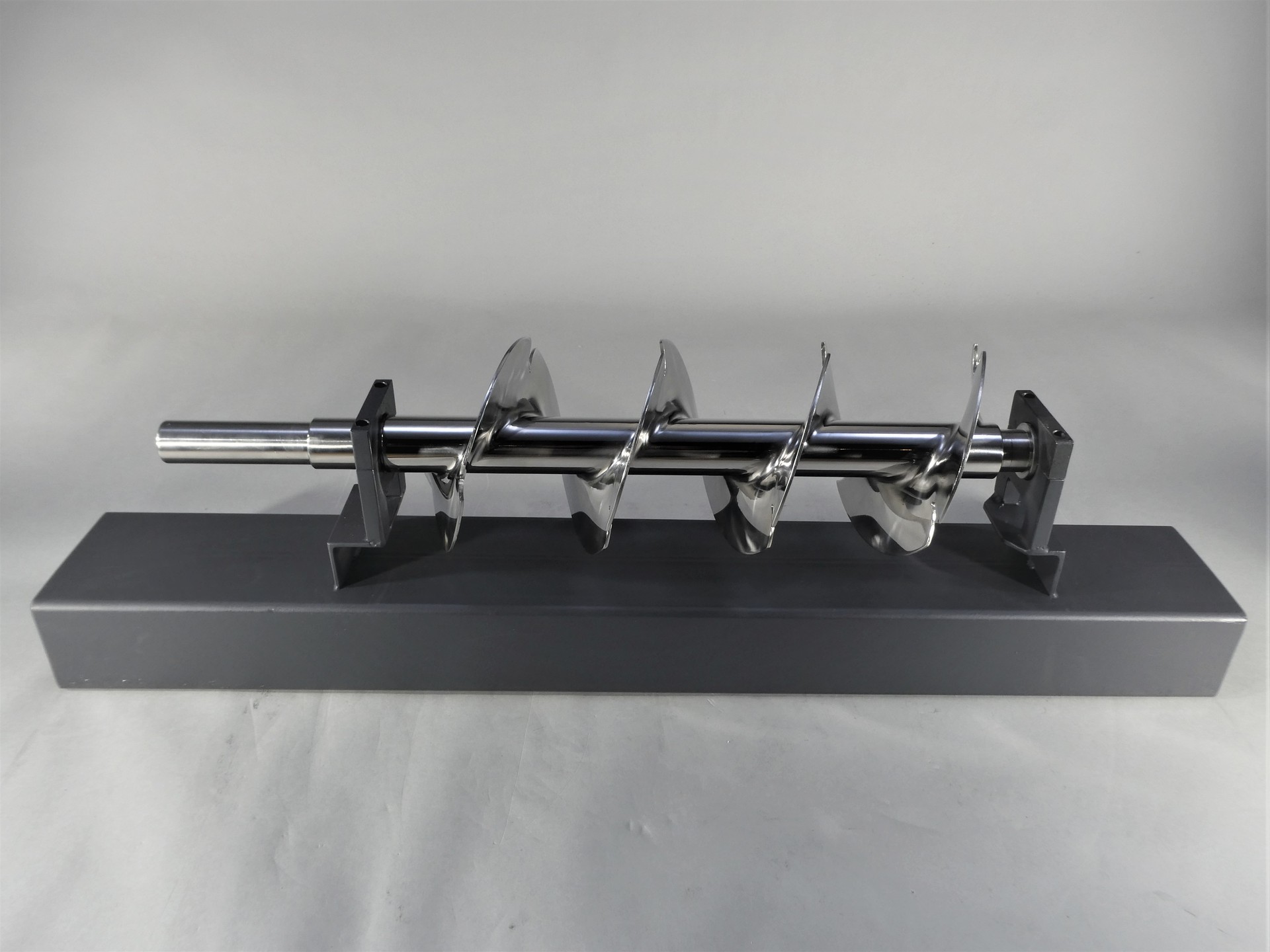

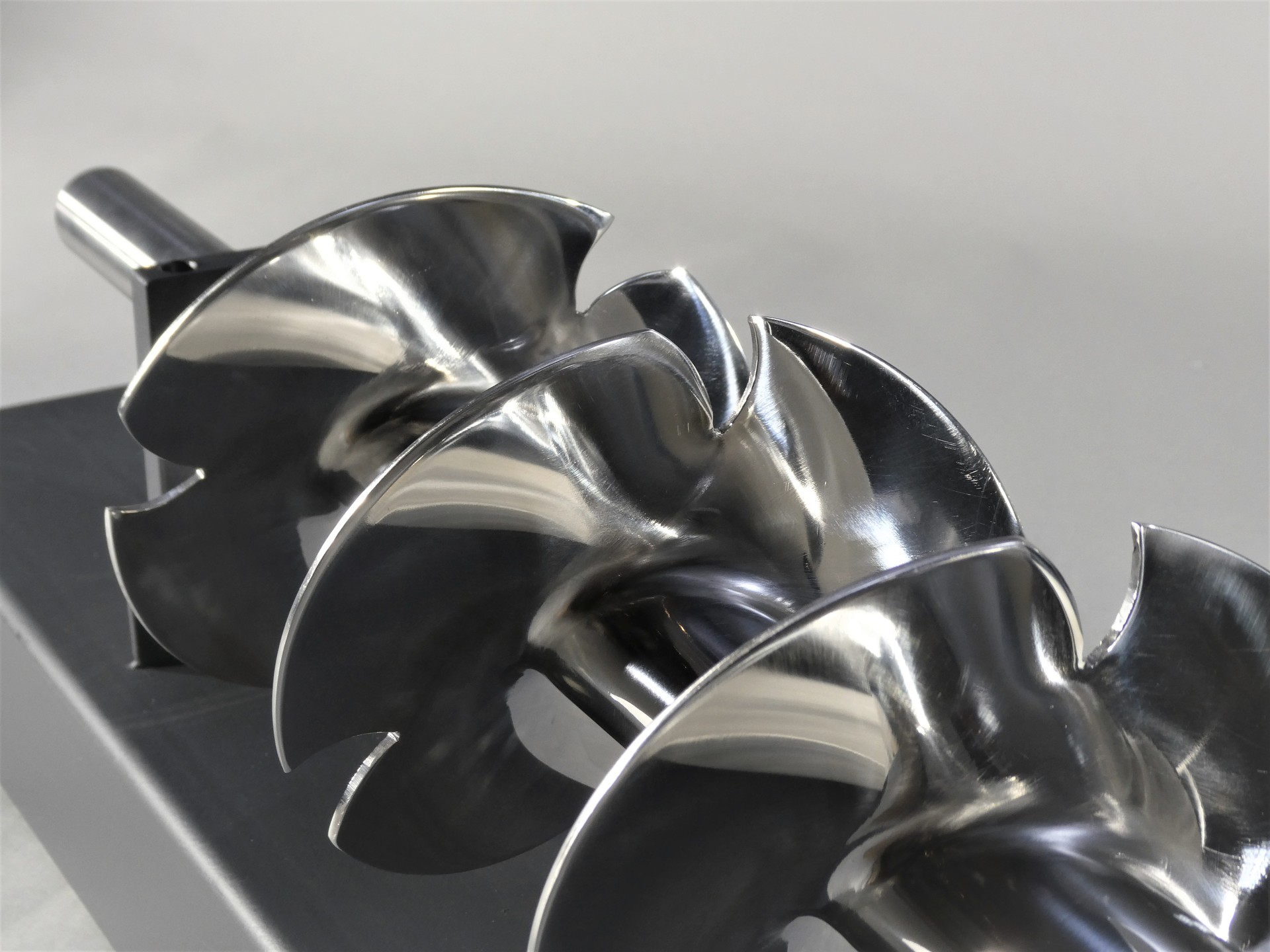

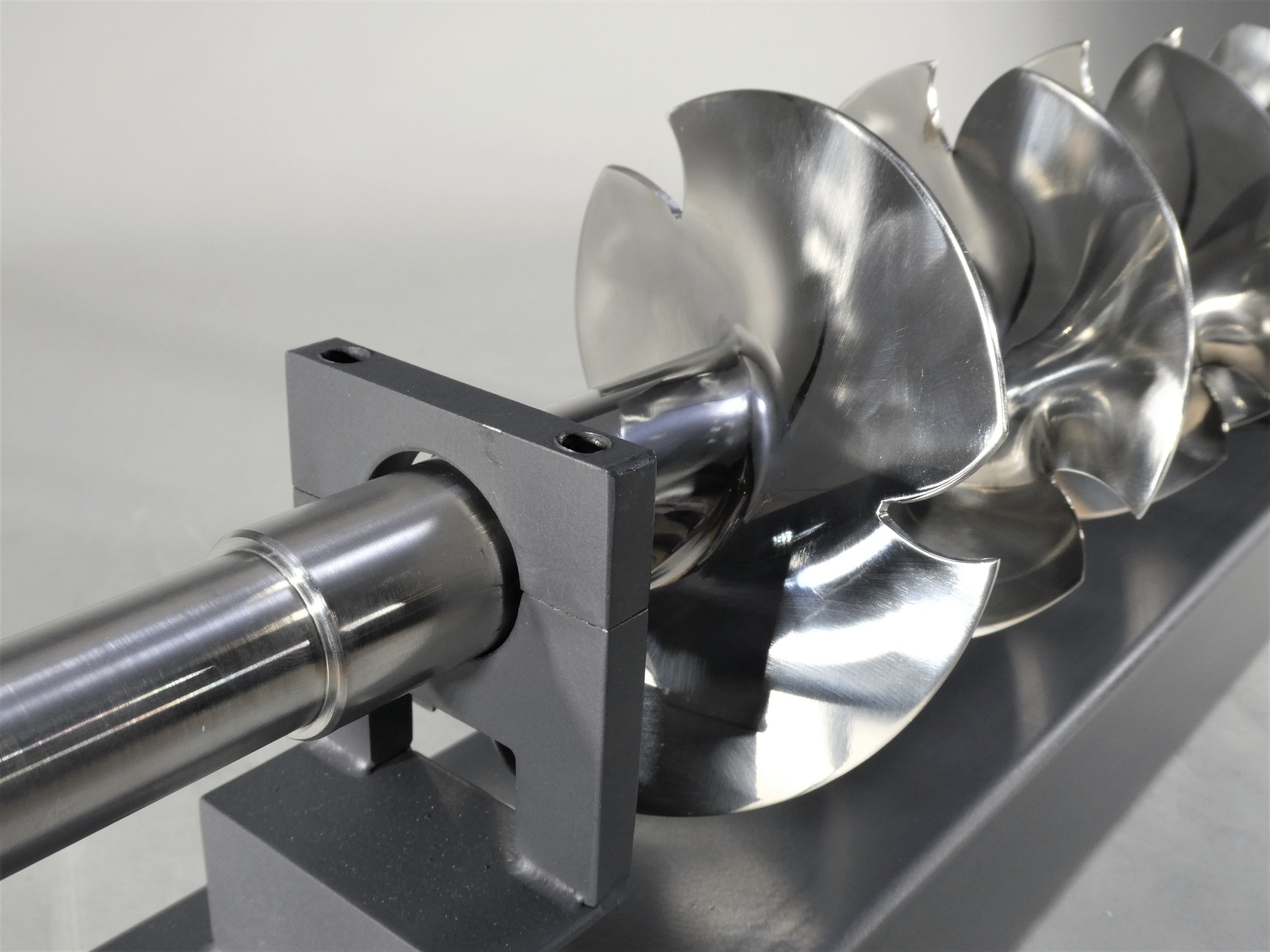

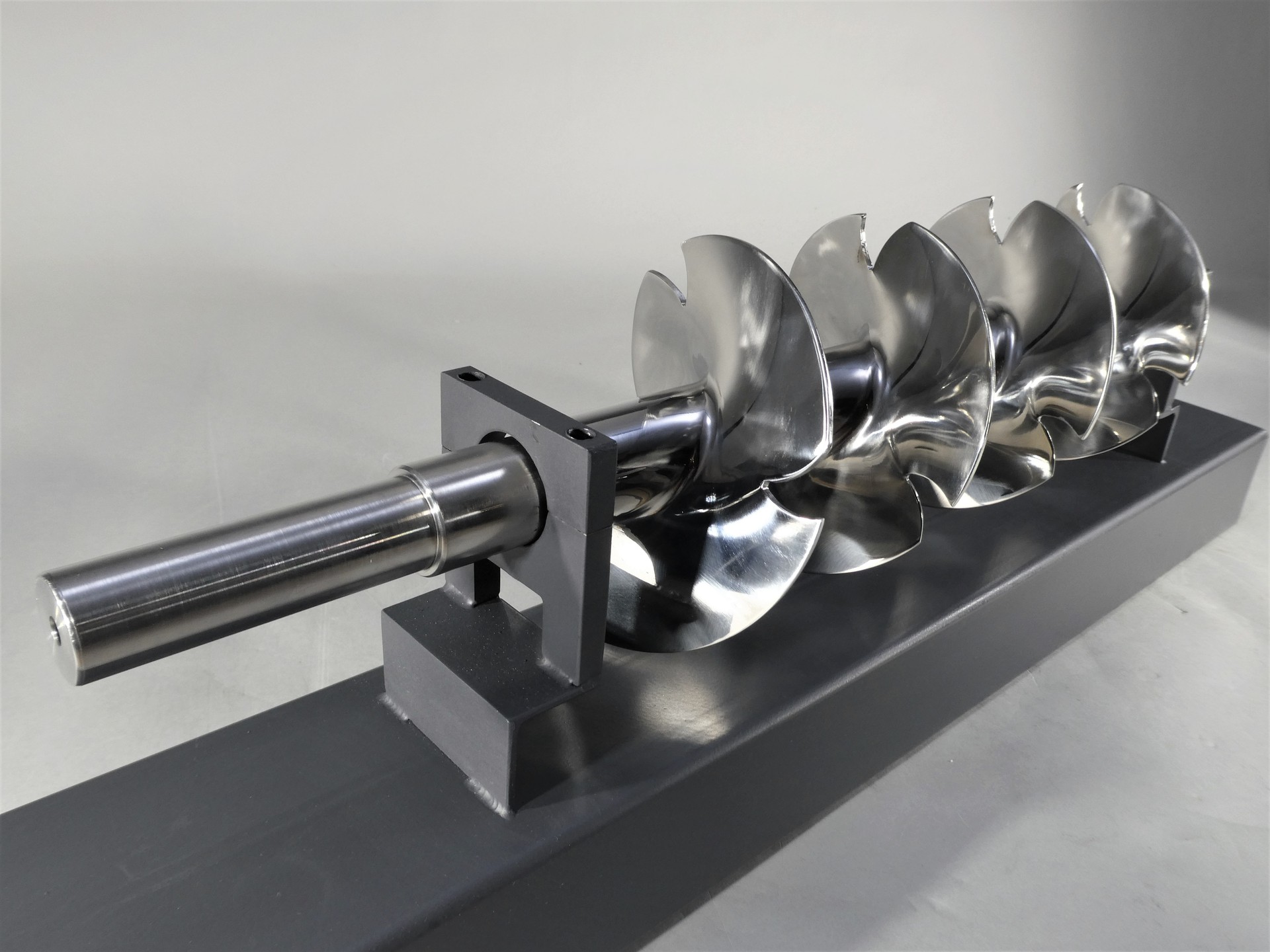

GMP Feed Screw

Global Metal Precision Co., Ltd. (Thailand)

  • ・Size: W150 x D150 x H600 mm

  • ・Accuracy: ± ±0.5mm mm

  • ・Programming time: 60 min

  • ・Processing time: 420 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 3 mm

  • ・Type: Original work

Process

  • 2D/3D Design

  • Programming

  • Laser-Cutting

  • Jig Manufacture

  • Welding

  • Assembly

  • Surface Finishing

Strengths

This Product need very precise, everything needs to match, the center of shaft have to precise, when welding each blade also use expert and experience welding skill, can’t fast or slow welding may occur product fail.
