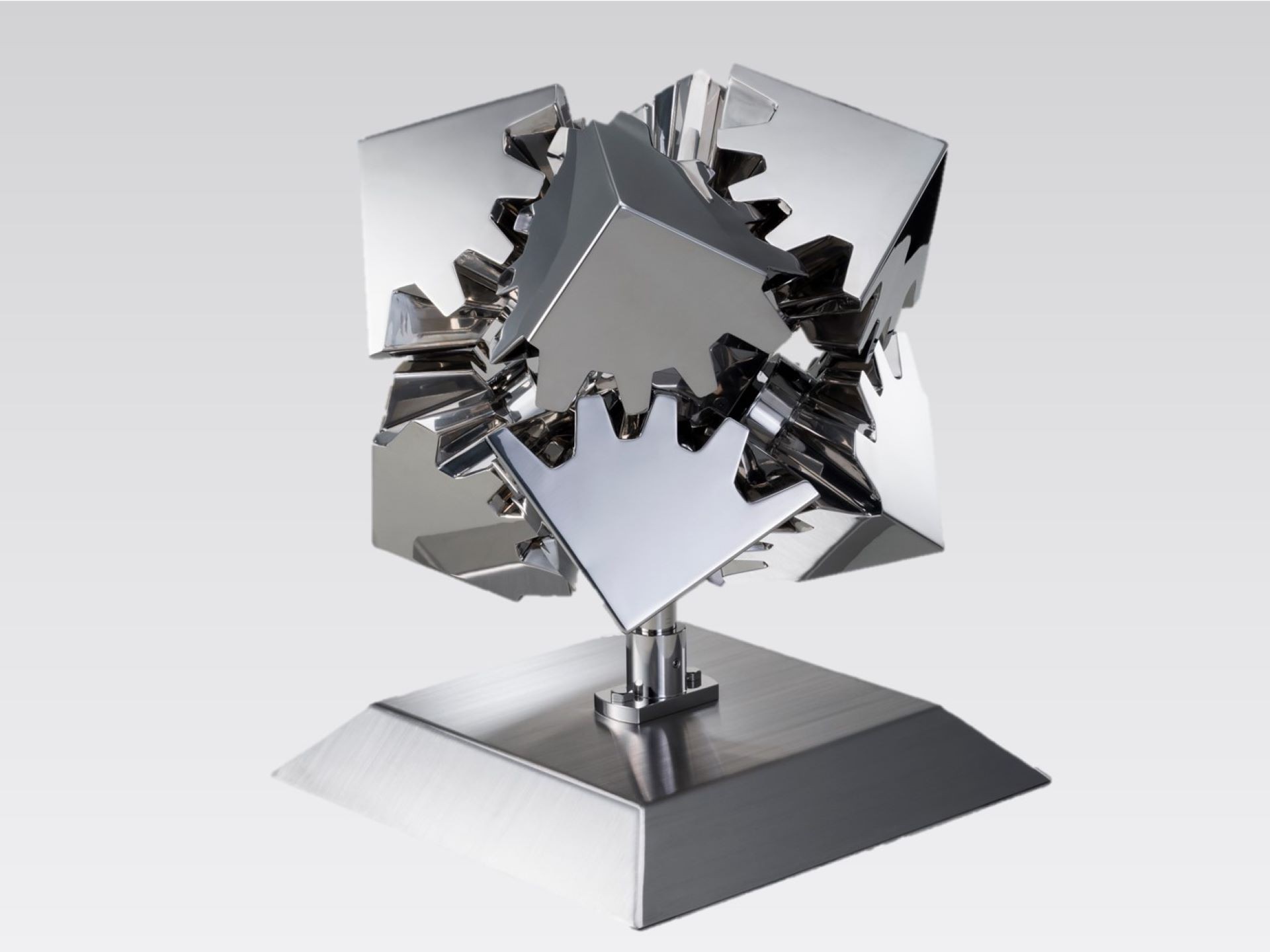

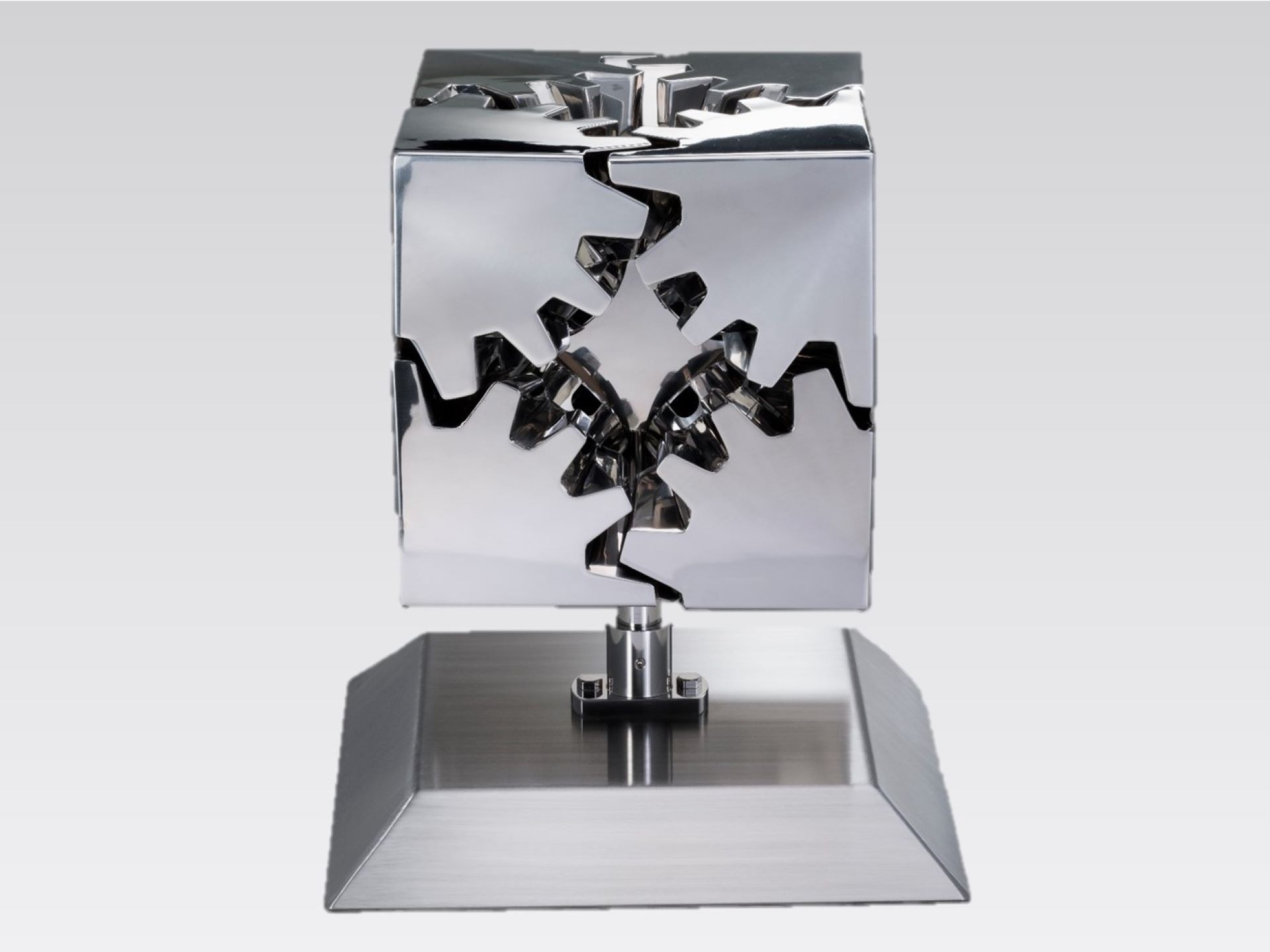

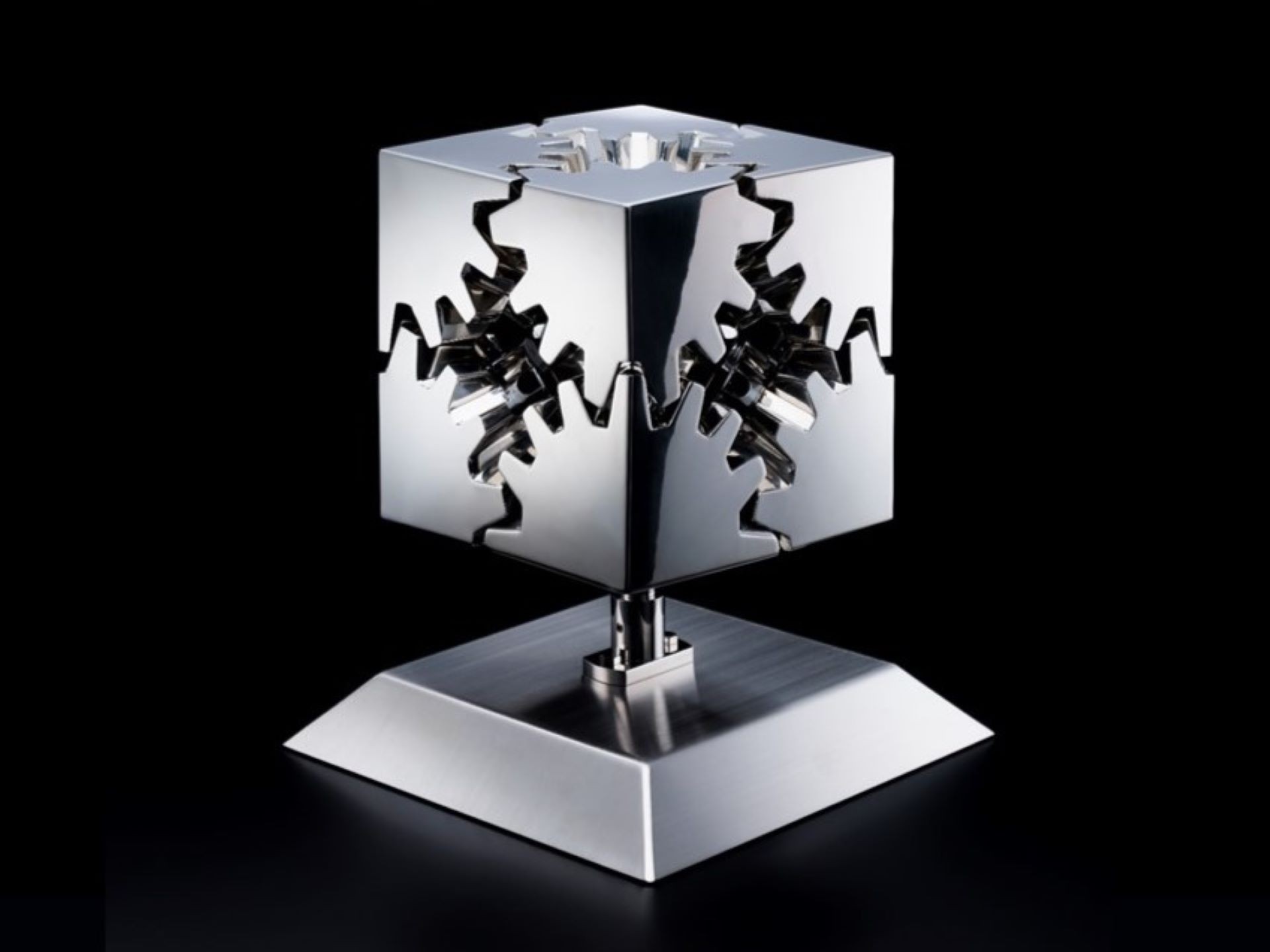

BEVEL GEAR CUBE (Assemble253)
Assemble253
Minister of Economy, Trade & Industry Award
BEVEL GEAR CUBE
TANABE METAL TEC Co., Ltd. (Fukuoka, Japan)
-
・Size: W250 x D250 x H250 mm
-
・Accuracy: ± 1.0 mm
-
・Programming time: 180 min
-
・Processing time: 2820 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.5 mm
-
・Type: Original work
Process
Planning
2D/3D Design
Unfolding
CAD/CAM
Laser-Cutting
Bending
Laser Welding
Surface Finishing
Strengths

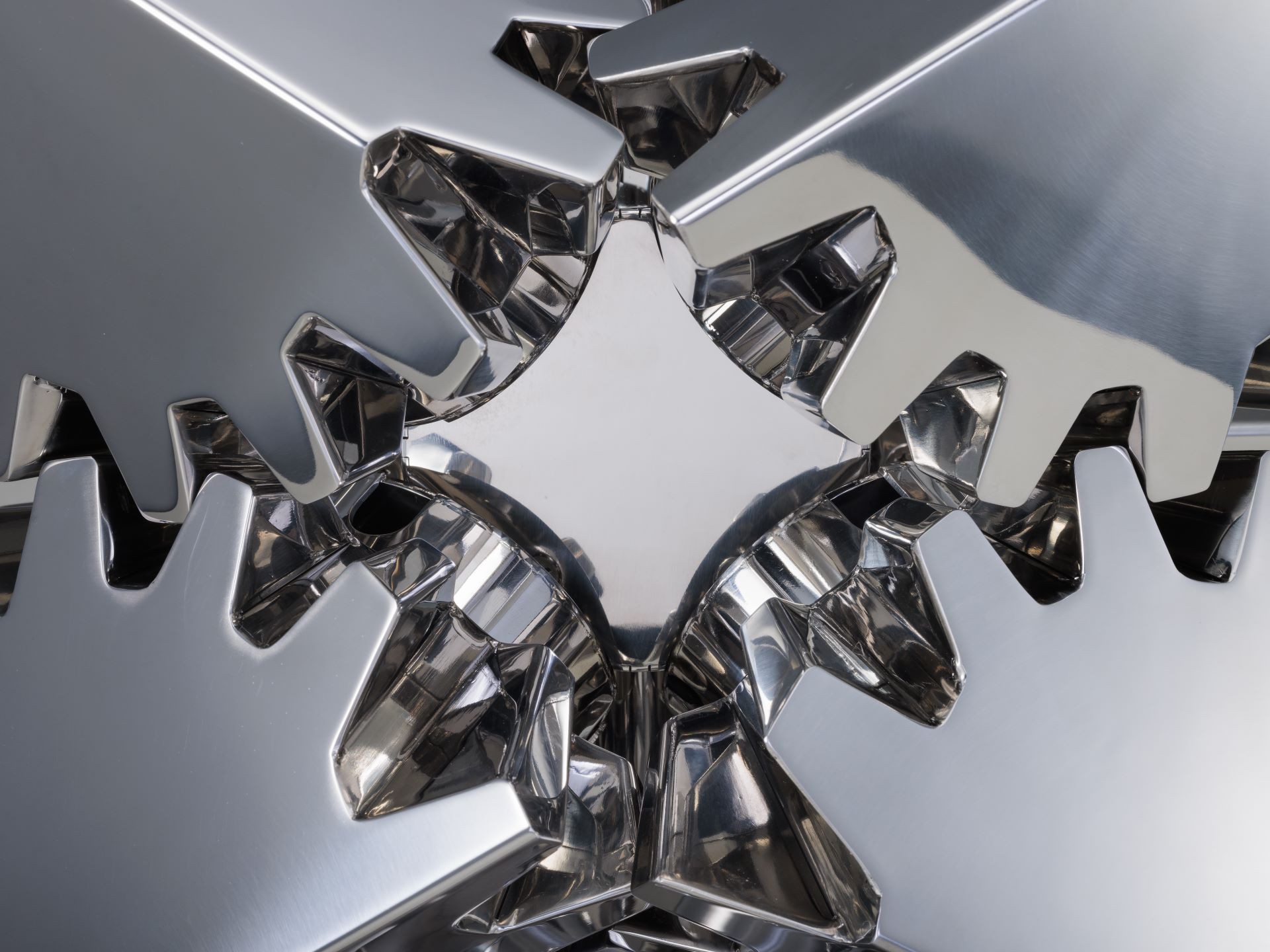

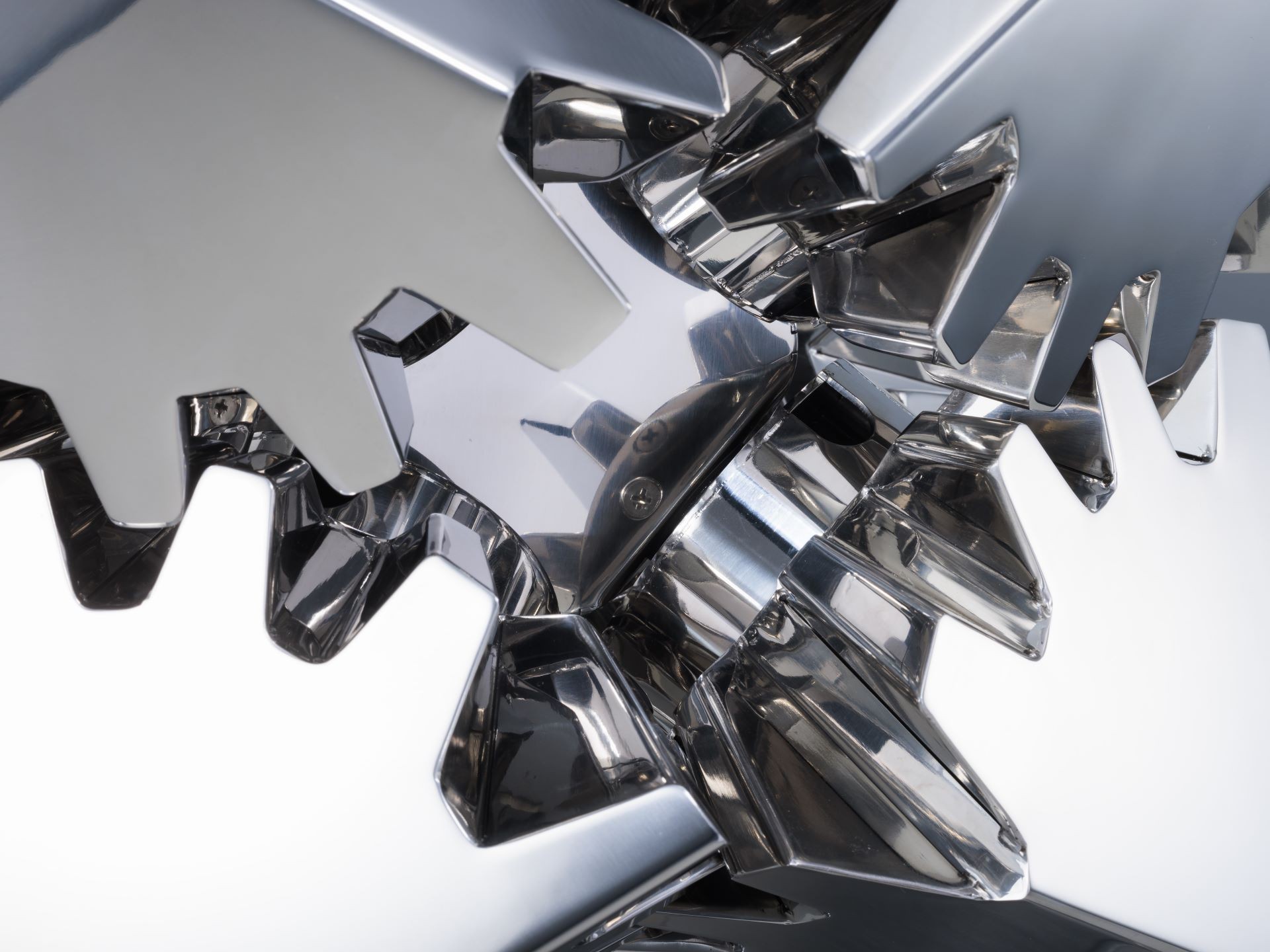

① 8個の傘歯車が連動して動く機構
② 傘歯車の板金表現
③ 歪みを抑えた設計と溶接
④ シンプルなデザインからは想像できない動作
⑤ 展示会場に来られた方には、実際に作品に触れていただき、
8個の傘歯車が連動することで表現される、
ユニークな動きを体感していただきたいと思っております。
