37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble231

Technical Encouragement Award

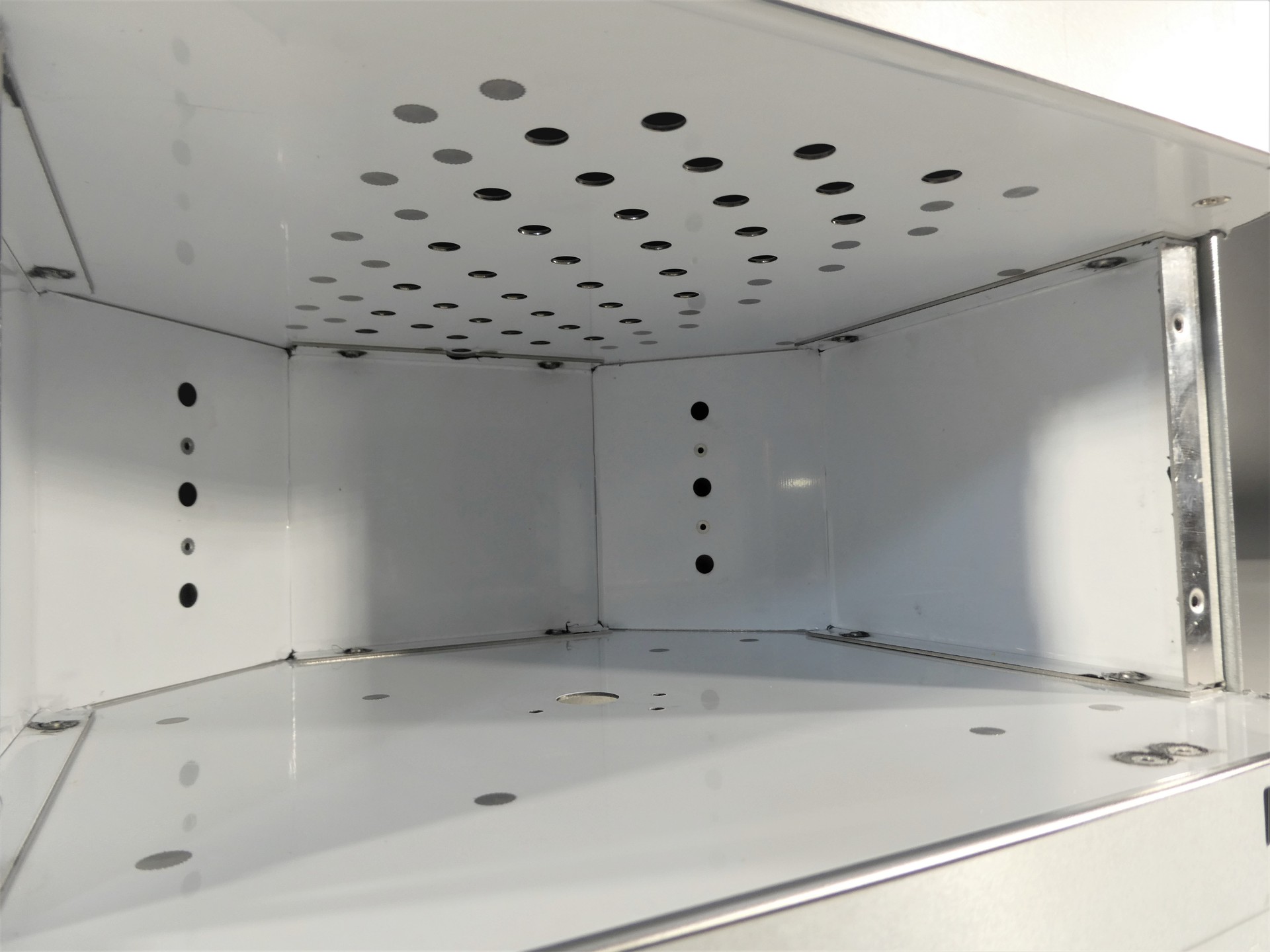

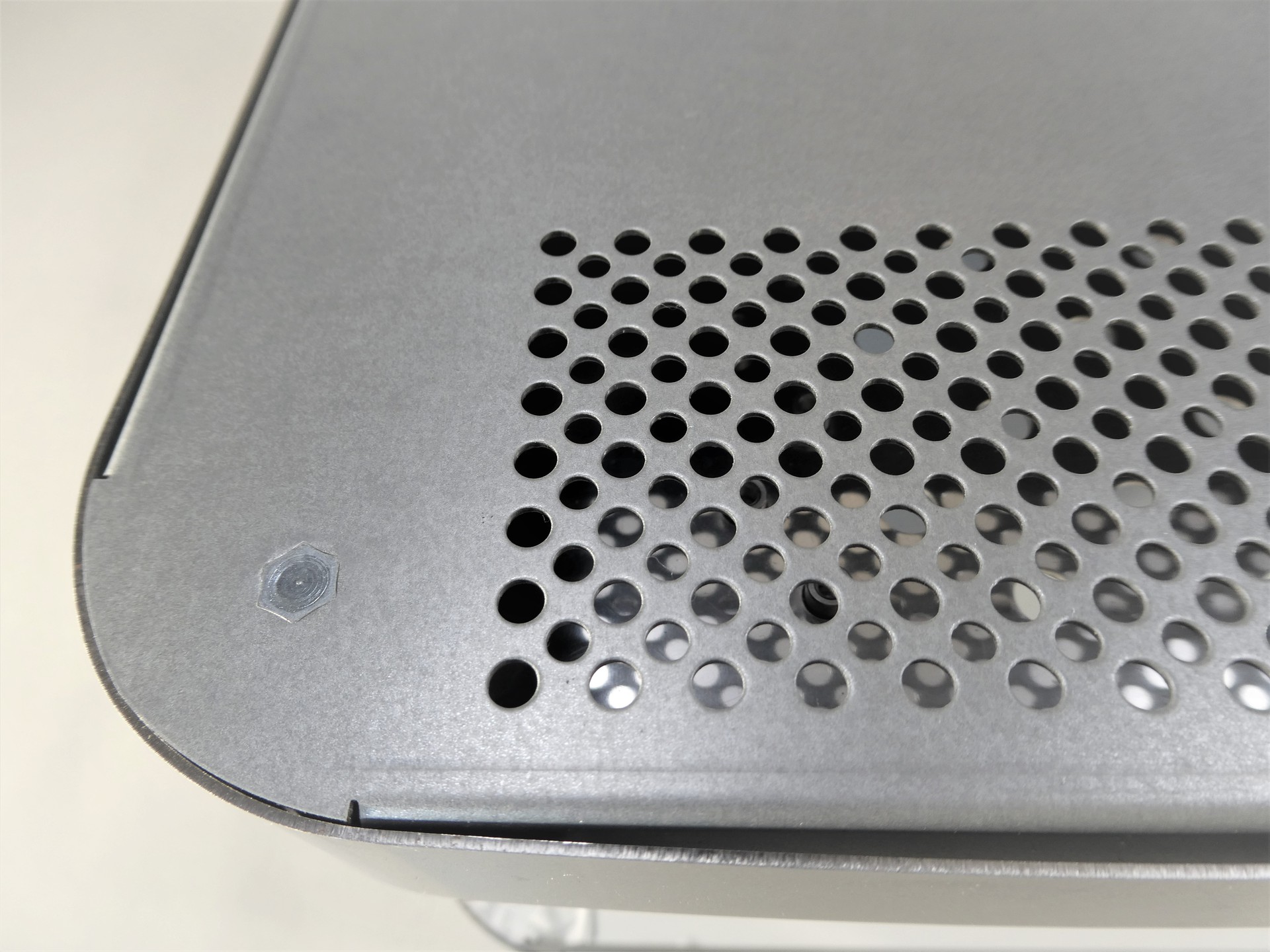

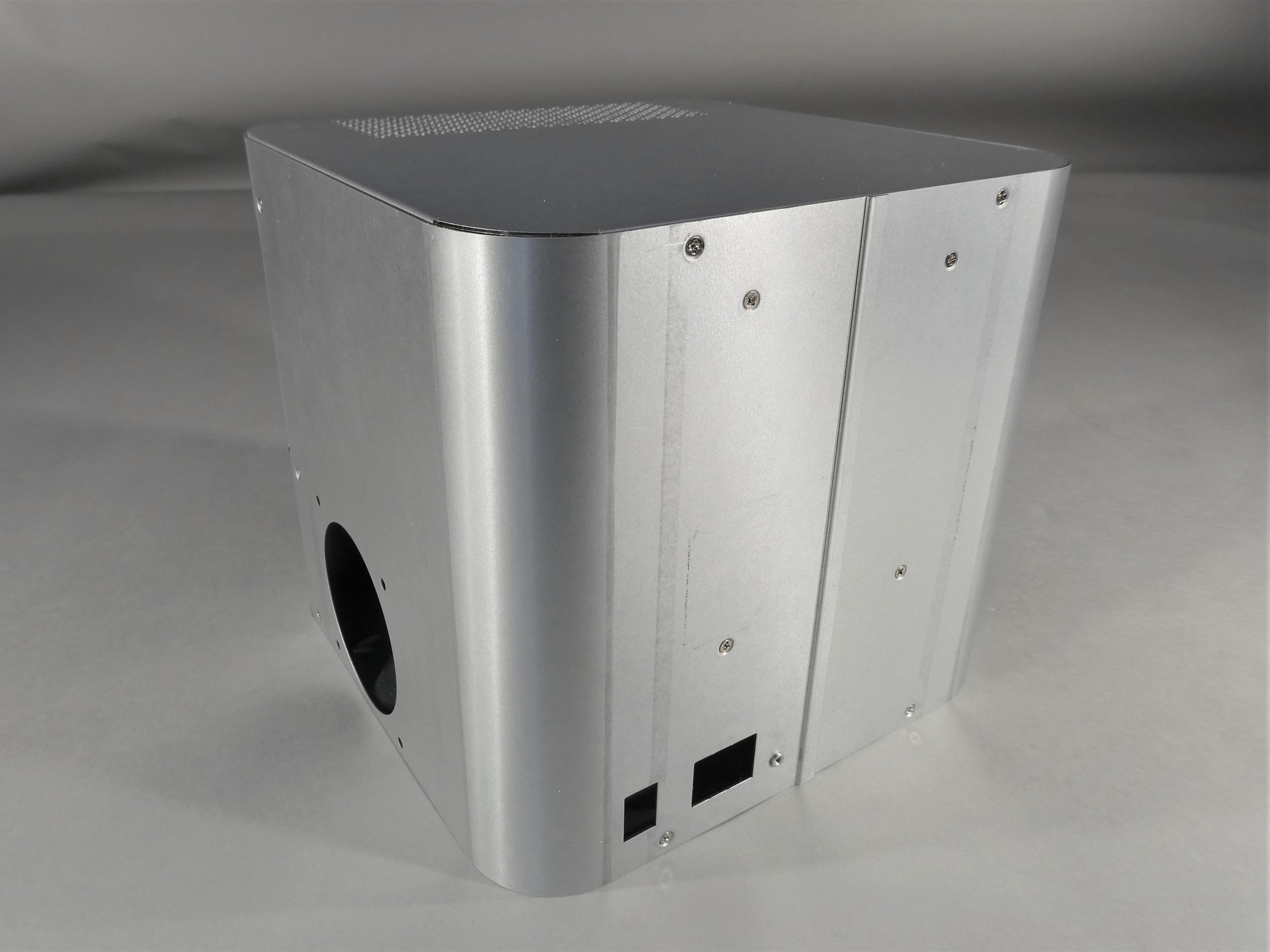

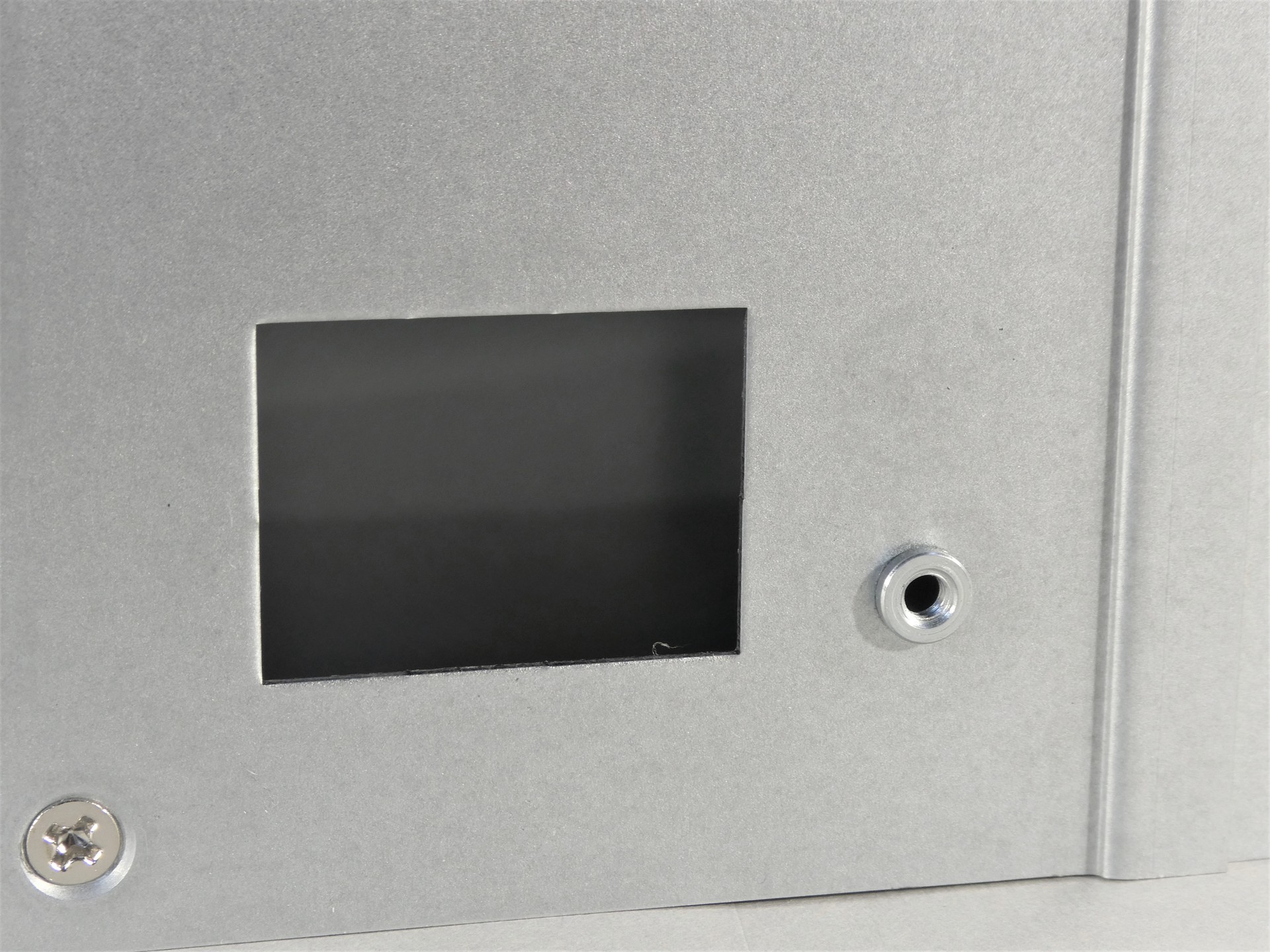

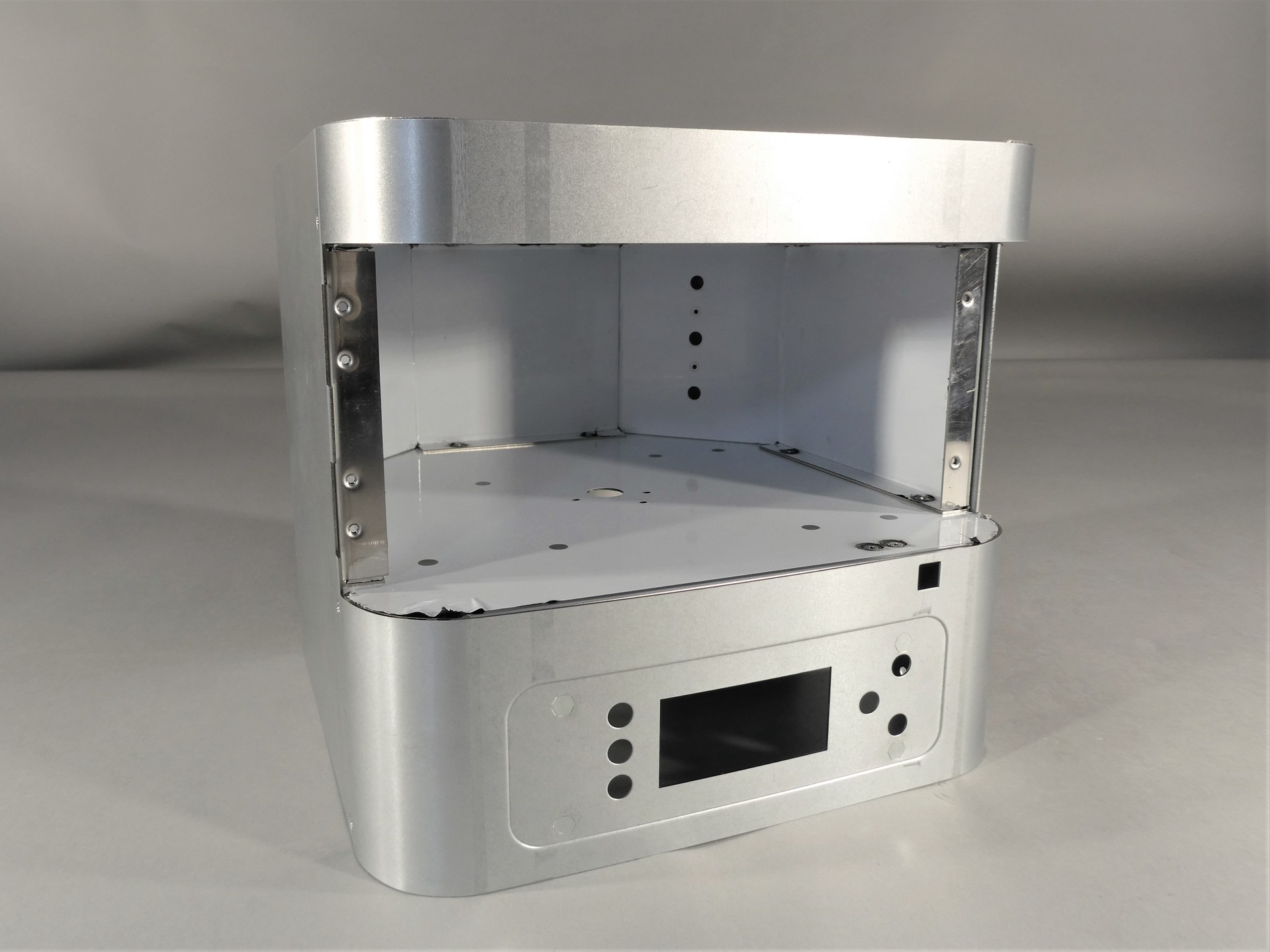

Tooth mold machine

LUN CHIANG CO., LTD. (Taiwan)

  • ・Size: W230 x D230 x H215 mm

  • ・Accuracy: ± ±　0.3 mm mm

  • ・Programming time: 120 min

  • ・Processing time: 300 min/quantity

  • ・Quantity: 100

  • ・Material: SGCC & SUS304

  • ・Thickness: 1 mm mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Punch & Laser

  • Bending

Strengths

Dimensional accuracy control after R shape bending,
The accuracy of the combination between various parts.
