37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble230

Technical Encouragement Award

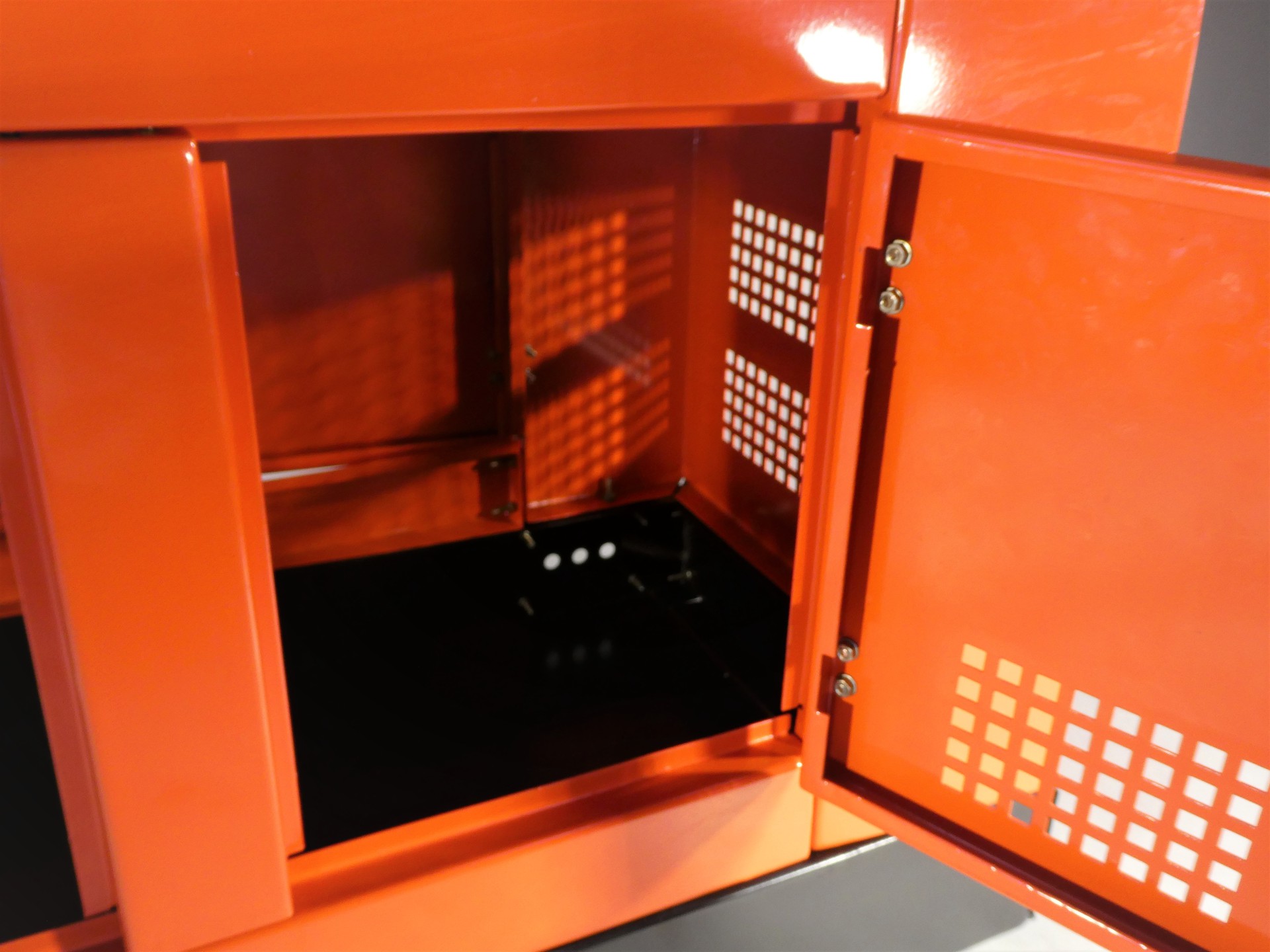

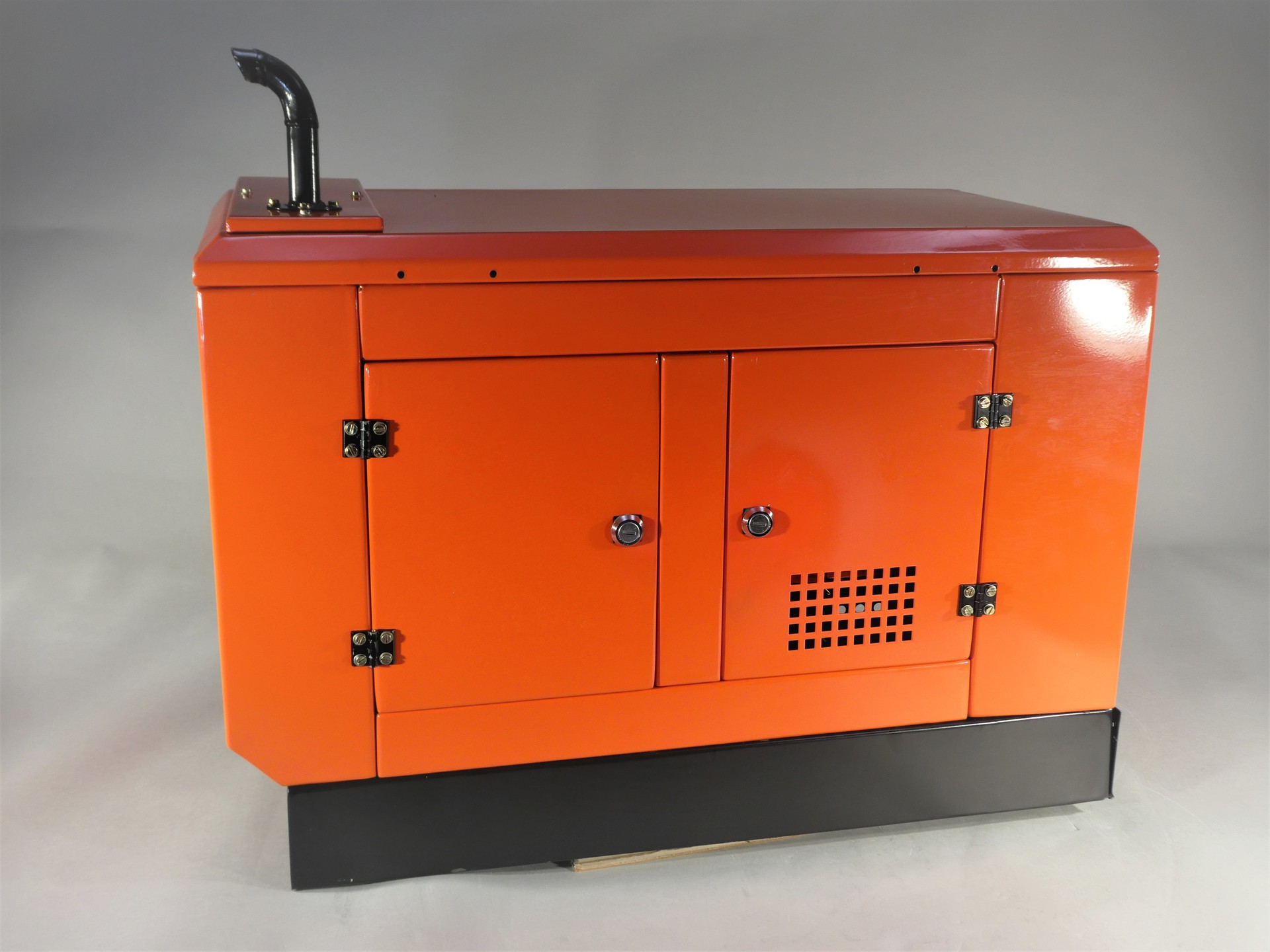

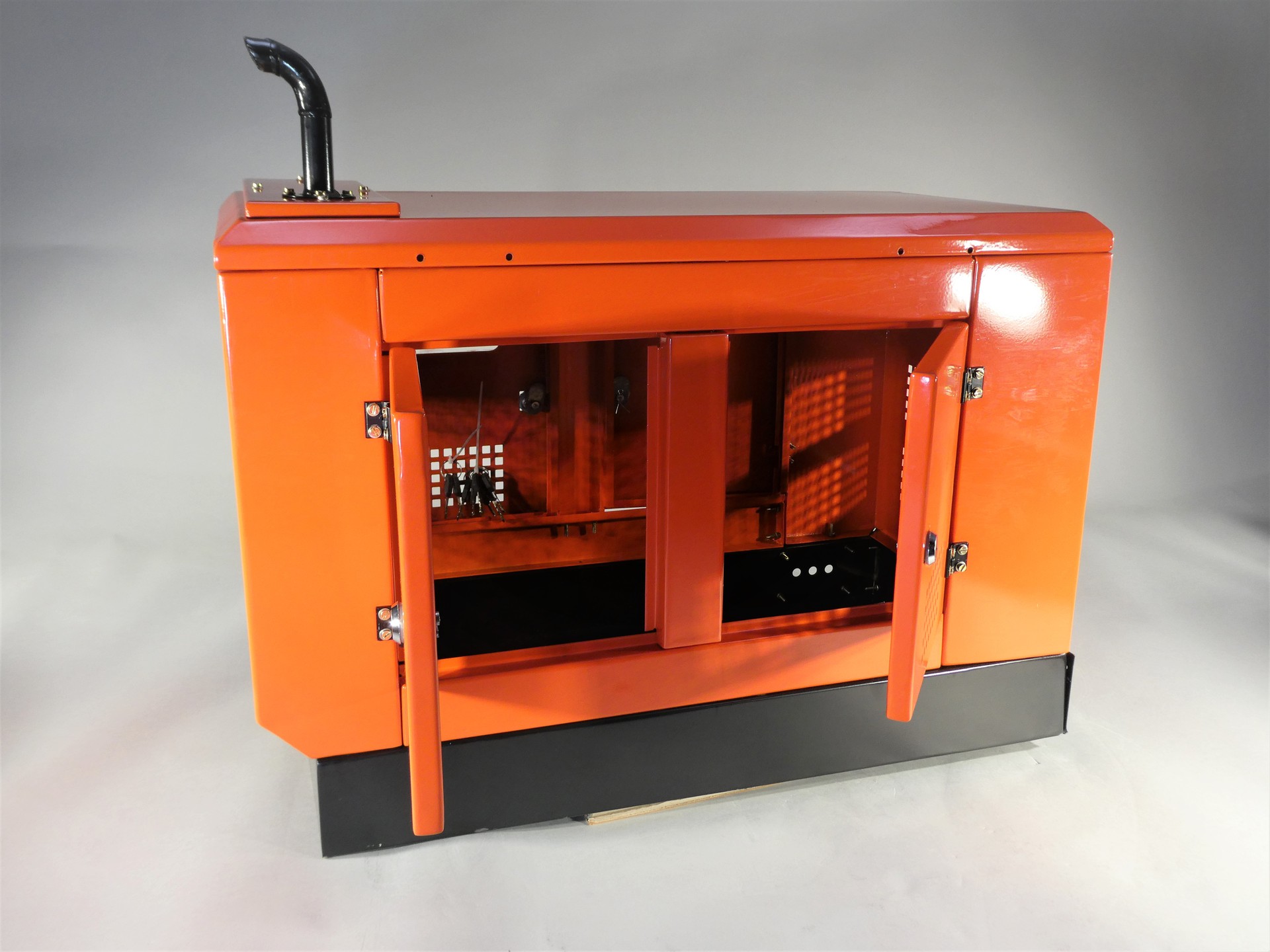

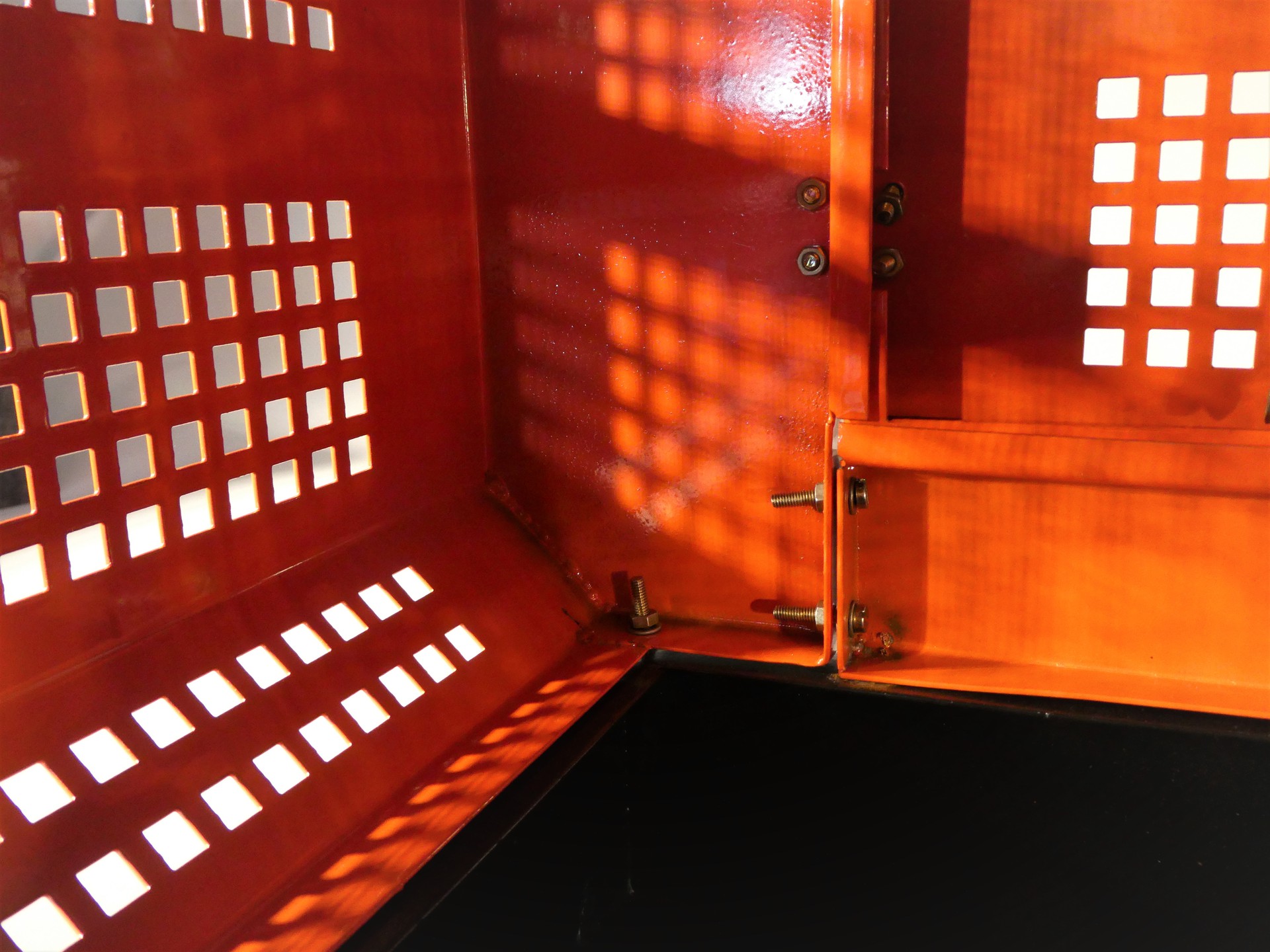

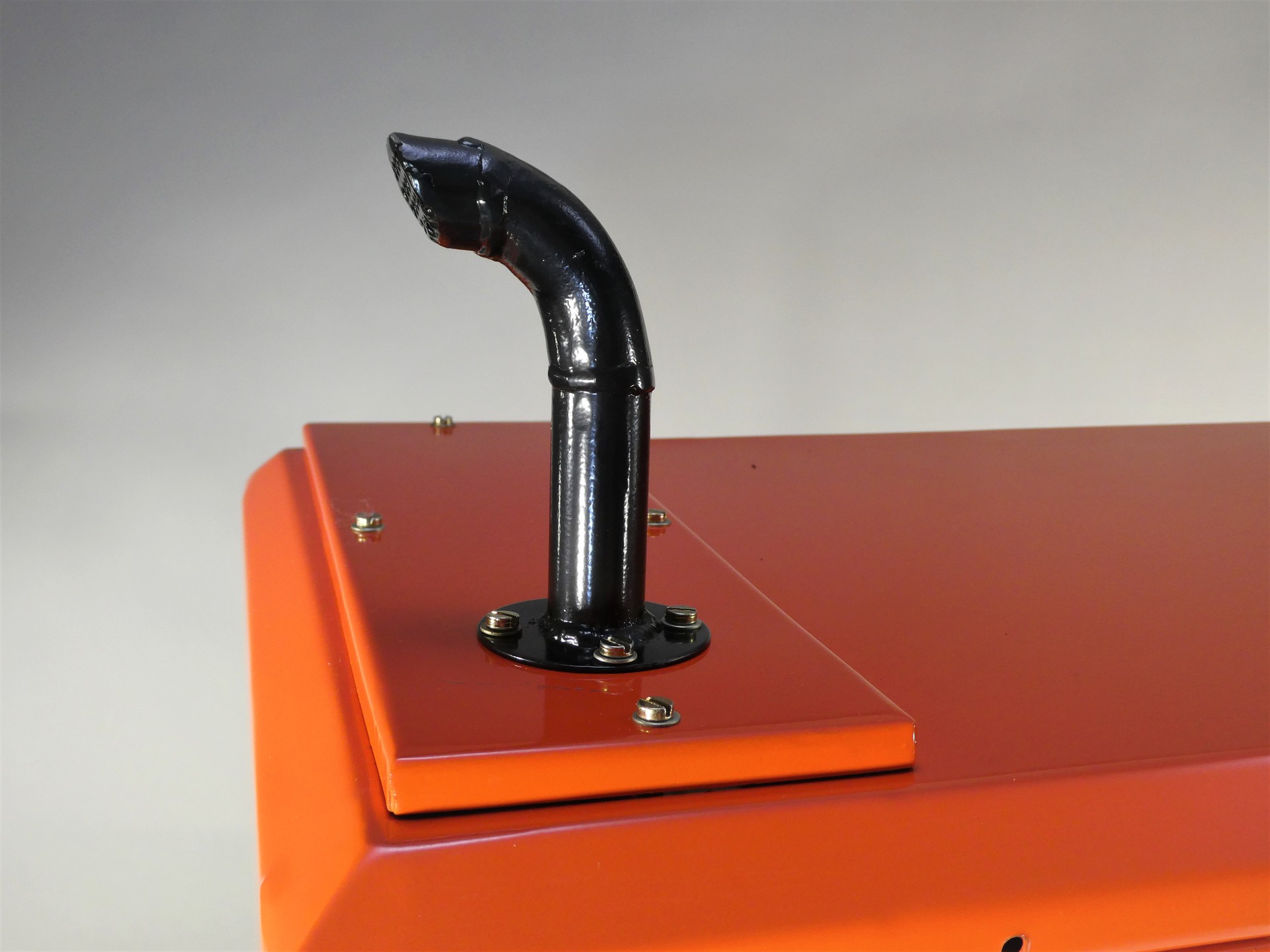

Diesel generator acoustic enclosure

AFFINITY POWER PRIVATE LIMITED (India)

  • ・Size: W360 x D680 x H460 mm

  • ・Accuracy: ± 5 mm

  • ・Programming time: 10 min

  • ・Processing time: 120 min/quantity

  • ・Quantity: 1

  • ・Material: Mild Steel (SPCC)

  • ・Thickness: 1.2 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • Programming

  • Punching

  • Bending

  • Welding

  • Surface Finishing

  • Painting

  • Assembly

Strengths

We have done the development drawing in AutoCAD ten using AP100 PROGAMINNG and punching done by AMADA AE2510NT,Followed by bending press brake also welding did co2 and surface finish then powder coating and assembled .
