ASRS MOTHER CHILD STORAGE SYSTEM (Assemble218)
Assemble218
Technical Award

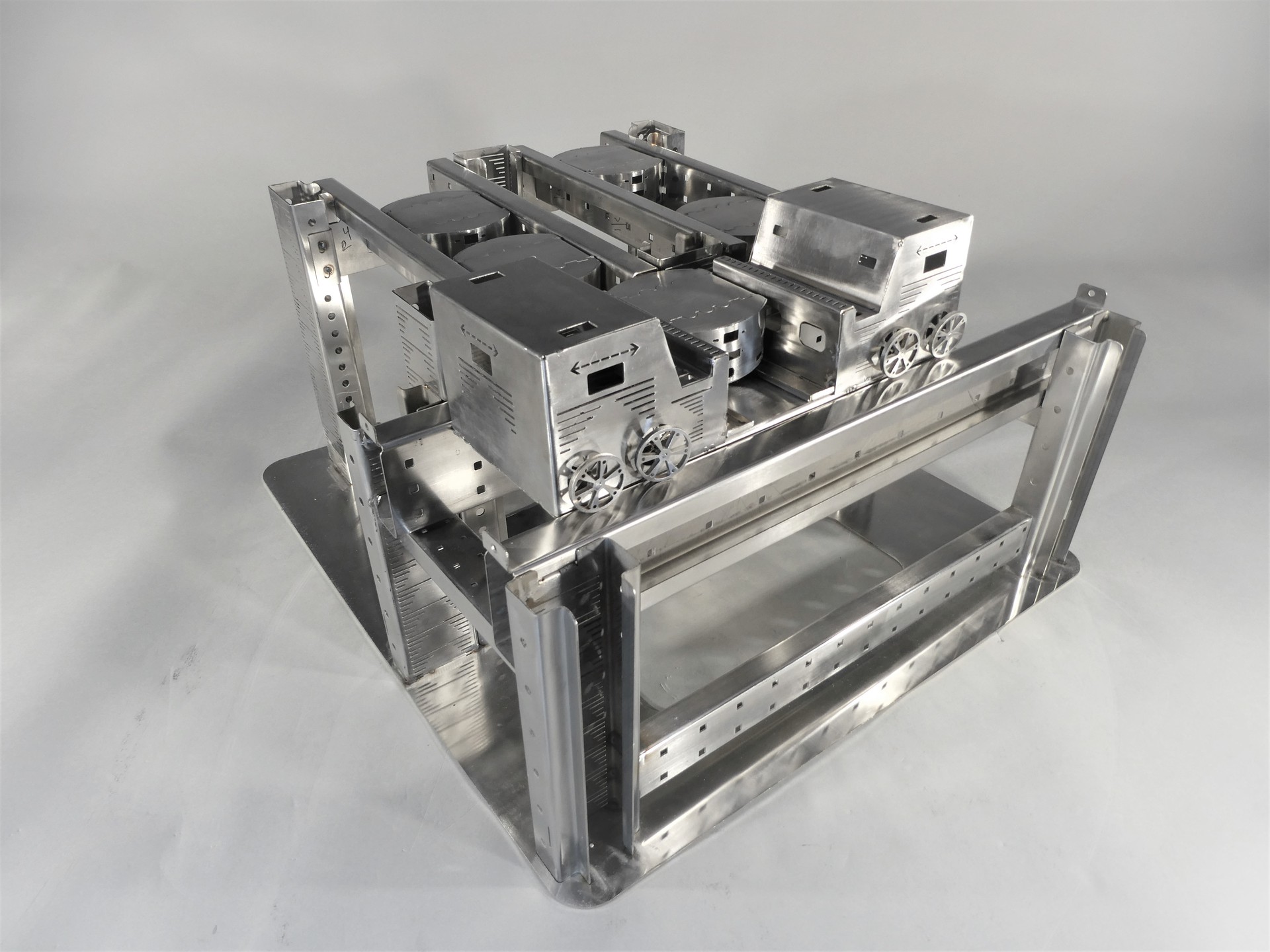

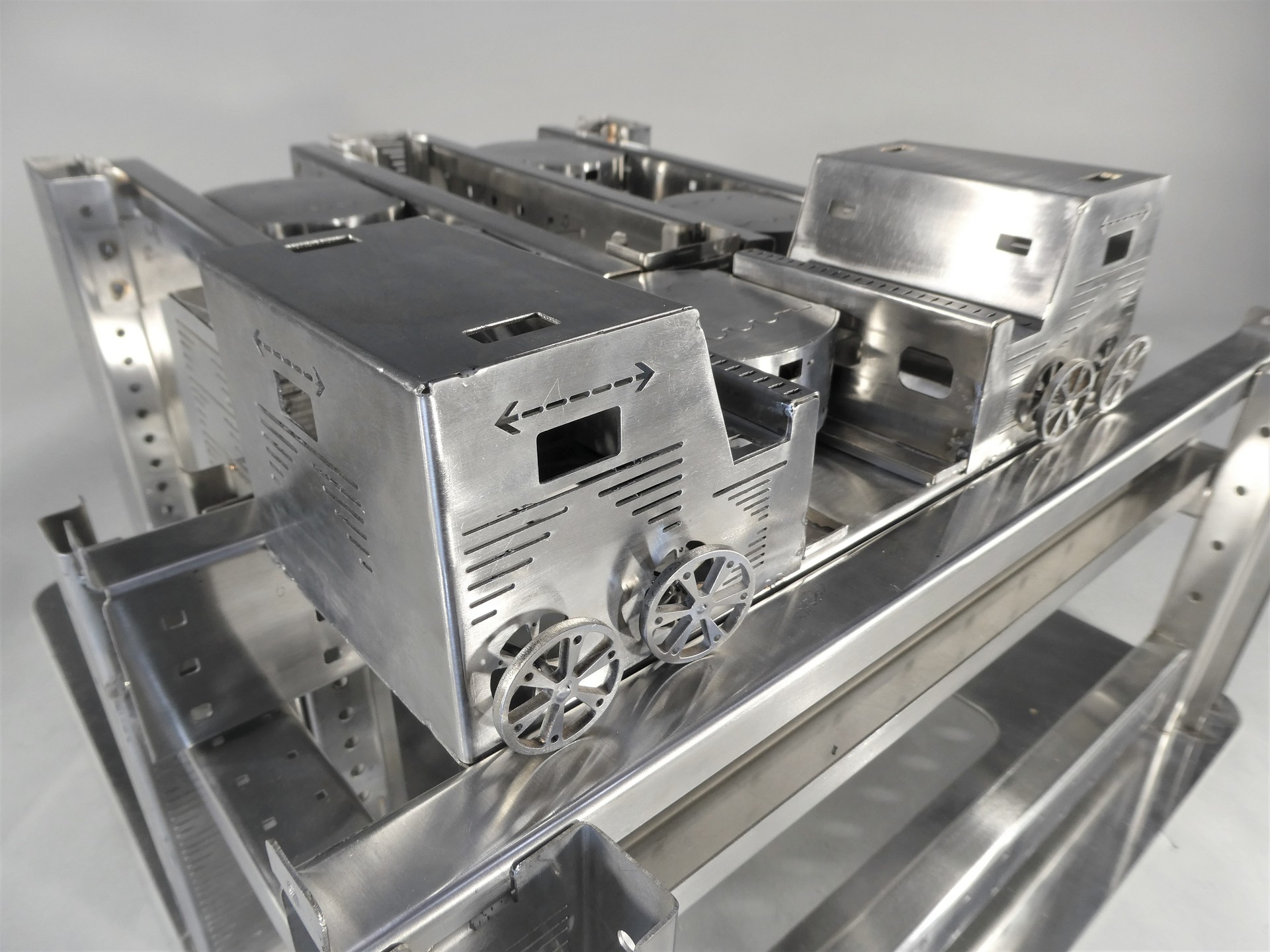

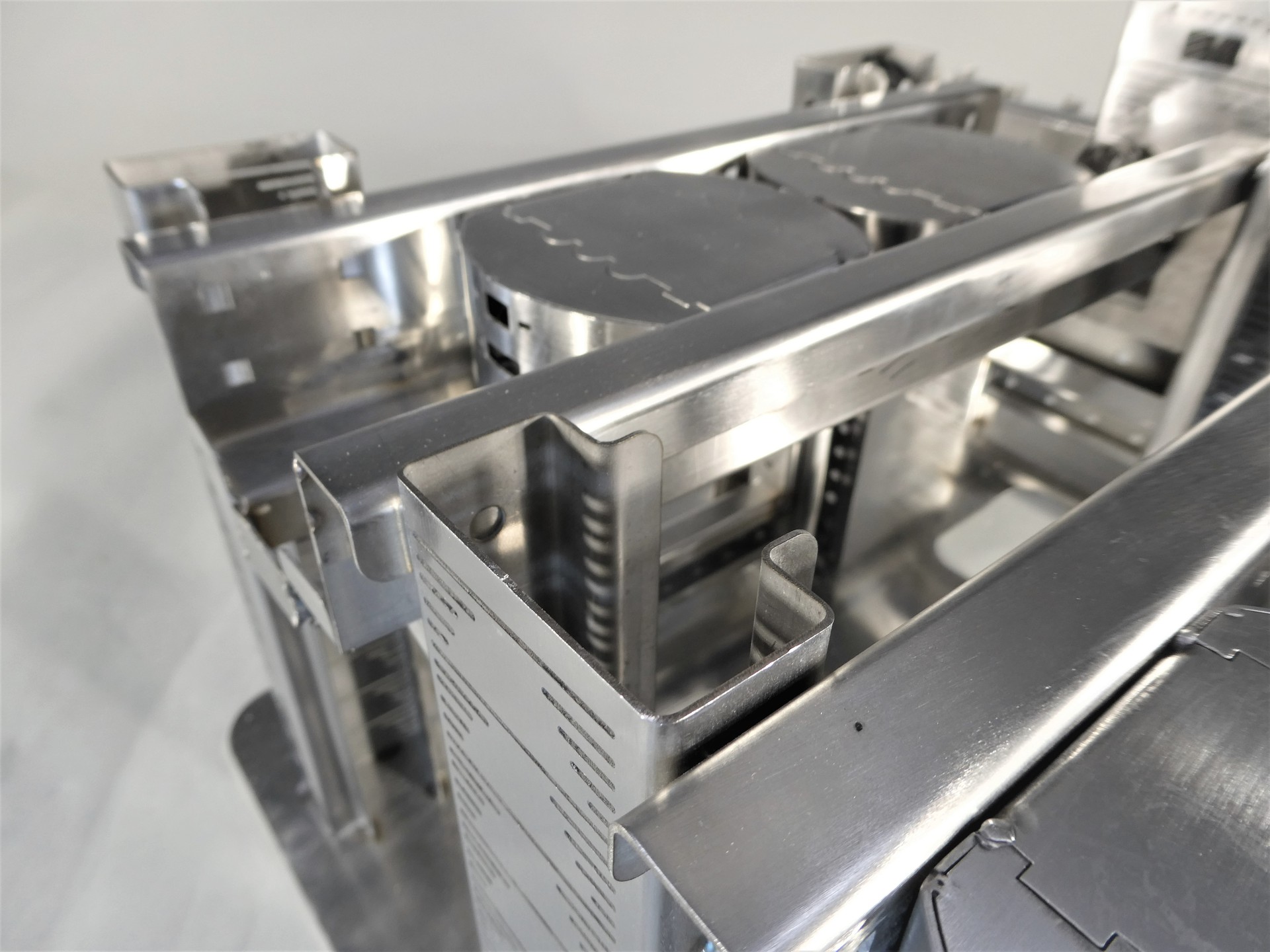

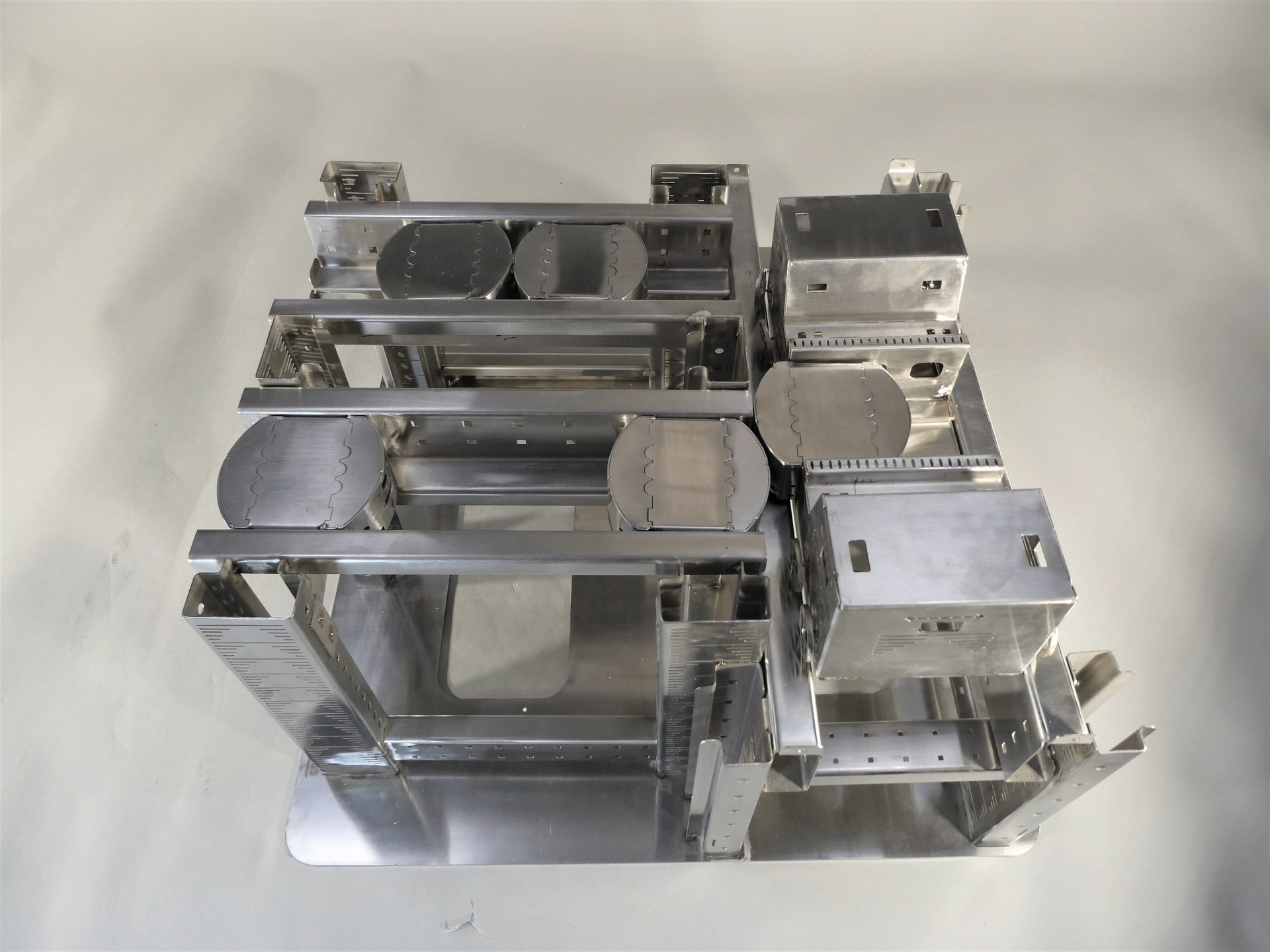

ASRS MOTHER CHILD STORAGE SYSTEM
MUVRO TECHNOLOGIES PRIVATE LIMITED (India)
-
・Size: W515 x D485 x H290 mm
-
・Accuracy: ± 0.1 mm
-
・Programming time: 260 min
-
・Processing time: 20 min/quantity
-
・Quantity: 50
-
・Material: Stainless steel (SUS430)
-
・Thickness: 1mm , 2mm mm
-
・Type: Prototype
Process
Laser-Cutting
Bending
2D/3D Design
Programming
Welding
Drawing
Strengths
2: Designing and miniature model of full grown product and capture the vision.

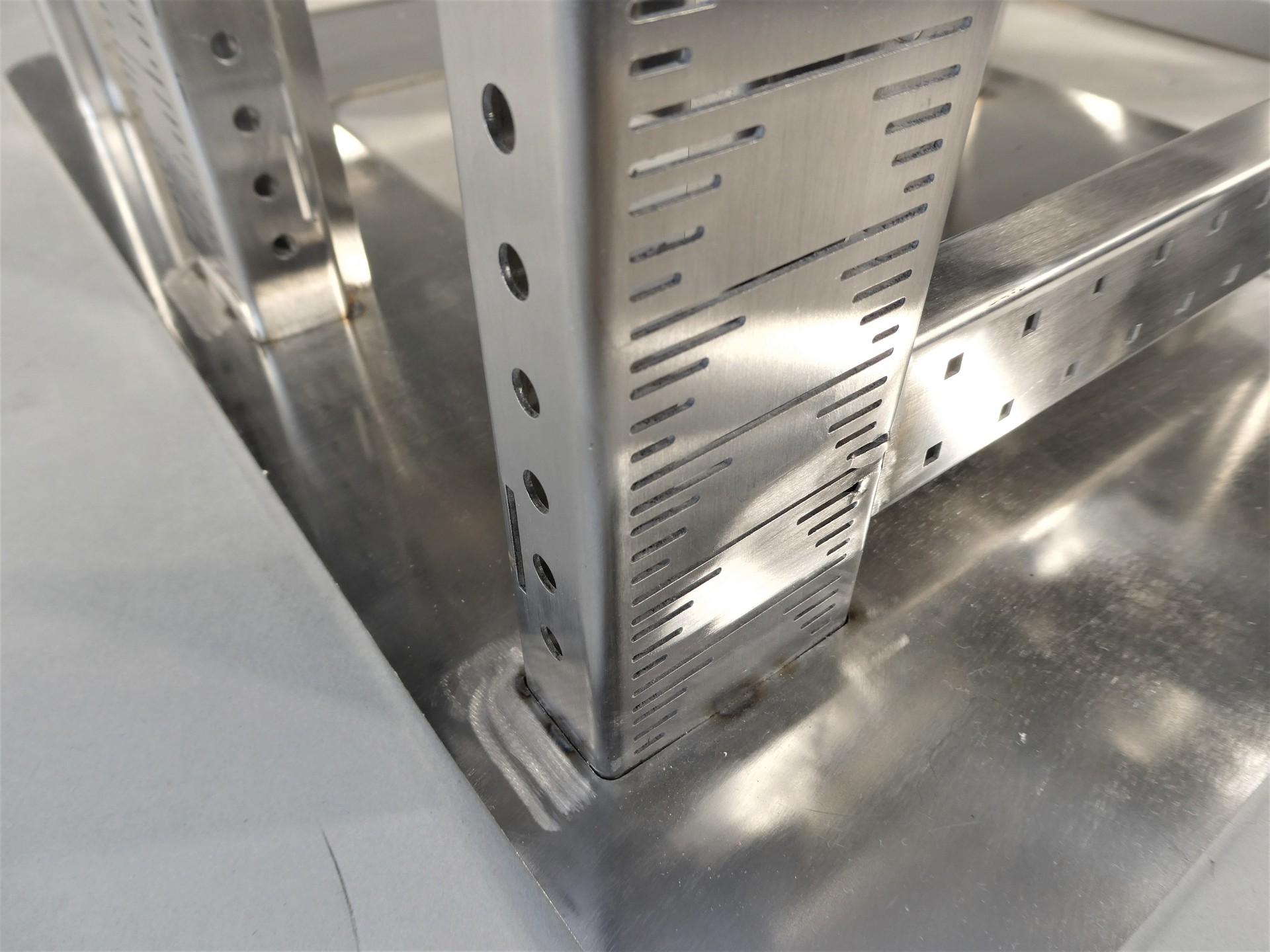

3: Manufacturing this product with small flanges and welding techniques due to small space was big hurdle.
4: 3D designing along with PD blank and bend plus gave much ease to the job.
