37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble208

Technical Encouragement Award

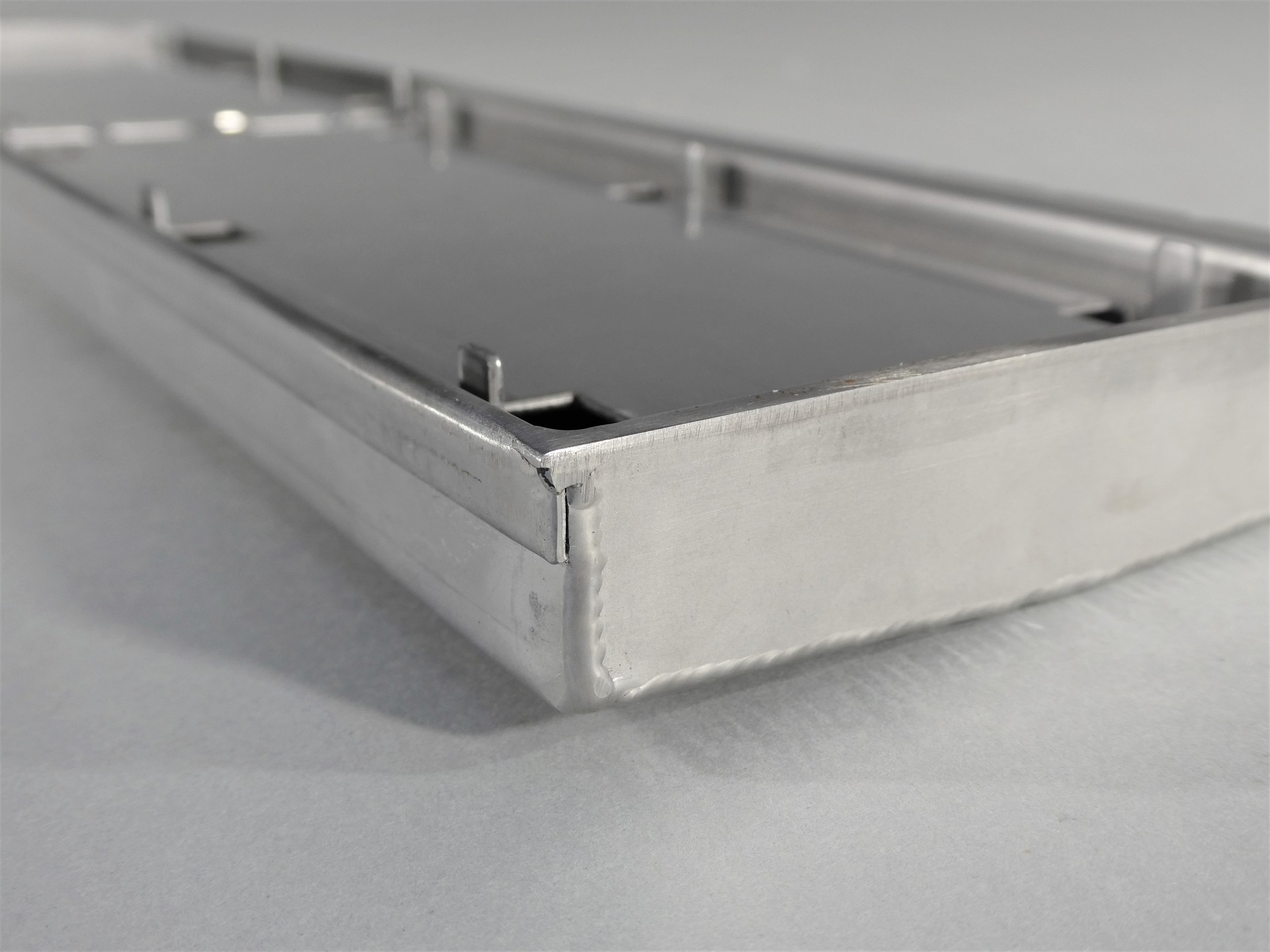

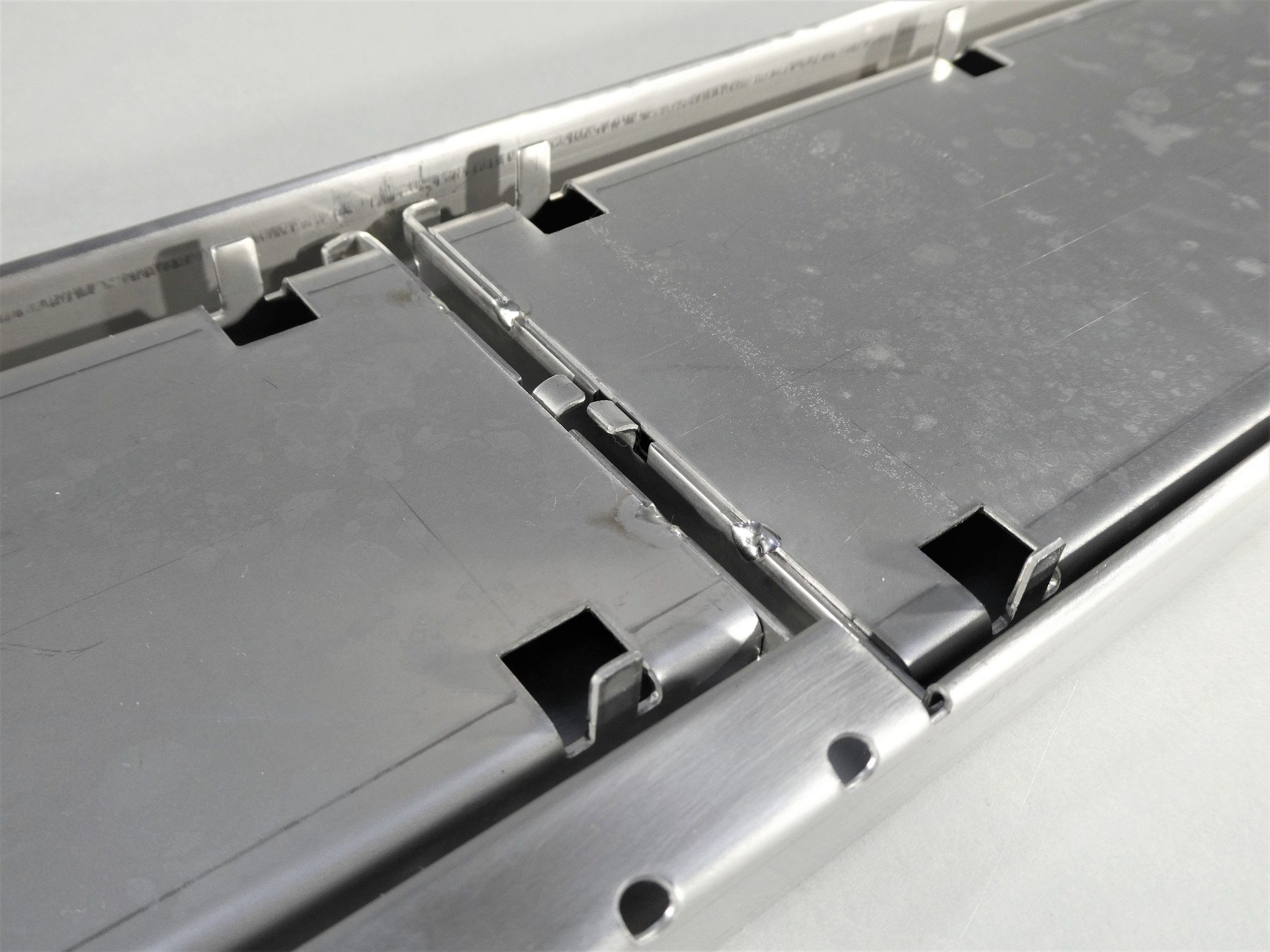

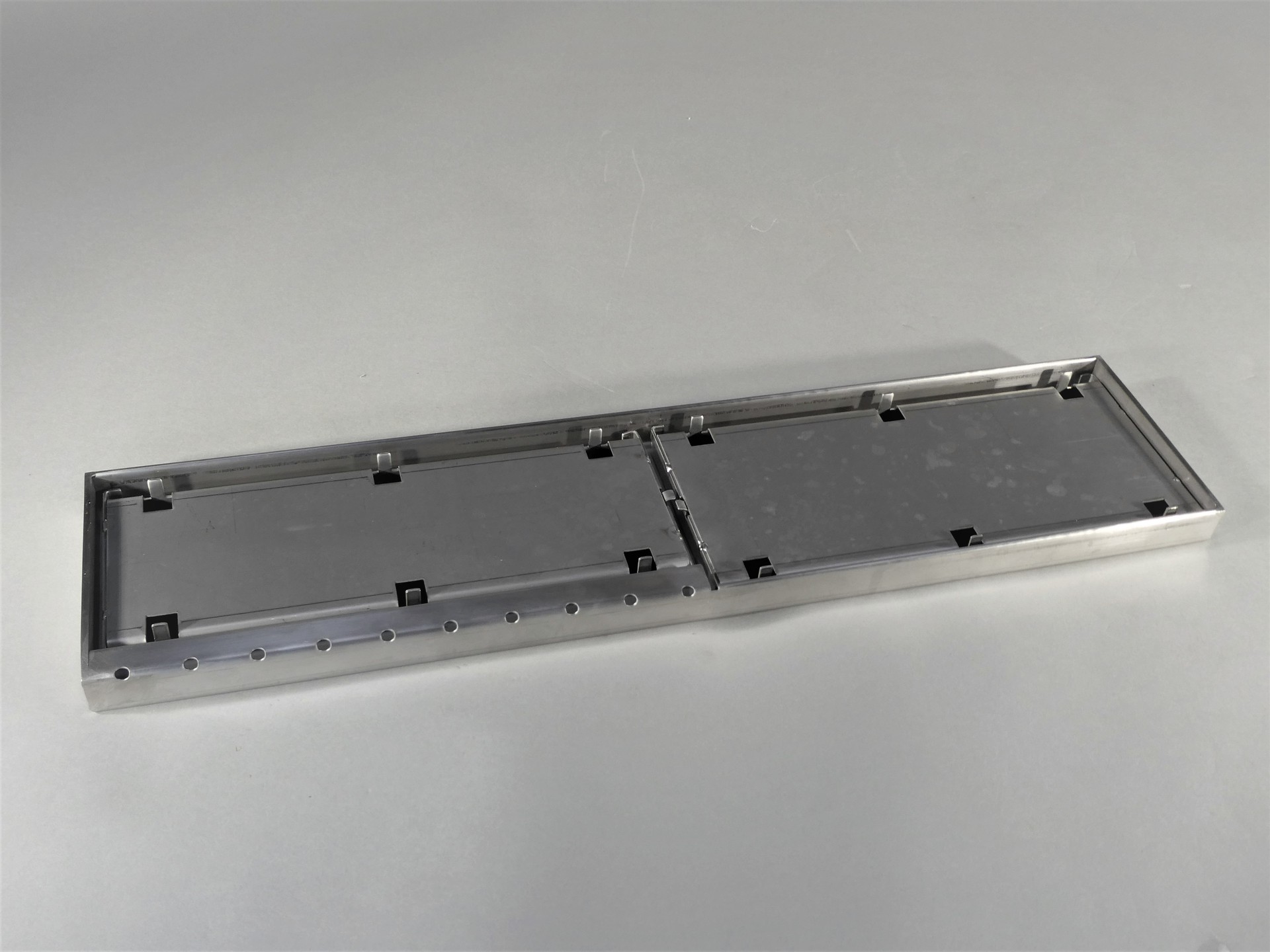

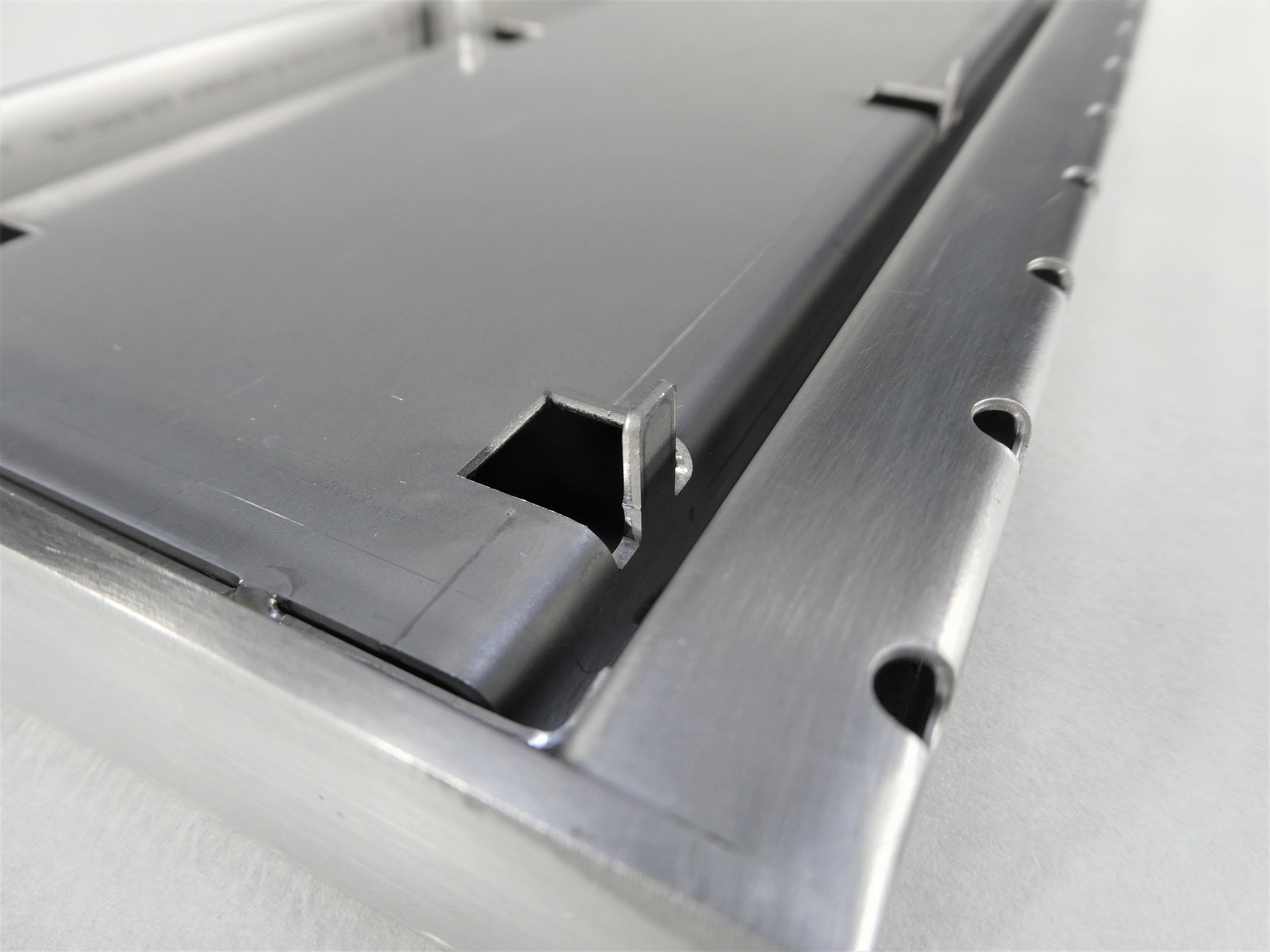

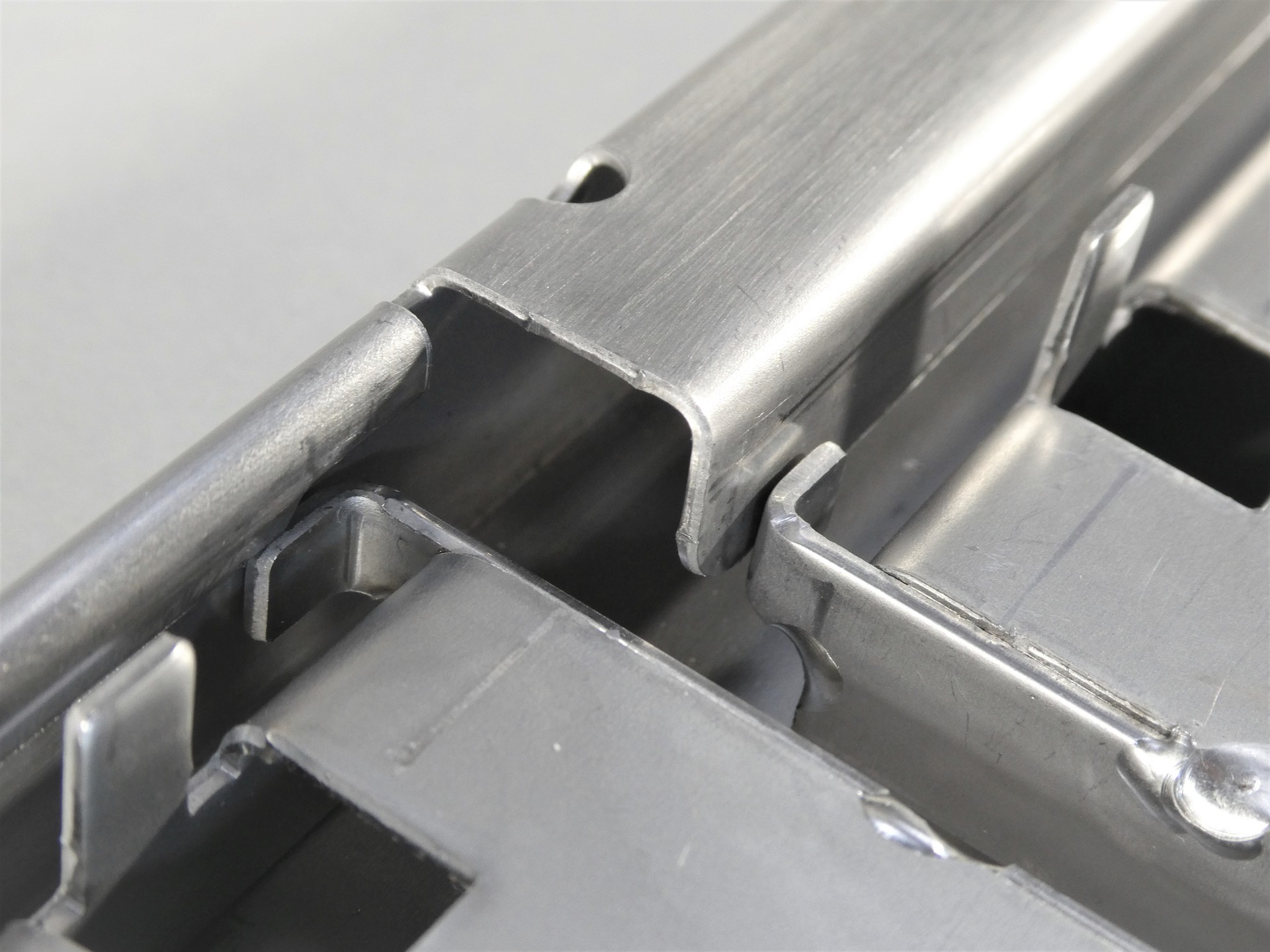

Shower Screen Support Drain Complete with Tile Insert Grates

Stormtech Pty Ltd (Australia)

  • ・Size: W500 x D120 x H24 mm

  • ・Accuracy: ± 0.5 mm

  • ・Programming time: 5 min

  • ・Processing time: 25 min/quantity

  • ・Quantity: 1

  • ・Material: ステンレス（SUS316）

  • ・Thickness: 1.2 / 1.5 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • Programming

  • Punching

  • Bending

  • 精度検査

  • Welding

  • 精度検査（最終）

Strengths

Stormtech is accredited to the ISO-9001 quality management system. All processes have procedures to help guide new and existing staff through their daily operations. (Stormtech have reduced the part count of the Shower Screen Support drain and also reduced or removed process that is no longer required. Through the subtle improvements in the product the process and either had time saved or the process removed. ) We are continually improving our processes and product to higher standards. We continue to lift the bar on quality and safety, while exceeding our customer expectations and product quality and delivery.
