37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble206

Technical Encouragement Award

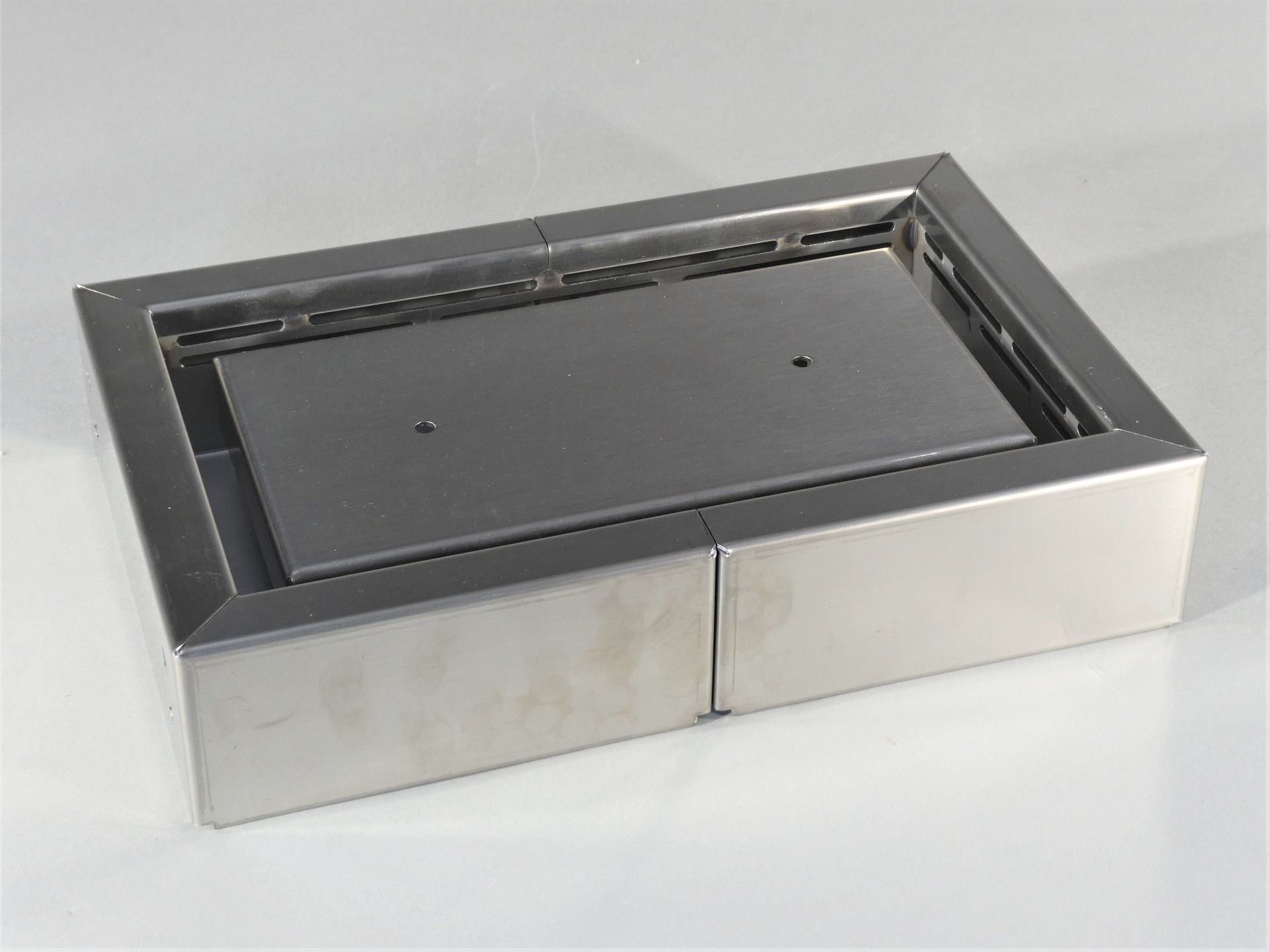

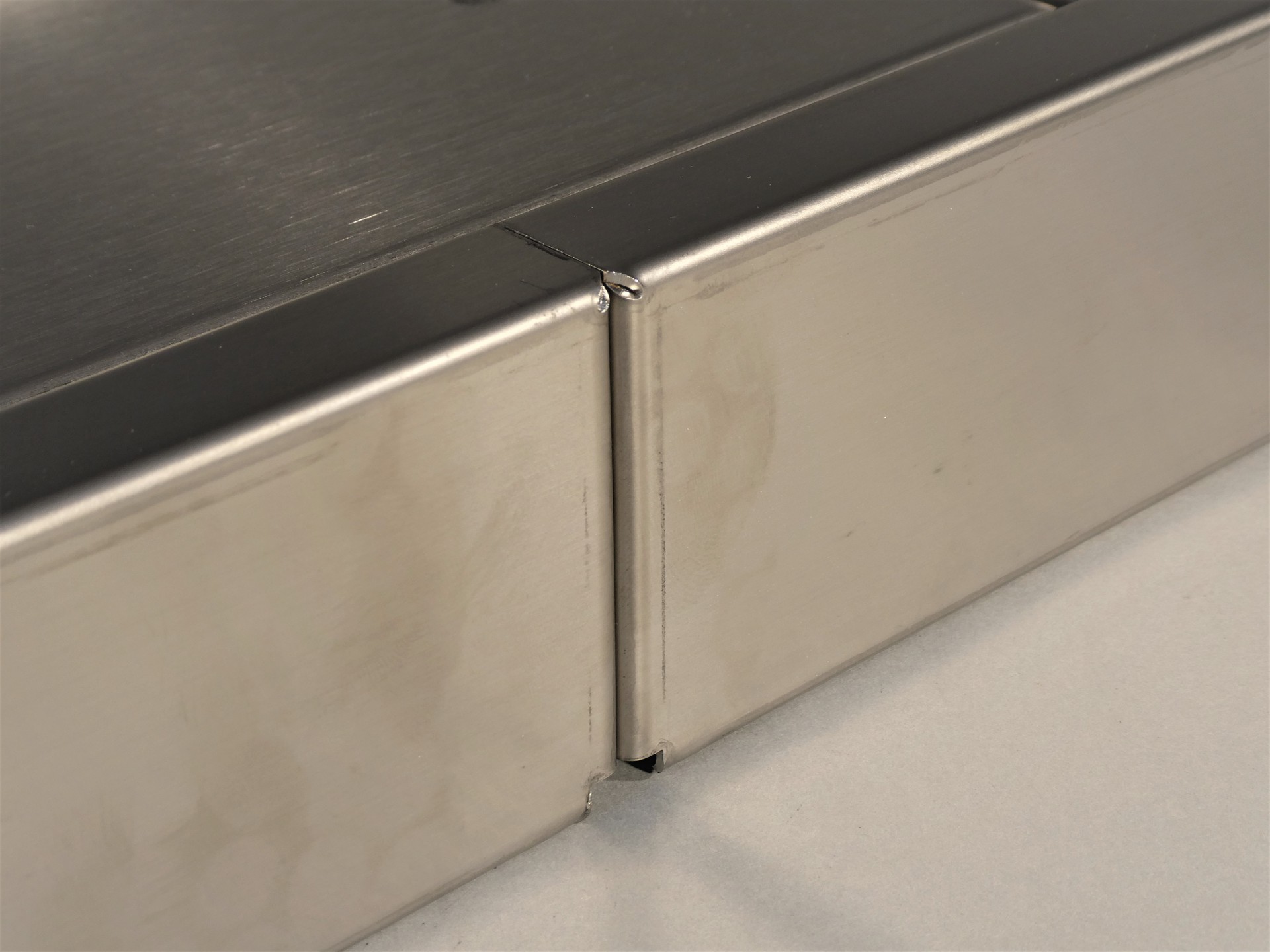

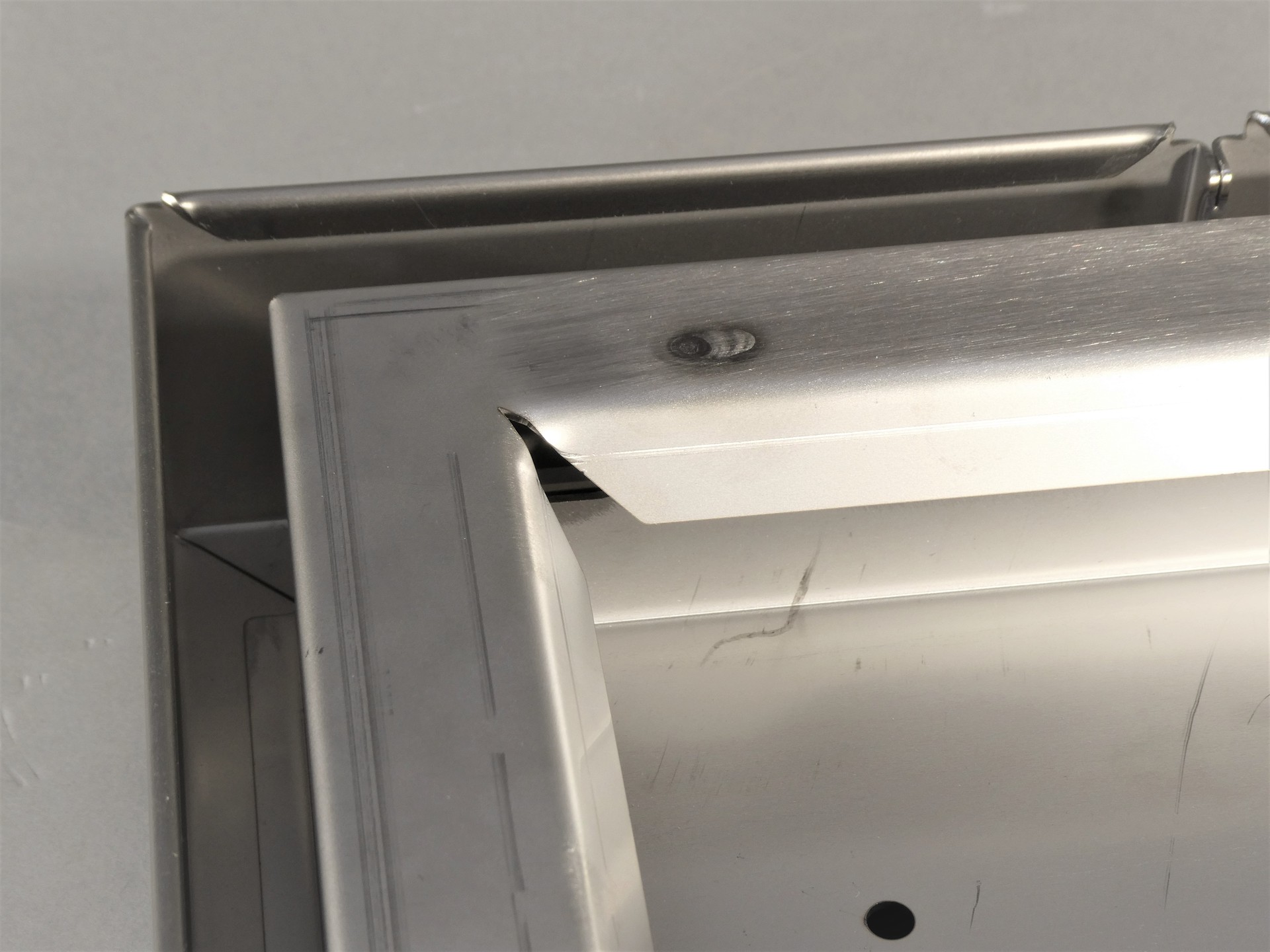

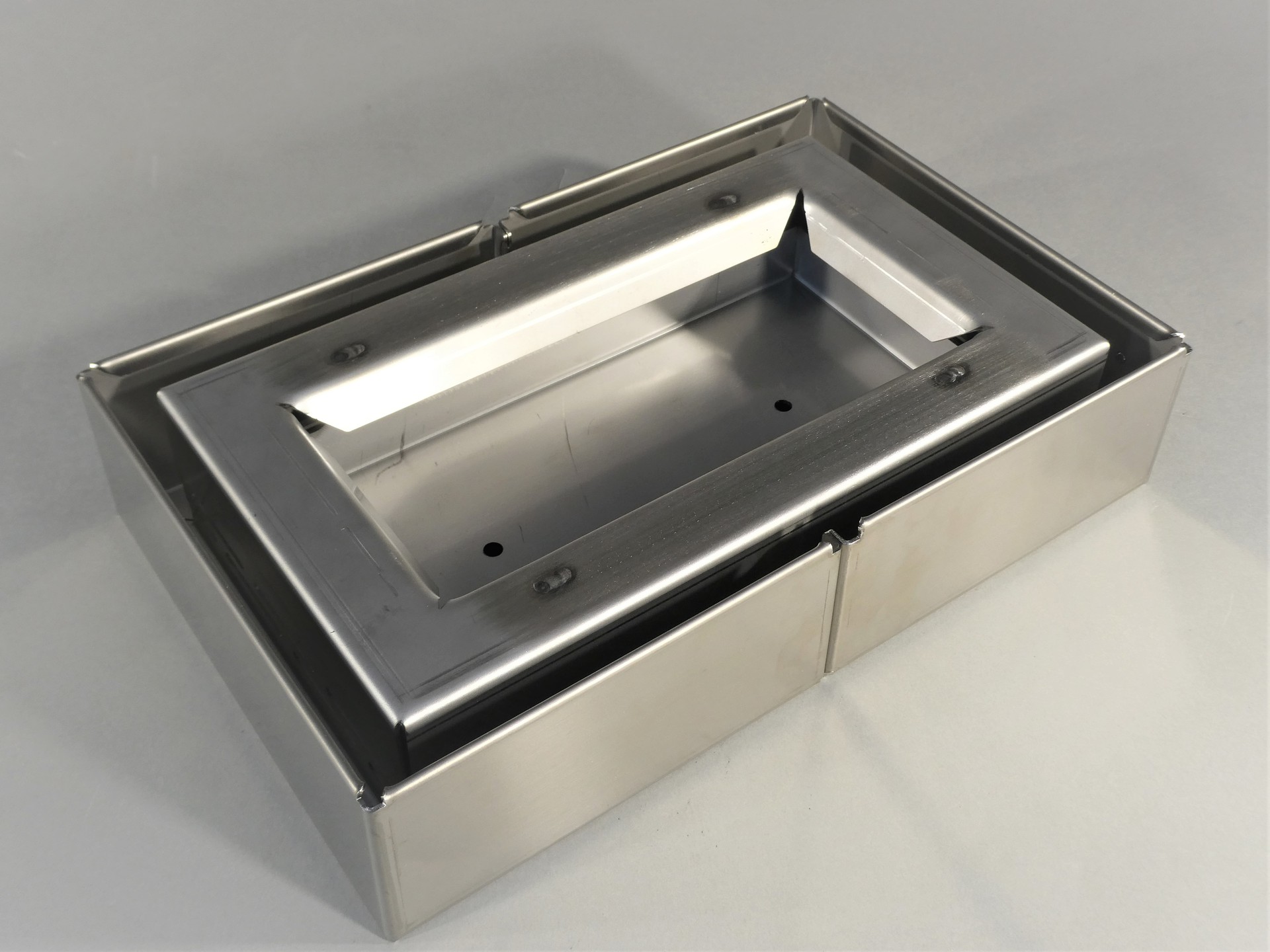

SMOKE OUTLET COVER

CORDRICH S.L. (Spain)

  • ・Size: W190 x D299 x H64 mm

  • ・Accuracy: ± 0.05 mm

  • ・Programming time: 5 min

  • ・Processing time: 10 min/quantity

  • ・Quantity: 50

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 1.2 / 1.5 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

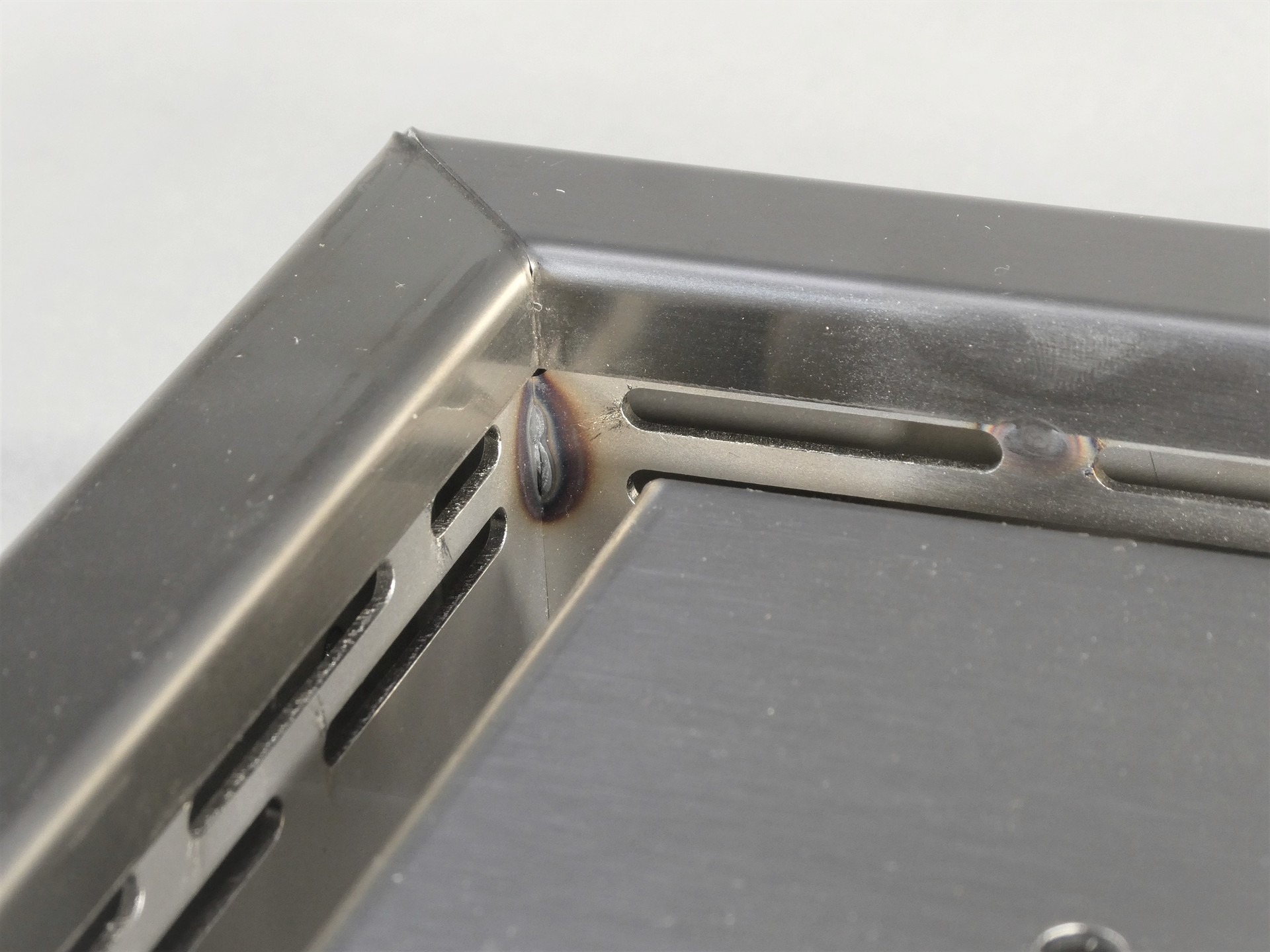

  • Welding

  • Surface Treatment

Strengths

Accuracy for assembly part.
