Mouse display stand (Assemble201)
Assemble201
Technical Award

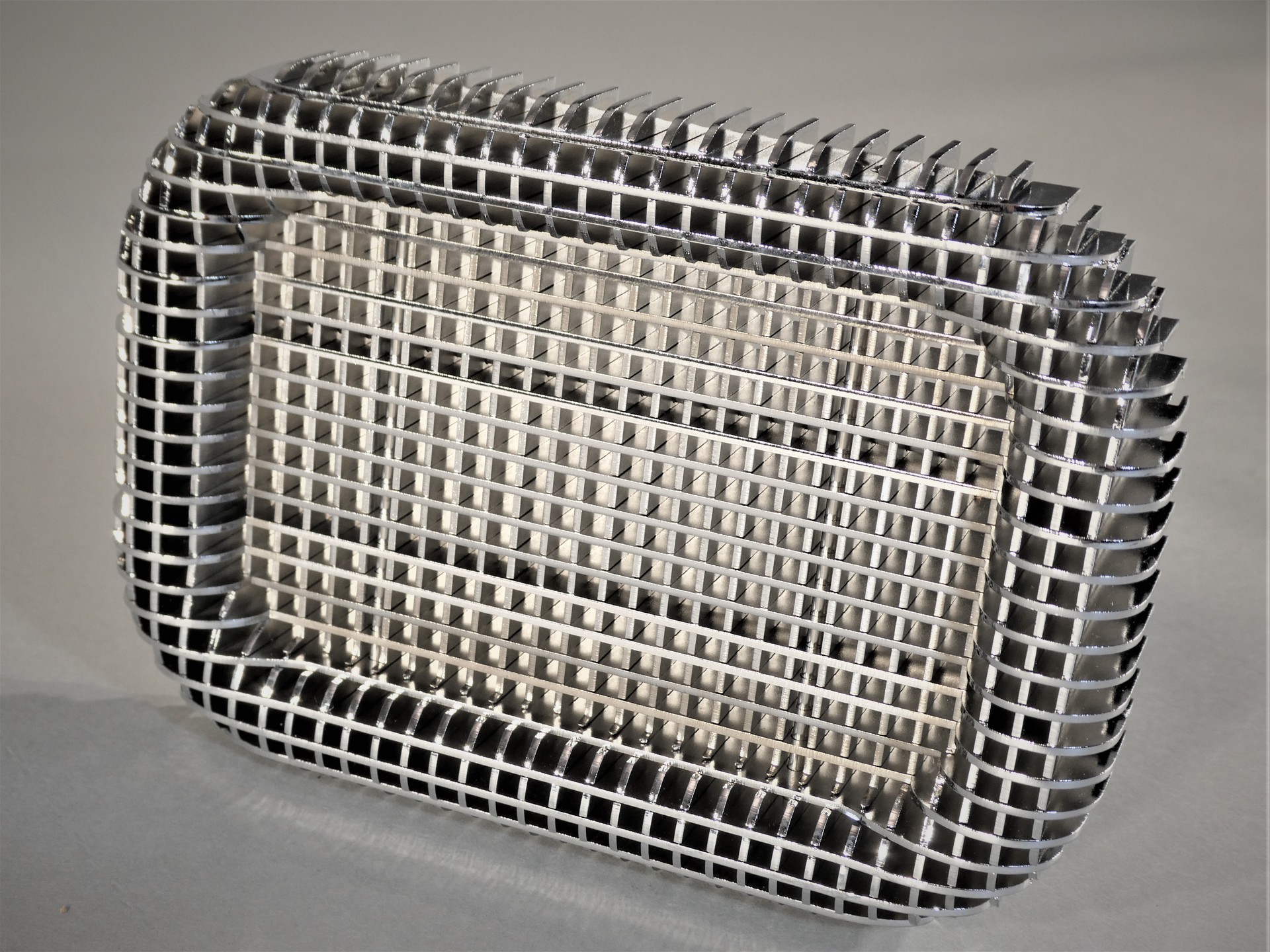

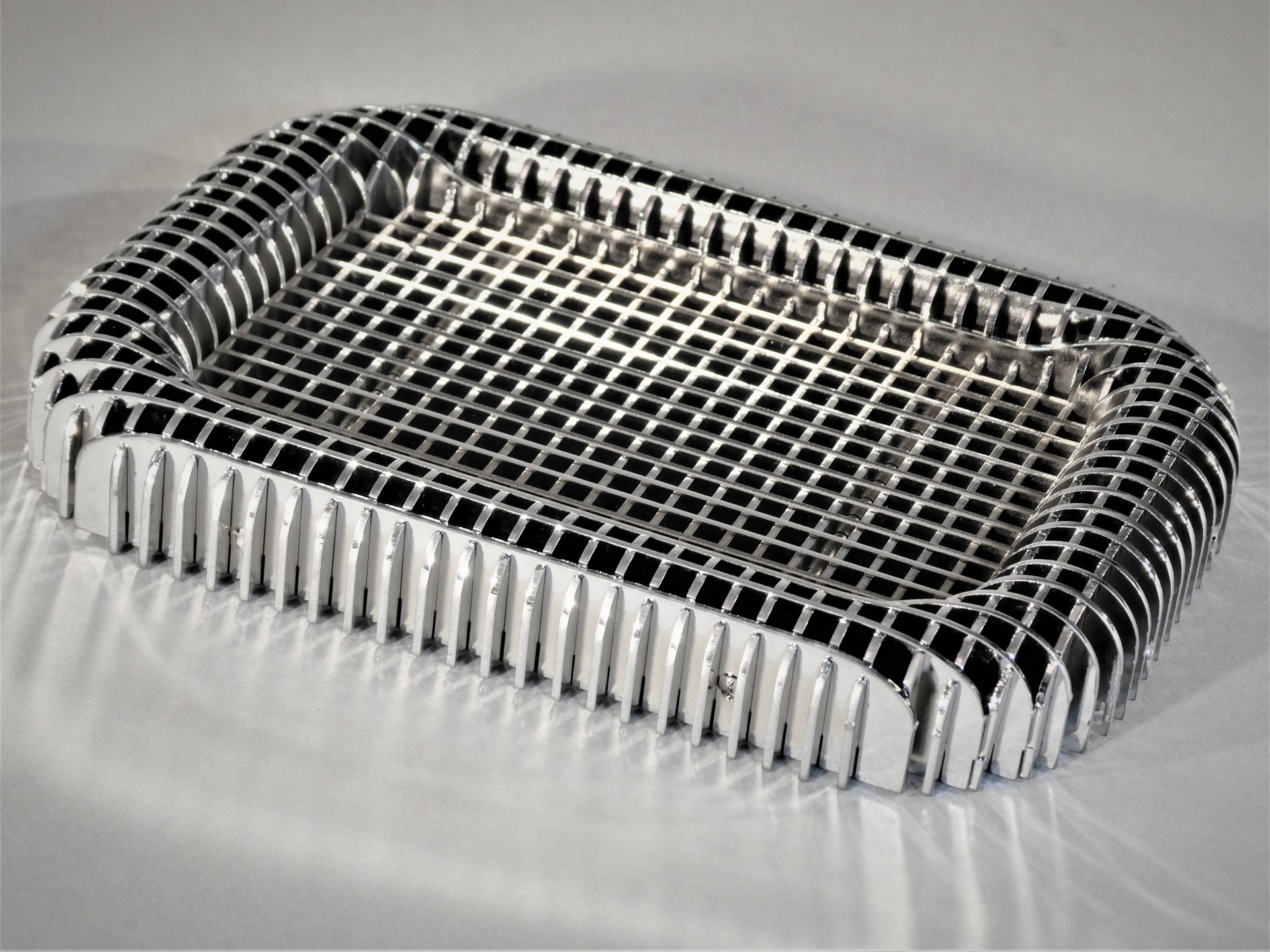

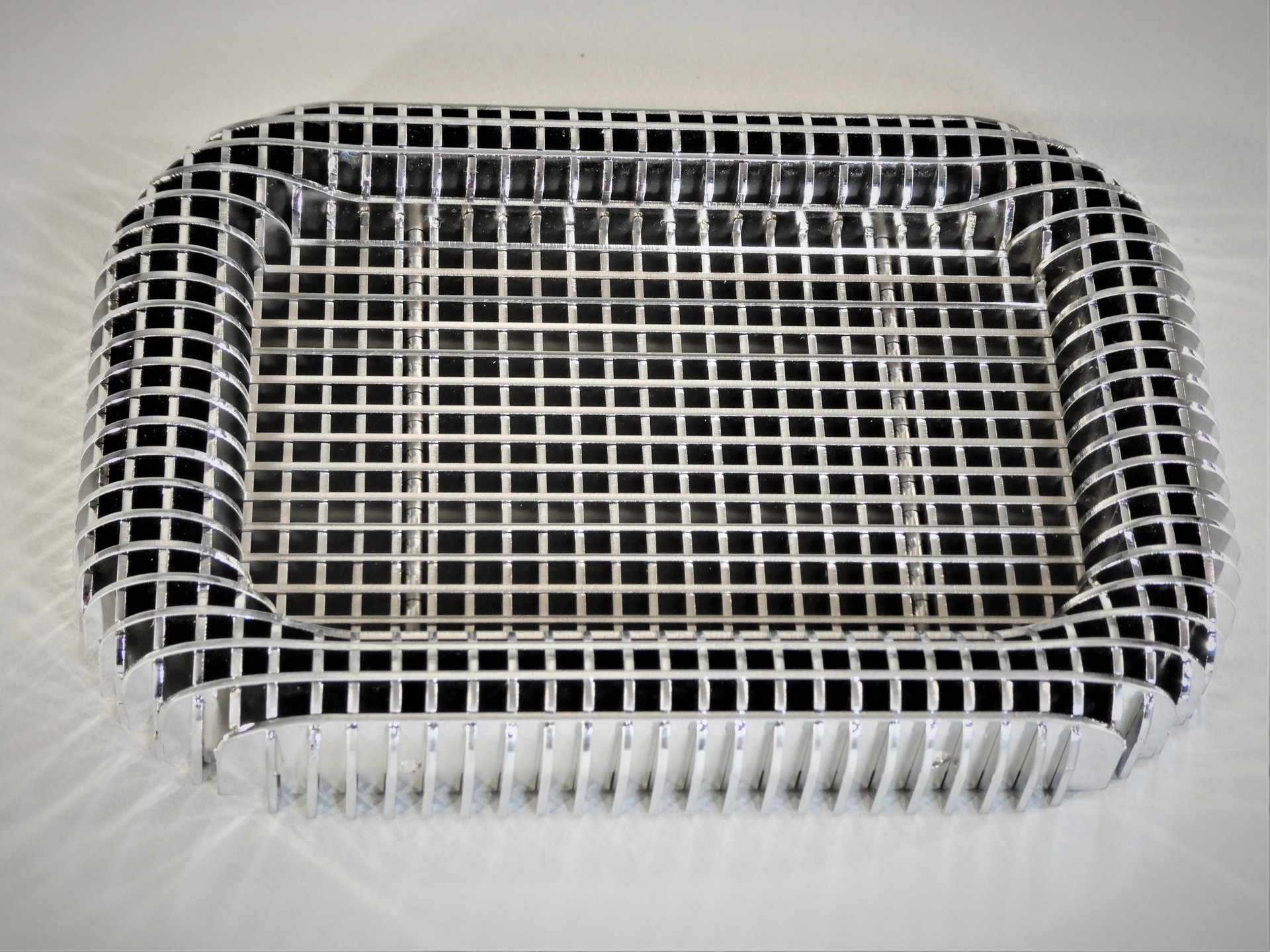

Mouse display stand
Hayashi Kougyou Co.,Ltd. (Hiroshima, Japan)
-
・Size: W165 x D115 x H20 mm
-
・Accuracy: ± 1.0 mm
-
・Programming time: 480 min
-
・Processing time: 120 min/quantity
-
・Quantity: 1
-
・Material: Mild Steel (SPCC)
-
・Thickness: 1.2 mm
-
・Type: Prototype
Process
2D/3D Design
CAD/CAM
Laser-Cutting
Assembly
Welding
Plating
Strengths

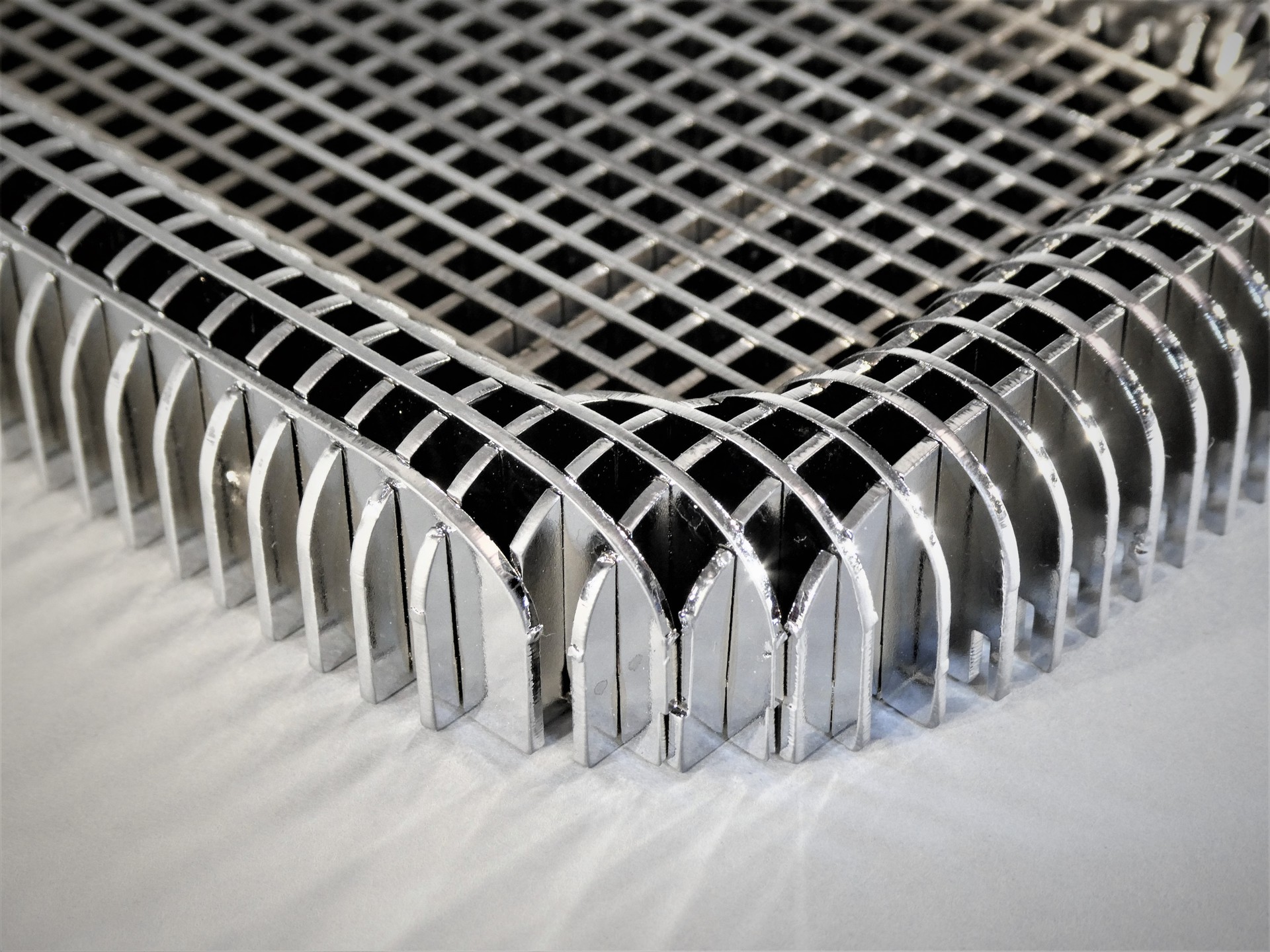

3D-CADで外形形状を描き、鉄板を組み上げて製作しました。(曲げは無し)
溶接は8点のみで固定して、最後にメッキコーティングを行いました。
