第38回優秀板金製品技能フェア
溶接品の部 全18作品
溶接308
ダックスフント
-
・サイズ: W800 × D220 × H500 mm
-
・精度: ± .2 mm
・プログラム時間: 480 分
-
・加工時間: 1735 分／個
・加工数量: 1 個
-
・材質: ステンレス（SUS304）
-
・板厚: 2mm mm
-
・作品種類: オリジナル品
加工工程
機構の考案
プログラム
レーザ加工
曲げ
溶接
塗装
アピールポイント

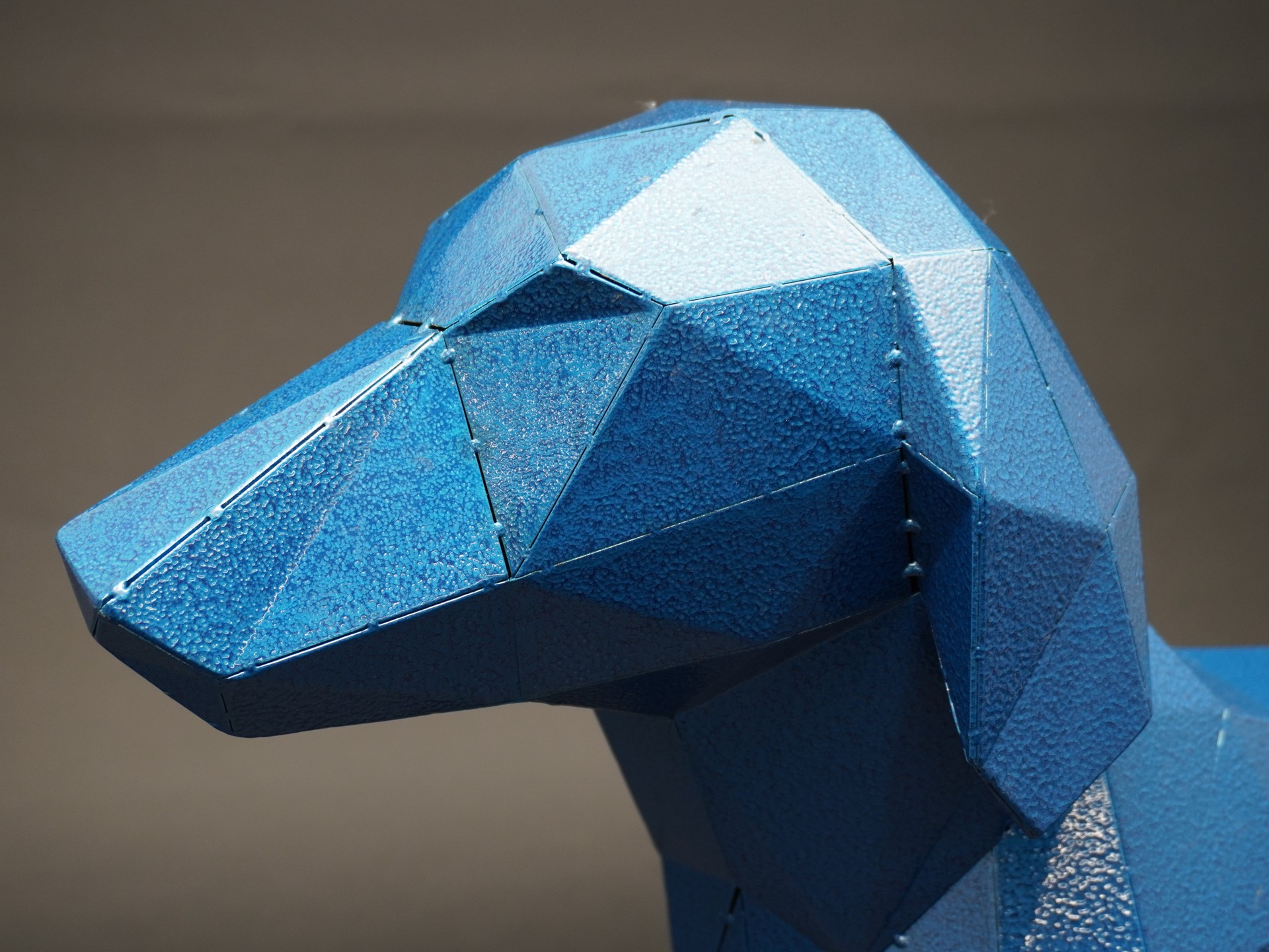

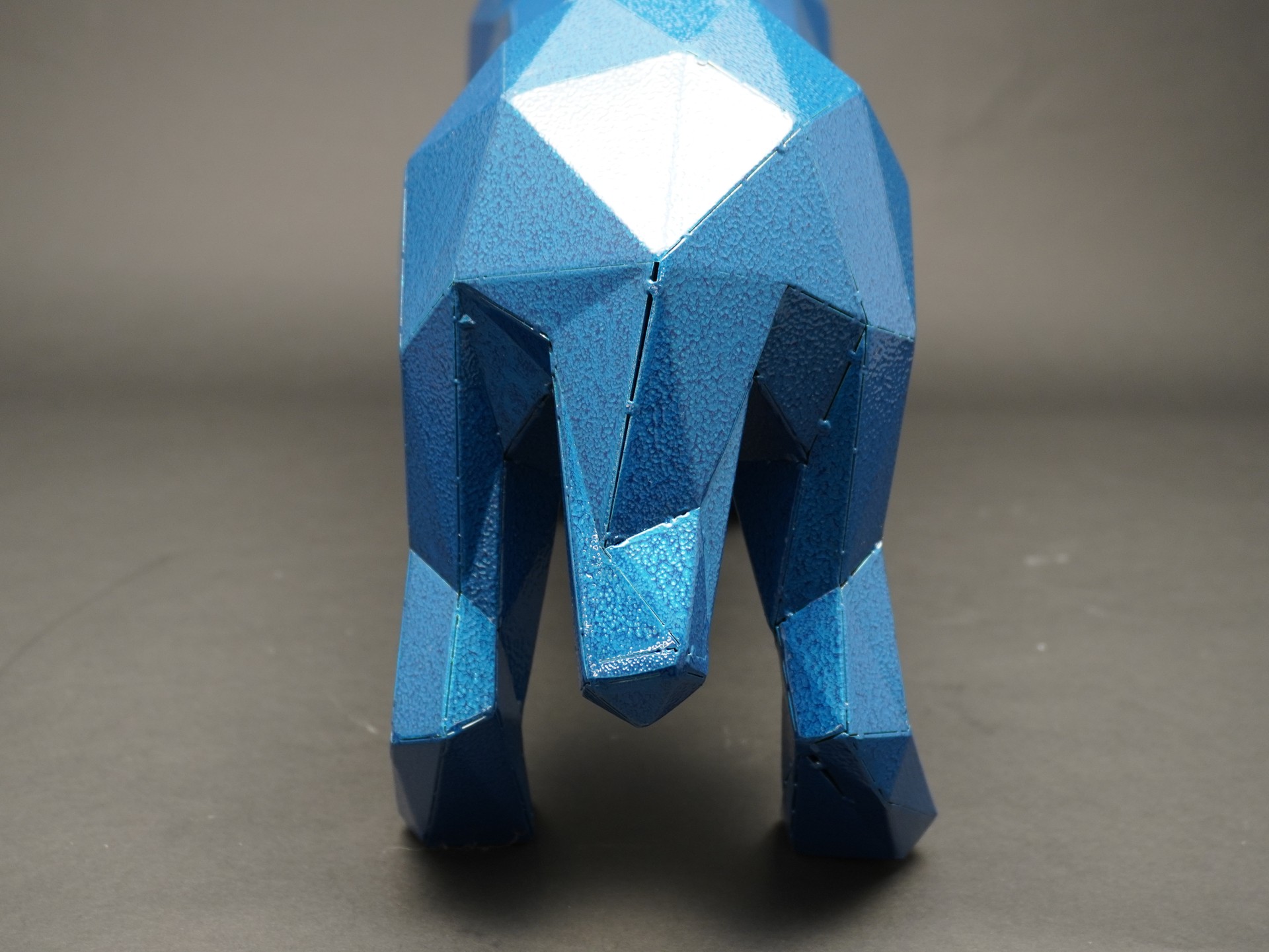

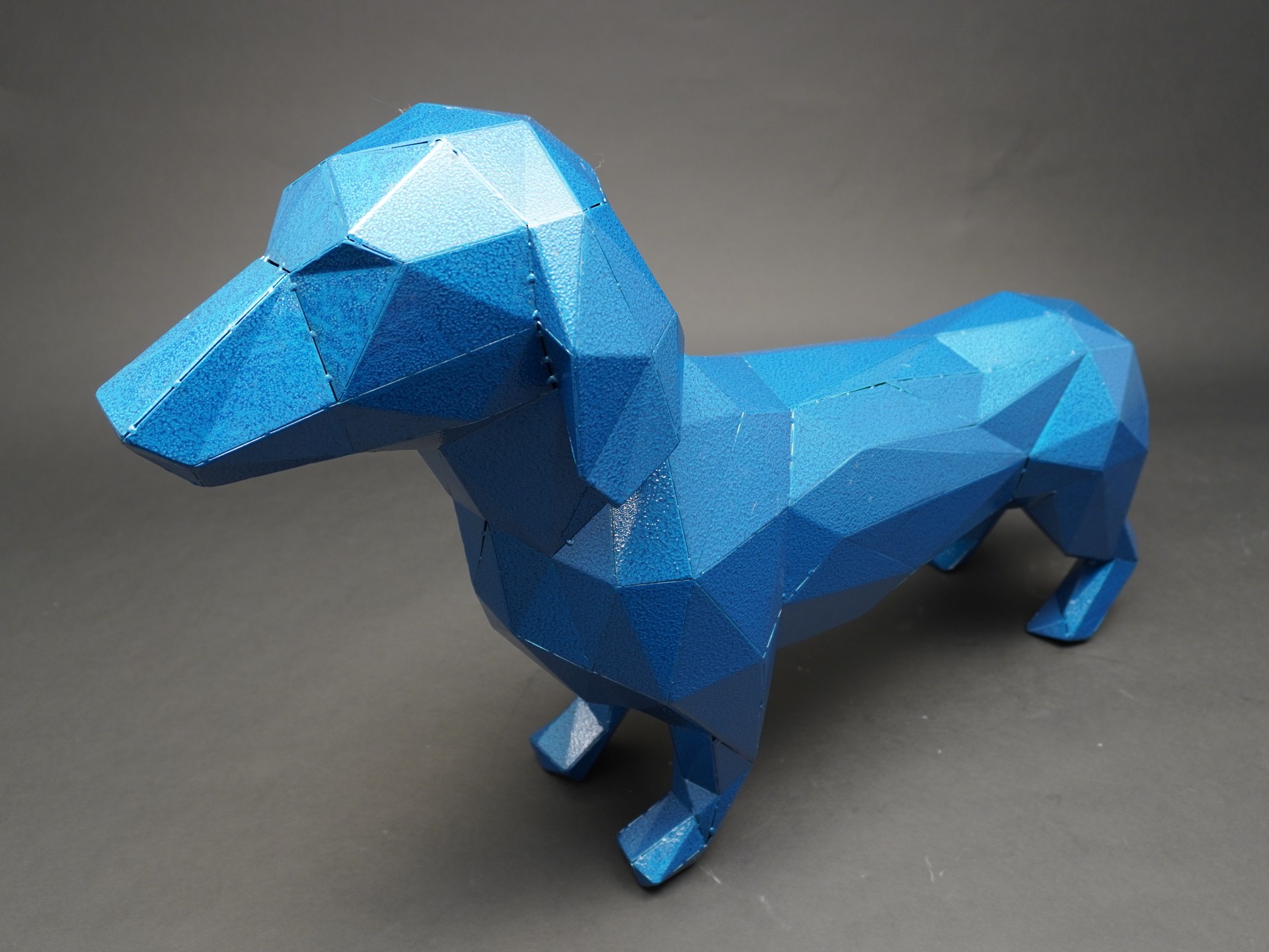

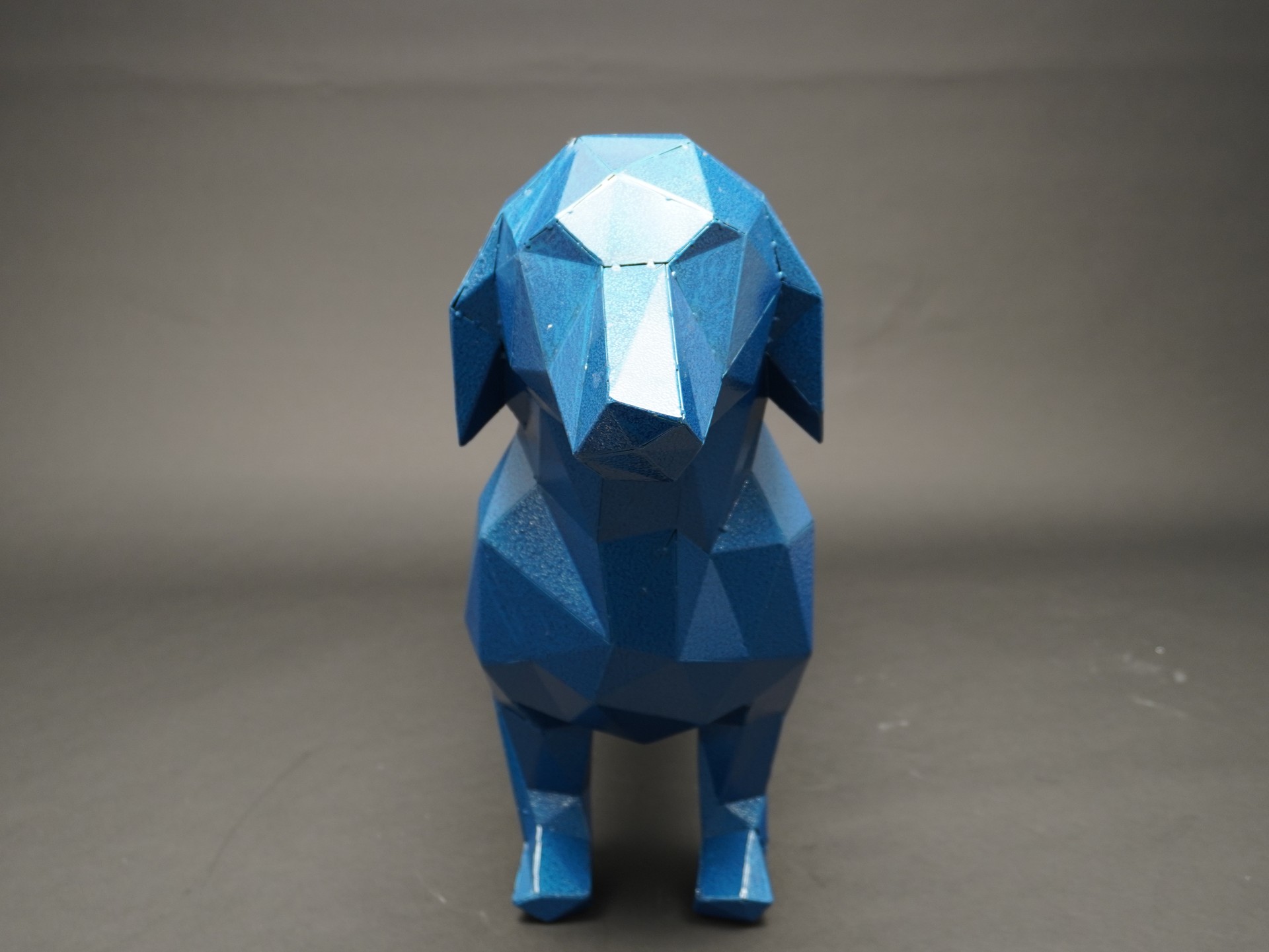

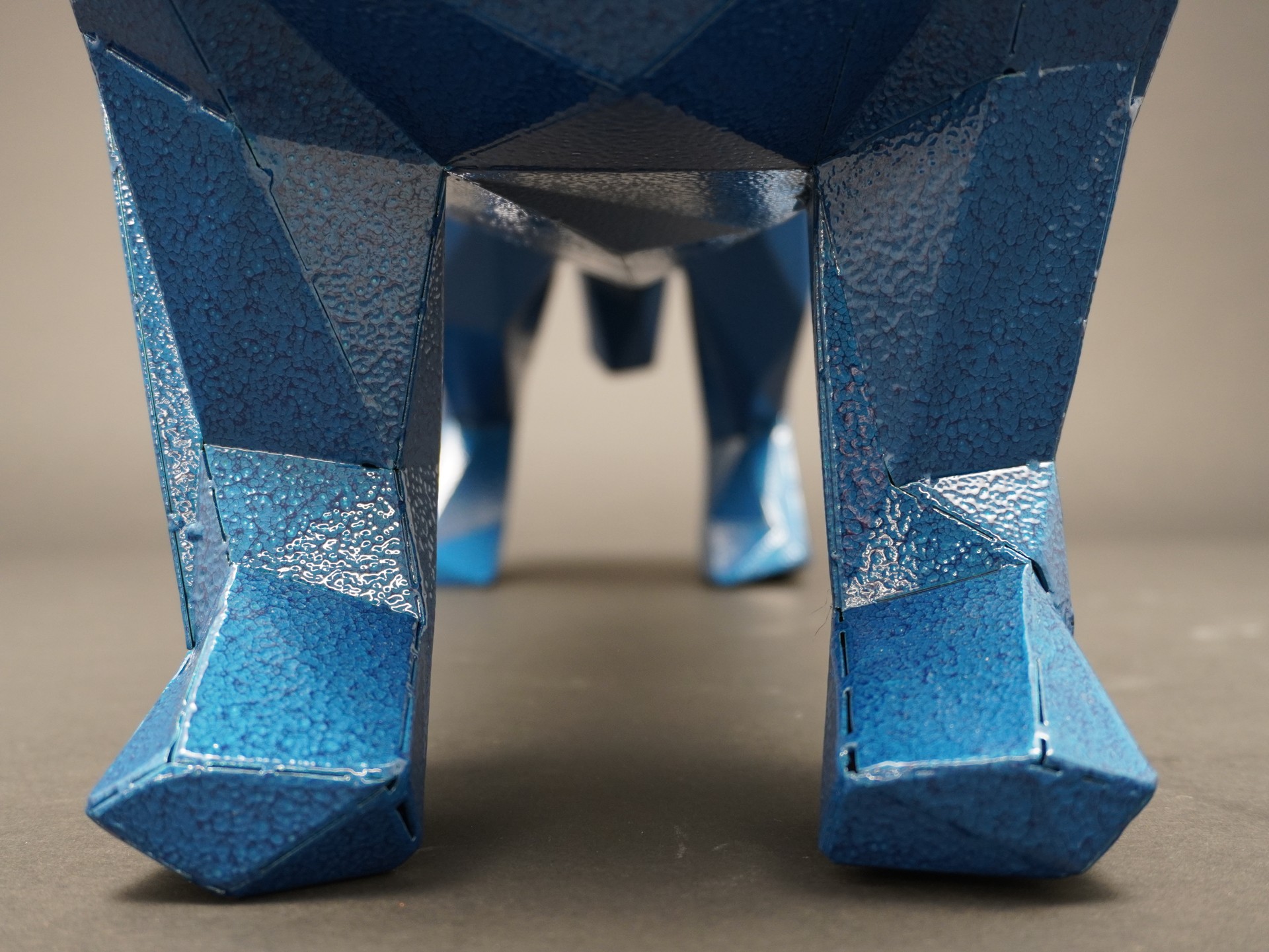

The process method to manufacture the Daschund required a number (234) of part numbered laser cut blanks, these blanks then required press brake folds of various angles to match the model, parts were then welded together to form the Daschund, part was then lightly ground and then powdercoated.
Some innovation and time reduction was the consolidation of the individual parts to eliminate (excess) extra welding, this was typically figured out during the design stage, but also consolidated when folding the individual parts.
Some innovation and time reduction was the consolidation of the individual parts to eliminate (excess) extra welding, this was typically figured out during the design stage, but also consolidated when folding the individual parts.
