第38回優秀板金製品技能フェア
溶接品の部 全18作品
溶接303

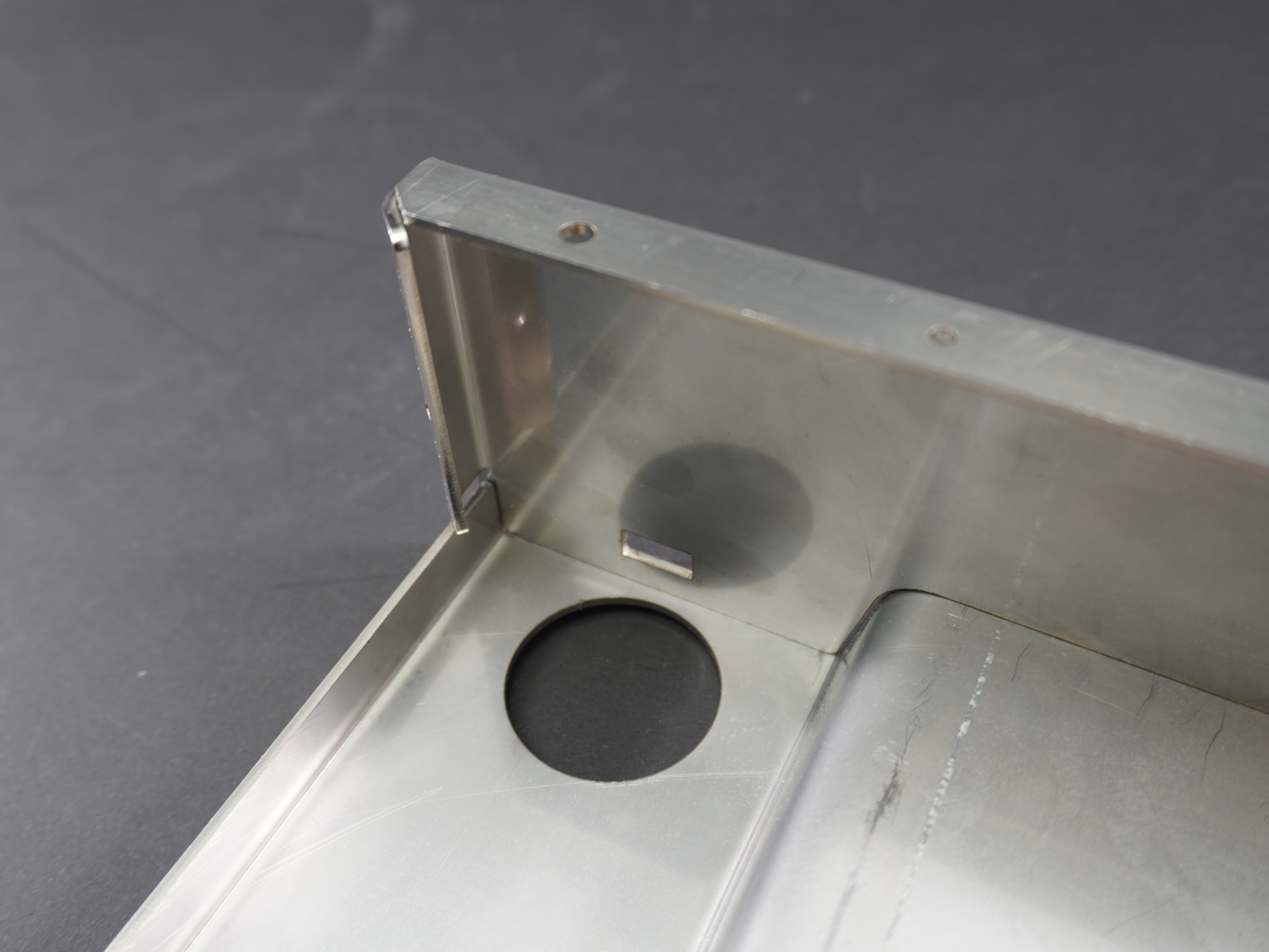

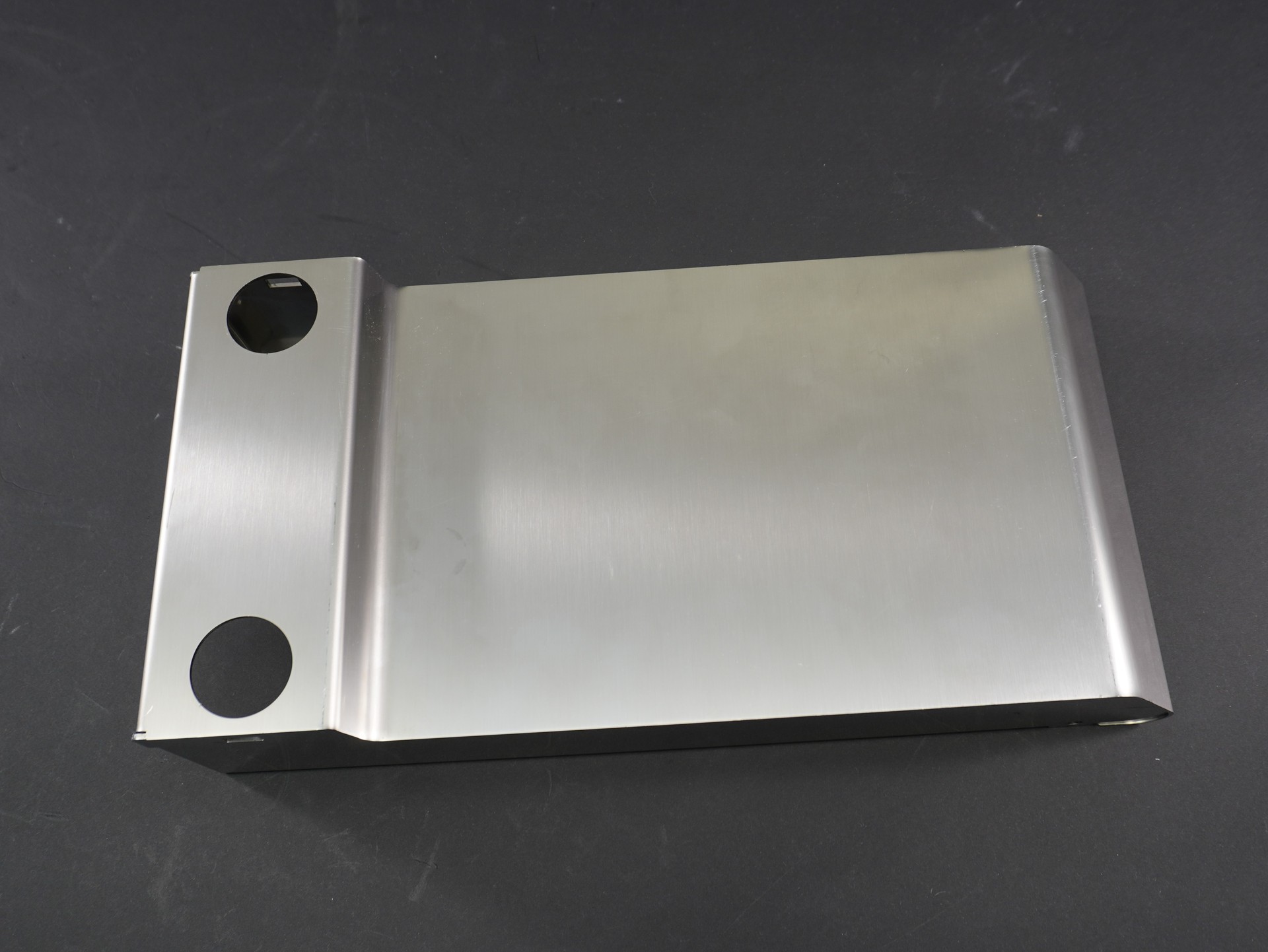

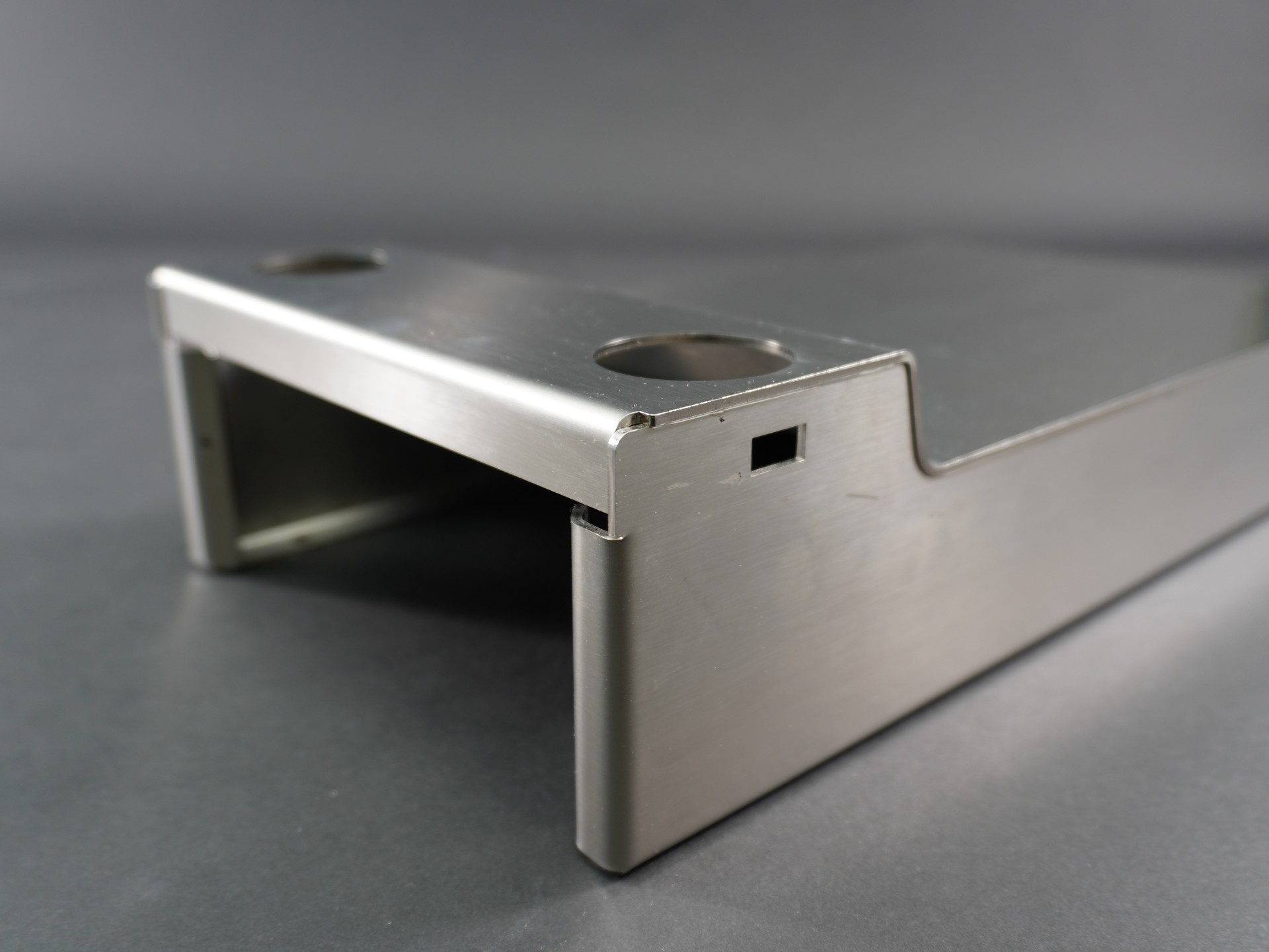

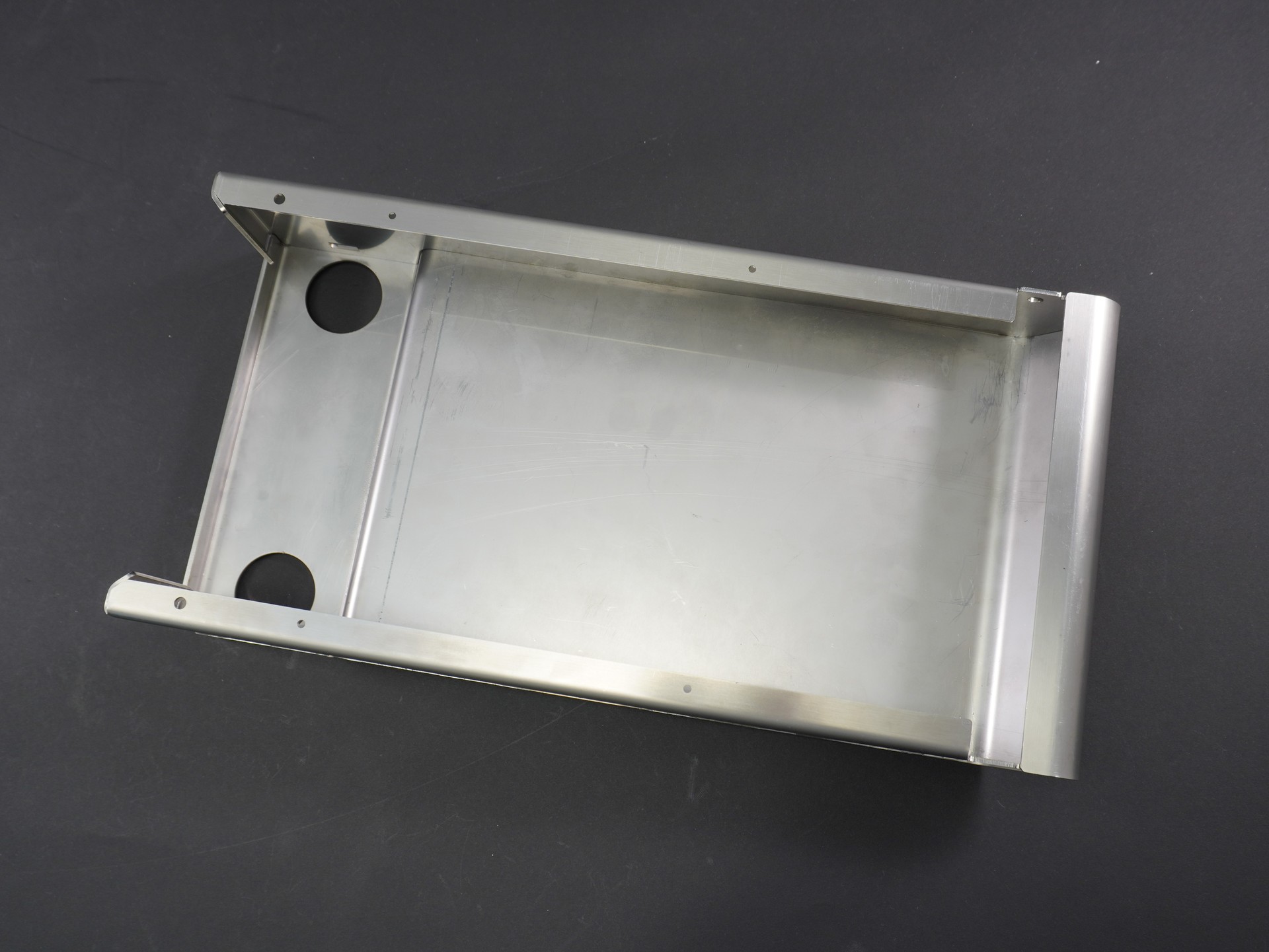

キッチントップの再現
-
・サイズ: W400 × D200 × H90 mm
-
・精度: ± 0 mm
・プログラム時間: - 分
-
・加工時間: 14(1cut,8bend,5weld) 分／個
・加工数量: 1 個
-
・材質: ステンレス（SUS430）
-
・板厚: 3 mm
-
・作品種類: 試作品
加工工程
CAD/CAM
レーザ加工
曲げ
溶接
アピールポイント
Eurotec produces equipment for professional kitchens. This piece is a reproduction of a kitchen worktop that will be presented in October at the "Host" trade fair in Milan. The plates that make up the piece are very heavy and big, which is why special tools were made with Amada to avoid turning the piece upside down and to ensure it stands on flat sides (reverse tools). Thanks also to special radius tools, the parts don't have any scratches.
This reduces operator fatigue and guarantees precision.
The piece must be very precise because it has to be welded and is a module of the kitchen worktop (the modules are 60, 90 and 120 cm) which must then be joined to other modules. Precision is therefore essential.

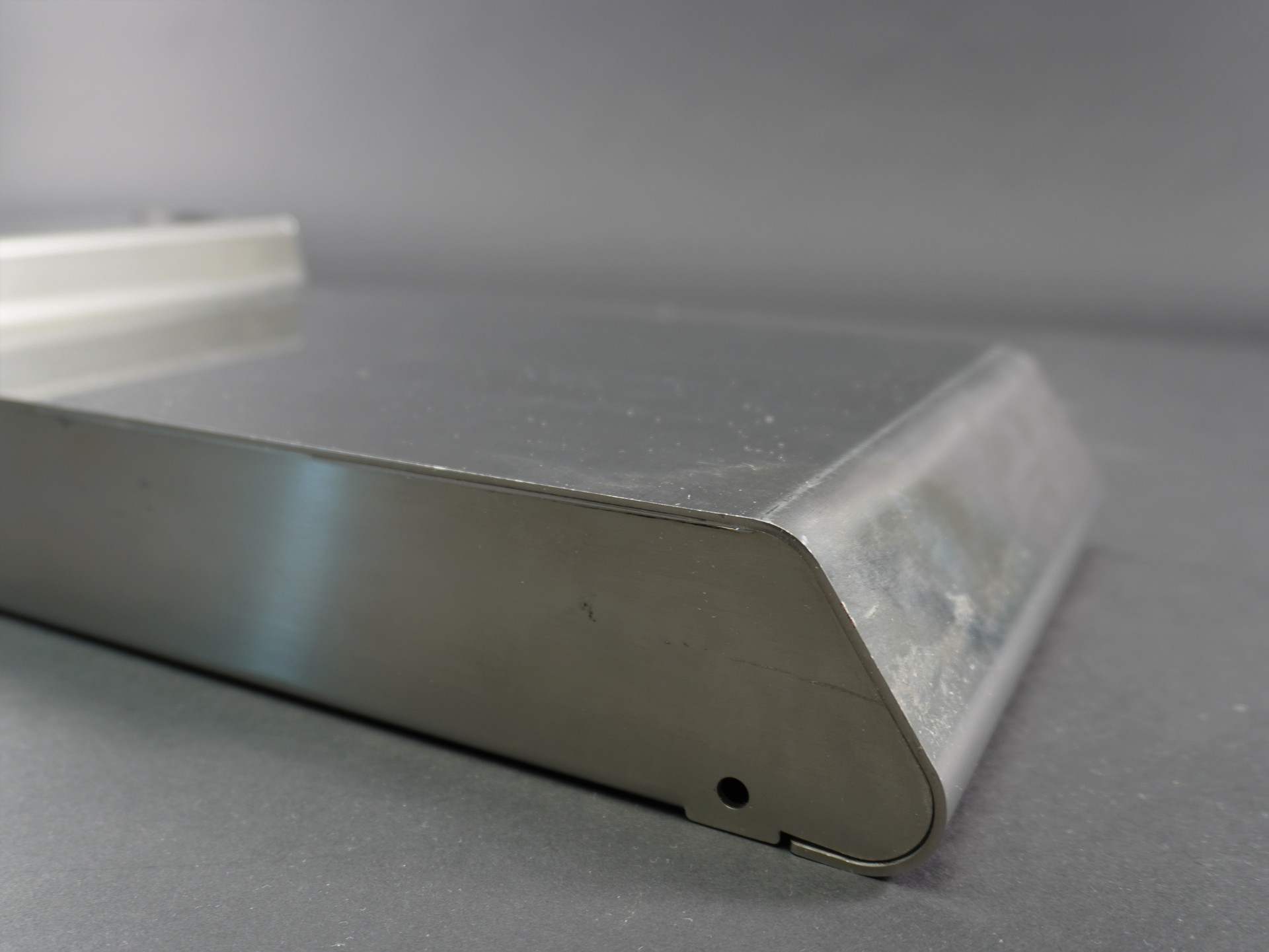

The kitchen top has some radius on it to allow a better cleaning (the R8 is the same size of a finger).
