第38回優秀板金製品技能フェア
造形品の部 全37作品
造形452
エミリアの心
-
・サイズ: W160 × D180 × H125 mm
-
・精度: ± 0,1 mm
・プログラム時間: - 分
-
・加工時間: 0 分／個
・加工数量: - 個
-
・材質: 軟鋼（SPCC）
-
・板厚: 2 mm
-
・作品種類: オリジナル品
加工工程
2D/3D設計
CAD/CAM
レーザ加工
Cleaning and deburring
表面処理
組立
スポット溶接
Grinfing and polishing
アピールポイント
The Emilian Heart has been specifically created to take part in this competition.

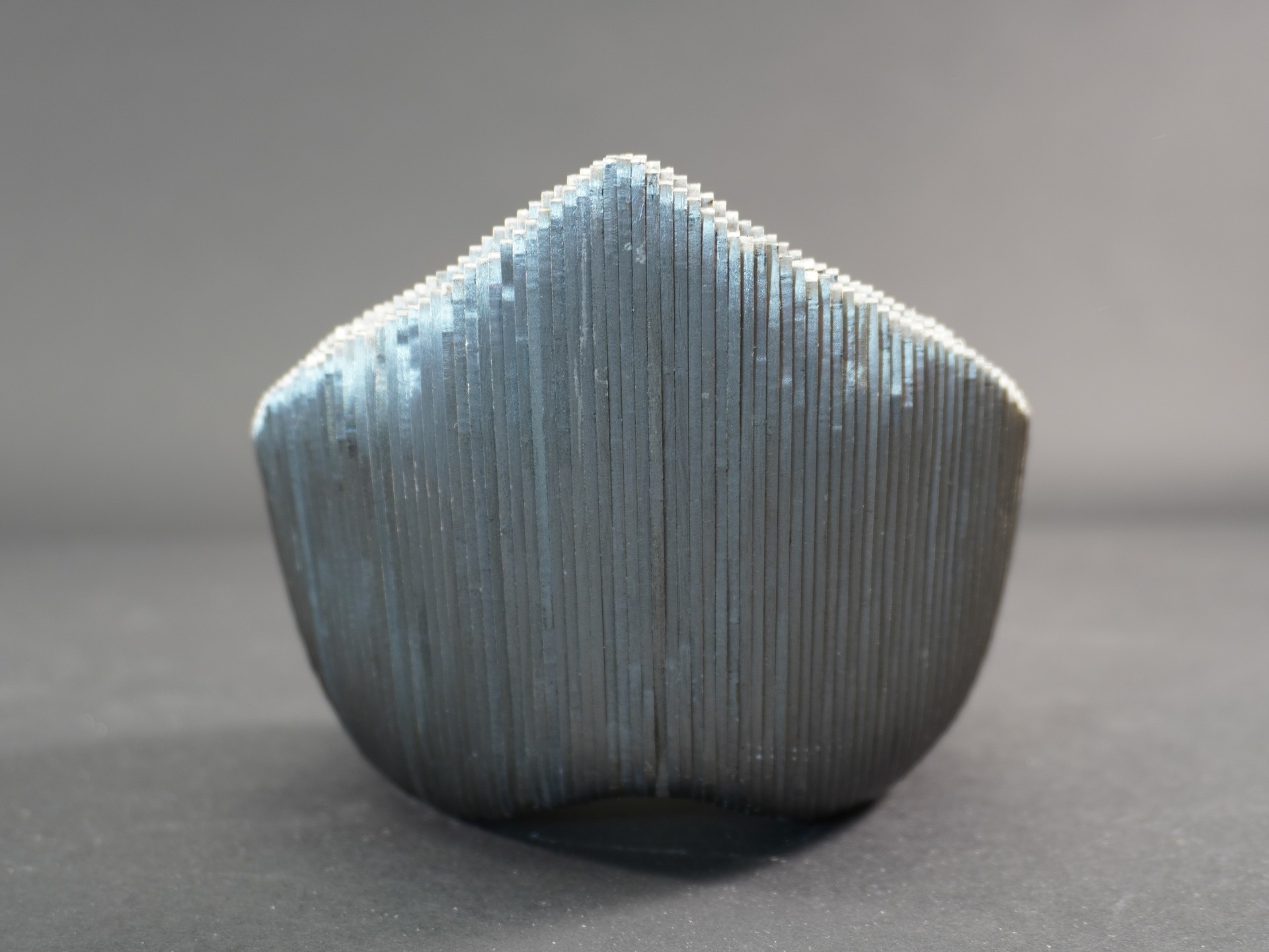

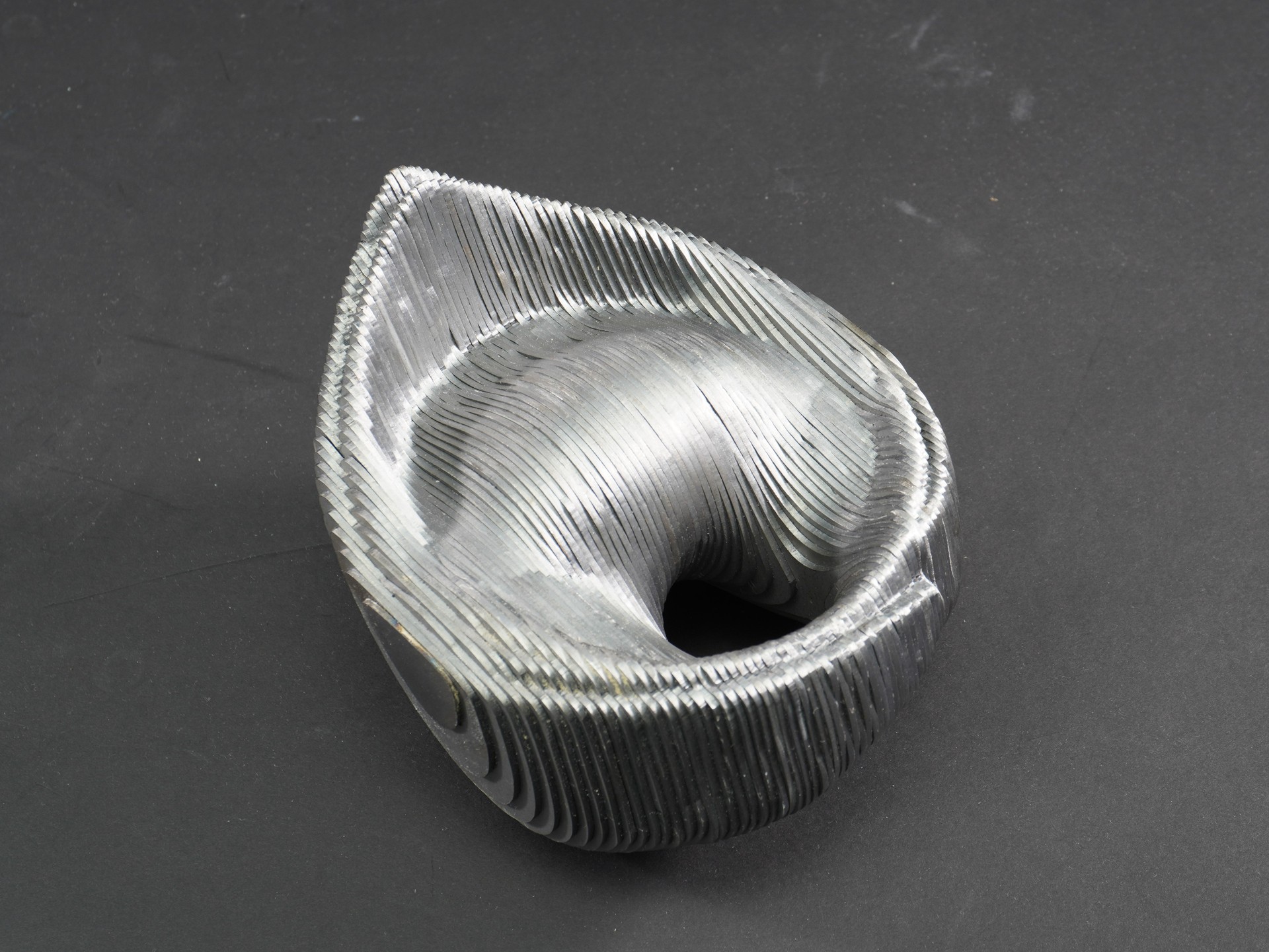

We used the same 3D slicing technique found in modern additive manufacturing to recreate the iconic Emilian Tortellino as a layered sculpture.
Emilian Heart represents the soul of Emilia-Romagna, where traditional food and mechanical craftsmanship live side by side. A small tribute to our land, shaped by both innovation and tradition.

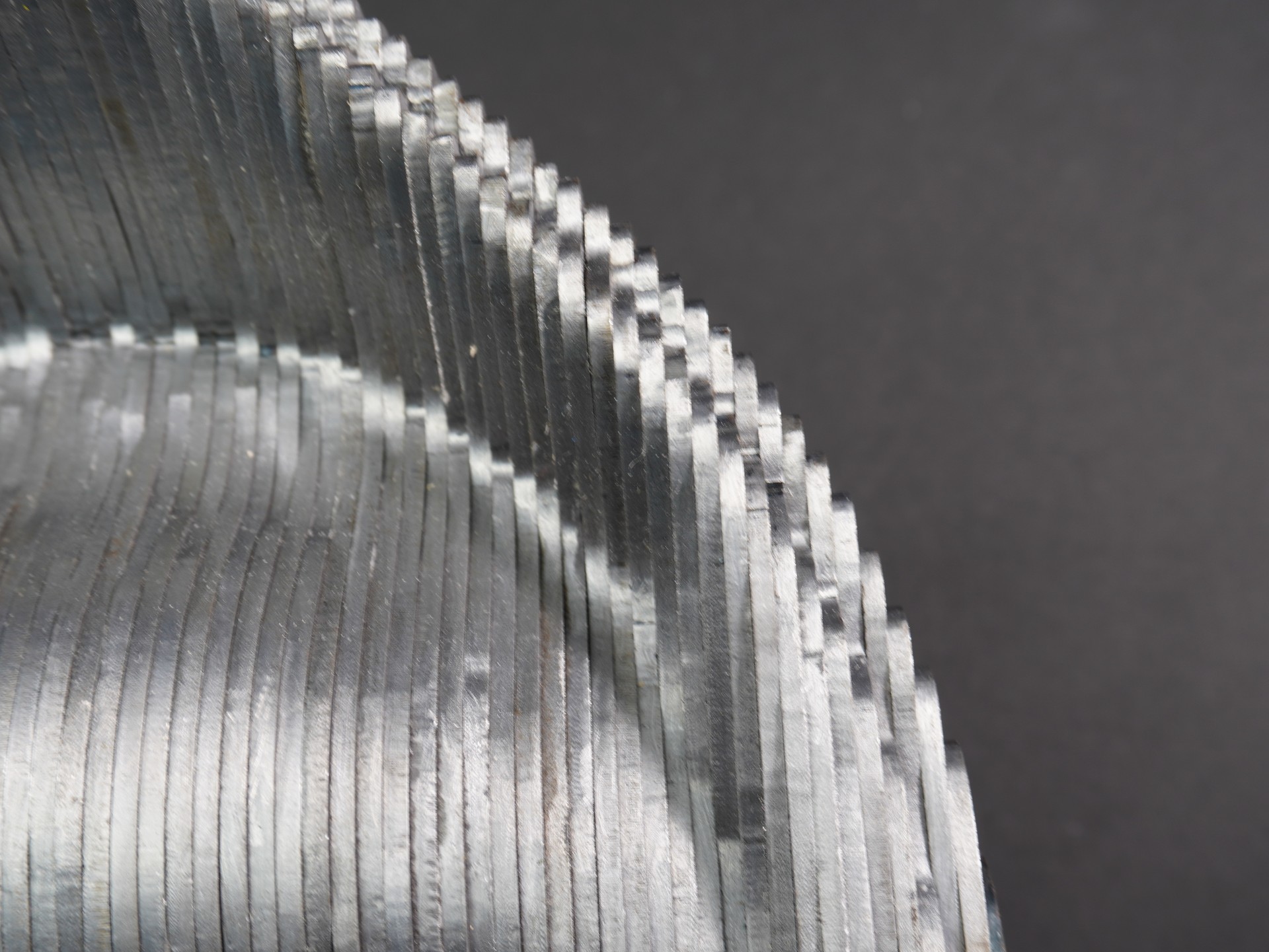

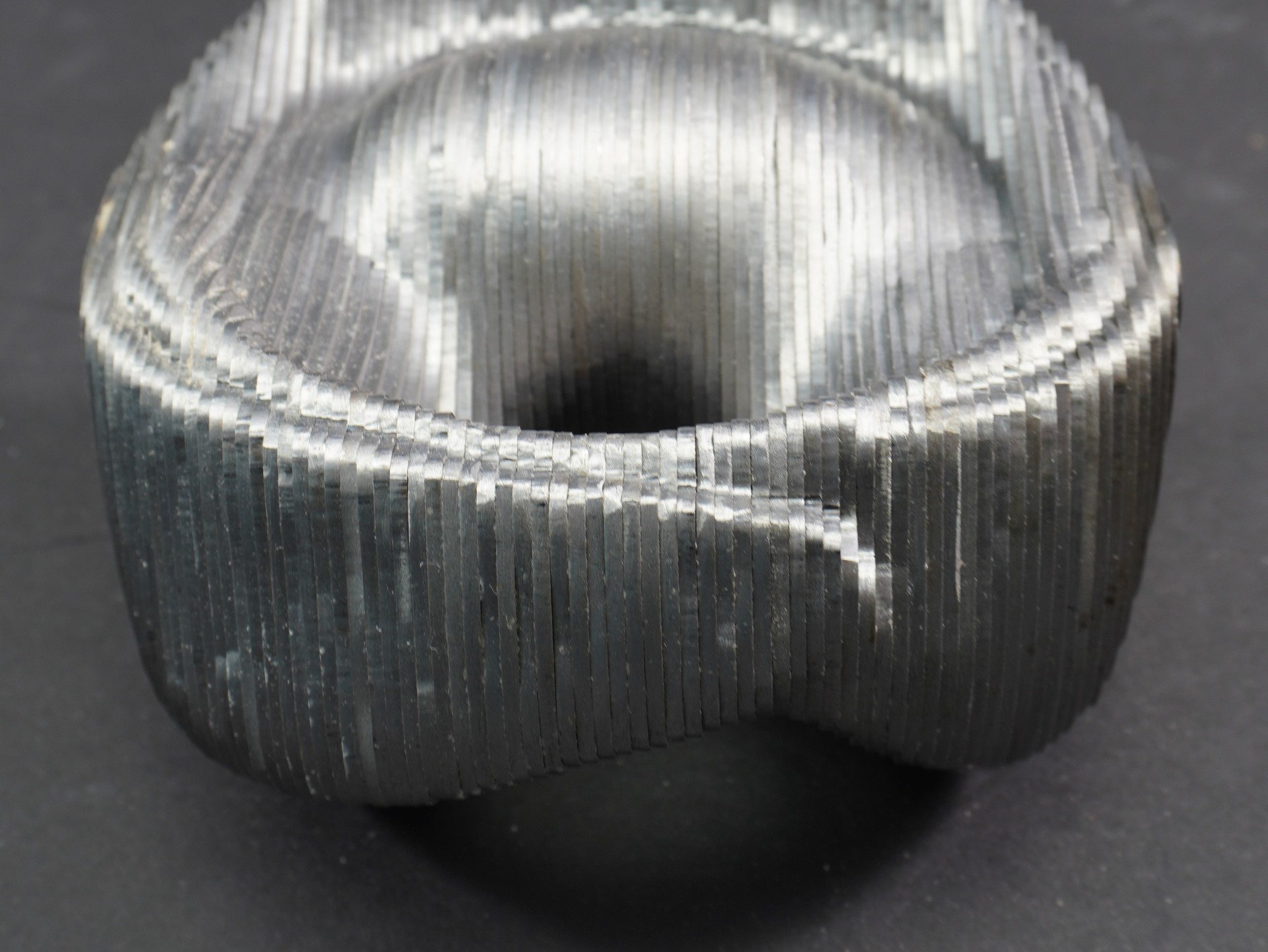

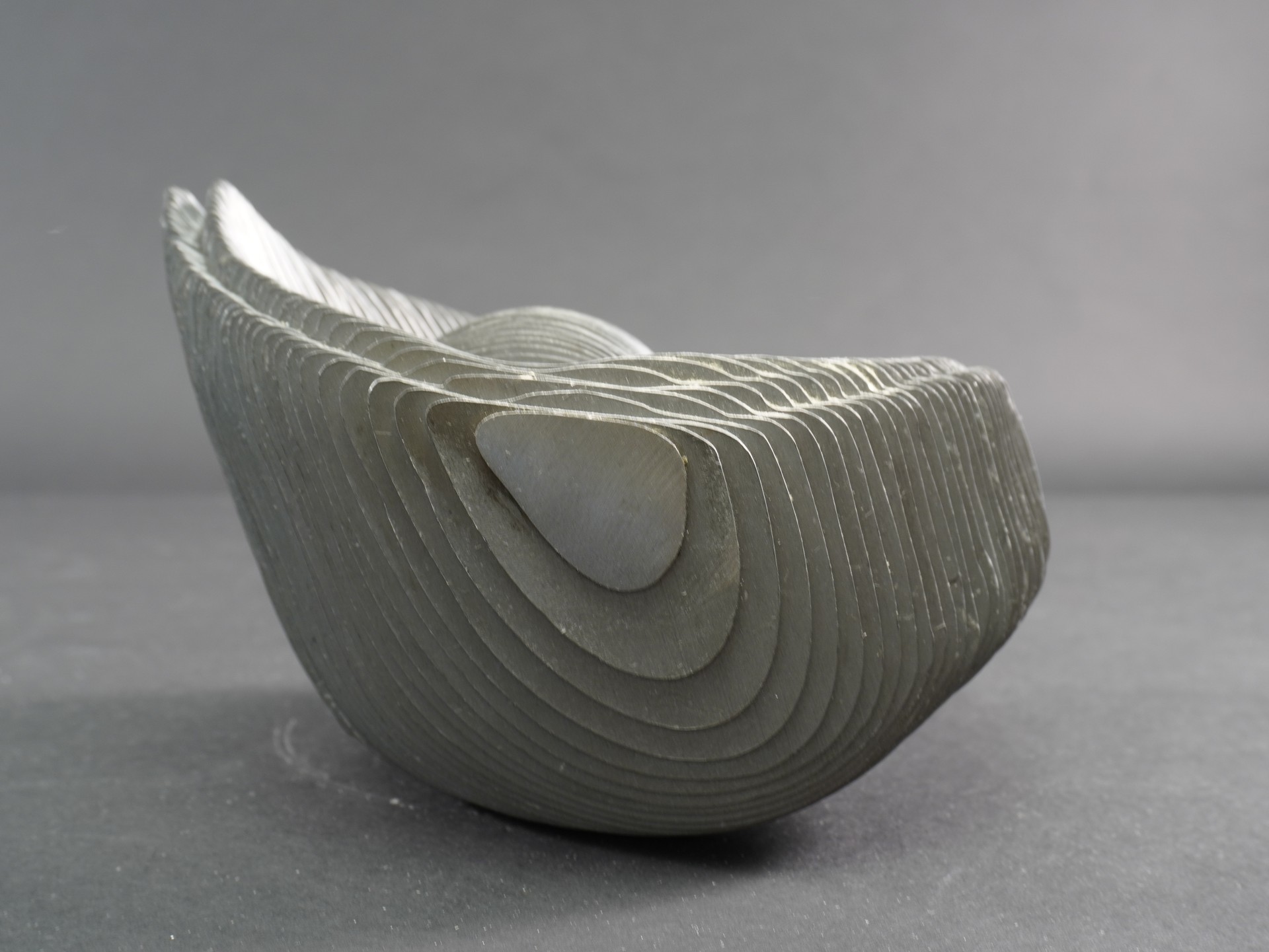

Each layer is cut individually and then stacked, forming the final solid object.
Once assembled, the object weighs approximately 9 kg.
The first assembled prototype provided valuable feedback for the refinement phase.
