第38回優秀板金製品技能フェア
造形品の部 全37作品
造形451
オッシモリ
-
・サイズ: W355 × D355 × H20 mm
-
・精度: ± 0,1 mm
・プログラム時間: 120 分
-
・加工時間: 180 分／個
・加工数量: 1 個
-
・材質: ERGAL ALUMINIUM and MILD STEEL
-
・板厚: ALUMINIUM 2MM; MILD mm
-
・作品種類: オリジナル品
加工工程
レーザ加工
曲げ
溶接
塗装
アピールポイント
This piece, part of the Ossimori collection, was created specifically for the competition in AMADA’s colors: red, black, and silver.

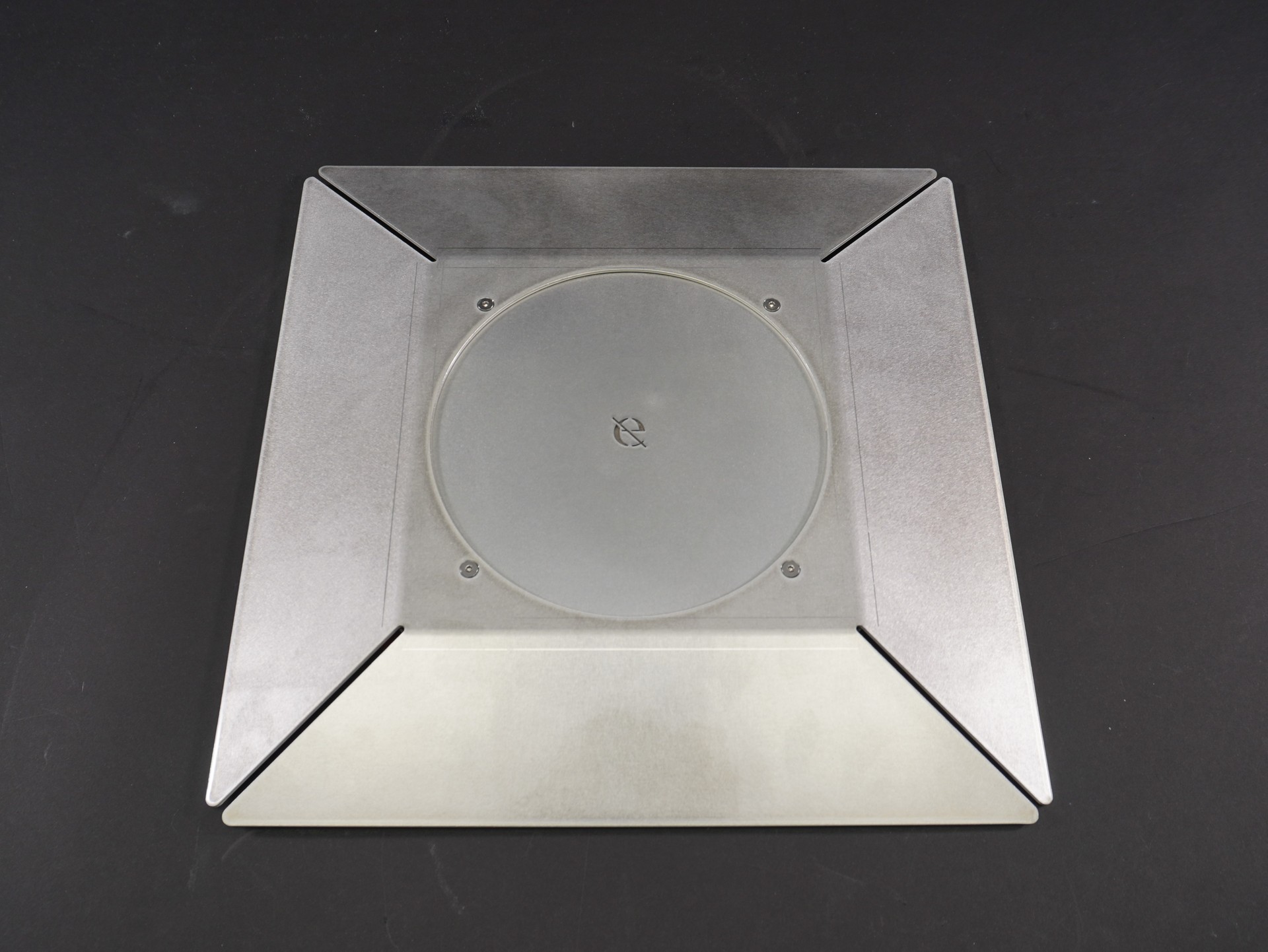

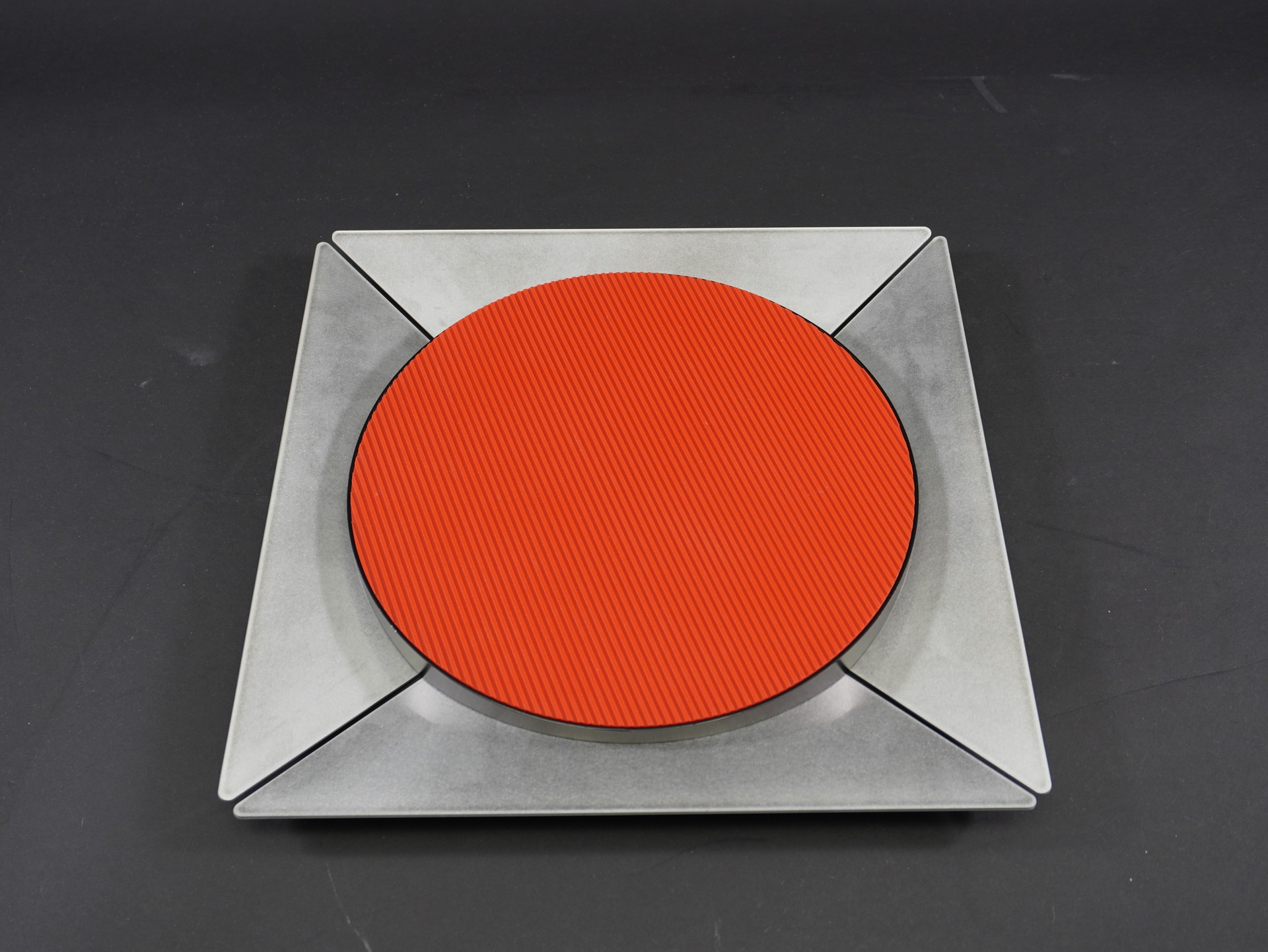

The distinctive feature of this tray lies in the combination of two shapes — the square and the circle — structured in such a way that the circle appears to emerge from the base.
The aluminum used is a type characterized by extremely high strength and lightness; it can be bent only up to a certain radius, beyond which it breaks.

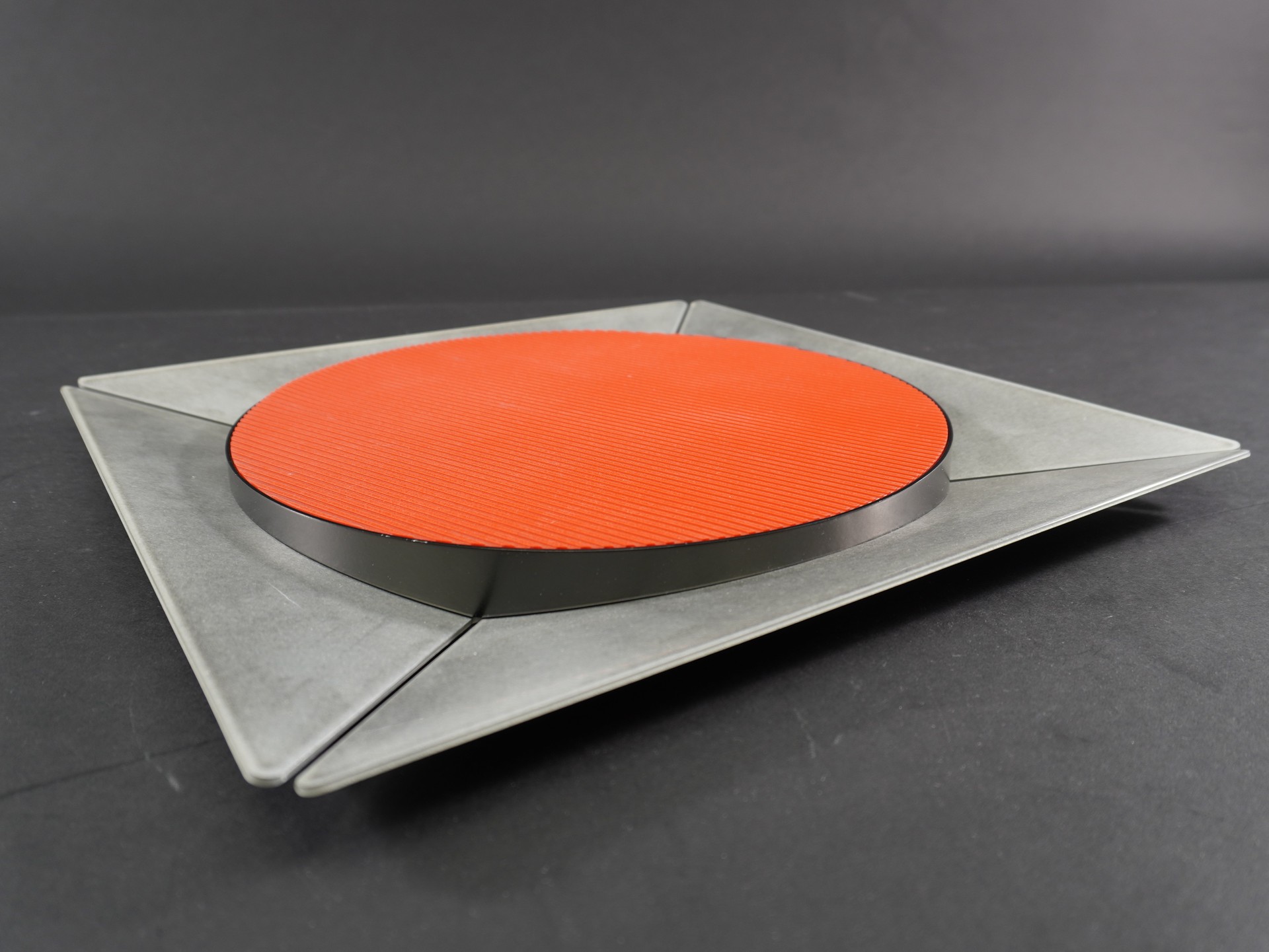

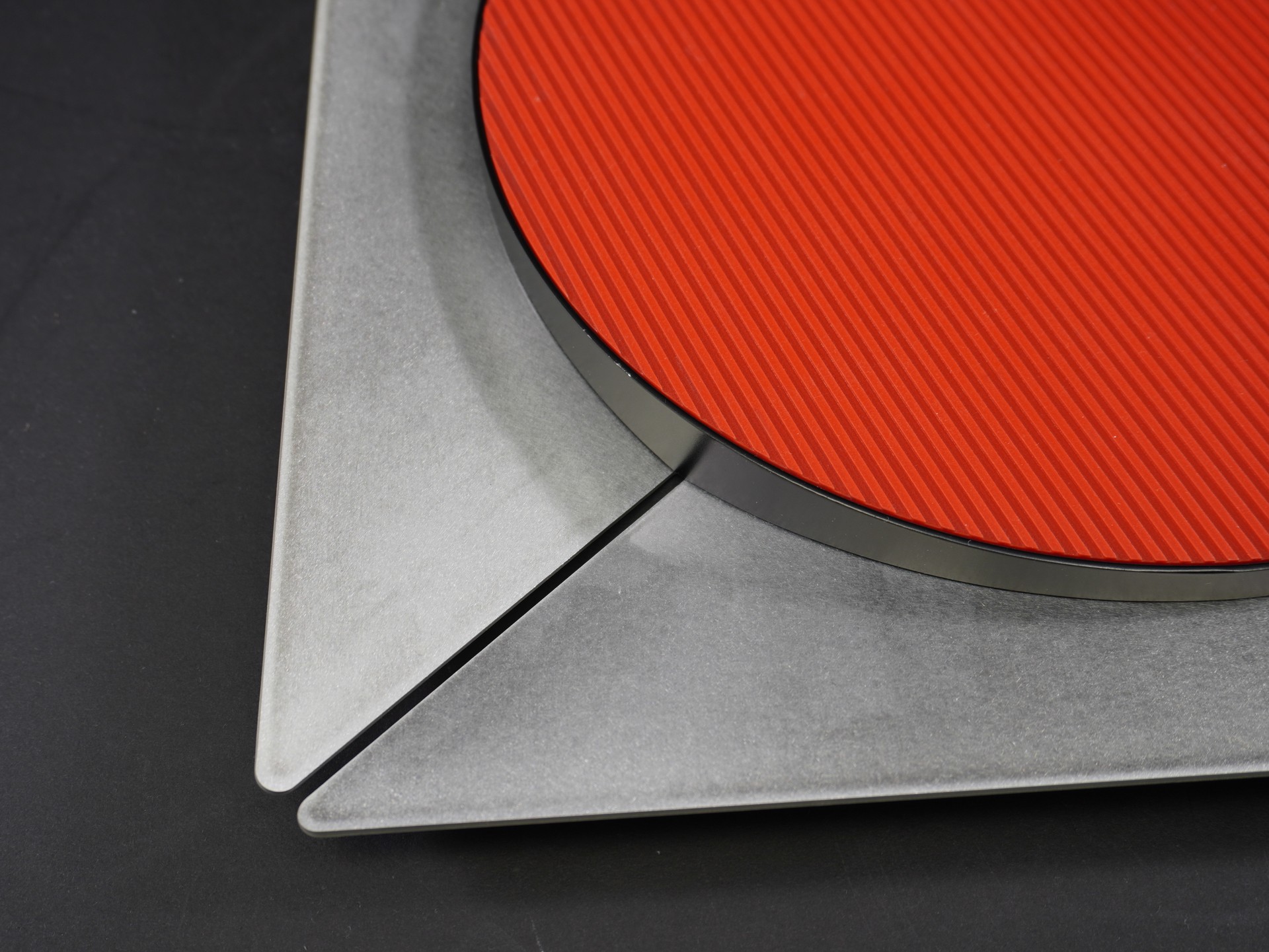

The challenge lies in assembling the iron ring, which is created through a calendering process of the iron band and then welded to the disc to form the support surface for the heat-resistant silicone mat.
