第38回優秀板金製品技能フェア

造形品の部 全49作品

360°から作品を見る

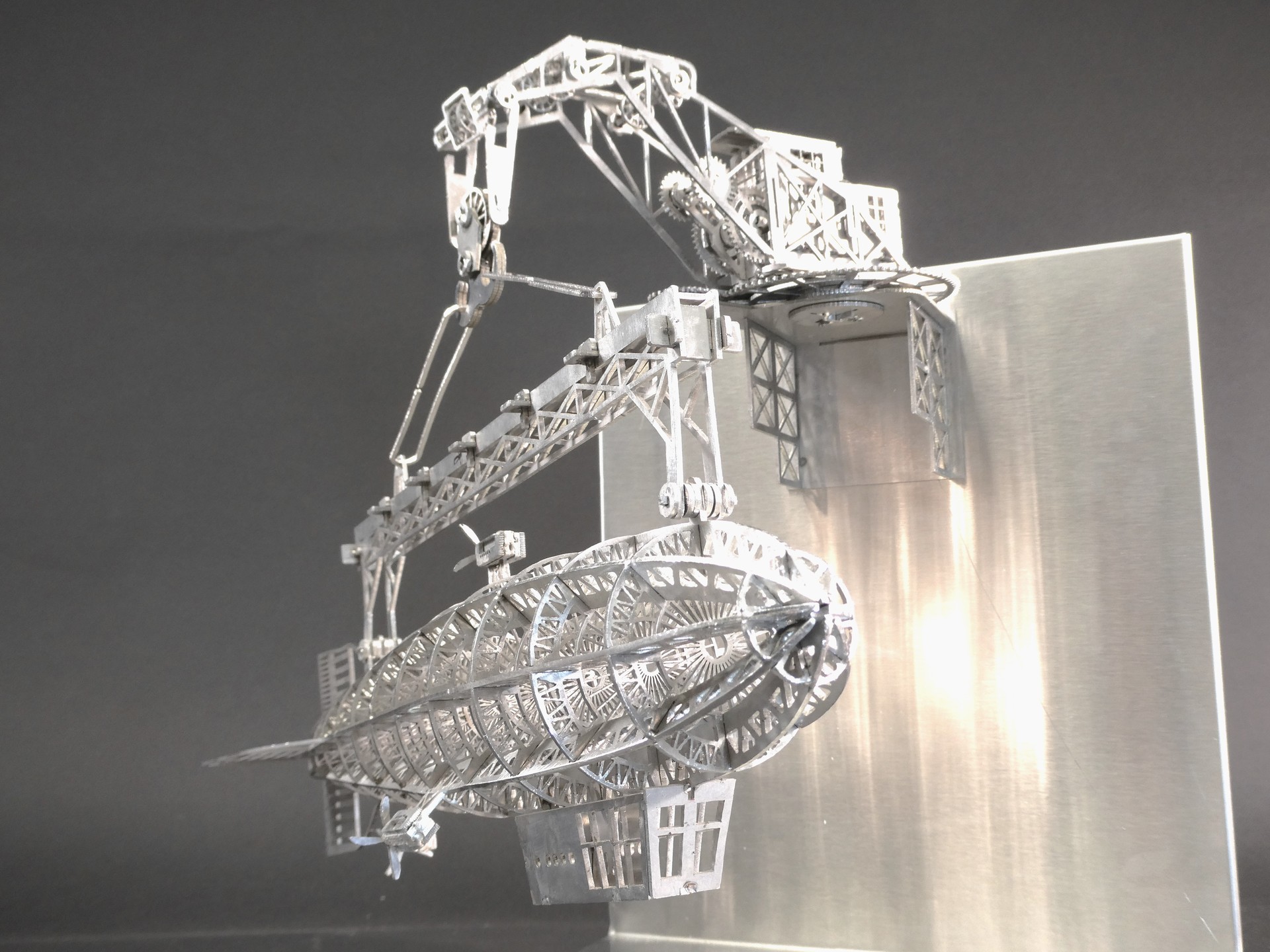

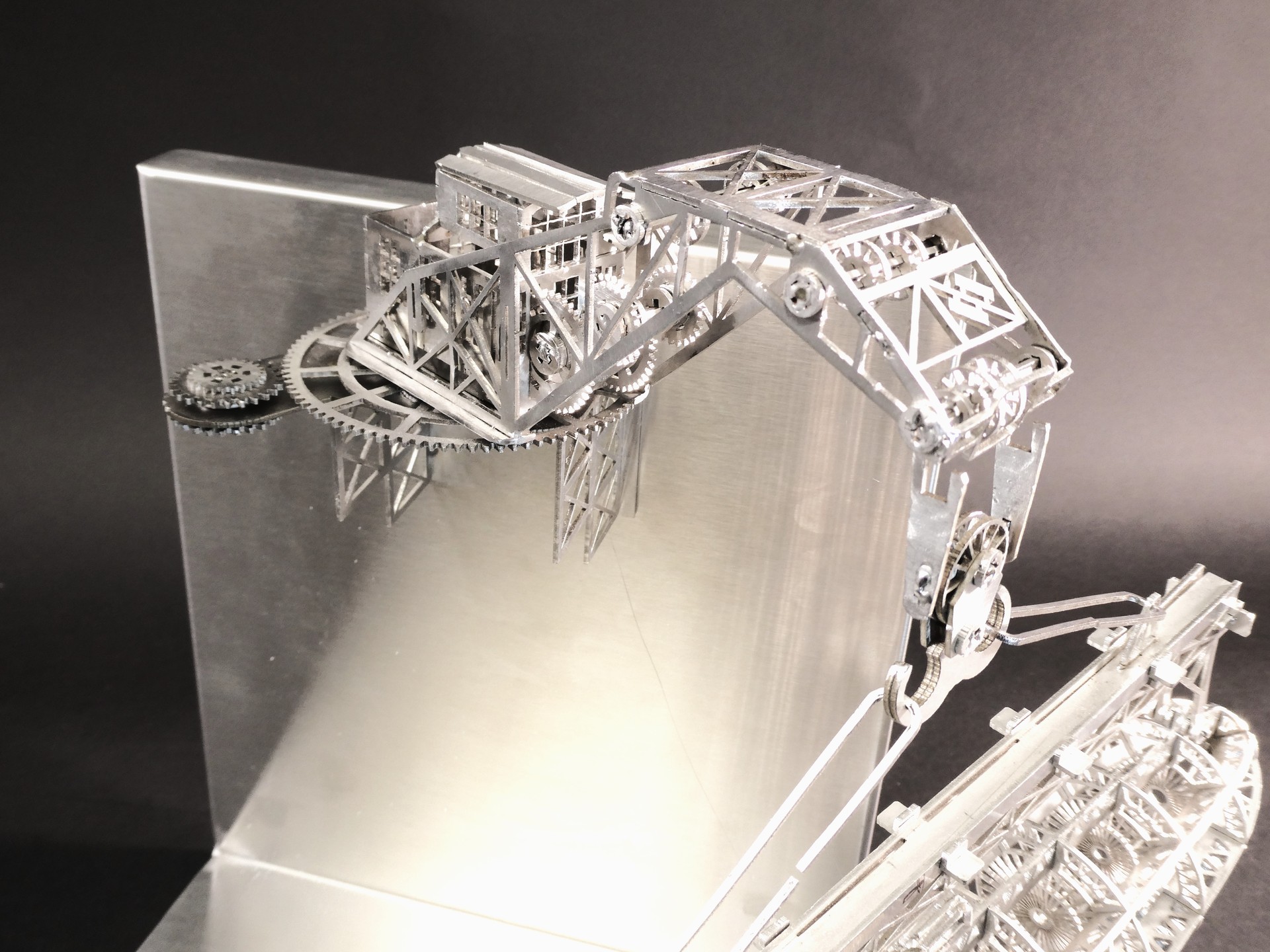

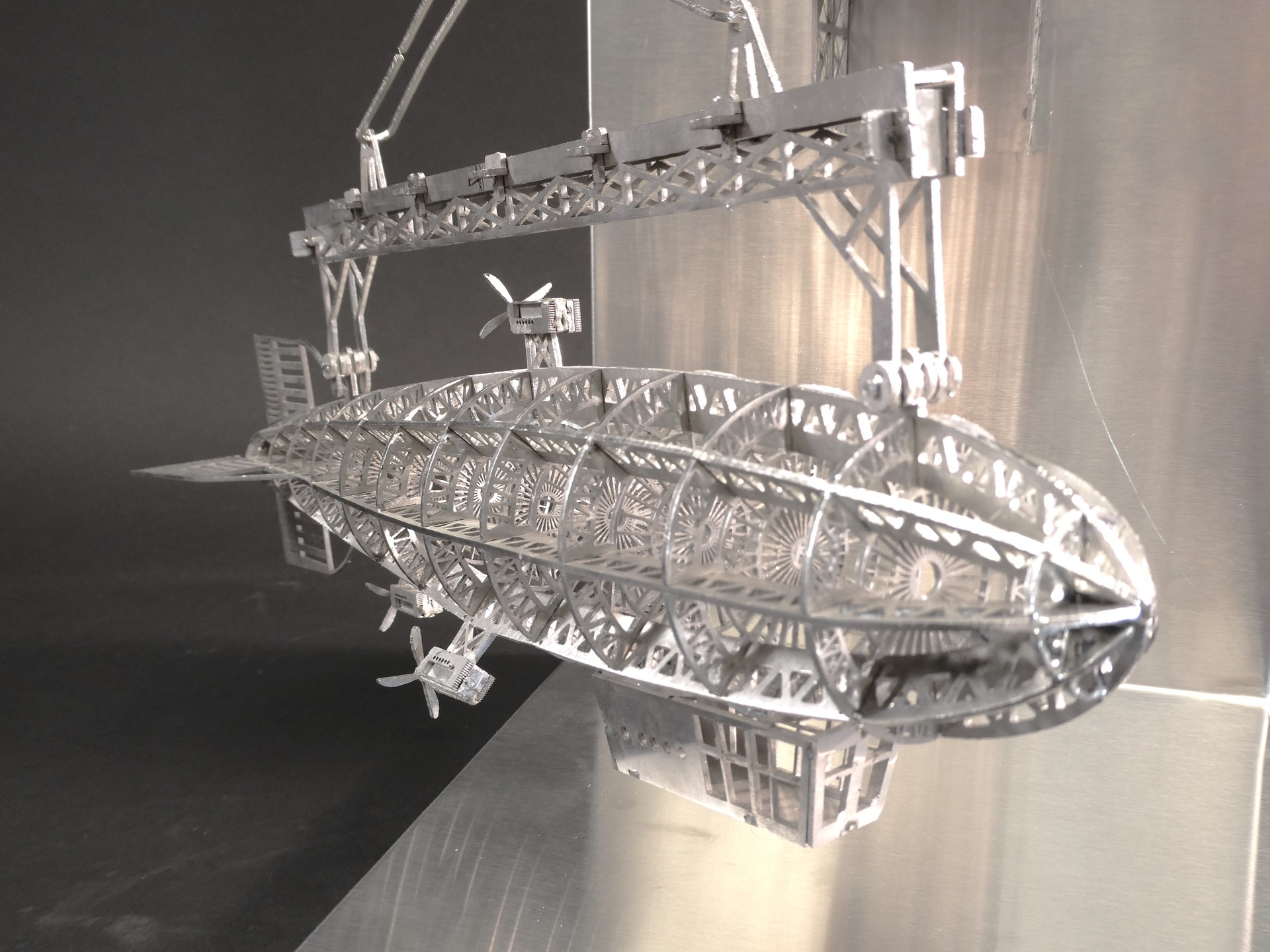

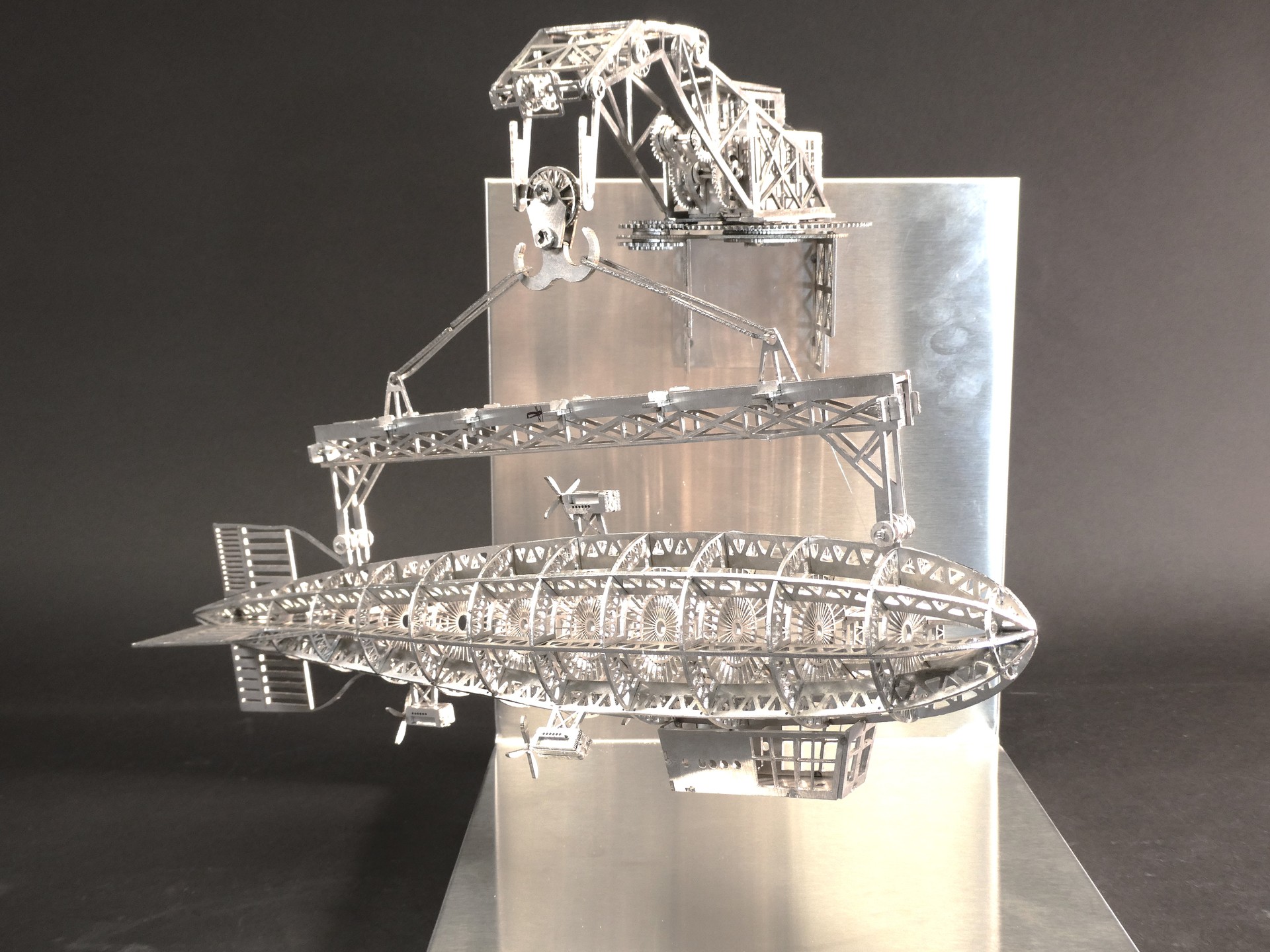

造形429

JVSS エアシップ

  • ・サイズ: W254 × D254 × H279 mm

  • ・精度: ± 0.1-0.5 MM mm

  • ・プログラム時間: 120 分

  • ・加工時間: 180 分／個

  • ・加工数量: 1 個

  • ・材質: ステンレス（SUS304）

  • ・板厚: 1.5 mm

  • ・作品種類: 試作品

加工工程

  • 2D/3D設計

  • プログラム

  • レーザ加工

  • 絞り加工

  • 曲げ

  • 溶接

  • 表面仕上げ

アピールポイント

Our process involved laser cutting, bending, and surface finishing to achieve high accuracy and superior product quality. Laser cutting ensured precise dimensions with minimal burrs, while CNC bending provided consistent angles and tight tolerances. After forming, the surface was finished using polishing and deburring techniques to remove oxidation marks and improve appearance. This innovation reduced processing time by 30% and improved overall QCD performance. Quality increased through accurate laser profiles, cost decreased by reducing manual rework, and delivery improved due to faster production flow. The final components showed excellent edge quality, smooth surface texture, and consistent geometry, meeting all design and customer requirements.
