第38回優秀板金製品技能フェア
造形品の部 全49作品
造形410

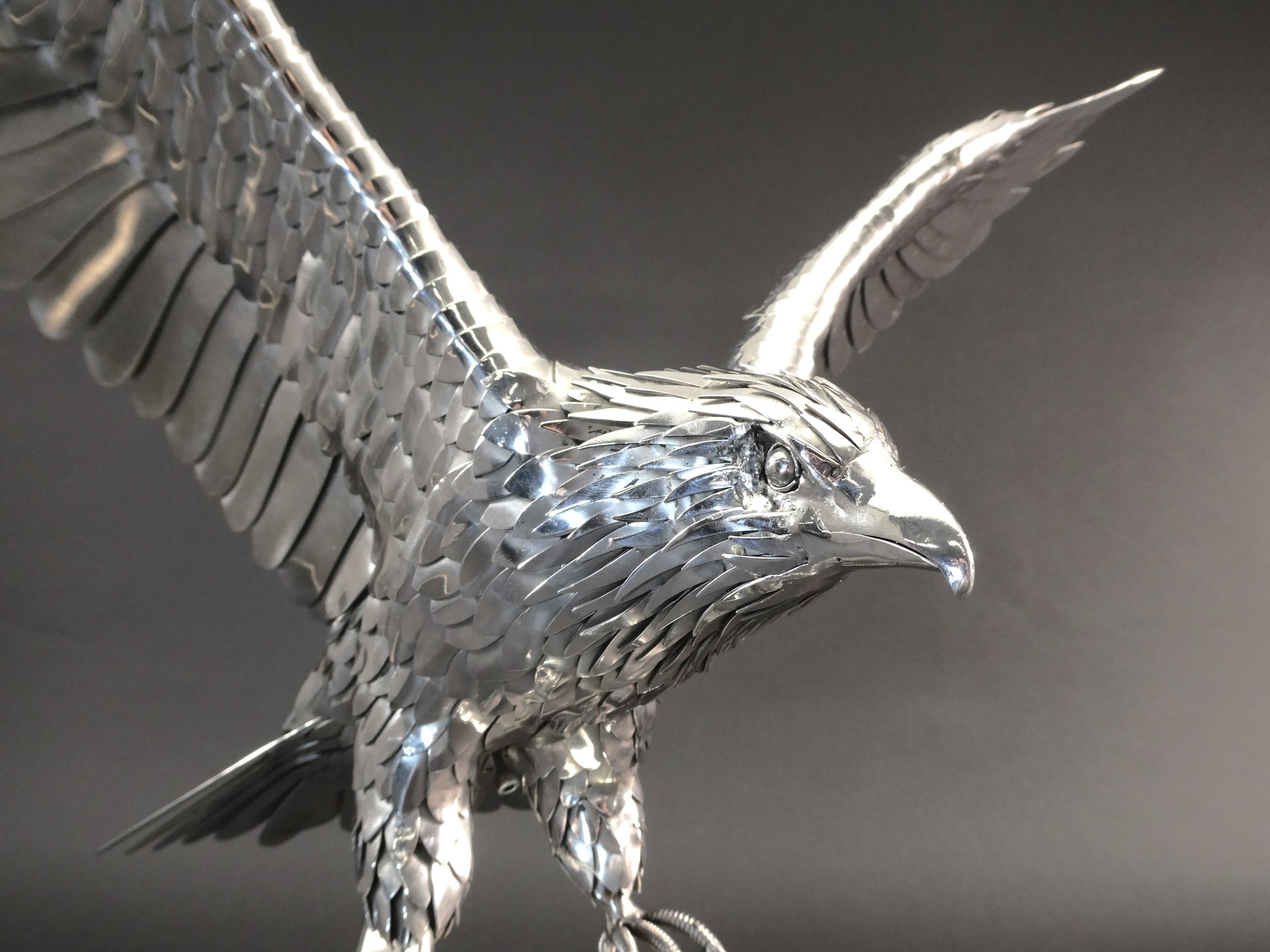

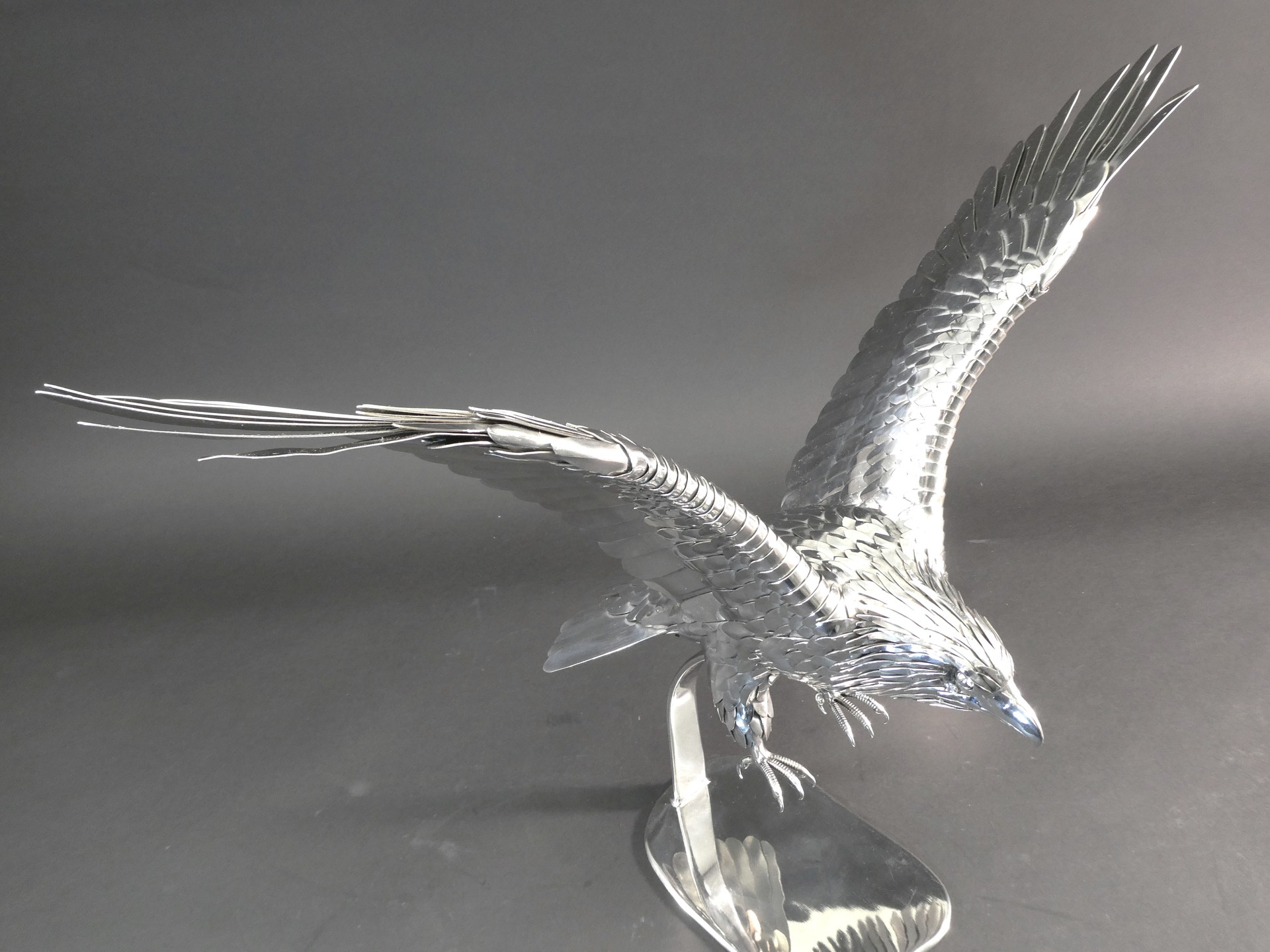

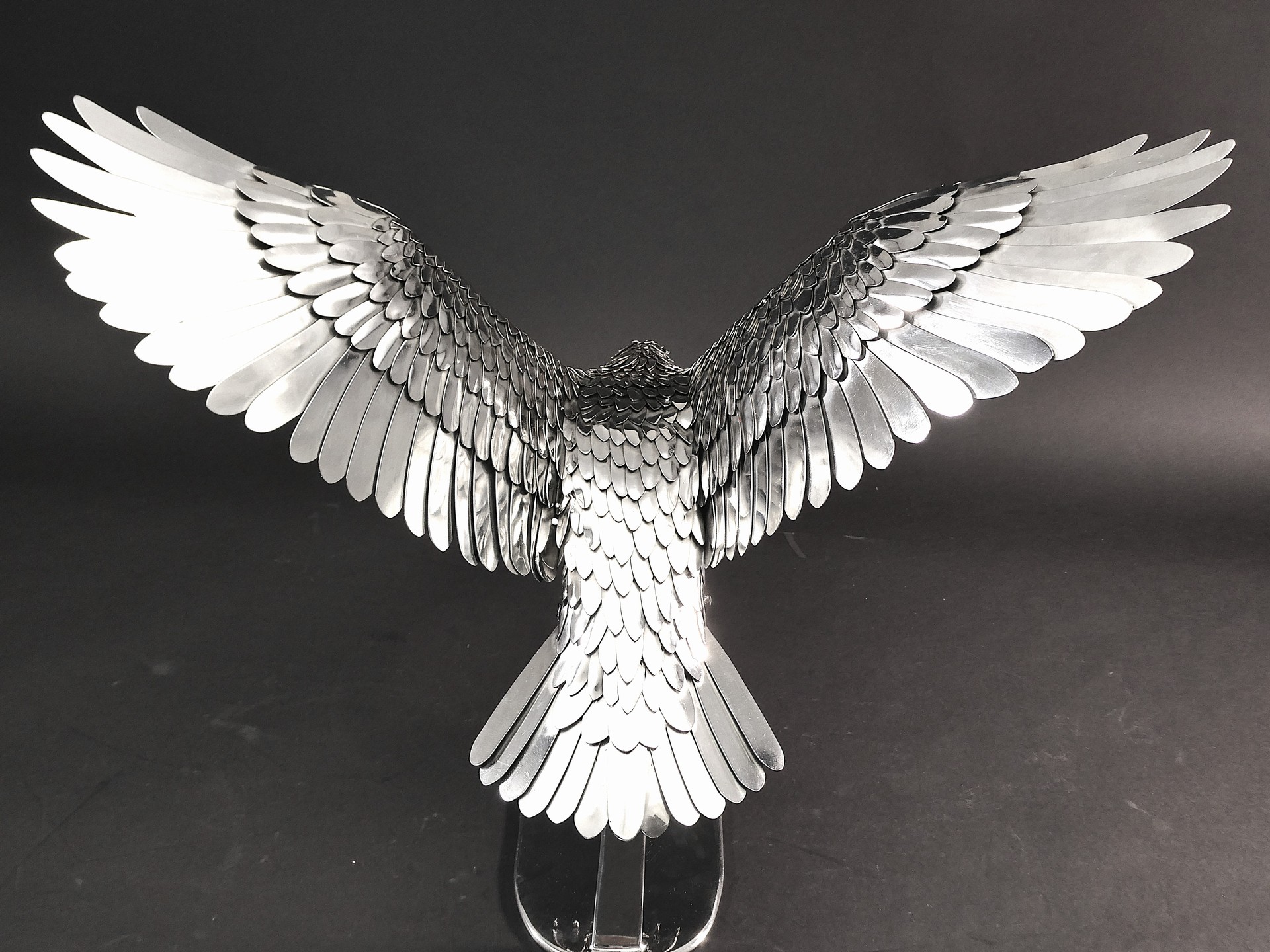

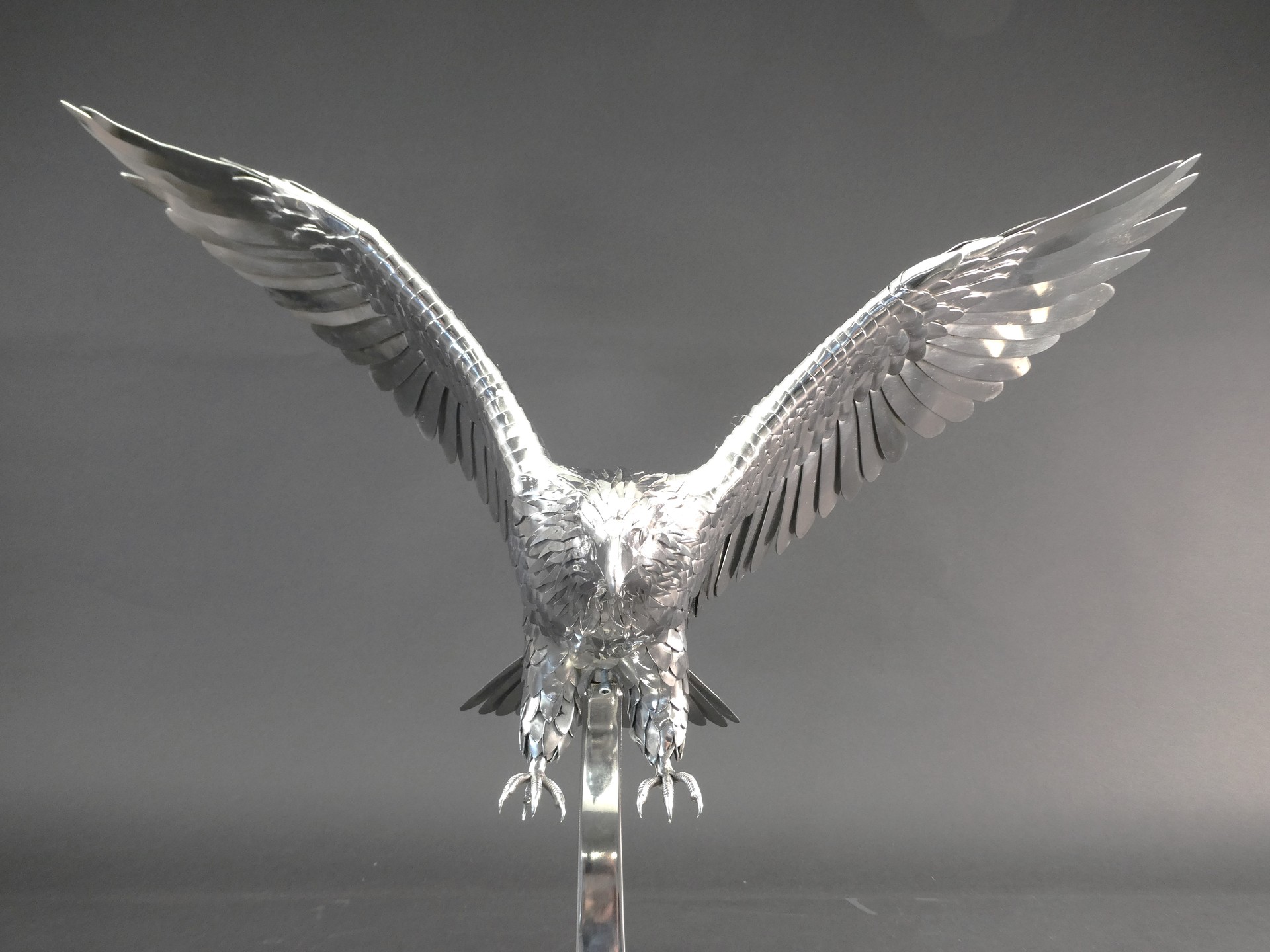

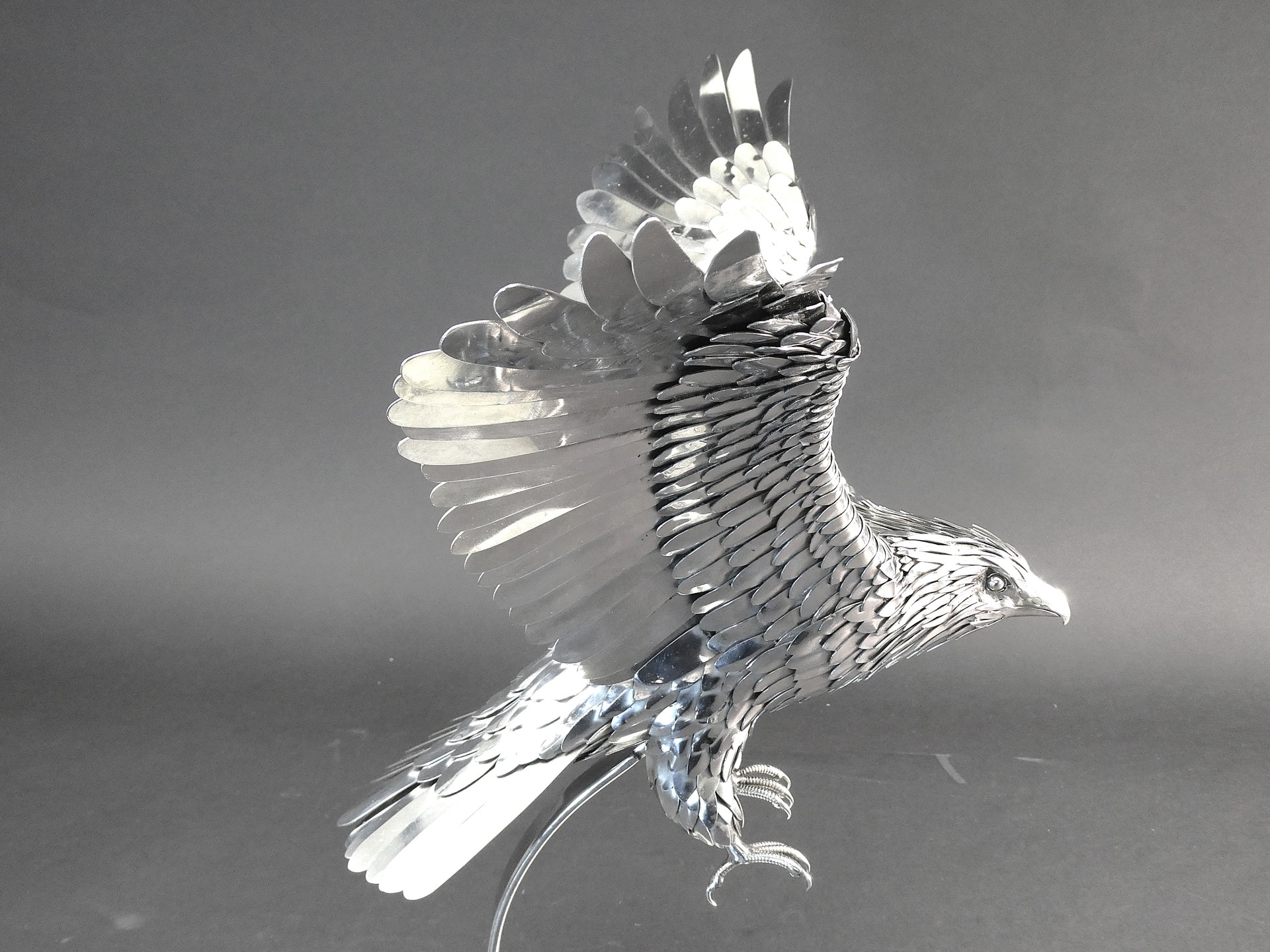

飛翔する鷲
-
・サイズ: W580 × D400 × H520 mm
-
・精度: ± 1 mm mm
・プログラム時間: 60 分
-
・加工時間: 4 weeks 分／個
・加工数量: 1 個
-
・材質: ステンレス（SUS304）
-
・板厚: 1mm mm
-
・作品種類: オリジナル品
加工工程
2D/3D設計
展開
プログラム
レーザ加工
成形
レーザ溶接
組立
表面仕上げ
アピールポイント
1. 3D MODELLING WAS DEVELPOPED ON SOLIDWORKS
2. 3D MODEL THEN CONVERTED TO SHEET METAL COMPONENTS IN SOLIDWORKS
3. INDIVIDUAL SHEET METAL COMPONENTS WERE THEN NESTED BY OMNIWIN
SOFTWARE. TOTAL MATERIAL REQUIRED WAS SS 304 1 MM SHEET 1250 X 1250 MM
4. INDIVIDUAL COMPONENTS WERE CUT BY 2KW LASER CUTTING M/C.
5. INDIVIDUAL SHEET METAL COMPONENTS WERE FOLDED/FORMED MANUALLY TO
OBTAIN THE REQUIRED SHAPE.
6. EACH COMPONENT WAS THEN PROGRESSIVELY WELDED ONE AFTER THE OTHER
MANUALLY BY LASER WELDING MACHINE.
7. AFTER WELDING, ENTIRE SCULPTURE WAS MANUALLY POLISHED TO MIRROR FINISH
2. 3D MODEL THEN CONVERTED TO SHEET METAL COMPONENTS IN SOLIDWORKS
3. INDIVIDUAL SHEET METAL COMPONENTS WERE THEN NESTED BY OMNIWIN
SOFTWARE. TOTAL MATERIAL REQUIRED WAS SS 304 1 MM SHEET 1250 X 1250 MM
4. INDIVIDUAL COMPONENTS WERE CUT BY 2KW LASER CUTTING M/C.
5. INDIVIDUAL SHEET METAL COMPONENTS WERE FOLDED/FORMED MANUALLY TO
OBTAIN THE REQUIRED SHAPE.
6. EACH COMPONENT WAS THEN PROGRESSIVELY WELDED ONE AFTER THE OTHER
MANUALLY BY LASER WELDING MACHINE.
7. AFTER WELDING, ENTIRE SCULPTURE WAS MANUALLY POLISHED TO MIRROR FINISH
