第38回優秀板金製品技能フェア
組立品の部 全55作品
組立223
スーツケース用留め具
-
・サイズ: W47 × D80 × H41 mm
-
・精度: ± 0,2 mm
・プログラム時間: 3 分
-
・加工時間: 1 分／個
・加工数量: 1 個
-
・材質: ステンレス（SUS304）
-
・板厚: 1,5 mm
-
・作品種類: 試作品
加工工程
2D/3D設計
CAD/CAM
パンチレーザ加工
曲げ
Deburr
Pre-assembly
組立
アピールポイント

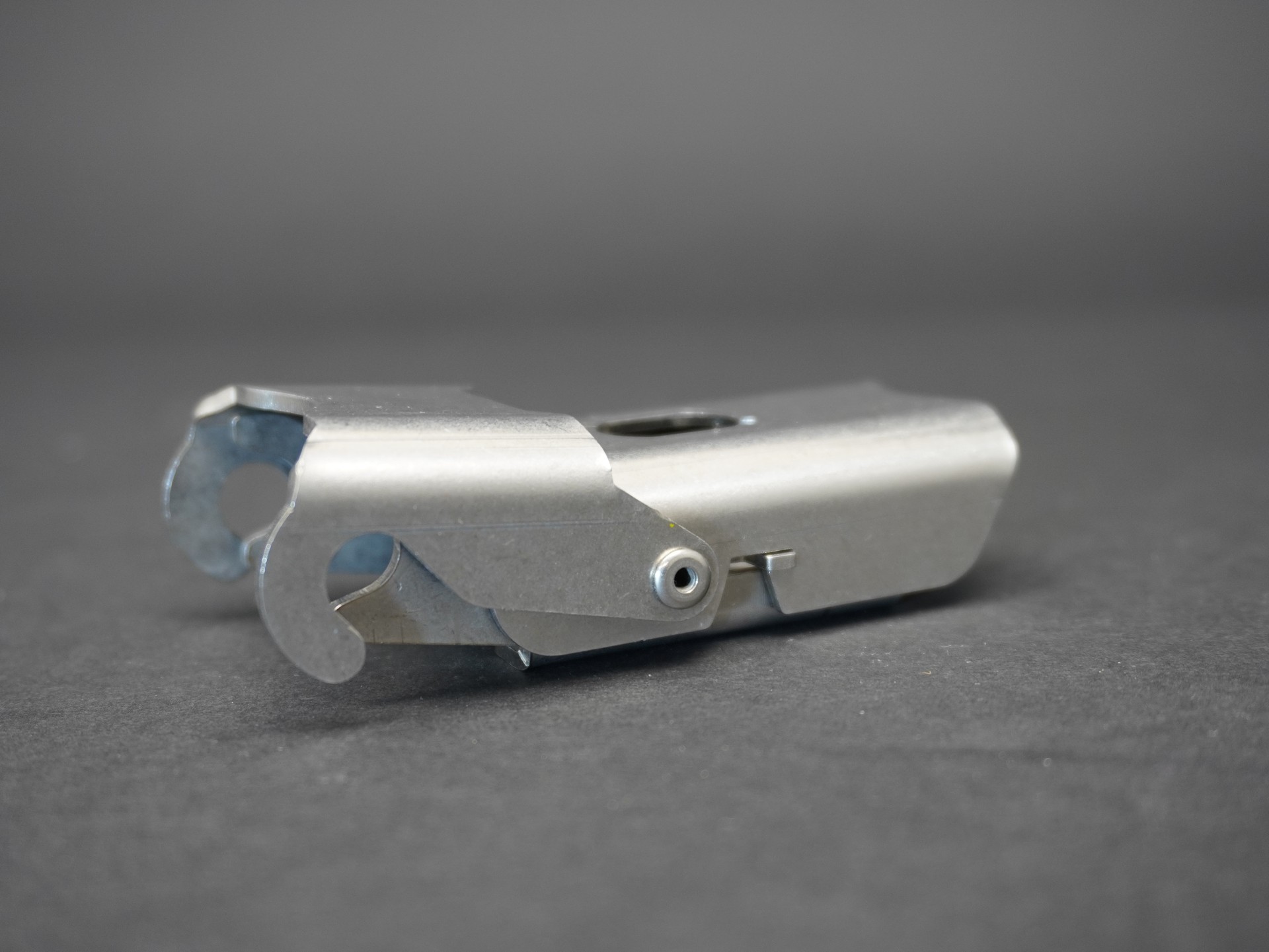

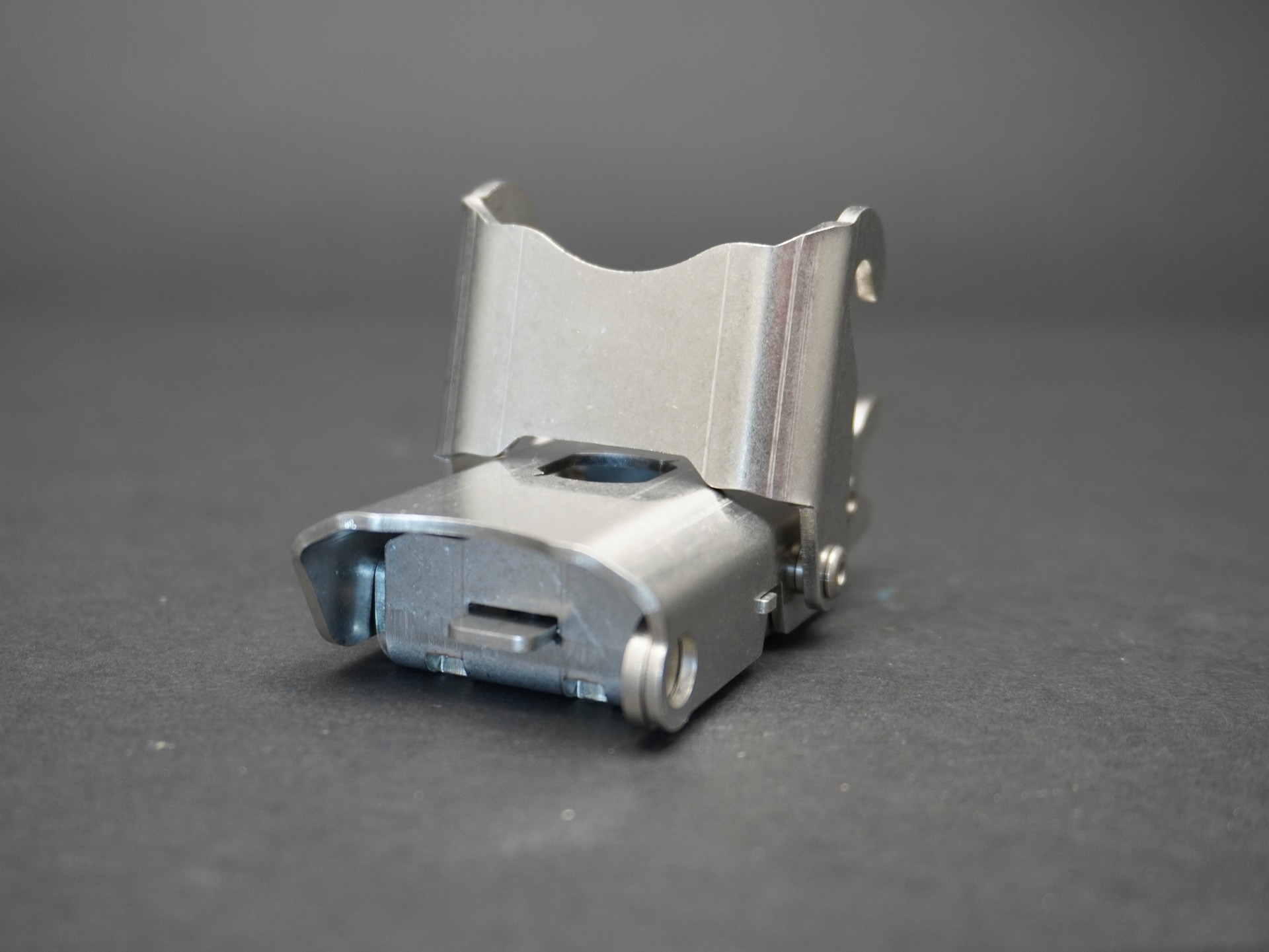

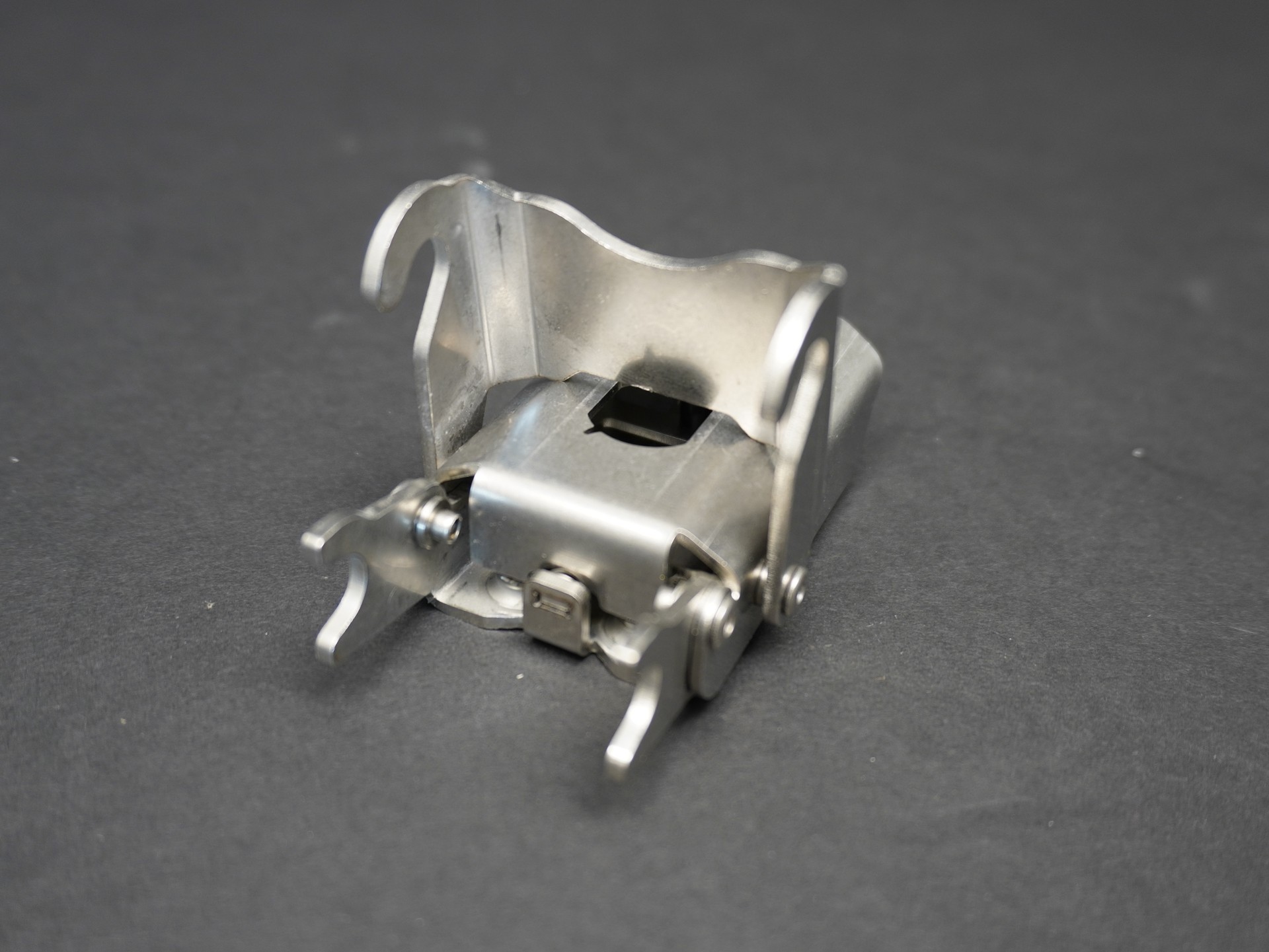

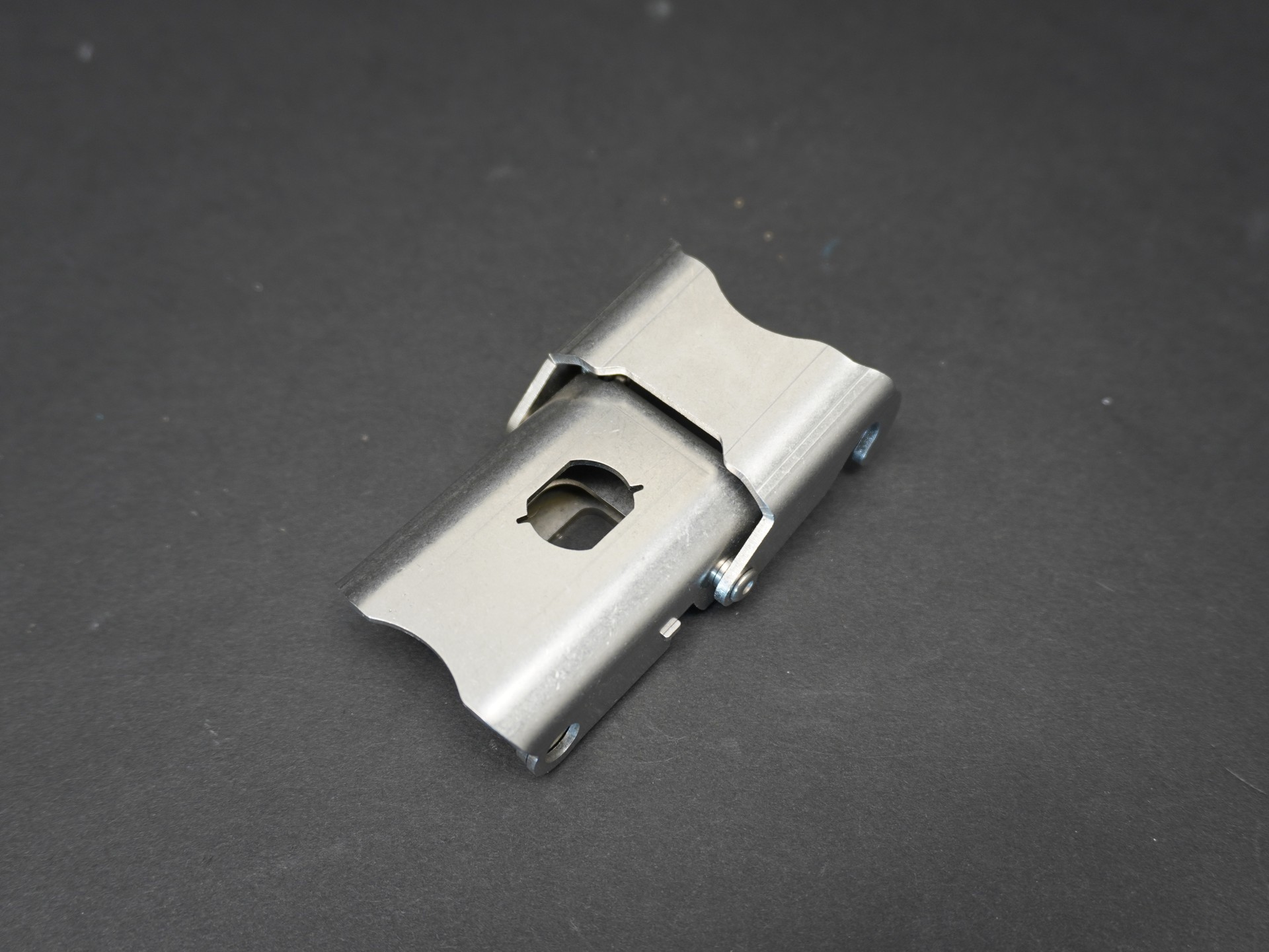

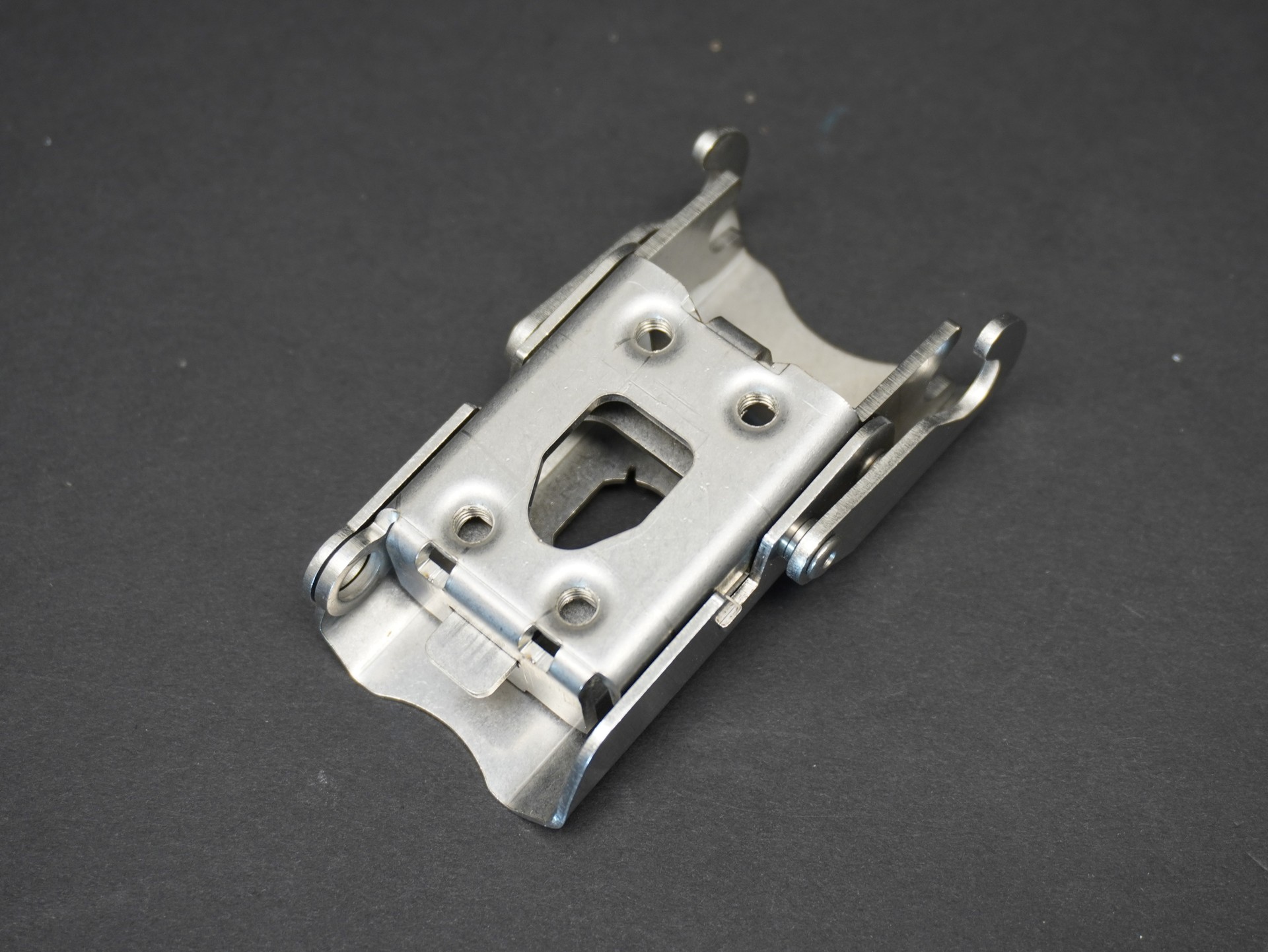

This assembly is well known among motorcycle enthusiasts and is manufactured as an OEM product for BMW, among others. It is the buckle of a motorcycle case as used on the BMW GS1200. It is a very well-designed and sophisticated part consisting only of sheet metal parts, rivets, and a spring, and is installed as such. A very attractive assembly that has been in active use for years.
