第38回優秀板金製品技能フェア
組立品の部 全55作品
組立213

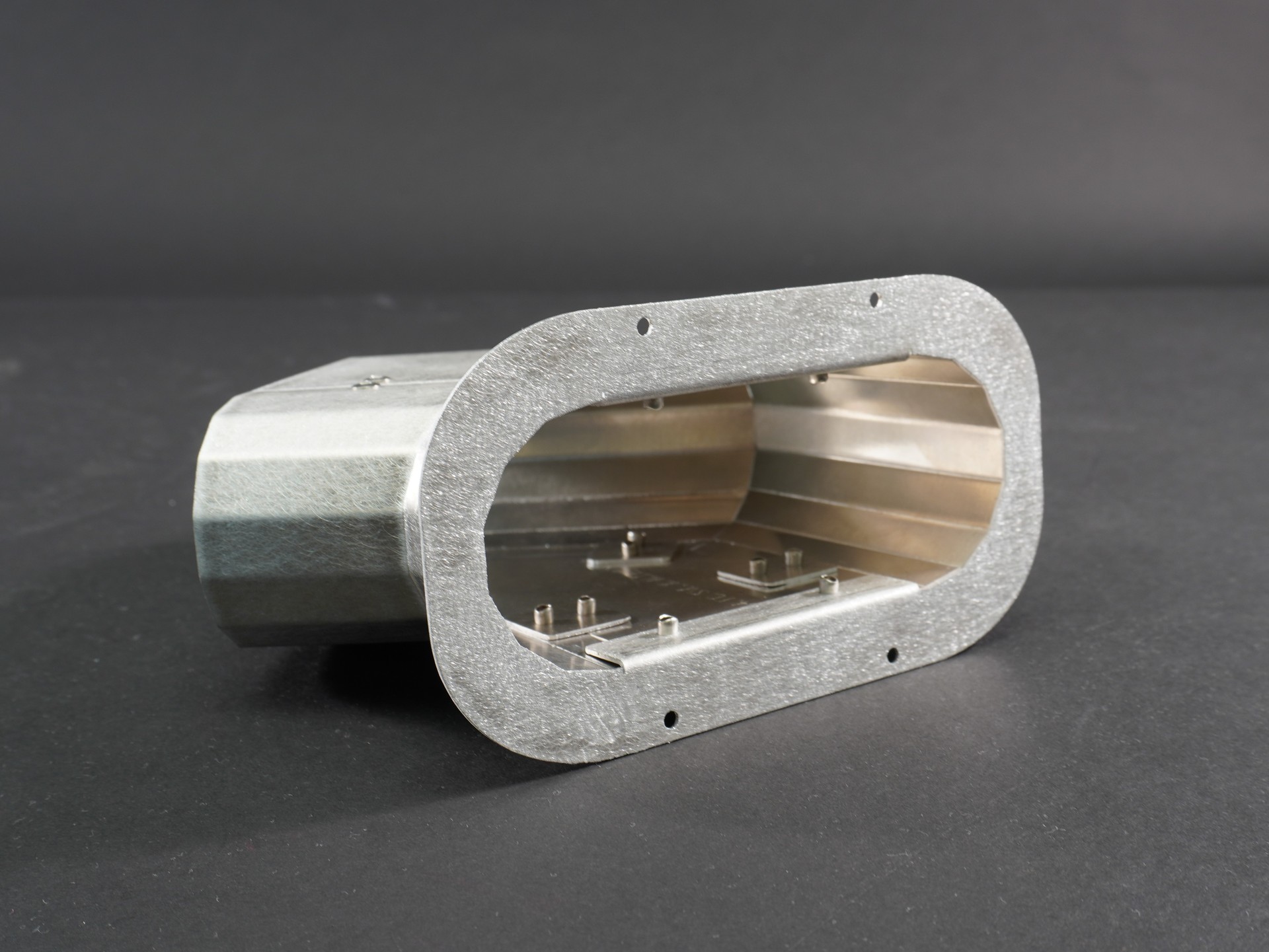

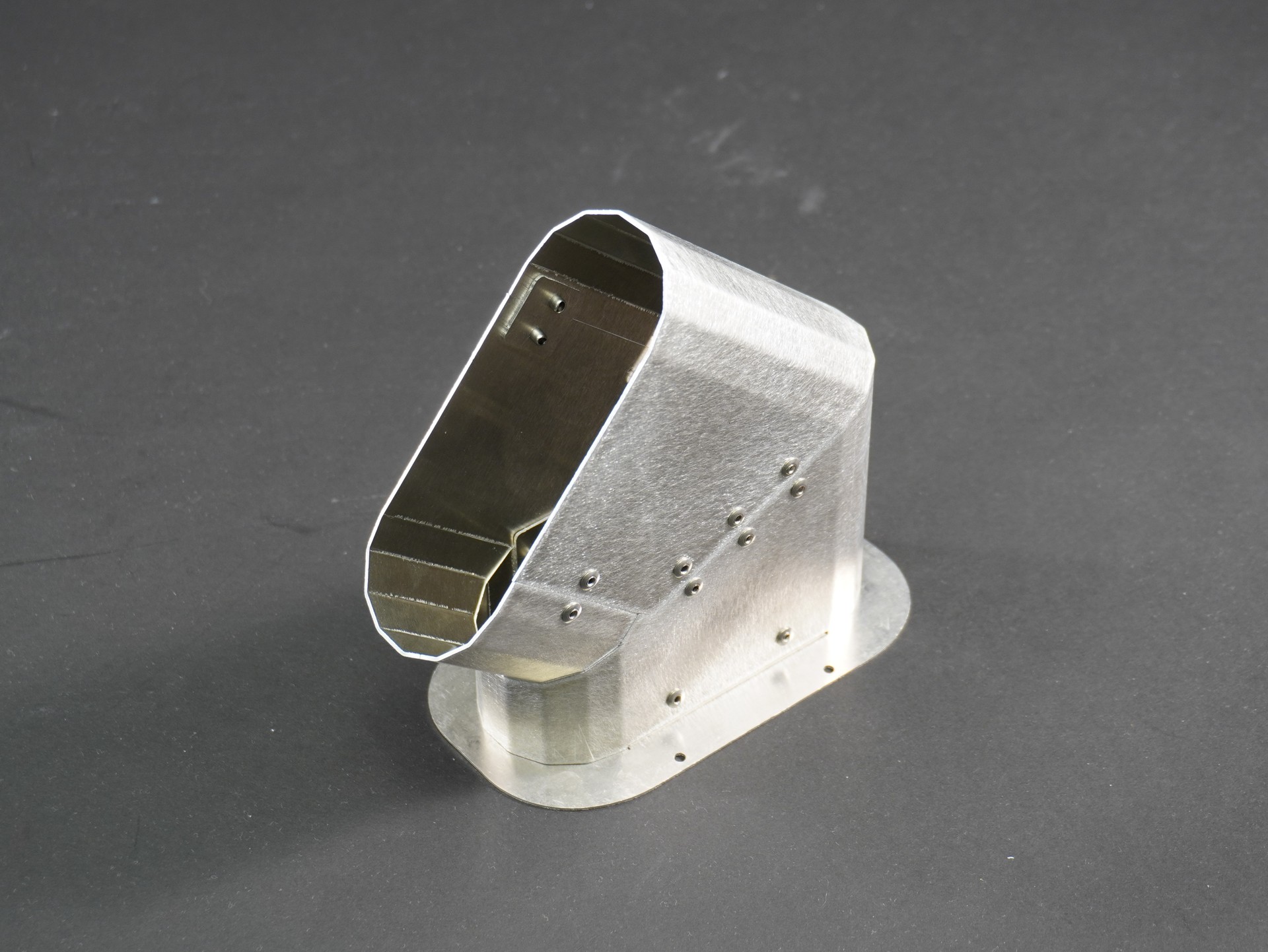

ノズル
-
・サイズ: W150 × D80 × H150 mm
-
・精度: ± 0,2 mm
・プログラム時間: - 分
-
・加工時間: 0 分／個
・加工数量: 1 個
-
・材質: AL 5754 H111
-
・板厚: 1 mm
-
・作品種類: 量産品
加工工程
2D/3D設計
パンチレーザ加工
曲げ
組立
アピールポイント
Main points:
a) Engineering of the object based on the customer's design, in which it was represented as a single object.

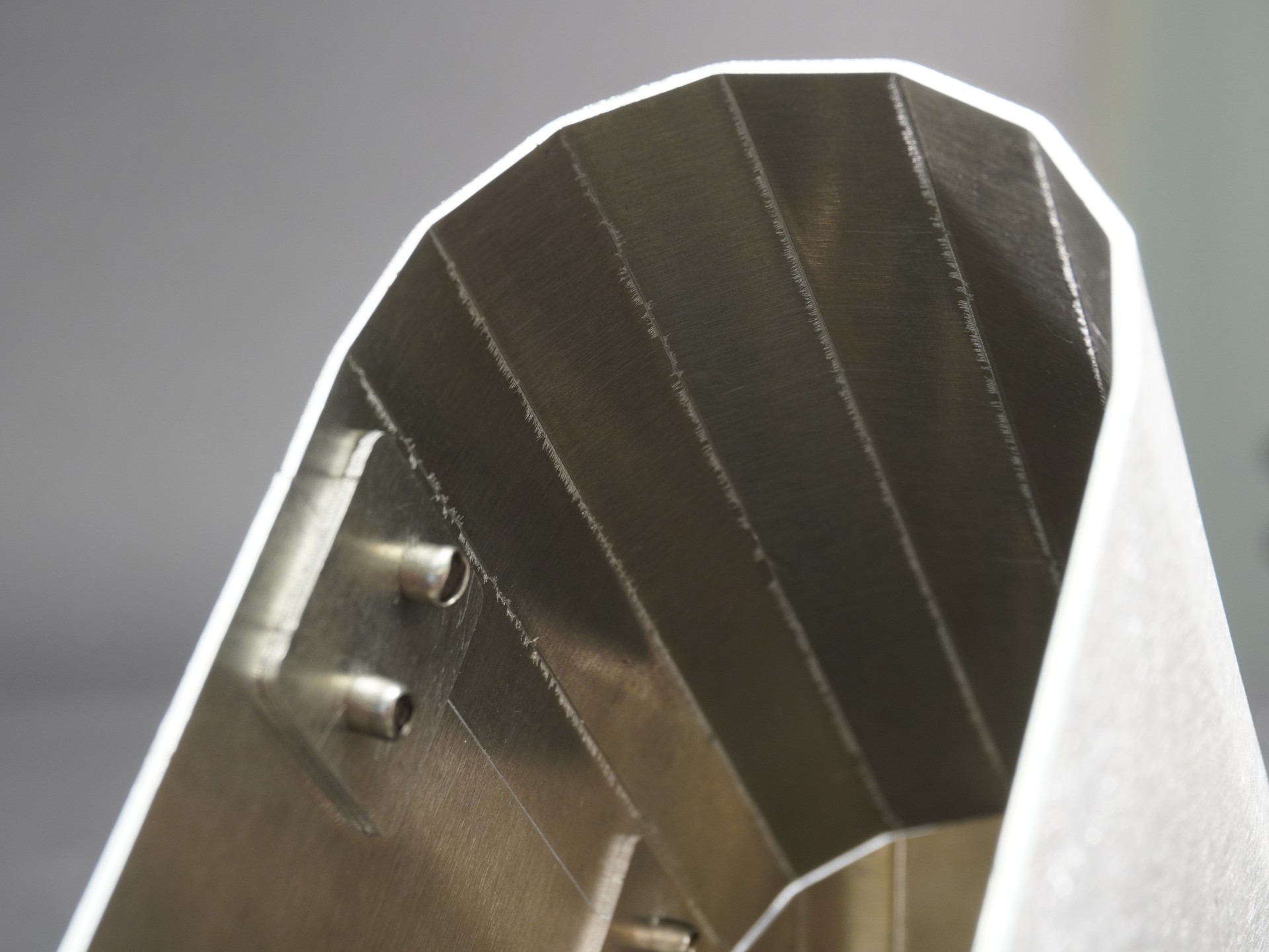

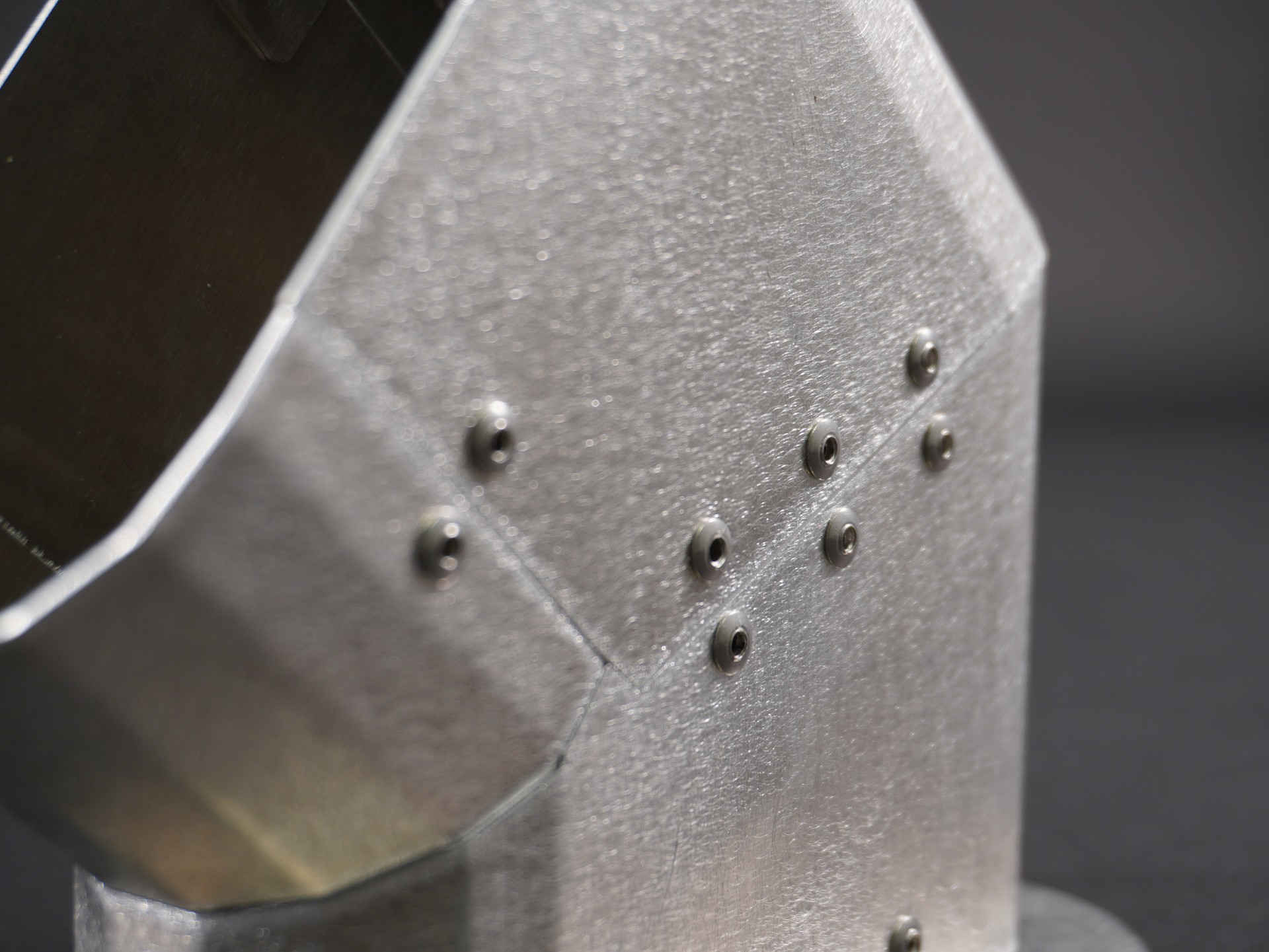

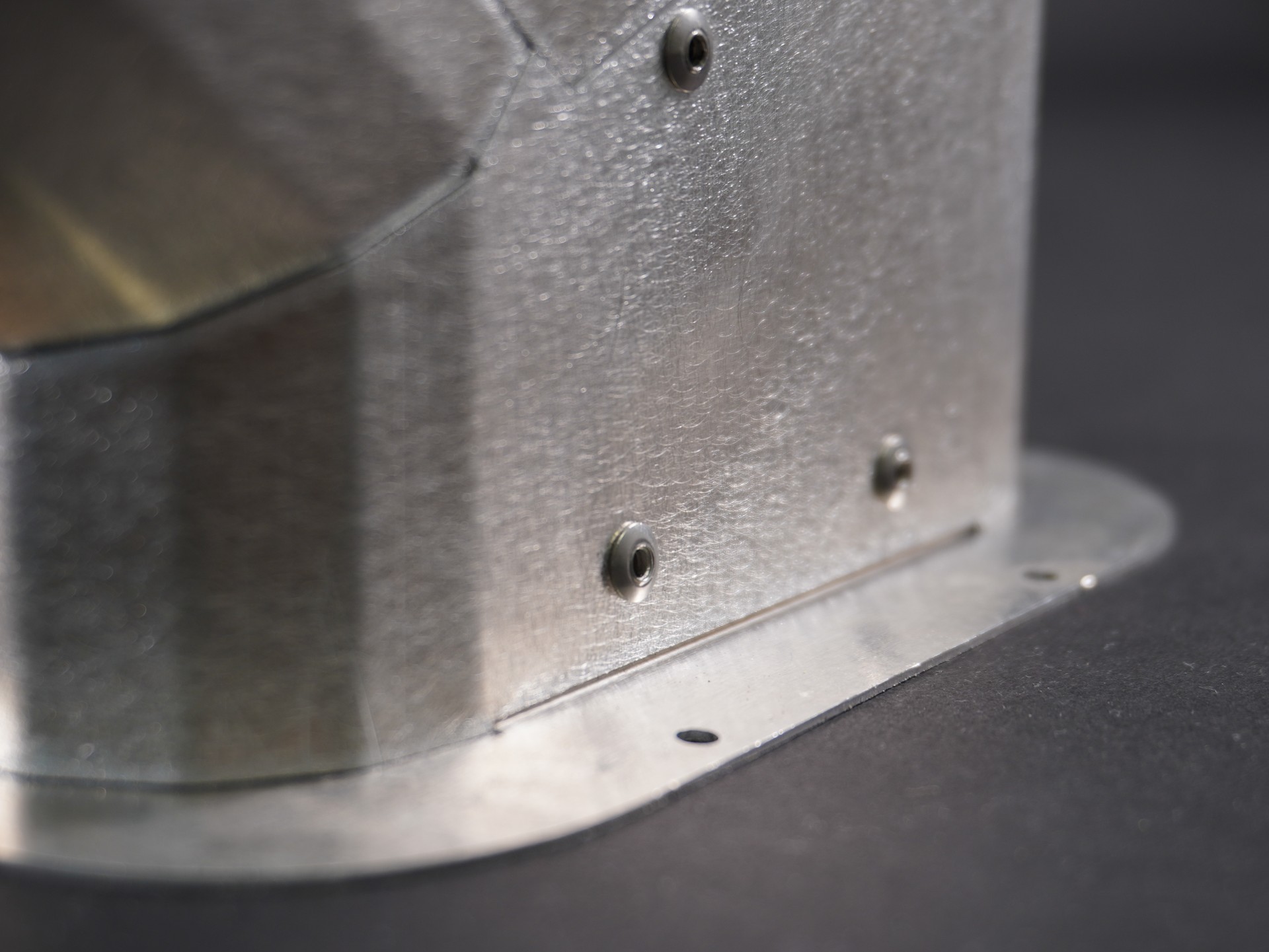

b) Precision in the folds to allow both perfect alignment of the riveting holes and of the various coupling surfaces of the parts in order to minimise the sealing operation performed by their customer.
a) Engineering of the object based on the customer's design, in which it was represented as a single object.
b) Precision in the folds to allow both perfect alignment of the riveting holes and of the various coupling surfaces of the parts in order to minimise the sealing operation performed by their customer.
