第38回優秀板金製品技能フェア
組立品の部 全55作品
組立207

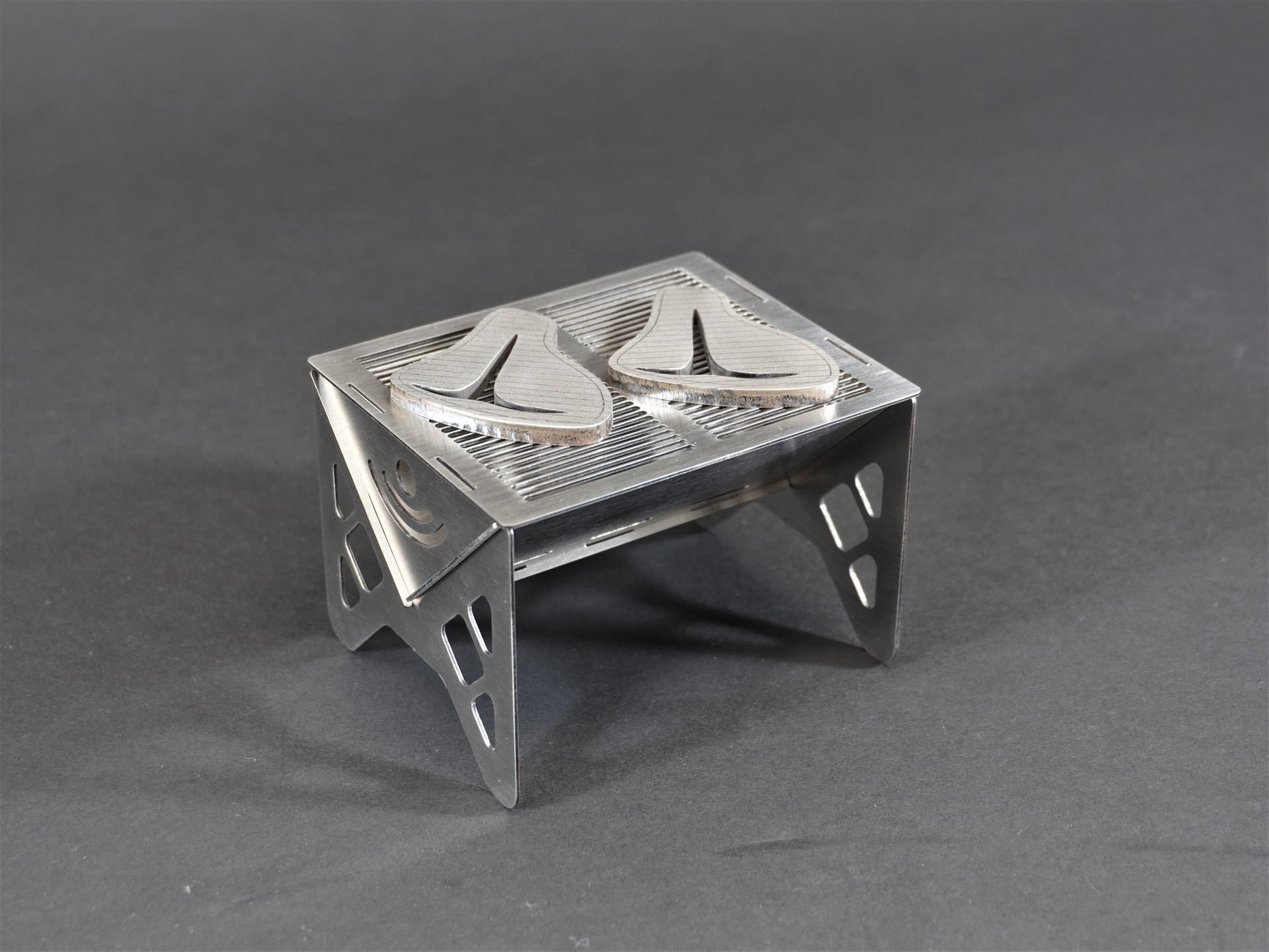

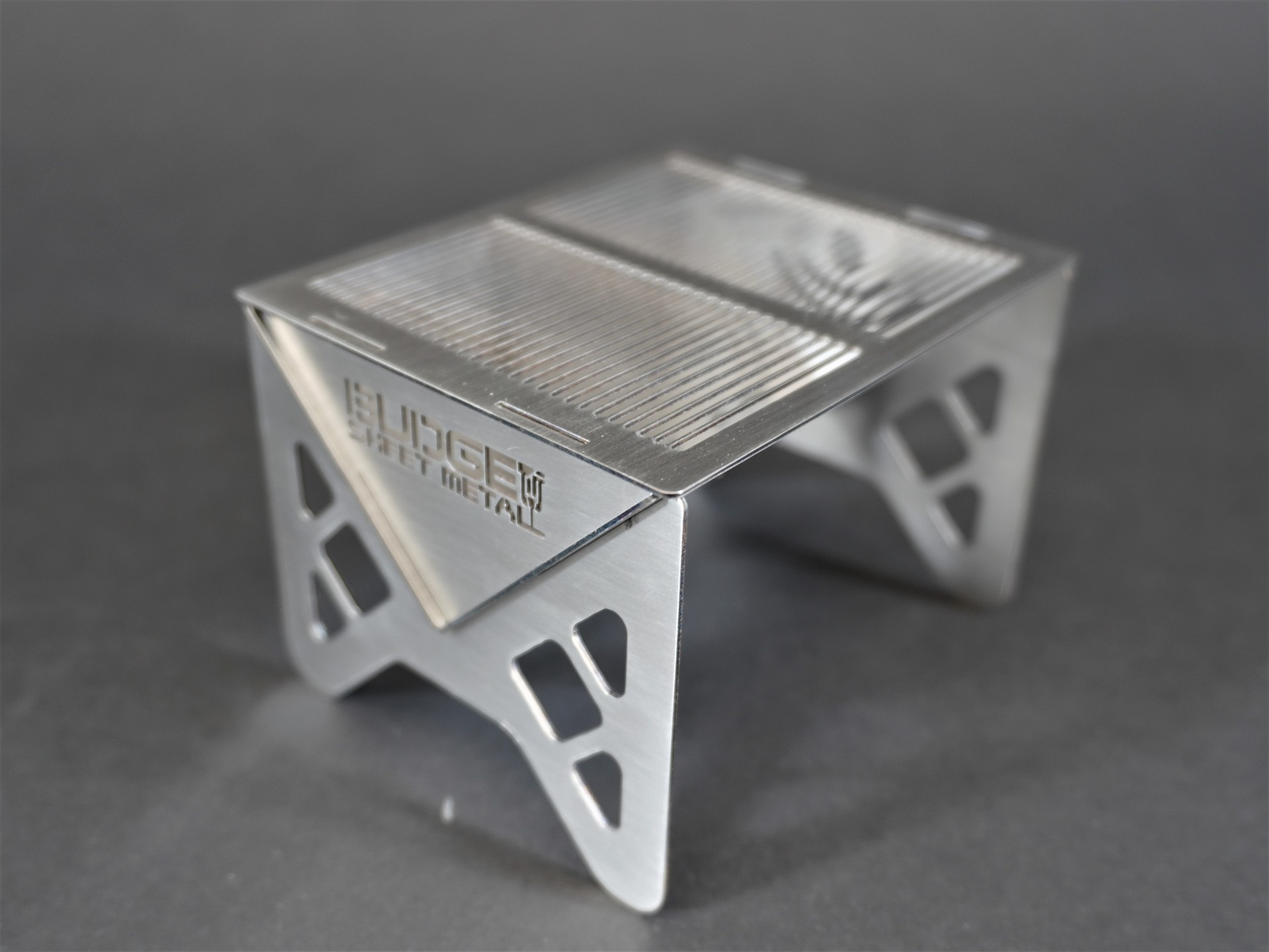

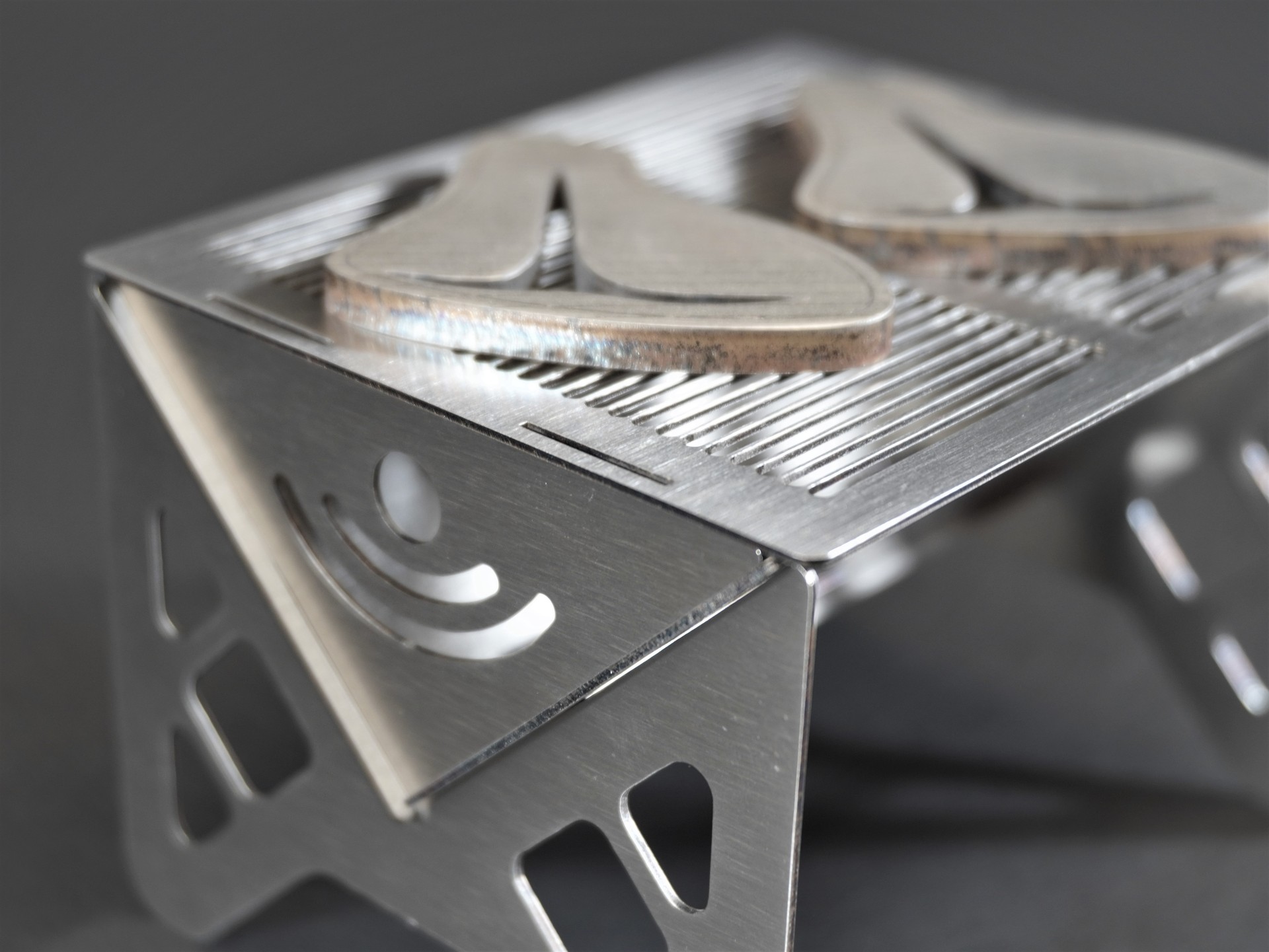

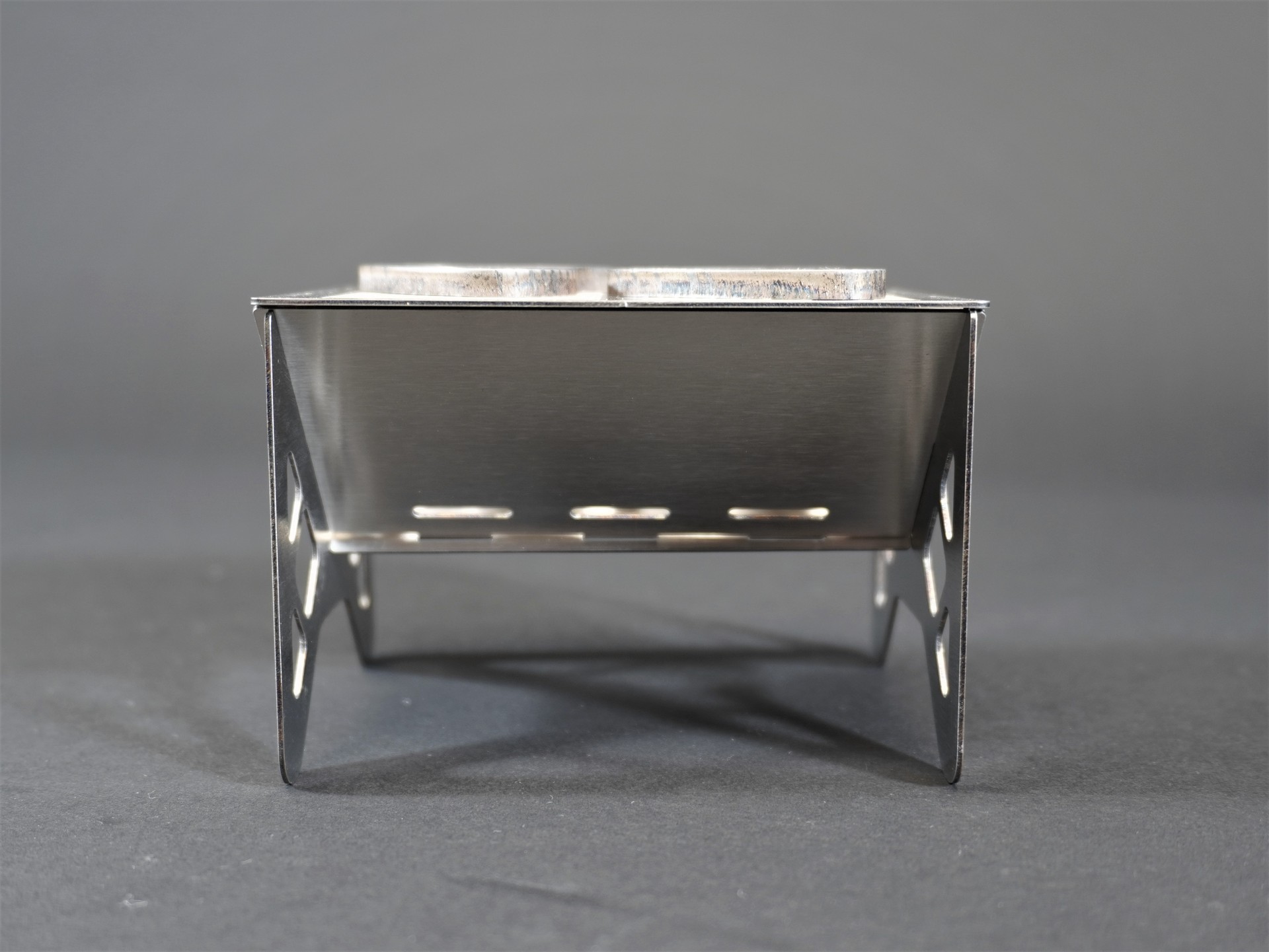

ブライ
-
・サイズ: W103 × D83.75 × H75.4 mm
-
・精度: ± 0.3mm mm
・プログラム時間: 60 分
-
・加工時間: 3.25 分／個
・加工数量: 1 個
-
・材質: ステンレス（SUS304）
-
・板厚: 0.9 and 4.5 mm
-
・作品種類: 試作品
加工工程
機構の考案
2D/3D設計
プログラム
レーザ加工
表面仕上げ
アピールポイント
-The design was made to show a customer what his prototype in big would look like, this prototype was drawn to a 1:4 scale from the real size.
-The original full size parts were reduced to scale.

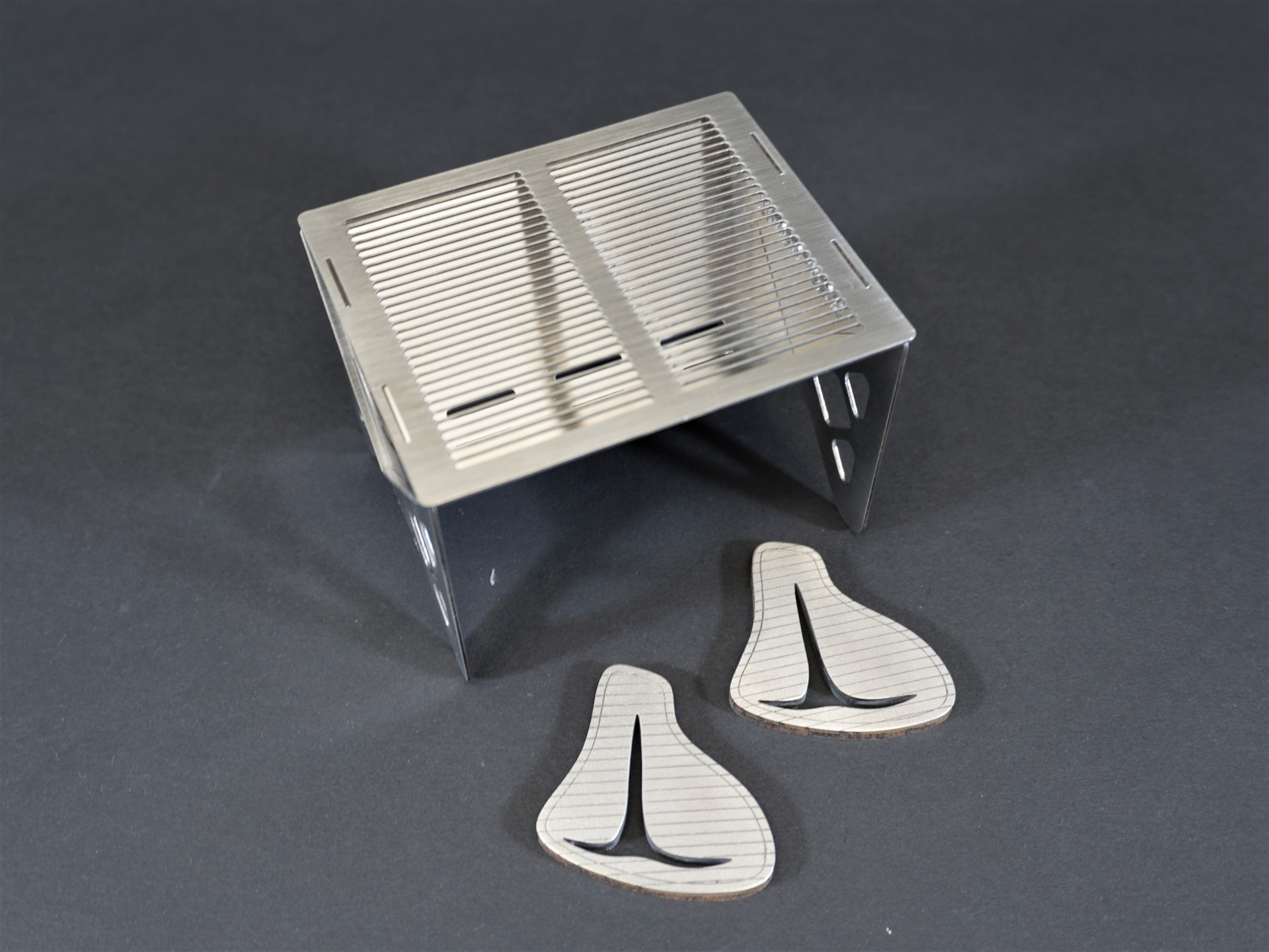

-The components are designed to slide into each other like a puzzle to make up the assembly.
-The prototype was cut on an Ensis 3015 AJ laser, using EZ gas with a 2mm nozzle
-See attached "Braai build instruction.mp4"
-The original full size parts were reduced to scale.
-The components are designed to slide into each other like a puzzle to make up the assembly.
-The prototype was cut on an Ensis 3015 AJ laser, using EZ gas with a 2mm nozzle
-See attached "Braai build instruction.mp4"
