Sheet Metal Processing

System Upgrade

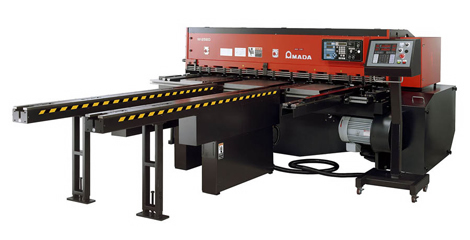

FGⅢ Series

FG3  Series

NC front gauge for near-side positioning of shearing process

Specifications



Sheet thickness
(mm)

Positioning accuracy
(mm)

Movement range
(mm)

Transfer speed
(m/min)

Attachable shear

FG-15Ⅲ

4.5(maximum 105kg/1pc)

±0.1

max: 1520 min: 120

Maximum 15

Table width 400,500mm

FG-16Ⅲ

max: 1620 min: 120

Table width 600,700mm

FG-20Ⅲ

max: 2120 min: 120

Supports all machine models

FG-25Ⅲ

max: 2620 min: 120

FG-30Ⅲ

max: 3120 min: 120

FG-40Ⅲ

max: 4120 min: 120

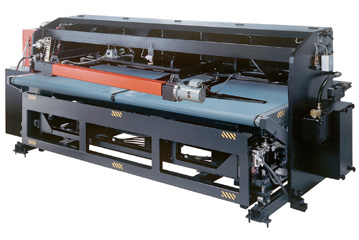

RSC Series

RSC Series

Compact and multifunctional return short conveyor

Specifications



Mode

Available return width
(mm)

Available support width
(mm)

Conveyor speed
(m/min)

RSC-12

Under, Support, Return, Discard

100~1000

100~1000

Max 70(variable)

RSC-20

RSC-25

RSC-30

RSC-40

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
