Sheet Metal Processing

System Upgrade

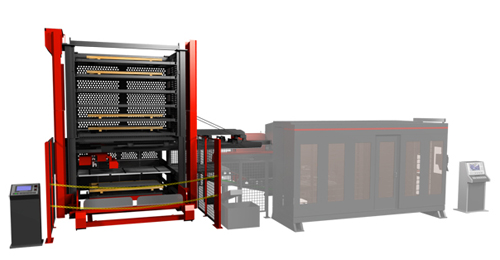

Cycle loader cell

Shelf-equipped materials supply and product discharge system for long-term automated continuous operation

	Material thickness (mm)	Maximum work size (mm)	Minimum work size (mm)	Sheet and work	No. of shelves
ASR-48M	Standard type: 0.4～3.2 Thick plate type: 0.4～6.0	2500×1250	500×200 with a brush table	Maximum mass of load: 2000kg/shelf Loading height: 260mm (skids height included)	4/ 6/ 8
ASR-510M	Standard type: 0.4～3.2 Thick plate type: 0.4～6.0	3050×1525	500×200 with a brush table		4/ 6/ 8

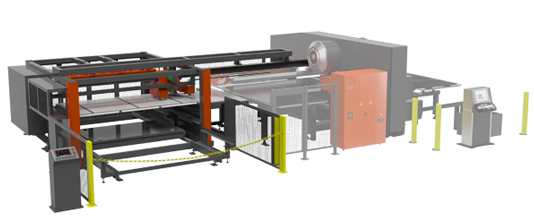

Materials supply and product discharge system for long-term automated continuous operation

	Material thickness (mm)	Maximum work size (mm)	Minimum work size (mm)	Sheet	Work
RMP-48M	Standard type: 0.4～3.2 Thick plate type: 0.4～6.0	2500×1250	500×200 with a brush table	Maximum mass of load: 2000kg/shelf Loading height: 260mm (including 100mm skid)	Maximum mass of load: 2000kg/shelf Loading height: 340mm (skids height included)
RMP-510M	Standard type: 0.4～3.2 Thick plate type: 0.4～6.0	3050×1525	500×200 with a brush table

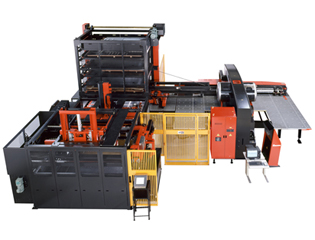

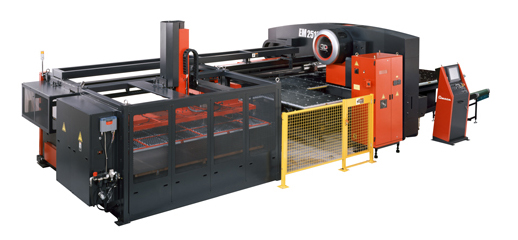

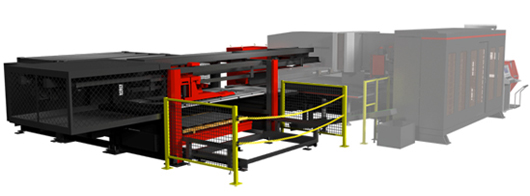

Long-term automated operation cell combining MJC unit with a cycle loader and rear manipulator

	Sheet thickness (mm)	Maximum work size (mm)	Minimum work size (mm)	MJC processing size (mm)	Outline cutting tool size (mm)
MJC ・4'X 8' specification ・Standard tooling specification	Fe: 0.6～3.2 SUS: 0.6～2.0 AL: 1.0～3.0	2500×1250	900×500 (AL1000×1000)	150×50～2460×1190	6×20
MJC ・5'X10' specification ・Standard tooling specification	Fe: 0.6～3.2 SUS: 0.6～2.0 AL: 1.0～3.0	3050×1525	900×500 (AL1000×1000)	150×50～3015×1460	6×20

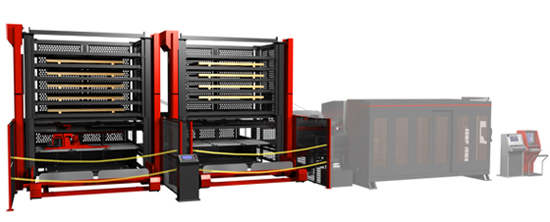

Rear shelving + shelving straight line system to support long-term operation

	Sheet thickness (mm)	Maximum work size (mm)	Minimum work size (mm)	Sheet	No. of shelves
AS-48RM	0.4～3.2	2500×1250	500×200 (when performing MJC operations 900×500)	Maximum mass of load: 2000kg/shelf Loading height: 260mm (including 100mm skid)	6

	Sheet thickness (mm)	Maximum unloading size (mm)	Minimum unloading size (mm)	Collecting	No. of shelves
ULS-48RM	0.4～3.2	2500×1250	500×200	Maximum mass of load: 2000kg/shelf Loading height: 260mm (including 100mm skid)	6

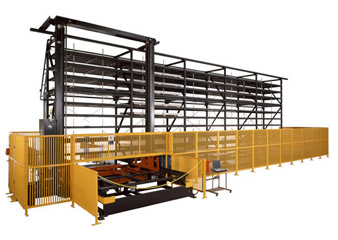

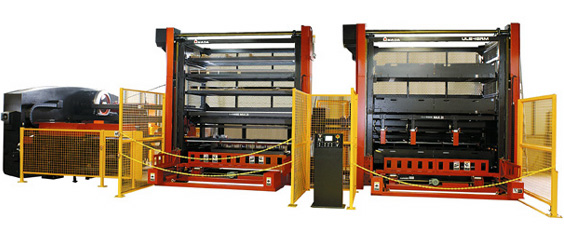

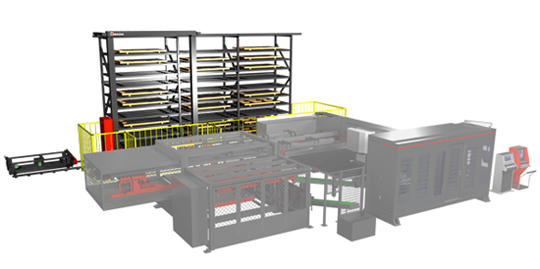

Automated warehouse for supporting around-the-clock operation

	Maximum work size (mm)	Sheet	Pallet size (mm)	Available configuration	Maximum speed (m/min)
MARS (Shelves) 48- (Columns) EX	2500×1250	Maximum mass of load: 2000kg/shelf Loading height: 260mm (including 100mm skid)	2600×1350 ×75	Columns: 6 to 12 Columns: 2 to 10 Rows: 1 or 2	Traverser (travel): 60 Lifter (up/down): 10 Tracker (travel): 10
MARS (Shelves) 510- (Columns) EX	3050×1525		3150×1650 ×100	Columns: 6 to 12 Columns: 2 to 10 Rows: 1 or 2

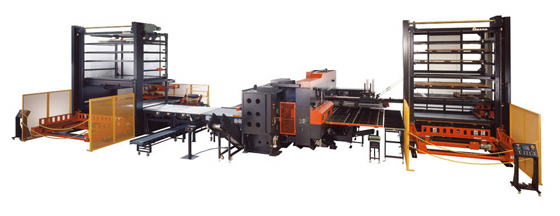

Specialized multi-machine system combining NCT + L shear

	Sheet thickness (mm)	Maximum work size (mm)	Minimum work size (mm)	Sheet
AS-651H	0.6～3.2	3050×1525	1000×350	Maximum mass of load: 2000kg/shelf Loading height: 260mm (including 100mm skid)

	Sheet thickness (mm)	Maximum semi-finished part size (mm)	Minimum semi-finished part size (mm)
SOC-510	0.6～3.2	1525×300	50×50

	Sheet thickness (mm)	Collecting method	Takeout method	Semi-finished part size (mm)	Semi-finished part load
ULS- 551TKA	0.6～3.2	Nesting collecting	Vacuum or Clamp	Vacuum: 250×100～3050×1525 Clamp: 300×50～3050×1525	Loading weight: 2000kg/shelf Loading height: 260mm (including 100mm skid)

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
