Sheet Metal Processing

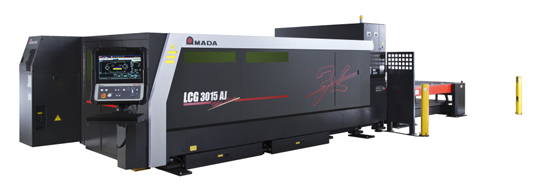

LCG-3015AJ

Global standard fiber laser machine

Energy conservation and high-speed processing are combined. An in-house made fiber laser and a latest drive mechanism are adopted.

LCG-3015

A low-center of gravity carriage and a latest drive mechanism are adopted to achieve the highest feed rate of the class.

The energy and maintenance savings characteristic of a fiber laser ensure cost reduction and processing range expansion.

■ Feature(1) : High-speed processing of thin to medium materials
A lightweighted carriage is adopted (30% less mass as compared with Amada's conventional laser machines).
The low center of gravity carriage allows for high-speed processing of thin materials.
The processing speed is increased with a high-torque motor and a helical rack.
■ Feature(2) : The fiber laser provides lost-cost cutting.
The efficiency of heat exchange with the laser is high and conducive to power cost savings.
No laser gases are required.
■ Feature(3) : The oscillator is built in the machine to achieve a small footprint.

Processing samples

Material: SUS / Thickness: 1.0mm

sample

Material: SECC / Thickness: 1.2mm

sample

Material: Brass / Thickness: 1mm

sample

Material: SPHC / Thickness: 4.5mm

sample

Specifications



Rapid feed rate(m/min)
X:Y:Z

Maximum processing size(mm)
X × Y × Z

Oscillator

LCG-3015AJ

120:120:80

3070×1550×100

AJ-2000
(rated output: 2kW)

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
