Sheet Metal Processing

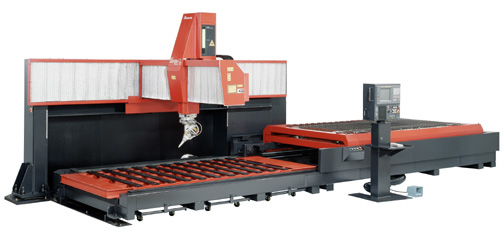

LC-θⅡ Series

Front open 3D Laser Machine

Processing samples

	Rapid feed rate (m/min) Ｘ：Ｙ：Ｚ	Maximum processing size (mm) Ｘ×Ｙ×Ｚ	Rotation axis range (°) Ｕ×Ｖ	Oscillator (selectable multiple loadings)	Maximum sheet thickness (mm)
LC-3015θⅡNT	80：80：55	3050×1530×500	-	AF4000E (rated output: 4kW)	SS: (Oxygen) 19.0(AF4000E) 25.0(AF6000E) SUS: (high pressure Nitrogen) 12.0(AF4000E) 20.0(AF6000E)
LC-6030θⅡNT	80：80：55	6100×3050×200	-	AF4000E (rated output: 4kW) AF6000E (rated output: 6kW)
LC-3015θⅡ (3D type)	80：80：60	3050×1530×700	±135×±370	AF4000E (rated output: 4kW)	SS: (Oxygen) 16.0(AF4000E) SUS: (high pressure Nitrogen) 8.0(AF4000E)

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
*Please inquire for details.
