Sheet Metal Processing

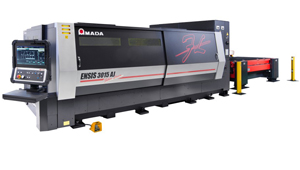

ENSIS-3015AJ

Fiber laser cutting machine

Energy saving, v-lot production, wide range fiber laser machine with process range expansion!

ENSIS-3015AJ

* “ENSIS” is the sword in Latin

ENSIS-3015AJ is equipped with AMADA’s own developed fiber laser oscillator and the latest unique beam control technology for maximizing energy efficiency, while supporting higher efficiency in v-mix v-lot production.

■ Feature(1): Thin-to-thick materials cutting with a single machine
The laser beam configuration is controlled using AMADA’s unique beam control technology. The Process Range Expansion to thick mild steel by 2kW oscillator. In addition, unlike conventional technologies, full range cutting capability without lens change.
■ Feature(2): Improvement of energy efficiency with energy-saving effects
The characteristic of fiber laser have enabled the reduction of power consumption during processing and stand-by, as well as a significant decrease in CO2 emissions.
■ Feature(3): Remarkably small footprint by oscillator downsizing and built in the machine
The oscillator has been downsized by 50% from previous versions, and is built into the machine for space saving.
■ Feature(4): Flexible layout
The free selection of unloading direction of the material (right or left) according to the factory layout.

Unloading to left


Unloading to right

■ Feature(5): Easy operation
The latest NC control AMNC 3i provides large screen with easy vision and operation with multi-touch method like smart phone, thus dramatically improving operability.

Processing samples

Material: SPC /
Thickness: 1.0mm

サンプル1

Material: SUS304 /
Thickness: 1.0mm(Film)

サンプル2

Material: SS400 /
Thickness: 19.0mm

サンプル3

Examples of system upgrades

Matching with various production requirement in Continuous automated operation.

サンプル1

■LST
(shuttle table)

サンプル2

■AS
(pallet changer)

サンプル3

■ASFH
(high-speed fork-type pallet changer)

サンプル4

■MPL
(manipulator for lasers)

サンプル5

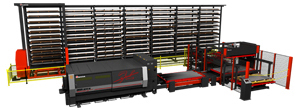

■MARS
(automated material storage and retrieval system)





Specifications



Rapid feed rate(m/min)
X : Y : Z

Maximum processing size(mm)
X × Y × Z

Oscillator

ENSIS-3015AJ

120:120:80

3070×1550×100

ENSIS-2000 (rated output: 2kW)

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
